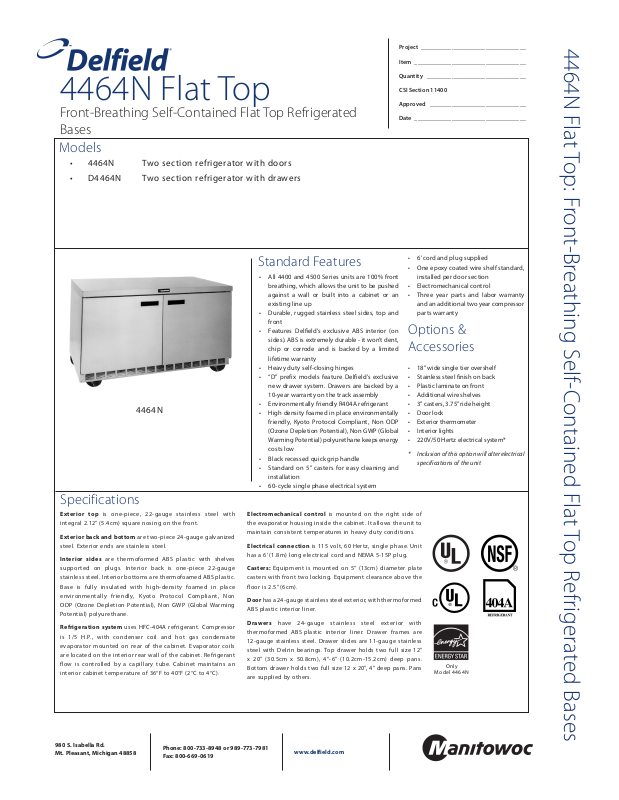

Delfield 4464N User Manual
4464N Flat Top
Front-Breathing Self-Contained Flat Top Refrigerated
Bases
Models
• 4464N Two section refrigerator with doors
• D4464N Two section refrigerator with drawers
Project __________________________________
Item ____________________________________
Quantity ________________________________
CSI Section 11400
Approved _______________________________
Date ____________________________________
4464N Flat Top: Front-Breathing Self-Contained Flat Top Refrigerated Bases
4464N
Specifications
Exterior top is one-piece, 22-gauge stainless steel with
integral 2.12” (5.4cm) square nosing on the front.
Exterior back and bottom are two-piece 24-gauge galvanized
steel. Exterior ends are stainless steel.
Interior sides are thermoformed ABS plastic with shelves
supported on plugs. Interior back is one-piece 22-gauge
stainless steel. Interior bottoms are thermofoamed ABS plastic.
Base is fully insulated with high-density foamed in place
environmentally friendly, Kyoto Protocol Compliant, Non
ODP (Ozone Depletion Potential), Non GWP (Global Warming
Potential) polyurethane.
Refrigeration system uses HFC-404A refrigerant. Compressor
is 1/5 H.P., with condenser coil and hot gas condensate
evaporator mounted on rear of the cabinet. Evaporator coils
are located on the interior rear wall of the cabinet. Refrigerant
flow is controlled by a capillary tube. Cabinet maintains an
interior cabinet temperature of 36°F to 40°F (2°C to 4°C).
Standard Features
• All 4400 and 4500 Series units are 100% front
breathing, which allows the unit to be pushed
against a wall or built into a cabinet or an
existing line up
• Durable, rugged stainless steel sides, top and
front
• Features Delfield’s exclusive ABS interior (on
sides). ABS is extremely durable - it won’t dent,
chip or corrode and is backed by a limited
lifetime warranty
• Heavy duty self-closing hinges
• “D” prefix models feature Delfield’s exclusive
new drawer system. Drawers are backed by a
10-year warranty on the track assembly
• Environmentally friendly R404A refrigerant
• High density foamed in place environmentally
friendly, Kyoto Protocol Compliant, Non ODP
(Ozone Depletion Potential), Non GWP (Global
Warming Potential) polyurethane keeps energy
costs low
• Black recessed quick grip handle
• Standard on 5” casters for easy cleaning and
installation
• 60-cycle single phase electrical system
Electromechanical control is mounted on the right side of
the evaporator housing inside the cabinet. It allows the unit to
maintain consistent temperatures in heavy duty conditions.
Electrical connection is 115 volt, 60 Hertz, single phase. Unit
has a 6’ (1.8m) long electrical cord and NEMA 5-15P plug.
Casters: Equipment is mounted on 5” (13cm) diameter plate
casters with front two locking. Equipment clearance above the
floor is 2.5” (6cm).
Door has a 24-gauge stainless steel exterior, with thermoformed
ABS plastic interior liner.
Drawers have 24-gauge stainless steel exterior with
thermoformed ABS plastic interior liner. Drawer frames are
12-gauge stainless steel. Drawer slides are 11-gauge stainless
steel with Delrin bearings. Top drawer holds two full size 12”
x 20” (30.5cm x 50.8cm), 4”-6" (10.2cm-15.2cm) deep pans.
Bottom drawer holds two full size 12 x 20", 4” deep pans. Pans
are supplied by others.
• 6’ cord and plug supplied
• One epoxy coated wire shelf standard,
installed per door section
• Electromechanical control
• Three year parts and labor warranty
and an additional two year compressor
parts warranty
Options &
Accessories
• 18” wide single tier overshelf
• Stainless steel finish on back
• Plastic laminate on front
• Additional wire shelves
• 3” casters, 3.75” ride height
• Door lock
• Exterior thermometer
• Interior lights
• 220V/50 Hertz electrical system*
* Inclusion of this option will alter electrical
specifications of the unit
Only
Model 4464N
980 S. Isabella Rd.
Mt. Pleasant, Michigan 48858
Phone: 800-733-8948 or 989-773-7981
Fax: 800-669-0619
www.delfield.com
1.21" [3.08]
CORD DIMENSIONS
1.95" [4.96]
NOSE OF UNIT
TO EDGE OF DRAWER
19.60" [49.77]
31.50" [80.01]
SHELF
ALT. SHELF
NOSE OF UNIT
TO EDGE OF DOOR
27.94" [71.00]
DOOR WIDTH DIMENSION
59.75" [151.80]
INTERIOR DIMENSION
30.66" [77.90]
64.13" [162.90]
21.94" [55.73]
26.86" [68.22]
20.75" [52.70]
6.11" [15.52]
7.53" [19.10]
12.98" [33.00]
17.35" [44.08]
23.79" [60.43]
NOSE OF UNIT
TO EDGE OF DOOR
27.94" [71.00]
DOOR WIDTH DIMENSION
59.75" [151.80]
INTERIOR DIMENSION
30.66" [77.90]
33.59" [85.31]
36" [91.44]
23.79" [60.43]
12.98" [33.00]
17.35" [44.08]
7.53" [19.10]
6.11" [15.52]
26.86" [68.22]
ALT. SHELF
SHELF
31.50" [80.01]
20.75" [52.70]
21.94" [55.73]
Front-Breathing Self-Contained Flat Top Refrigerated Bases
4464N Elevation View
27.94" [71.00]
DOOR WIDTH DIMENSION
59.75" [151.80]
INTERIOR DIMENSION
4464N ISO View
64.13" [162.90]
30.66" [77.90]
NOSE OF UNIT
TO EDGE OF DOOR
33.59" [85.31]
36" [91.44]
4464N Right Side View
D4464N ISO View
31.50" [80.01]
4.00" OR 6.00" DEEP PANS ON TOP
4.00" DEEP PANS ONLY ON BOTTOM
19.60" [49.77]
NOSE OF UNIT
TO EDGE OF DRAWER
4464N Flat Top
D4464N Elevation View D4464N Right Side View
INSTALLATION NOTE:
Refrigeration system is designed so that air will flow under the unit, through the compressor
area and out the front of the unit. Any restriction to this air flow path will void the warranties.
Specifications
Model
# of
Shelves
4464N 2 7.76ft
D4464N NA NA 21.60ft
Deleld reserves the right to make changes to the design or specications without prior notice.
980 S. Isabella Rd.
Mt. Pleasant, Michigan 48858
Shelf
Area
Phone: 800-733-8948 or 989-773-7981
Fax: 800-669-0619
www.delfield.com
Volume H.P. V/Hz/Ph Amps
2
21.60ft
3
1/5 115/60/1 3.9 5-15P 421lbs/191kg 2.83
3
1/5 115/60/1 3.9 5-15P 522lbs/237kg NA
Printed in the U.S.A.
DS4464N
03/13
Nema
Plug
Ship Weight
Energy
KWH/Day
