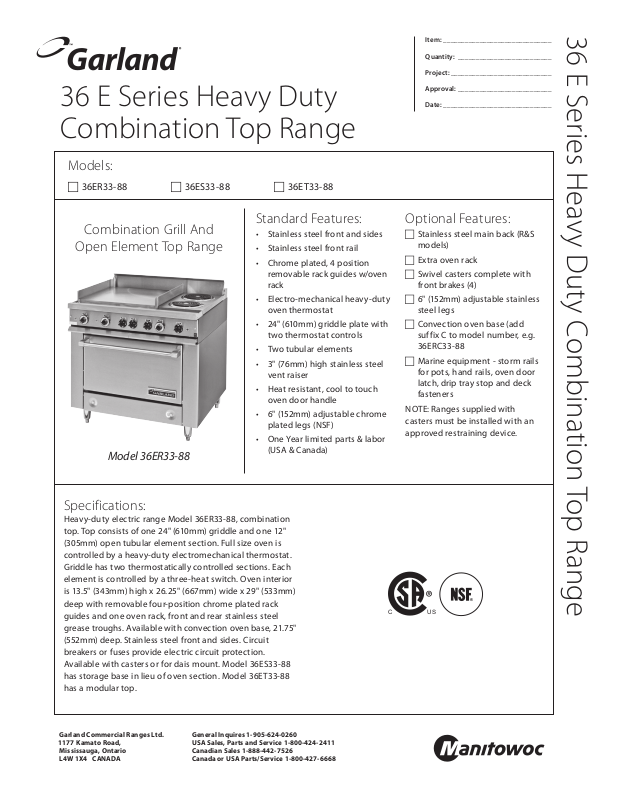

36 E Series Heavy Duty
Combination Top Range
Models:
36ER33-88 36ES33-88 36ET33-88
Item: ______________________________
Quantity: __________________________
Project: ____________________________
Approval: __________________________
Date: ______________________________
36 E Series Heavy Duty Combination Top Range
Standard Features:
Combination Grill And
Open Element Top Range
Model 36ER33-88
• Stainless steel front and sides
• Stainless steel front rail
• Chrome plated, 4 position
removable rack guides w/oven
rack
• Electro-mechanical heavy-duty
oven thermostat
• 24" (610mm) griddle plate with
two thermostat controls
• Two tubular elements
• 3" (76mm) high stainless steel
vent raiser
• Heat resistant, cool to touch
oven door handle
• 6" (152mm) adjustable chrome
plated legs (NSF)
• One Year limited parts & labor
(USA & Canada)
Specifications:
Heavy-duty electric range Model 36ER33-88, combination
top. Top consists of one 24" (610mm) griddle and one 12"
(305mm) open tubular element section. Full size oven is
controlled by a heavy-duty electromechanical thermostat.
Griddle has two thermostatically controlled sections. Each
element is controlled by a three-heat switch. Oven interior
is 13.5" (343mm) high x 26.25" (667mm) wide x 29" (533mm)
deep with removable four-position chrome plated rack
guides and one oven rack, front and rear stainless steel
grease troughs. Available with convection oven base, 21.75"
(552mm) deep. Stainless steel front and sides. Circuit
breakers or fuses provide electric circuit protection.
Available with casters or for dais mount. Model 36ES33-88
has storage base in lieu of oven section. Model 36ET33-88
has a modular top.
Optional Features:
Stainless steel main back (R&S
models)
Extra oven rack
Swivel casters complete with
front brakes (4)
6" (152mm) adjustable stainless
steel legs
Convection oven base (add
suffix C to model number, e.g.
36ERC33-88
Marine equipment - storm rails
for pots, hand rails, oven door
latch, drip tray stop and deck
fasteners
NOTE: Ranges supplied with
casters must be installed with an
approved restraining device.
®
C US
Garland Commercial Ranges Ltd.
1177 Kamato Road,
Mississauga, Ontario
L4W 1X4 CANADA
General Inquires 1-905-624-0260
USA Sales, Parts and Service 1-800-424-2411
Canadian Sales 1-888-442-7526
Canada or USA Parts/Service 1-800-427-6668
36 E Series Heavy Duty Combination Top Range
6"
[152mm]
36"
[914mm]
NOMINAL AMPERES PER LINE
SINGLE
PHASE
THREE PHASE
208V 240V
MODEL
TOTAL
kW
3-PHASE
kW PER PHASE
ALL VOLTAGES
X-Y Y-Z X-Z 208V 240V X Y Z X Y Z
36ER33-88 20.7 6.5 4.2 10 99 88 69 45 60 61 40 53
36ES/ET33-88 14.2 5 4.2 5 68 60 42 39 39 37 34 34
36ERC33-88 19.6 5 4.6 10 94.2 81.7 63 40 61 55 35 53
CLEARANCES
REAR
ELECTRICAL
INLET
6"
[152mm]
ENTRY
CRATED UNCRATED SIDES REAR*
41-1/4"
(1048mm)
36-1/4"
(921mm)
TO COMBUSTIBLE
WALL
3"
(76mm)
*Convection Oven base 2" (151mm)
24"
[610mm]
[914mm]
36"
24"
[610mm]
6"
[152mm]
NOTE: For ranges with convection oven(s), (models
with sux ‘RC’), air circulation is required for proper
operation of fan motors. These models must not be dais
mounted or installed with out legs.
Shipping Cubic Feet 51; Modular 20
Garland products are not approved or authorized for
home or residential use, but are intended for commercial applications only. Garland will not provide service,
warranty, maintenance or support of any kind other
than in commercial applications.
1/2"
(13mm)
15"
[381mm]
18"
[457mm]
30"
[762mm]
6"
[152mm]
36"
[914mm]
14-1/2"
[368mm]
[457mm]
33-3/4"
[857mm]
18"
63"
[1600mm]
With "DD"
Hi Shelf
Modular Top
12" [305mm]
31-3/8"
[797mm]
With STD.
Backguard
NOTE: Add 2" [51mm]
to depth for RC Models
