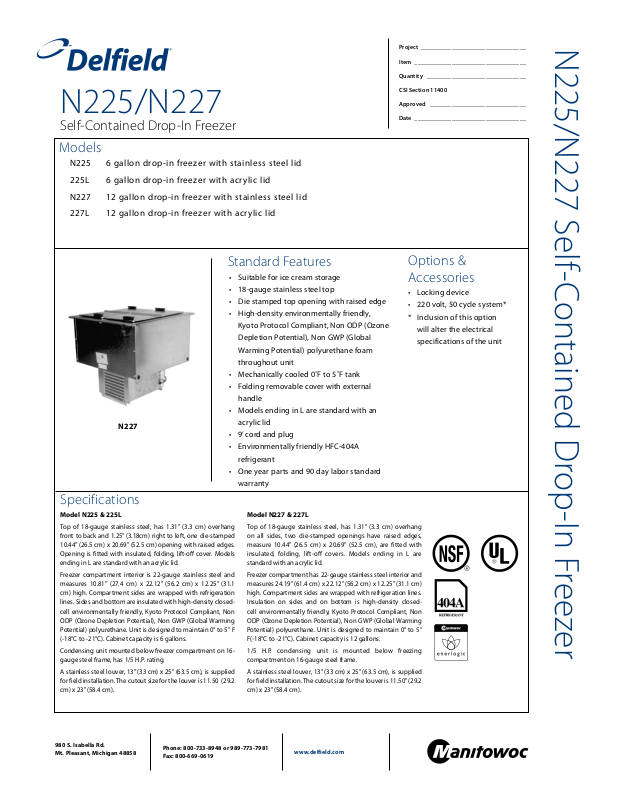

N225/N227 Self-Contained Drop-In Freezer

Standard Features

•

•

•

•

•

•

•

N227

•

•

•

Specifications

Model N225 & 225L

Top of 18-gauge stainless steel, has 1.31” (3.3 cm) overhang
front to back and 1.25” (3.18cm) right to left, one die-stamped

10.44” (26.5 cm) x 20.69” (52.5 cm) opening with raised edges.
Opening is fitted with insulated, folding, lift-off cover. Models
ending in L are standard with an acrylic lid.

Freezer compartment interior is 22-gauge stainless steel and
measures 10.81” (27.4 cm) x 22.12” (56.2 cm) x 12.25” (31.1
cm) high. Compartment sides are wrapped with refrigeration
lines. Sides and bottom are insulated with high-density closed­cell environmentally friendly, Kyoto Protocol Compliant, Non
ODP (Ozone Depletion Potential), Non GWP (Global Warming
Potential) polyurethane. Unit is designed to maintain 0° to 5° F
(-18°C to -21°C). Cabinet capacity is 6 gallons.

Condensing unit mounted below freezer compartment on 16­gauge steel frame, has 1/5 H.P. rating.

A stainless steel louver, 13” (33 cm) x 25” (63.5 cm), is supplied
for field installation. The cutout size for the louver is 11.50 (29.2
cm) x 23” (58.4 cm).

Suitable for ice cream storage

18-gauge stainless steel top

Die stamped top opening with raised edge

High-density environmentally friendly,

Kyoto Protocol Compliant, Non ODP (Ozone

Depletion Potential), Non GWP (Global

Warming Potential) polyurethane foam

throughout unit

Mechanically cooled 0˚F to 5˚F tank

Folding removable cover with external

handle

Models ending in L are standard with an

acrylic lid

9’ cord and plug

Environmentally friendly HFC-404A

refrigerant

One year parts and 90 day labor standard

warranty

Model N227 & 227L

Top of 18-gauge stainless steel, has 1.31” (3.3 cm) overhang
on all sides, two die-stamped openings have raised edges,
measure 10.44” (26.5 cm) x 20.69” (52.5 cm), are fitted with
insulated, folding, lift-off covers. Models ending in L are
standard with an acrylic lid.

Freezer compartment has 22-gauge stainless steel interior and
measures 24.19” (61.4 cm) x 22.12” (56.2 cm) x 12.25” (31.1 cm)
high. Compartment sides are wrapped with refrigeration lines.
Insulation on sides and on bottom is high-density closed­cell environmentally friendly, Kyoto Protocol Compliant, Non
ODP (Ozone Depletion Potential), Non GWP (Global Warming
Potential) polyurethane. Unit is designed to maintain 0° to 5°
F(-18°C to -21°C). Cabinet capacity is 12 gallons.

1/5 H.P. condensing unit is mounted below freezing
compartment on 16-gauge steel frame.

A stainless steel louver, 13” (33 cm) x 25” (63.5 cm), is supplied
for field installation. The cutout size for the louver is 11.50” (29.2
cm) x 23” (58.4 cm).

Options &
Accessories

Locking device

•

220 volt, 50 cycle system*

•

Inclusion of this option

*

will alter the electrical

specifications of the unit

980 S. I sabella Rd.
Mt. Pleasa nt, Michigan 4885 8

Phone: [phone] or 989 -773-7981
Fax: [phone]

www.delfield.co m

30.00"

(76.2 cm)

13.75"

(34.9 cm)

27.38"

(69.5 cm)

24.19"

(61.4 cm)

25.31"

(64.3 cm)

17.75"

(45.1 cm)

15.56"

(39.5 cm)

11.25"

(28.6 cm)

26.81"

(68.1 cm)

13.81"

(35.1 cm)

23.31"

(60.1 cm)

27.87"

(70.8 cm)

11.75"

(29.8 cm)

16.56"

(42.1 cm)

13.93"

(38.4 cm)

22.12"

(56.2 cm)

25.25"

(64.1 cm)

10.81"

(27.4 cm)

26.81"

(68.1 cm)

13.81"

(35.1 cm)

15.56"

(39.5 cm)

11.25"

(28.6 cm)

23.31"

(60.1 cm)

27.87"

(70.8 cm)

22.12"

(56.2 cm)

11.75"

(29.8 cm)

15.56"

(39.5 cm)

11.25"

(28.6 cm)

17.75"

(45.1 cm)

26.81"

(68.1 cm)

26.81"

(68.1 cm)

13.93"

(38.4 cm)

15.56"

(39.5 cm)

11.25"

(28.6 cm)

13.75"

(34.9 cm)

Plan View N225 & 225L

End View N225 & 225L

Elevation N225 & 225L

Plan View N227 & 227L

End View N227 & 227L

Elevation N227 & 227L

25.75"

(65.4 cm)

14.62"
(37.1 cm)

25.75"

(65.4 cm)

28.00"
(71.1 cm)

N225 & 225L

Cutout Dimensions

N227 & 227L

Cutout Dimensions

Self -Contai ned Drop-In Freezer

N225/N227

Specifications

Mode l Capaci ty H.P. Amps V/Hz/Ph Nema Plug Ship Weig ht KWH

N225 & 225L 6 Ga llons 1/5 5.3 115/60/1 5-15P 11 5lbs/52kg 1.82

N227 & 227L 12 G allons 1/5 5.3 115/60/1 5-15P 191lbs/87kg 2.26
