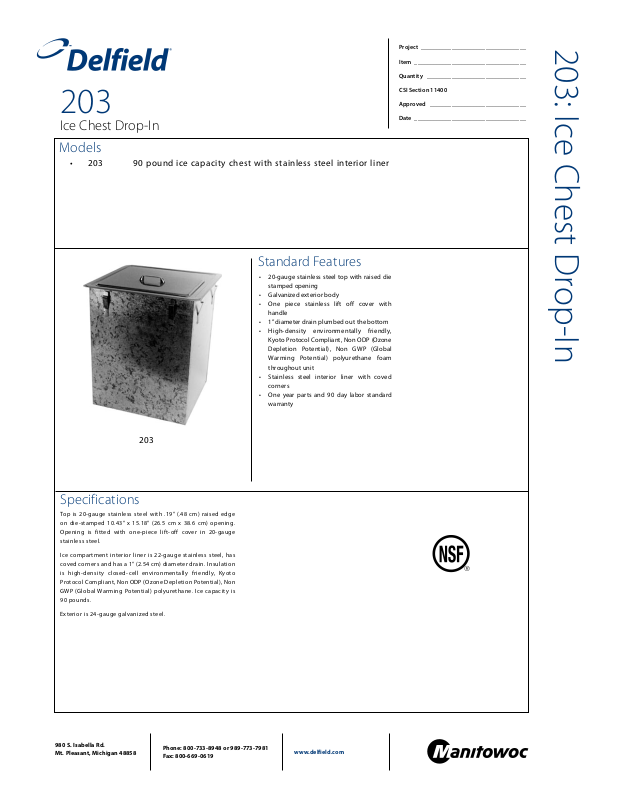

Delfield 203 User Manual

203
Ice Chest Drop-In
Models
203 90 pound ice capacit y ch est with s tainless steel interior lin er
Standard Features
20-gauge stainless steel top with rai sed die
• stamped o pening Galvanized exterior body
• One piece stainless lift off cover with
• handle 1” diameter drain plumbed out the bottom
• High-d ensity envi ronment ally friend ly,
• Kyoto Protocol Compliant, Non ODP (Ozone Deple tion Potentia l), Non GWP (Globa l Warmin g Potential) polyu rethane foam throughout unit Stainl ess ste el inte rior liner with coved
• corners One year parts and 90 day labor standard
• warranty
Project ___ ____________________ ___________
Item _________________ ___________________
Quantity _________________ _______________
CSI Sec tion 11400
Approved ____________ ___________________
Date ____ _____________________ ___________
203: Ice Chest Drop-In
203
Specifications
Top is 20 -gau ge sta inles s stee l w ith .1 9” ( .48 cm) r aised e dge
on di e-s tampe d 10.4 3” x 1 5.18 ” (26. 5 cm x 38. 6 cm) ope ning .
sta inle ss s teel .
Ice co mpar tmen t i nteri or line r i s 2 2-ga uge stai nles s s teel, ha s
cov ed co rner s and has a 1” ( 2.54 cm) diam eter drai n. In sula tion
is h igh- dens ity c lose d-ce ll e nvir onme ntal ly f rien dly, Ky oto
GWP (G loba l Wa rmin g P otent ial) po lyur ethan e. Ice cap acit y is
90 poun ds.
Ex terio r is 24 -gau ge g alva nized ste el.
980 S. I sabella Rd. Mt. Pleasa nt, Michigan 4885 8
Phone: 800 -733-8948 or 989 -773-7981 Fax: 800-669-0 619
www.delfield.co m
18.18"
(46.2 cm)
15.81"
(40.2 cm)
5.25"
(13.3 cm)
20.43"
(51.9 cm)
16.42"
(41.7 cm)
11.87"
(30.2 cm)
3.25"
(8.26 cm)
15.81"
(40.2 cm)
1" I.P.S.
(2.54 cm)
20.43"
(51.9 cm)
16.43"
(41.7 cm)
11.87"
(30.2 cm)
20.43"
(51.9 cm)
23.25"
(59 cm)
21.68"
(55 cm)
19.25"
(48.9 cm)
19.25"
(48.9 cm)
203 Cutout Dimensions203 Plan View
203 Side View
203 Elevation View
1" I.P.S.
(2.54 cm)
Drain Connection
Ice Chest D rop -In
203
Deleld reserves the right to make changes to the design or specications without prior notice.
980 S. I sabella Rd. Mt. Pleasa nt, Michigan 4885 8
Phone: 800 -733-8948 or 989 -773-7981 Fax: 800-669-0 619 www.delfield.co m
Specifications
Model Storage Capacity Ship Weight
203 90 lbs 52lbs (24kg)
Printed in the U.S.A. DS203 10/09
