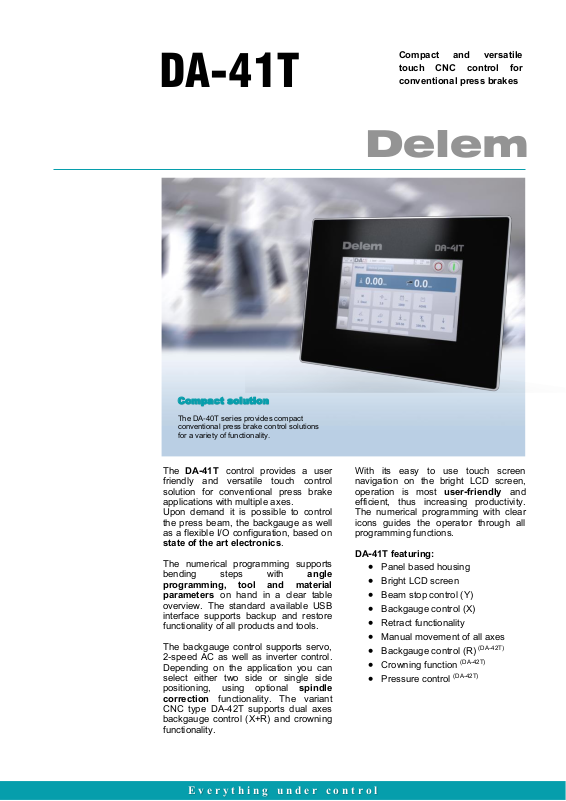

DA-41T

Compact and versatile
touch CNC control for

conventional press brakes

The DA-41T control provides a user

friendly and versatile touch control
solution for conventional press brake

applications with multiple axes.

Upon demand it is possible to control
the press beam, the backgauge as well
as a flexible I/O configuration, based on

state of the art electronics.

The numerical programming supports
bending steps with angle

programming, tool and material
parameters on hand in a clear table

overview. The standard available USB
interface supports backup and restore

functionality of all products and tools.

The backgauge control supports servo,

2-speed AC as well as inverter control.

Depending on the application you can
select either two side or single side
positioning, using optional spindle
correction functionality. The variant

CNC type DA-42T supports dual axes

backgauge control (X+R) and crowning

functionality.

With its easy to use touch screen
navigation on the bright LCD screen,

operation is most user-friendly and

efficient, thus increasing productivity.
The numerical programming with clear
icons guides the operator through all

programming functions.

DA-41T featuring:

• Panel based housing

• Bright LCD screen

• Beam stop control (Y)

• Backgauge control (X)

• Retract functionality

• Manual movement of all axes

• Backgauge control (R)

(DA-42T)

• Crowning function

(DA-42T)

• Pressure control

(DA-42T)

Compact solution

The DA-40T series provides compact

conventional press brake control solutions

for a variety of functionality.

Product configuration

Standard

- Colour LCD display

- 7“ widescreen TFT

- LED backlight

- Program memory of 100 programs

- 25 steps per program

- Tool library

Optional

- Offline software, Profile-41T

Ordering information

- DA-41T, compact touch CNC for
conventional press brakes Y-X

- DA-42T, compact touch CNC for
conventional press brakes Y-X-R­Crowning

Technical specification

General

- Program library

- Millimeters / Inch selection

- Ton / kN selection

- Power-down memorization

- Machine hour counter

- Stroke counter

Axes

- Beam stop control Y

- Backgauge control X

- Backgauge control R

(DA-42T)

- Crowning control

(DA-42T)

- Crowning hydraulic as well
mechanical control

- Pressure control

(DA-42T)

- Stroke X : 0 – 9,999.99 mm

- Retract X : 0 – 9,999.99 mm

- Correction -99.99 – 99.99 mm

- Manual movement of axes

Digital Inputs / Outputs

- Flexible I/O configuration

- 8 inputs / 12 outputs

- 12 inputs / 20 outputs

(DA-42T)

Programming functions

- Numerical program setup

- Angle programming

- Angle correction

- Bending length

- Tool programming

- Backgauge position X

- Retract function

- Y-opening

- Y-axis correction

- Step repetition

- Material types / properties

- Material thickness

- Stock counter

- Programmable timer functions:

○ Decompression
○ Retract
○ Dwell time

- Axis speed

- Backgauge position R

(DA-42T)

Computed functions

- Bending position

- Bending force

- Crowning compensation

(DA-42T)

- Backgauge safety zone

Integrated functions

- Diagnostic mode

- Service mode

- Backup and updates via USB

Electrical / interfacing

- Power supply 24V

- Opto-isolated digital I/O

- Encoder inputs 5V/12V

- Max. encoder frequency 1 MHz

- USB port

Axis control

- +/-10V for servo control

- 1- or 2-speed control for AC motors

- Frequency inverter control

Housing

- Panel based housing

- Dimensions 186 x 252 x 45 mm

Miscellaneous

- Operator selectable dialogue
languages

- Optional offline software
