Dee Zee DZ6060 User Manual

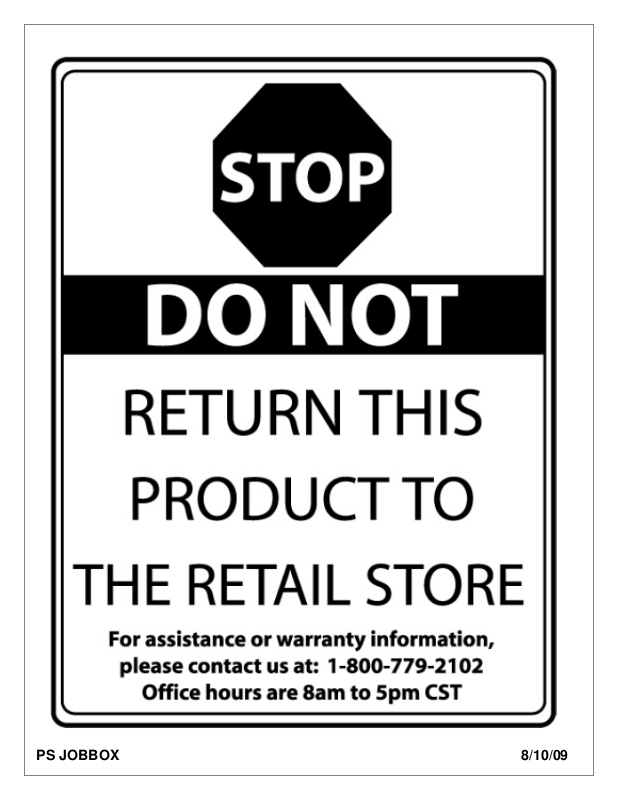

Page 1
Page 1 of 6
PS JOBBOX 8/10/09
Page 2
Dee Zee Job Box Installation Instructions
Congratulations on your purchase of a quality Dee Zee product. Dee Zee is
recognized as having the highest quality running boards and accessories on the
market today. We have earned this reputation by offering our customers a product they can be proud to place on their vehicles. Dee Zee meets all the criteria of manufacturing a custom-fit product which guarantees it to be the
easiest product to install.
Note: Please take time to read all of the instructions before beginning this installation.
RECOMMENDATION:
Do not put fuels, flammables, explosives, or hazardous materials inside this product.
Gasoline, solvents, gun powder or other munitions, dynamite, propane, acetylene, or other such products
can explode if stored inside this product.
Use these products only for storing and transporting electric or hand tools and equipment, and other similar materials.
Failure to follow these warnings or modifications or other uses of this product could result in death, serious injury or property damage.
Keep hands clear when closing the lid. Failure to do so could result in severe injury.
If you should happen to have any questions with this product or you have an installation
question, please feel free to call us at:
1-800-779-8222
If you would like to find out more information on Dee Zee’s products, please feel free to visit
our website at:
WWW.DEEZEE.COM
Page 2 of 6
PS JOBBOX 8/10/09
Page 3
DZ 6036 / DZ 6048 / DZ 6060
E
D F
B
C
X1
Ratchet or Wrench
A
G
Job Box
Job Box
VARIOUS
3/8” Square Neck Carriage Bolt
PN 317
Padlock Shackle
B 1771 TB85629
3/8” Flat Washer
X2
X2 X2
PN 113
v
Lid Handle
X1
3/8” Nut
PN 90B X2
3/8” Lock Washer
Tools Required
9/16”
Page 3 of 6
PS JOBBOX 8/10/09
Page 4
1
Your job box is designed to work with Masterlock No. 5 or American Lock No. 50 padlocks (not included). If you are using a lock other than those specified above, the lock needs to fit the following specification:
Slide the padlock shackle into the round hole in Item (B). Insert the padlock into the opening at the corner of the lid bracket first.
B
Page 4 of 6
PS JOBBOX 8/10/09
Page 5
2
D G
Attach the bracket to the mounting location using a square neck carriage bolt, washer, lock washer, and nut. Tighten the nut using a 9/16” wrench or ratchet. Close the lid of the job box and engage the pad lock. If the lock position is not correct, open the lid, loosen the nut and slide the bracket forward or backwards as necessary. Tighten the nut and recheck the lock position.
E
TAB SHOULD BE
TOWARDS LID
F
Once the padlock engages and locks the job box, repeat the padlock installation on the other end.
Page 5 of 6
PS JOBBOX 8/10/09
Page 6
3
Align the handle (Item C) with the rectangular holes in the middle of the lid. Press the handle into place using a rubber mallet if necessary.
C
Page 6 of 6
PS JOBBOX 8/10/09
