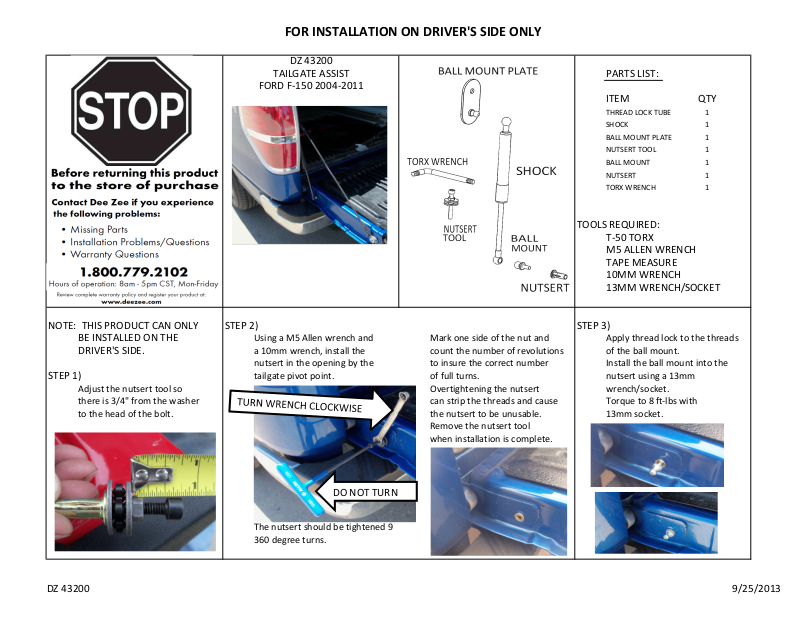

Page 1
FOR INSTALLATION ON DRIVER'S SIDE ONLY
PARTS LIST:
ITEM
QTY
TOOLS REQUIRED:
T-50 TORX
M5 ALLEN WRENCH
TAPE MEASURE
10MM WRENCH
13MM WRENCH/SOCKET
NOTE: THIS PRODUCT CAN ONLY
STEP 2)
STEP 3)
BE INSTALLED ON THE
Using a M5 Allen wrench and
Mark one side of the nut and
Apply thread lock to the threads
DRIVER'S SIDE.
a 10mm wrench, install the
count the number of revolutions
of the ball mount.
nutsert in the opening by the
to insure the correct number
Install the ball mount into the
STEP 1)
tailgate pivot point.
of full turns.
nutsert using a 13mm
Adjust the nutsert tool so
Overtightening the nutsert
wrench/socket.
there is 3/4" from the washer
can strip the threads and cause
Torque to 8 ft-lbs with
to the head of the bolt.
the nutsert to be unusable.
13mm socket.
Remove the nutsert tool
when installation is complete.
The nutsert should be tightened 9
360 degree turns.
DZ 43200
TAILGATE ASSIST
FORD F-150 2004-2011
THREAD LOCK TUBE 1
SHOCK 1
BALL MOUNT PLATE 1
NUTSERT TOOL 1
BALL MOUNT 1
NUTSERT 1
TORX WRENCH 1
DZ 43200 9/25/2013
DO NOT TURN
Page 2
FOR INSTALLATION ON DRIVER'S SIDE ONLY
STEP 4)
STEP 5)
STEP 6)
STEP 7)
Use a T50 torx socket or the
Install the bolt removed from
Install the cable back onto
Install the narrow end of the
wrench provided to remove the
the previous step through the
the cable bolt, and the
shock on the ball mount
cable bolt. Remove the tailgate
hole in the ball mount plate back
larger part of the shock
previously installed.
cable from the bolt.
into the hole.
on the ball mount.
Tighten the bolt with the T50.
DZ 43200 9/25/2013
