Dee Zee DZ501235 User Manual

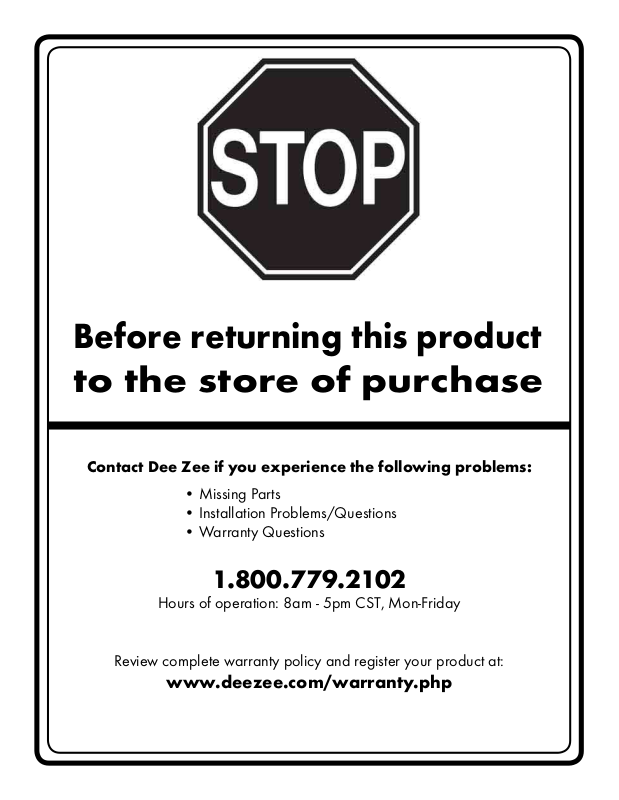

Page 1
Before returning this product to the store of purchase
Contact Dee Zee if you experience the following problems:
•MissingParts  •InstallationProblems/Questions  •WarrantyQuestions
1.800.779.2102
Reviewcompletewarrantypolicyandregisteryourproductat:
www.deezee.com/warranty.php
Page 2
4
INSTALLATION INSTRUCTIONS
GRILLE GUARD DZ 50123x
02-05 DODGE RAM 1500
03-05 RAM 2500-3500
Page 3
GRILLE GUARD
02-05 DODGE RAM 1500
03-05 RAM 2500-3500
PARTS LIST:
Qty Description Qty Description
1 Grille Guard 6 12-1.75mm Nylon Lock Nuts 1 Driver/Left Frame Mounting Bracket 8 10-1.5mm x 40mm Hex Bolts (Gr 10.9)
1 Passenger/Right Frame Mounting Bracket 8 10mm x 30mm OD x 2.5mm Flat Washers 6 12-1.75mm x 35mm Hex Bolts 8 10mm Nylon Lock Nuts
12 12mm x 24mm OD x 2.5mm Flat Washers
Passenger side Frame Mounting Bracket
Driver side Frame Mounting Bracket
PROCEDURE:
Complete Installation
1. REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. ASSISTANCE IS RECOMMENDED. FACTORY TOW HOOKS (IF EQUIPPED) CANNOT BE RE-INSTALLED WITH THIS GRILLE GUARD. CUTTING MAY BE REQUIRED, (OPTIONAL).
2. Determine the correct step for your application:
On 1500 Models (and 25-3500 models without factory tow hooks).
Remove the plastic cover in the center of the bumper below the grill, (Figure 1 & 2). NOTE: From behind the bumper, push the plastic center pin down to release the 2-
piece clips. Do not pry up on the head of the clip. Take care to avoid damage to the clips and/or plastic cover. Select the driver and passenger side Frame Mounting Brackets. On 1500 models, use (6) 10mm x 40mm Hex Bolts, (12) 10mm Flat Washers and (6) 10mm Nylon Lock Nuts, (Figure 3). On 25-3500 models, use (8) 10mm x 40mm Hex Bolts, (16) 10mm Flat Washers and (8) 10mm Nylon Lock Nuts. Do not tighten hardware at this time.
On 25-3500 Models (with factory tow hooks).
Remove the tow hooks, (Figure 4 & 5). NOTE: The tow hooks will not be re-installed. Use the factory hardware and (16) Flat Washers to bolt the Frame Mounting Brackets to the frame, (Figure 6). IMPORTANT: Due to the width of the slots in the Mounting Brackets, you must use the 10mm Flat Washers between the hex bolts and the Mounting Brackets, (Figure 7). Do not tighten hardware at this time.
3. With assistance, lift the Grille Guard up to the vehicle and line up the holes in the Frame Mounting Brackets with the uprights on the Grille Guard. Insert (6) 12-1.75mm x 35mm Hex Head Bolts, (12) 12mm 24mm OD x 2.5mm Flat Washers and (6)12mm Nylon Lock Nuts, (Figure 7). IMPORTANT: Slowly close the hood to check for clearance and fit of the Grille Guard and brackets. Adjust as necessary then snug but do not tighten all of the hardware.
Page 1 of 3 8/24/09 (DP)
Page 4
GRILLE GUARD
02-05 DODGE RAM 1500
03-05 RAM 2500-3500
4. Stand back from the vehicle and check to see that the Grille Guard is centered and level on the vehicle and adjust as necessary. IMPORTANT: Once properly aligned, tighten all hardware.
5. Do periodic inspections of the installation to make sure that all hardware is secure and tight.
6. Optional: If the vehicle was not equipped with tow hooks and you removed the plastic cover
detailed in Step 2, it may be reinstalled once the Grille Guard is properly adjusted. Trim equal amounts from each end until the cover fits between the Frame Mounting Brackets. Line up the mounting holes and secure the cover with the factory 2-piece plastic clips by pushing the outer socket into place then inserting the center pin.
To protect your investment, wax this product after installing. Regular waxing is recommended to add a protective layer over the finish. Do not use any type of polish or wax that may contain abrasives that could damage the finish. For stainless steel: Aluminum polish may be used to polish small scratches and scuffs on the finish. Mild soap may be used also to clean the Grille Guard. For gloss black finishes: Mild soap may be used to clean the Grille Guard.
Ram 1500 Series Driver Side Installation Pictured
Fig 1 Fig 2
Remove plastic cover to access mounting locations
1500 series Driver Side Pictured
1500 series-use these mounting holes
10mm x 40mm Hex Bolts 10mm Flat Washers 10mm Nylon Lock Nuts
(Fig 3A) Driver Side Pictured
Fig 3B
Page 2 of 3 8/24/09 (DP)
Page 5
Ram 25-3500 Series Driver Side Installation Pictured
Remove factory tow hook if equipped. Do not discard hardware. Tow hooks will not be re-installed
Fig 4 Fig 5
25-3500 series-use these mounting holes
10mm x 40mm Hex Bolts 10mm Flat Washers 10mm Nylon Lock Nuts
GRILLE GUARD
02-05 DODGE RAM 1500
03-05 RAM 2500-3500
25-3500 series Driver Side Pictured
(Fig 6A) Driver Side Pictured
12mm x 35mm Hex Bolts 12mm Flat Washers 12mm Nylon Lock Nuts
Fig 7
Fig 6B
IMPORTANT: Use either the supplied 10mm x 40mm Hex Bolts or the factory hex bolts, (if equipped with tow hooks- as pictured), with the supplied 10mm x 30mm OD x 2.5mm Flat Washers on the outside between the Mounting Bracket and the head of the hex bolts. Reuse the factory flange nuts on the back of the mounting flange or use the included 10mm Flat Washers and 10mm Nylon Lock Nuts.
Page 3 of 3 8/24/09 (DP)
