Page 1
(W)
INSTALLATION INSTRUCTIONS
4" OVAL SIDEBARS BODY BOLT MOUNT
2014 SILVERADO/SIERRA 1500 DOUBLE CAB
PART # DZ 372527/ DZ 372529
Page 2
4" OVAL SIDEBARS BODY BOLT MOUNT
Qty
Description
Qty
Description
1
Driver/Left Sidebar
4
1/2” x 2” Hex Bolts
1
Passenger/Right Sidebar
4
1/2” Lock Washers
1
Driver/Left Front Mounting Bracket
4
1/2” x 1-1/2" OD x 1/8" Flat Washers
1
Passenger/Right Front Mounting Bracket
2
8-1.25mm x 25mm Hex Bolts
2
Center Brackets (left or right)
2
8mm Lock Washers
1
Driver/Left Rear Mounting Bracket
2
8mm x 24mm x 2mm Flat Washers
1
Passenger/Right Rear Mounting Bracket
Driver/Left rear
Mounting Bracket
Driver/Left front
Mounting Bracket
(2) Center Mounting
Brackets
Passenger/Right front
Mounting Bracket
Passenger/Right rear
Mounting Bracket
Front
Driver/Left Sidebar
Passenger/Right Sidebar
2014 SILVERADO/SIERRA 1500 DOUBLE CAB
PARTS LIST:
PROCEDURE:
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ
INSTALLATION INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
ASSISTANCE IS RECOMMENDED.
1. Start at the front of the passenger side of the vehicle. Remove the front body mount bolt,
(Figure 1).
2. Select the passenger side front Mounting Bracket. Insert the factory body mount bolt through
the Mounting Bracket, factory washer and up into the mount. Snug but do not fully tighten the
body bolt at this time, (Figure 2). VERY IMPORTANT! To prevent unnecessary noise,
adjust the position of all Mounting Brackets so that once tightened, the Mounting
Brackets cannot come in contact with the factory steel body mount bracket.
3. Repeat Steps 1 & 2 for Center Mounting Bracket installation, (Figures 1 & 3).
4. Move toward the rear of the vehicle. Remove the factory body mount bolt as described in Step
1. Select the driver side Rear Mounting Bracket, (Figure 4). Bolt the rear Mounting Bracket in
place as previously described, (driver side pictured in Figure 5).
5. With assistance, position the Sidebar up to the front and rear Mounting Brackets. Attach the
Sidebar to the Brackets with the included (2) 1/2” x 2” Hex Bolts, (2) 1/2” Lock Washers and (2)
1/2” Flat Washers, (Figures 4 & 5). Do not tighten hardware at this time.
6. Attach the center Mounting Bracket to the Sidebar with the included (1) 8mm x 25mm Hex
Bolt, (1) 8mm Lock Washer and (1) 8mm Flat Washer, (Figure 6). Do not tighten hardware at
this time.
Page 1 of 3 9-4-13 (DP)
Page 3
4" OVAL SIDEBARS BODY BOLT MOUNT
(Fig 1) Front and Center Mounting Locations
(Fig 3) Passenger side Center Bracket pictured
(Fig 2) Passenger side front Bracket pictured
Factory welded steel body mount brackets
Factory body bolt
Front
Front
Front
2014 SILVERADO/SIERRA 1500 DOUBLE CAB
7. Level and adjust the Sidebar, tighten all hardware and check all mounting locations for
clearance between factory steel body mount brackets and Mounting Brackets. Once satisfied
with fit, tighten all hardware.
8. Repeat Steps 1 - 7 for driver Sidebar installation.
9. Do periodic inspections to the installation to make sure that all hardware is secure and tight.
To protect your investment, wax this product after installing. Regular waxing is recommended to
add a protective layer over the finish. Do not use any type of polish or wax that may contain abrasives
that could damage the finish.
For stainless steel: Aluminum polish may be used to polish small scratches and scuffs on the finish.
Mild soap may be used also to clean the Sidebar.
For gloss black finishes: Mild soap may be used to clean the Sidebar.
Passenger side installation pictured
Page 2 of 3 9-4-13 (DP)
Page 4

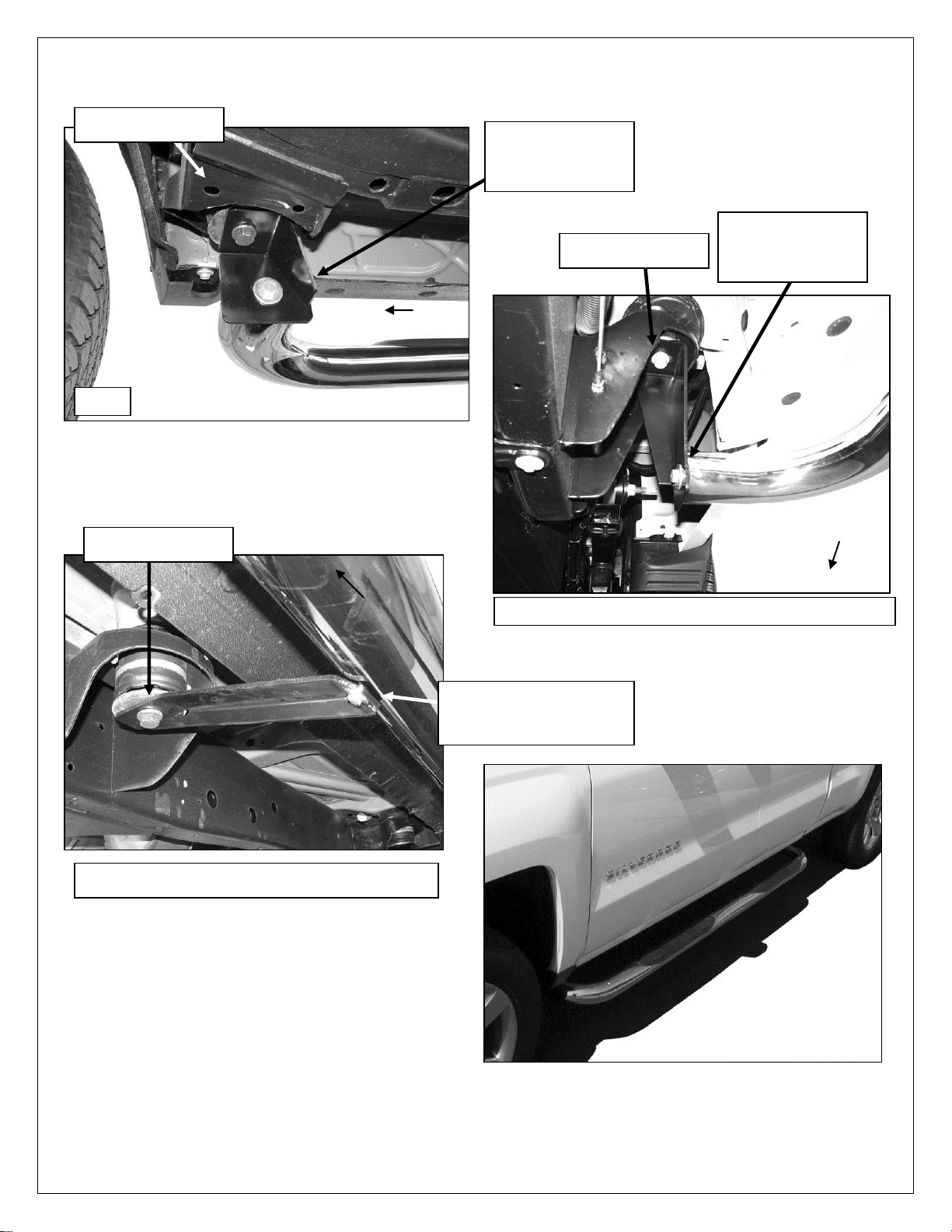

4" OVAL SIDEBARS BODY BOLT MOUNT
8mm x 25mm Hex Bolt
8mm Lock Washer
8mm Flat Washer
Complete Installation
(Fig 5) Driver side Rear Bracket installation pictured
Fig 4
1/2” x 2” Hex Bolt
1/2” Lock Washer
1/2” Flat Washer
Front
Factory body bolt
Rear
1/2” x 2” Hex Bolt
1/2” Lock Washer
1/2” Flat Washer
Rear
Factory body bolt
Factory body bolt
(Fig 6) Passenger side Center Bracket pictured
2014 SILVERADO/SIERRA 1500 DOUBLE CAB
Page 3 of 3 9-4-13 (DP)
