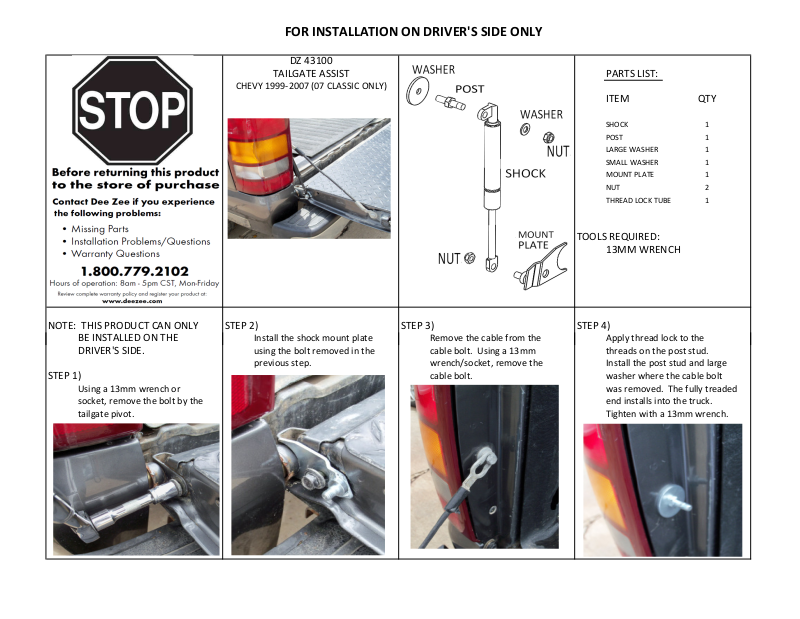

Dee Zee DZ43100 User Manual

FOR INSTALLATION ON DRIVER'S SIDE ONLY

PARTS LIST:

ITEM

QTY

TOOLS REQUIRED:

13MM WRENCH

NOTE: THIS PRODUCT CAN ONLY

STEP 2)

STEP 3)

STEP 4)

BE INSTALLED ON THE

Install the shock mount plate

Remove the cable from the

Apply thread lock to the

DZ 43100

TAILGATE ASSIST

CHEVY 1999-2007 (07 CLASSIC ONLY)

BE INSTALLED ON THE

Install the shock mount plate

Remove the cable from the

Apply thread lock to the

DRIVER'S SIDE.

using the bolt removed in the

cable bolt. Using a 13mm

threads on the post stud.

previous step.

wrench/socket, remove the

Install the post stud and large

STEP 1)

cable bolt.

washer where the cable bolt

Using a 13mm wrench or

was removed. The fully treaded

socket, remove the bolt by the

end installs into the truck.

tailgate pivot.

Tighten with a 13mm wrench.

SHOCK 1

POST 1

LARGE WASHER 1

SMALL WASHER 1

MOUNT PLATE 1

NUT 2

THREAD LOCK TUBE 1

FOR INSTALLATION ON DRIVER'S SIDE ONLY

STEP 5)

STEP 6)

Place the tailgate cable on

Place the shock on the bottom mount and top mount as shown. Install a washer and nylock nut on the

the bolt stud.

top post. Install a nylock nut on the mount plate stud.

The nuts must be tight enough for the thread to engage the nylon ring in the nut, but not too

tight that they prevent the parts from moving freely around the stud.
