ALEZIO

Reversible air / water heat pump "Split Inverter"

AWHP MIV-II

User Guide

300023321-001-03

Contents

1 Introduction ................................................................................................4

1.1 Symbols used .......................................................4

1.1.1 Symbols used in the manual ...................................4

1.1.2 Symbols used on the equipment .............................4

1.2 Abbreviations and lexicon ...................................5

1.3 General ..................................................................5

1.3.1 Manufacturer’s liability .............................................5

1.3.2 Installer’s liability .....................................................5

1.3.3 User’s liability ..........................................................6

2 Safety instructions and recommendations ..............................................7

2.1 Safety instructions ...............................................7

2.2 Recommendations ................................................7

3 Description ..................................................................................................9

3.1 General description ..............................................9

3.2 Control panel .......................................................10

3.2.1 Description ............................................................10

3.2.2 Description of the display ......................................10

4 Operating the appliance ..........................................................................12

4.1 Starting and stopping the heat pump ...............12

4.1.1 Starting the heat pump ..........................................12

4.1.2 Switching off the central heating ...........................14

4.2 Information menu display ..................................14

4.2.1 Reading out measured values ..............................15

4.2.2 Energy consumption display .................................15

4.3 Changing the user parameters ..........................16

4.3.1

4.3.2 Modifying the domestic hot water

4.3.3 Changing the operating mode ...............................18

4.3.4 Forcing the additional heating ...............................18

4.3.5 Hybrid operating mode ..........................................19

Modifying the set room temperature dH ...............17

temperatureHr .....................................................17

23/04/2013 - 300023321-001-03

Contents

5 Checking and maintenance .....................................................................21

5.1 General instructions ...........................................21

5.2 Periodic checks ..................................................21

5.3 Top up the installation with water .....................22

5.4 Bleeding the heating system .............................22

5.4.1 Manual venting ......................................................23

5.4.2 Automatic venting ..................................................23

6 Troubleshooting .......................................................................................24

6.1 Error messages ...................................................24

6.2 Incidents and solutions ......................................25

7 Technical specifications ..........................................................................27

7.1 Technical specifications ....................................27

7.1.1 Heat pump .............................................................27

8 Energy savings .........................................................................................29

8.1 Energy savings ...................................................29

8.1.1 Energy-saving advice ............................................29

8.1.2 Room thermostat and settings ..............................29

9 Warranty ....................................................................................................30

9.1 General ................................................................30

9.2 Warranty terms ...................................................30

23/04/2013 - 300023321-001-03

D000241-C

AWHP MIV-II

1 Introduction

1.1 Symbols used

1. Introduction

1.1.1. Symbols used in the manual

In these instructions, various danger levels are employed to draw the user’s attention to particular information. In so doing, we wish to safeguard the user’s safety, obviate hazards and guarantee correct operation of the appliance.

DANGER

Risk of a dangerous situation causing serious physical injury.

WARNING

Risk of a dangerous situation causing slight physical injury.

CAUTION

Risk of material damage.

Signals important information.

¼Signals a referral to other instructions or other pages in the instructions.

1.1.2. Symbols used on the equipment

Protective earthing

Alternating current

Before installing and commissioning the device, read carefully the instruction manuals provided.

Dispose of the used products in an appropriate recovery and recycling structure.

23/04/2013 - 300023321-001-03

This appliance must be connected to the protective earth.

1 2

M002628-A

1. Introduction

1.2 Abbreviations and lexicon

AWHP MIV-II

Caution: danger, live parts. Disconnect the mains power prior to any operations.

4 MIV: Indoor module

4 HP: Heat pump

4 DHW: Domestic hot water

4 Flow temperature: Temperature of the water circulating in the

radiators or in the underfloor heating

4 Ambient temperature: Temperature inside the house or in a room

4 Room temperature setpoint: Temperature programmed in the

control system that must be reached by the heat pump

4 Forced back-up operation: Function enabling the ignition of a

heating system to complement the heat pump in periods of extreme cold

1.3 General

1.3.1. Manufacturer’s liability

Our products are manufactured in compliance with the requirements of the various applicable European Directives. They are therefore

delivered with [ marking and all relevant documentation.

In the interest of customers, we are continuously endeavouring to make improvements in product quality. All the specifications stated in this document are therefore subject to change without notice. It is our responsibility to inform customers, in accordance with Article L. 113-3 of the Consumer Code, of their obligation to have this equipment installed by a certified operator whenever the refrigerant load is more than two kilograms or when a refrigerant connection is necessary (the case with split systems, even when fitted with a quick coupling device).

Our liability as the manufacturer may not be invoked in the following cases:

4 Failure to abide by the instructions on using the appliance.

4 Faulty or insufficient maintenance of the appliance.

4 Failure to abide by the instructions on installing the appliance.

1.3.2. Installer’s liability

The installer is responsible for the installation and inital start up of the appliance. The installer must respect the following instructions:

4 Read and follow the instructions given in the manuals provided

with the appliance.

23/04/2013 - 300023321-001-03

AWHP MIV-II 1. Introduction

4 Carry out installation in compliance with the prevailing legislation

and standards.

4 Perform the initial start up and carry out any checks necessary.

4 Explain the installation to the user.

4 If a maintenance is necessary, warn the user of the obligation to

check the appliance and maintain it in good working order.

4 Give all the instruction manuals to the user.

1.3.3. User’s liability

To guarantee optimum operation of the appliance, the user must respect the following instructions:

4 Read and follow the instructions given in the manuals provided

with the appliance.

4 Call on qualified professionals to carry out installation and initial

start up.

4 Get your installer to explain your installation to you.

4 Have the required checks and services done.

4 Keep the instruction manuals in good condition close to the

appliance.

This appliance is not intended to be used by persons (including children) whose physcial, sensory or mental capacity is impaired or persons with no experience or knowledge, unless they have the benefit, through the intermediary of a person responsible for their safety, of supervision or prior instructions regarding use of the appliance. Care should be taken to ensure that children do not play with the appliance.

To prevent hazardous situations from arising, if the mains lead is damaged it must be replaced by the original manufacturer, the manufacturer’s dealer or another suitably skilled person.

23/04/2013 - 300023321-001-03

2. Safety instructions and recommendations

2 Safety instructions and

recommendations

2.1 Safety instructions

DANGER

If smoke is released or in case of refrigerant leak:

1. Switch the appliance off.

2. Open the windows.

3. Evacuate the premises.

4. Contact a qualified professional.

AWHP MIV-II

2.2 Recommendations

WARNING

Depending on the settings of the appliance:

4 The temperature of the radiators may reach 80°C.

4 Do not touch the refrigeration connection pipes with

your bare hands while the appliance is running. Danger of burns or frost injury.

CAUTION

Do not neglect to service the appliance. Contact a qualified professional or take out a maintenance contract for the annual servicing of the appliance.

WARNING

Only qualified professionals are authorised to work on the appliance and the installation.

4 Regularly check that the water pressure in the installation is

between 1,5 and 2 bar.

4 Ensure that the appliance is accessible at all times for

maintenance purposes.

4 Avoid draining the installation.

4 Use only original spare parts.

4 Never remove or cover labels and rating plates affixed to the

appliance. Labels and rating plates must be legible throughout the entire lifetime of the appliance.

4 To guarantee the following functions, select the Off/Antifreeze

mode but do not switch off the appliance:

- Anti blocking of pumps

23/04/2013 - 300023321-001-03

AWHP MIV-II 2. Safety instructions and recommendations

- Antifreeze protection

23/04/2013 - 300023321-001-03

3. Description AWHP MIV-II

3 Description

3.1 General description

The ALEZIO heat pump comprises:

4 An outside module for energy production in hot mode only when

it is combined with an uninsulated inside module.

4 A reversible outside module for energy production in hot or cold

mode when it is combined with an insulated inside module

4 An inside module with a control panel to handle the thermal

exchange between the R410A fluid and the hydraulic circuit

The two units are connected by means of refrigeration and electrical connections.

The system offers the following advantages:

4 The heating circuit is housed in the insulated volume within the

home. There is no danger of the pipes freezing.

4 Thanks to the DC inverter system, the heat pump modulates its

output to adapt to the needs of the home.

4 The control panel uses the outside temperature sensor to adjust

the temperature of the heating circuit according to the outside temperature.

23/04/2013 - 300023321-001-03

M002226-B

6 5 4

2 3

AWHP MIV-II

3.2 Control panel

3. Description

3.2.1. Description

A Z E R

Display

On/Off switch

Pressure gauge Confirm key S or K

T DHW temperature button r or + Y Heating temperature button d or - U

I O

Key > [Escape]

Back-up forcing button

Menu key

3.2.2. Description of the display

The display shows the operating status of the heat pump, the heating flow temperature and any error codes.

23/04/2013 - 300023321-001-03

M002227-B

3. Description AWHP MIV-II

Menus

4 Q: Information menu display 4 W: User menu 4 ?: Installer’s settings

Operating modes

4 r: Domestic hot water mode 4 w: Cooling mode (Only in reversible versions) 4 p: Stop/Antifreeze mode 4 b: Heating mode 4 v: Compressor on 4 G: Additional heating on, stage 1-2

Forced back-up operation

4 m + d: Heating 4 m + r: DHW 4 m + d + r: Heating + DHW

Other information

4 a: Default active 4 dHr: Adjusting the setpoint temperatures 4 K: A manual vent cycle is running / Permanent

display of the Information menu / The screed drying function is active

23/04/2013 - 300023321-001-03

M002239-B

M002249-B

AWHP MIV-II 4. Operating the appliance

4 Operating the appliance

4.1 Starting and stopping the heat pump

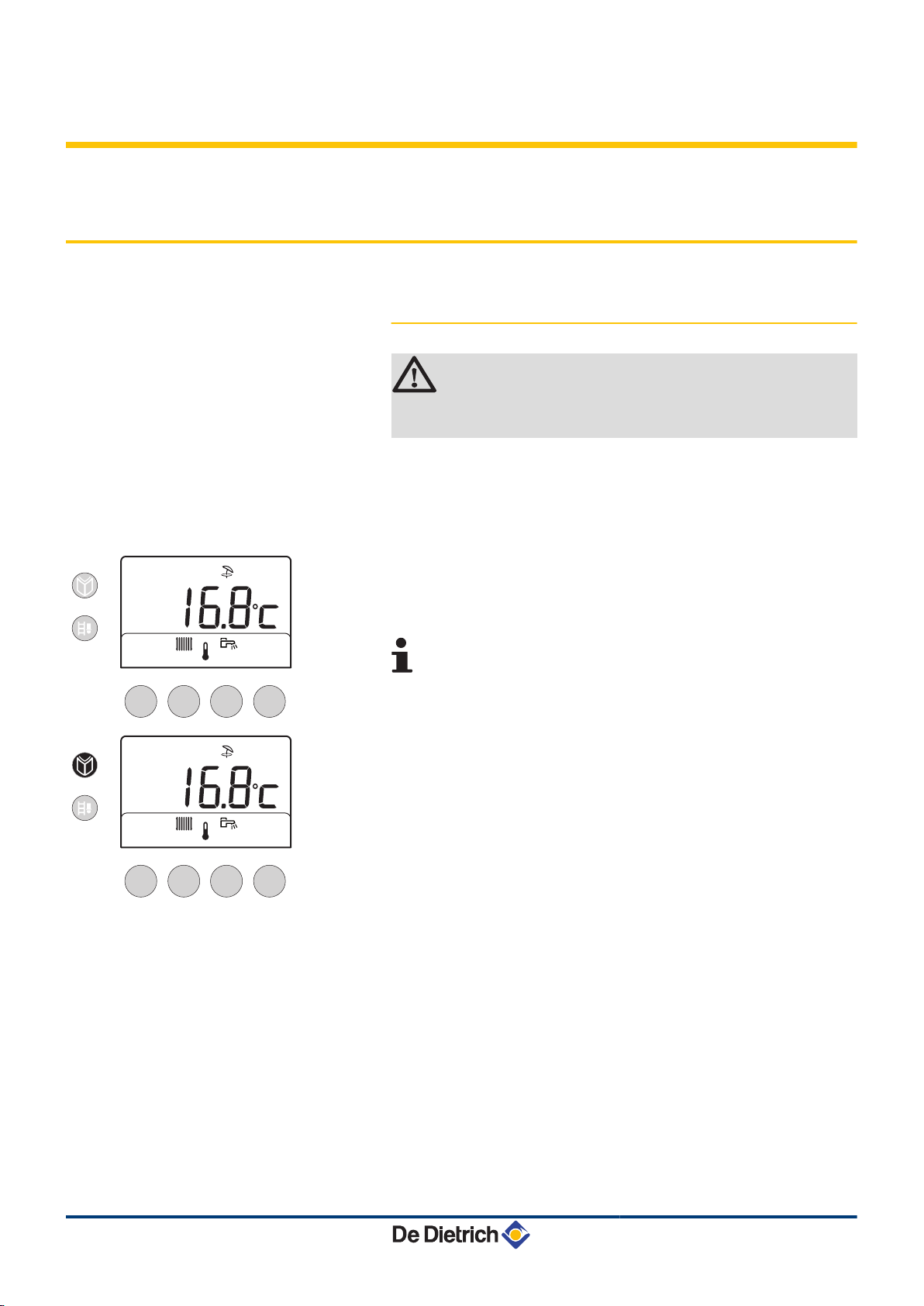

4.1.1. Starting the heat pump

WARNING

Only a qualified professional may carry out initial start up or a start up when the heat pump has completely stopped.

Start the heat pump to produce heating, domestic hot water or cooling (Cooling mode: Only in reversible versions).

To restart the heat pump that is in off/antifreeze mode, perform the following operations:

1. Press button f2 times to modify the operating mode. See chapter: "Changing the operating mode", page 18.

2. Press the S key to confirm and exit the menu.

If no buttons are pressed, the settings menus are exited automatically after 10 seconds, without saving the parameters. Press the key

The following information is displayed and tells you which operating mode the heat pump is set to:

to exit the menu.

23/04/2013 - 300023321-001-03

M002290-A

M002289-A

M002293-A

M002292-A

M002291-A

4. Operating the appliance AWHP MIV-II

Operating mode Screen display

Heating and domestic hot water

Heating

Domestic hot water

Cooling and domestic hot water

Cooling

23/04/2013 - 300023321-001-03

M002288-A

M002289-A

M002290-A

M002246-B

AWHP MIV-II

Operating mode Screen display

Stop/Antifreeze mode

Pool

Swimming pool and domestic hot water

4. Operating the appliance

4.2 Information menu display

4.1.2. Switching off the central heating

It is possible to shut down the central heating and select an operating mode suited to the situation and the desired comfort level:

4 In summer, by using comfort, it is possible to operate cooling w

(Only in reversible versions).

4 In the event of a prolonged absence (weekend, holiday), it is

possible to switch to shutdown/frost protection mode .

4 It is possible to prepare domestic hot water r all year round.

To display the data in the Information menu, proceed as follows:

1. Press the f key.

23/04/2013 - 300023321-001-03

M002247-C

M002278-C

M002248-C

4. Operating the appliance AWHP MIV-II

2. The symbol Q flashes.

Press the S key.

3. The information SERVICE flashes for 5 seconds.

If no buttons are pressed for 10 seconds, the screen goes back to the main display. To stay in the Information menu, press the S button, the

information SERVICE no longer flashes.

4. Use the - and + keys to scroll through the information.

5. Press the key

to exit the menu.

4.2.1. Reading out measured values

Parameter

t1:

t2: Measured start temperature °C t2: Domestic hot water temperature measured °C t2: Outside temperature measured °C lt: Water flow Litres/minute S;ft

Description Unit

4 In heating mode: Heating flow set point temperature

°C

4 In DHW mode: DHW setpoint temperature

4 In cooling mode: Cooling setpoint temperature

4 In swimming pool mode: Pool set temperature

Software version

4.2.2. Energy consumption display

Parameter

c1: c2: c3:

(1) Display available if the estimated electrical energy consumption function is activated (2) Cooling mode must be enabled

Description Unit

(1)

kWh

Estimated consumption of electrical energy in heating mode

Estimated consumption of electrical energy in DHW mode

Estimated consumption of electrical energy in cooling mode

(2)

23/04/2013 - 300023321-001-03

C004232-B

C004233-B

C004234-B

C004235-B

AWHP MIV-II 4. Operating the appliance

The estimated electricity consumption is displayed in 3 digits. The fourth digit indicates the scale (x1, x10, x100, x1000).

Display example Description

The displayed value is 123 kWh. The unit is 1 kWh.

The displayed value is 1230 kWh. The unit is 10 kWh. The fourth digit indicates the scale x10. Only the first 3 figures are displayed.

The displayed value is 12300 kWh. The unit is 100 kWh. The fourth digit indicates the scale x100. Only the first 3 figures are displayed.

The displayed value is 123000 kWh. The unit is 1000 kWh. The fourth digit indicates the scale x1000. Only the first 3 figures are displayed.

4.3 Changing the user parameters

23/04/2013 - 300023321-001-03

If no buttons are pressed, the settings menus are exited automatically after 10 seconds, without saving the parameters.

M002240-B

M002241-B

M002243-B

M002244-B

4. Operating the appliance

AWHP MIV-II

4.3.1.

Modifying the set room temperature dH

1. Press the d key.

2. Press the + or - keys to change the value.

Temperature

Room temperature setpoint

Adjustment range Increment Factory

from 15 to 30°C 1 °C 20 °C

3. Press the S key to confirm and exit the menu.

When a room thermostat is connected, set the room thermostat to a value 2 K higher than the room temperature setpoint dH.

setting

4.3.2. Modifying the domestic hot water

temperatureHr

1. Press the r key.

2. Press the + or - keys to change the value.

Temperature

DHW set temperature from 40 to 65°C 1 °C 50 °C

3. Press the S key to confirm and exit the menu.

Adjustment range Increment Factory setting

23/04/2013 - 300023321-001-03

M002249-B

M002250-B

M002251-B

M002261-C

AWHP MIV-II

4. Operating the appliance

4.3.3. Changing the operating mode

1. Press the f key 2 times.

2. When the symbol W flashes on the display, press the S button.

3. Press the + or - keys to change the value (See table below).

4. Press the S key to confirm and exit the menu.

Operating mode

Heating and domestic hot water 1

Heating 2

Domestic hot water 3

Cooling and domestic hot water

Cooling

(1)

Stop/Antifreeze mode 6

Pool 7

Swimming pool and domestic hot water 8

(1) Only in reversible versions

Value Screen display

b + r b

w + p + r w + p p

b b + r

4.3.4. Forcing the additional heating

It is impossible to force the additional heating when the off/ antifreeze mode is selected.

It is possible to force use of the additional heating to complement the heat pump. To force use of the additional heating, perform the following operations:

23/04/2013 - 300023321-001-03

1. Press keys B and S simultaneously.

M002264-D

M002253-B

M002254-B

4. Operating the appliance AWHP MIV-II

2. Hold the B key down and press the S key successively to

choose the forcing desired.

Display Back-up

+ d +

The m symbol disappears from the display

Forcing additional heating for heating

Forcing additional heating for DHW

Forcing additional heating for heating and DHW

Additional heating forcing deactivated

4.3.5. Hybrid operating mode

CAUTION

The hybrid operating mode is only available for appliances with hydraulic back-up.

The appliance offers a choice between several hybrid operating modes. The modes available offer either optimised energy consumption according to energy cost, or optimised energy consumption according to primary energy consumption. Both hybrid operating modes are available via parameter U1. In optimised primary energy consumption mode, the control system chooses the generator that consumes the least primary energy. In optimised energy cost mode, the control system chooses the cheapest generator according to the coefficient of performance of the heat pump and according to energy cost.

To access the parameters:

Press the ¿ key 3 times.

The symbol $ flashes. Press the key ® to enter the "Installer" menu.

3. Use the + and - keys to switch from one parameter to another.

4. Use the + and - keys to change the parameter value.

Press the ® key to confirm the setting.

To modify another parameter, repeat the procedure from step 3.

23/04/2013 - 300023321-001-03

M003105-A

AWHP MIV-II 4. Operating the appliance

Press the key

Choosing the hybrid operating mode

Parameter Description Adjustment range Increment Factory setting

Hybrid operating mode

0 to 2

to exit the menu.

(

1 0

(1)

(1) Only available if p3 = 0

4 0 = Off

4 1 = Optimisation of primary energy consumption

4 2 = Optimisation according to energy cost

It is imperative that you input the energy cost parameters U2 ,U3, U4 to use the hybrid operating mode optimised according to energy cost.

Energy cost parameters

CAUTION

The currency for parameters U2 ,U3, U4 must be the same. For example: U2 in euro per kWH and U4 in euro per litre.

Paramters U2, U3 and U4 are available only if U1 = 2

Parameter Description Adjustment range Increment Factory

setting

(1) Only available if p3 = 0

4 For a standard electricity tariff, input parameter U2.

Tariff per kWh of electricity (Off-peak hours)

4 For a Peak Hours / Off-peak Hours electricity tariff, input

(1)

parameters U2 for the Peak Hours tariff and U3 for the Off-peak Hours tariff.

Fossil energy tariff for the hydraulic back-up.

(1)

4 Gas boiler: Tariff per m3 of gas. For example: €/m

4 Fuel oil fired boiler: Tariff per litre of oil. For example: €/litre

Tariff per kWh of electricity

(1)

0.01 to 2.00

0.01 to 2.50

0.01 0.13

0.01 0.09

0.01 0.9

23/04/2013 - 300023321-001-03

M002276-B

T000181-B

5. Checking and maintenance

5 Checking and maintenance

5.1 General instructions

CAUTION

4 An annual inspection is compulsory.

4 We recommend taking out a maintenance contract.

4 Maintenance operations must be done by a qualified

engineer.

4 Only original spare parts must be used.

4 Make certain that the flues and chimneys are

connected, in good condition and not blocked.

4 Do not modify nor block the condensate outlet(s).

4 If a neutralisation system is installed, follow the

instructions delivered with the neutralisation system for cleaning and servicing of this system.

AWHP MIV-II

5.2 Periodic checks

4 Check the water pressure in the installation. If the water pressure

is too low, add more water to the installation. ¼See chapter: "Top up the installation with water", page

22.

4 Carry out a visual check for the presence of any water leaks.

4 Open and close the radiator valves several times a year (this

prevents the valves from seizing up).

23/04/2013 - 300023321-001-03

M002277-A

T000181-B

M002213-B

AWHP MIV-II

4 Clean the outside of the heat pump using a damp cloth and a mild

detergent.

5.3 Top up the installation with water

5. Checking and maintenance

CAUTION

Only a qualified professional is permitted to clean the inside of the heat pump.

The water pressure in the installation must be between 1,5 and 2 bar. Add water to the installation if necessary:

1. Open the valves on all radiators connected to the heating system.

2. Set the room thermostat to as low a temperature as possible.

3. Put the heat pump in shutdown/frost protection mode. "Changing the operating mode", page 18

4. Open the filling valve .

5. Close the filling valve when the pressure gauge shows a pressure

of 1,5 bar.

6. Put the heat pump into HEATING mode. "Changing the operating mode", page 18

7. When the pump has stopped, bleed again and top up the water

pressure.

8. Filling and bleeding the installation 2 times a year should be

sufficient to obtain an adequate hydraulic pressure. If it is often necessary to top up the installation with water, contact your fitter.

5.4 Bleeding the heating system

It is essential that you bleed any air in the calorifier, the conduits or the taps to prevent the annoying noises likely to be produced during heating or when tapping water.

23/04/2013 - 300023321-001-03

T000181-B

M001495-A

5. Checking and maintenance AWHP MIV-II

5.4.1. Manual venting

1. Open the valves on all radiators connected to the heating system.

2. Put the heat pump in shutdown/frost protection mode. "Changing the operating mode", page 18

3. Vent the underfloor heating circuits and the radiators. First vent

the lower floors A and then the upper floors Z.

5.4.2. Automatic venting

The heat pump runs an automatic venting cycle when it is powered up. Automatic venting takes approximately one minute.

If a DHW tank is connected to the heat pump: Automatic venting starts up only if the measured DHW temperature is lower than 25°C.

It is possible to extend automatic venting manually to run for more than one minute:

1. The word SERVICE flashes when powering up. Press

the SERVICE key. a venting cycle begins. The word SERVICE stops flashing .

2. Press the SERVICE key to stop the venting cycle.

¼Consult the installer for more detailed information.

WARNING

After venting, check whether the pressure in the installation is still sufficient. Add water to the installation if necessary.

¼See chapter: "Top up the installation with water", page 22

23/04/2013 - 300023321-001-03

M002267-B

AWHP MIV-II 6. Troubleshooting

6 Troubleshooting

6.1 Error messages

In the event of problems, the control panel displays the symbol a and an error code.

WARNING

In this instance, note the error code and call the fitter. The fault code is important for correct and fast tracing of the nature of the fault and for obtaining support from your supplier.

To go back to the main display, press the ® key as many times as necessary. The symbol a continues to be displayed as long as the error is present. You can browse in all menus.

Display error codes

err

e[1

e[2

e[3

e[4

e[5

Description Probable causes Checking / solution

Configuration error

flow sensor failure

Outside temperature sensor fault

Domestic hot water sensor fault

Flow rate fault

Fault on the outdoor module

The control system mode is not compatible with the configuration of the installer parameters.

4 Sensor defective

4 Sensor not or badly connected 4 Sensor defective

4 Sensor not or badly connected

Note: The heat pump is based on an outside temperature of -20°C and only the back-ups are used.

4 Sensor defective

4 Sensor not or badly connected

The water level and/or pressure are too low Check the water pressure in

Too much air Completely vent the indoor

Fault on the outdoor module Contact the fitter.

Contact the fitter.

the installation (Pressure gauge)

module and the installation for optimum functioning.

23/04/2013 - 300023321-001-03

6. Troubleshooting AWHP MIV-II

6.2 Incidents and solutions

Problem Probable causes Solution

The radiators are cold.

There is no domestic hot water.

Significant variations in domestic hot water temperature

The heat pump is not working.

The water pressure is too low (< 1 bar).

The heating temperature setting is too low.

The heating mode is deactivated.

The radiator valves are closed.

The heat pump is not operating.

The water pressure is too low (< 1 bar).

The DHW temperature setting is too low.

The domestic hot water mode is deactivated.

The energy-saving shower head is restricting the water flow.

The heat pump is not operating.

The water pressure is too low (< 1 bar).

Insufficient water supply

The heating temperature setting is too low.

The heat pump is not operating.

The water pressure is too low (< 1 bar).

An error code appears on the display.

Not enough water in the installation.

Water leak. Contact the fitter.

4 Increase the value of parameter d or, if a room thermostat

is connected, increase the temperature.

¼See chapter: "Modifying the set room temperature dH", page 17.

4 Activate the heating mode.

¼See chapter: "Changing the operating mode", page 18.

4 Open the valves on all radiators connected to the heating

system.

4 Check that the heat pump is switched on.

4 Check the fuses and switches. 4 Top up the installation with water.

¼See chapter: "Top up the installation with water", page 22.

4 Increase the value of parameter r.

¼See chapter: "Modifying the domestic hot water temperatureHr", page 17.

4 Activate the DHW mode.

¼See chapter: "Changing the operating mode", page 18.

4 Clean the shower head; replace if necessary.

4 Check that the heat pump is switched on.

4 Check the fuses and switches. 4 Top up the installation with water.

¼See chapter: "Top up the installation with water", page 22.

4 Check the water pressure in the installation.

4 Open the valve.

4 Increase the value of parameter d or, if a room thermostat

is connected, increase the temperature.

¼See chapter: "Modifying the set room temperature dH", page 17

4 Check that the heat pump is switched on.

4 Check the fuses and switches. 4 Top up the installation with water.

¼See chapter: "Top up the installation with water", page 22.

4 Correct the error if possible.

¼See chapter: "Error messages", page 24.

4 Top up the installation with water.

¼See chapter: "Top up the installation with water", page 22.

23/04/2013 - 300023321-001-03

AWHP MIV-II 6. Troubleshooting

Problem Probable causes Solution

The central heating pipe connections are too tight.

There is air in the heating pipes.

Clicking in the central heating pipes

Contact the fitter.

4 It is essential that you bleed any air in the calorifier, the

conduits or the taps to prevent the annoying noises likely to be produced during heating or when tapping water.

¼See chapter: "Bleeding the heating system", page 22

Significant water leak underneath or in the vicinity of the heat pump

The water is circulating too quickly in the central heating system.

The pipes on the heat pump or the central heating are damaged.

Contact the fitter.

23/04/2013 - 300023321-001-03

7. Technical specifications AWHP MIV-II

7 Technical specifications

7.1 Technical specifications

7.1.1. Heat pump

Conditions of use:

4 Limit operating temperatures in Hot mode:

- Water: +18 °C / +55 °C

- Outside air: -15 °C / +35 °C

4 Limit operating temperatures in Cooling mode:

- Water: +7 °C / +25 °C

- Outside air: +15 °C / +40 °C

4 Maximum operating pressure: 3 bar

AWHP-II

(3)

(1)

(2)

(5)

(1)

(6)

(1)

(2)

(4)

(1)

(2)

(4)(3)

Calorific output

Performance coefficient (COP)

Absorbed electrical power

Nominal amperage

Calorific output

Performance coefficient (COP)

Absorbed electrical power

Cooling output

Energy efficiency ratio (EER)

Absorbed electrical power

Sound pressure

Nominal water flow (ΔT = 5K)

Manometric height available at nominal flow rate

Nominal air flow rate

Power voltage of the outdoor unit V 230 V~ 230 V~ 230 V~ 230 V~ 400 V3~ 230 V~ 400 V3~ 230 V~ 400 V3~

Start-up amperage A 5 5 5 5. 3 5 3 6 3

Sound output - Inside

Sound output - Outside

R410A refrigerant kg 2.1 2.5 3.6 5 5 5 5 5 5

Refrigeration connection (LiquidGas)

(1) Hot mode: Outside air temperature +7 °C, Water temperature at the outlet +35 °C. Performances in line with EN 14511-2. (2) Hot mode: Outside air temperature +2 °C, Water temperature at the outlet +35 °C. Performances in line with EN 14511-2. (3) Only in reversible versions (4) Cooling mode: Outside air temperature +35 °C, Water temperature at the outlet +18 °C. Performances in line with EN 14511-2 (5) 5 m from the appliance, free field. (6) Noise spread by the envelope - Test conducted in accordance with the standard NF EN 12102

4 MR 6 MR 8 MR 11 MR 11 TR 14 MR 14 TR 16 MR 16 TR

kW 4.1 5.73 8.08 10.87 10.37 13.07 13.07 14.95 14.95

4.3 3.93 4.03 4.23 4.15 3.95 3.95 3.82 3.82

kWe 0.95 1.46 2.00 2.57 2.50 3.31 3.31 3.91 3.91

A 4.3 6.8 9.3 11.2 6.7 14.8 8.8 17.7 10.1

kW 4 4.45 5.93 7.57 7.57 10.32 10.32 10.38 10.38

3.2 3.12 3.12 3.10 3.10 3.10 3.10 3.10 3.10

kWe 1.23 1.43 1.90 2.46 2.46 3.37 3.37 3.36 3.36

kW 3.60 5.40 7.94 10.48 10.48 11.74 11.74 11.70 11.70

4.65 3.80 3.99 4.68 4.68 4.43 4.43 4.40 4.40

kWe 0.77 1.40 1.99 2.24 2.24 2.65 2.65 2.70 2.70

dB(A) 36 36 36 40 40 41 41 41 41

0.71 1.04 1.47 1.88 1.88 2.36 2.36 2.67 2.67

m3/h

mbar 450 400 200 300 300 120 120 - -

2100 2100 3000 6000 6000 6000 6000 6000 6000

m3/h

dB(A) 43.2 43.2 40.4 38.2 38.2 40.2 40.2 43.4 43.4

dB(A) 63.7 63.7 65.2 65.4 65.4 66.8 66.8 69.4 69.4

inch 1/4-1/2 1/4-1/2 3/8-5/8 3/8-5/8 3/8-5/8 3/8-5/8 3/8-5/8 3/8-5/8 3/8-5/8

23/04/2013 - 300023321-001-03

AWHP MIV-II 7. Technical specifications

AWHP-II 4 MR 6 MR 8 MR 11 MR 11 TR 14 MR 14 TR 16 MR 16 TR

Max pre-loaded length m 30 30 30 30 30 30 30 30 30

Weight (empty) - Outside module kg 45 45 75 121 135 116 130 116 130

Weight (empty) - Indoor module kg 35 35 35 37 37 37 37 37 37

23/04/2013 - 300023321-001-03

8. Energy savings

8 Energy savings

8.1 Energy savings

AWHP MIV-II

This chapter contains:

4 Energy-saving advice

4 Advice on setting the room thermostat correctly

8.1.1. Energy-saving advice

4 Do not block ventilation outlets.

4 Install reflective panels behind the radiators to prevent heat

losses.

4 Do not cover the radiators. Do not hang curtains in front of the

radiators.

4 Insulate the pipes in rooms that are not heated (cellars and lofts).

4 Close the radiators in rooms not in use.

4 Do not run hot (or cold) water pointlessly.

4 Install a water-saving shower head to save up to 40 % energy.

4 Take showers rather than baths. A bath consumes twice as much

water and energy.

8.1.2. Room thermostat and settings

4 A modulating thermostat, possibly in combination with

thermostatic valve radiators, saves energy and offers considerable comfort. This combination allows you to set the temperature on each flow. In the room in which the room thermostat is installed, do not fit thermostatic valve radiators.

4 Lower the thermostat to approximately 16°C at night or when you

are absent. This reduces heating costs and energy consumption.

4 Lower the room thermostat when you air the rooms.

4 When setting an hourly programmable thermostat, keep in mind

the days you are absent or on vacation.

23/04/2013 - 300023321-001-03

AWHP MIV-II

9 Warranty

9.1 General

9.2 Warranty terms

9. Warranty

You have just purchased one of our appliances and we thank you for the trust you have placed in our products.

Please note that your appliance will provide good service for a longer period of time if it is regularly checked and maintained.

Your fitter and our customer support network are at your disposal at all times.

The following provisions are not exclusive of the buyer being able benefit from the legal provisions applicable regarding hidden defects in the buyer’s country.

Starting from the purchase date shown on the original fitter’s invoice, your appliance has a contractual guarantee against any manufacturing defect.

The length of the guarantee is mentioned in the price catalogue. The manufacturer is not liable for any improper use of the appliance or failure to maintain or install the unit correctly (the user shall take care to ensure that the system is installed by a qualified engineer).

In particular, the manufacturer shall not be held responsible for any damage, loss or injury caused by installations which do not comply with the following:

4 applicable local laws and regulations,

4 specific requirements relating to the installation, such as national

and/or local regulations,

4 the manufacturer’s instructions, in particular those relating to the

regular maintenance of the unit,

4 the rules of the profession.

The warranty is limited to the exchange or repair of such parts as have been recognised to be faulty by our technical department and does not cover labour, travel and carriage costs.

The warranty shall not apply to the replacement or repair of parts damaged by normal wear and tear, negligence, repairs by unqualified parties, faulty or insufficient monitoring and maintenance, faulty power supply or the use of unsuitable fuel.

23/04/2013 - 300023321-001-03

Sub-assemblies such as motors, pumps, electric valves etc. are guaranteed only if they have never been dismantled.

The legislation laid down by european directive 99/44/EEC, transposed by legislative decree No. 24 of 2 February 2002 published in O.J. No. 57 of 8 March 2002, continues to apply.

AD001NU-Ai

DUEDI S.r.l.

DE DIETRICH SERVICE

BDR Thermea (Czech republic) s.r.o

www.duediclima.it

www.dedietrich.cz

Distributore Ufficiale Esclusivo

De Dietrich-Thermique Italia

www.dedietrich-heiztechnik.com

Freecall 0800 / 201608

Jeseniova 2770/56

130 00 Praha 3

+49 (0)25 72 / 9161-0

+49 (0)25 72 / 9161-102

info@remeha.de

Via Passatore, 12 - 12010 San Defendente di Cervasca CUNEO

+39 0171 857170 +39 0171 687875 info@duediclima.it

+420 271 001 627 info@dedietrich.cz

DE DIETRICH THERMIQUE Iberia S.L.U.

www.dedietrich-calefaccion.es

Av. Princep d’Astúries 43-45

08012 BARCELONA

+34 932 920 520 +34 932 184 709

129164, Россия, г. Москва

Зубарев переулок, д. 15/1

Бизнес-центр «Чайка Плаза»,

офис 309

+7 (495) 221-31-51

DE DIETRICH THERMIQUE S.A.S

M001476-C

R410AR410A

300023311- 001- 03300023312- 001- 03300023313- 001-03300023314-001- 03300023315- 001- 03300023316- 001- 03300023317- 001- 03300023318- 001- 03300023319- 001- 03300023320- 001- 03300023321- 001- 03

DEDIETRICH THERMIQUE 57,ruedelaGareF-67580MERTZWILLER-BP 30

© Copyright All technical and technological information contained in these technical instructions, as well as any drawings and technical descriptions supplied, remain our property and shall not be multiplied without our prior consent in writing.

23/04/2013

DE DIETRICH ALEZIO AWHP MIV-II User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
