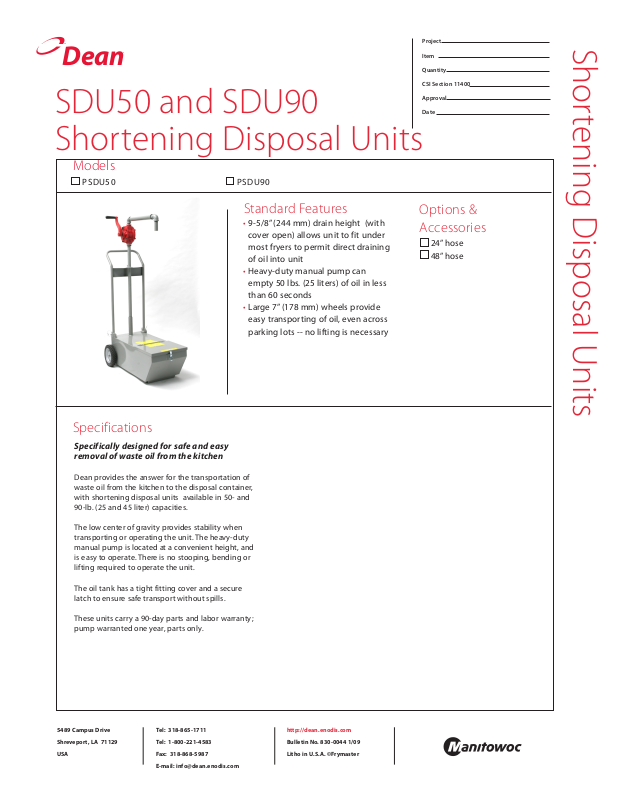

DEAN PSDU90 User Manual
SDU50 and SDU90
Dean
™
®
Shortening Disposal Units
Models
P SDU50 P SDU90
Project
Item
Quantity
CSI Sec tion 11400
Approval
Date
Shortening Disposal Units
Specifications
Specifically designed for safe and easy
removal of waste oil from the kitchen
Dean provides the answer for the transportation of
waste oil from the kitchen to the disposal container,
with shortening disposal units available in 50- and
90-lb. (25 and 45 liter) capacities.
Standard Features
• 9-5/8” (244 mm) drain height (with
cover open) allows unit to fit under
most fryers to permit direct draining
of oil into unit
• Heavy-duty manual pump can
empty 50 lbs. (25 liters) of oil in less
than 60 seconds
• Large 7” (178 mm) wheels provide
easy transporting of oil, even across
parking lots -- no lifting is necessary
Options &
Accessories
24” hose
48” hose
The low center of gravity provides stability when
transporting or operating the unit. The heavy-duty
manual pump is located at a convenient height, and
is easy to operate. There is no stooping, bending or
lifting required to operate the unit.
The oil tank has a tight fitting cover and a secure
latch to ensure safe transport without spills.
These units carry a 90-day parts and labor warranty;
pump warranted one year, parts only.
5489 Campus Drive
Shreveport, LA 71129
USA
Tel: 318-865-17 11
Tel: 1-800-221- 4583
Fax: 318-86 8-5987
E-mail: in fo@dean.enodis.com
http://dean. enodis.com
Bulletin N o. 830-0044 1/09
Litho in U.S.A. ©Frymaster
Dean
™
®
Shortening Disposal Units
31.94
[811]
7.00
[178]
37.12
[943]
48.06
[1221]
OPTIONAL 24" LONG
FLEXIBLE DISCHARGE HOSE
9.62 WITH COVER
OPEN [244]
9.76 WITH COVER
CLOSED [248]
11.60
[295]
(SDU50)
16.13
[410]
(SDU90)
15.36
[390]
(SDU50)
19.88
[505]
(SDU90)
DIMENSIONS
MO DEL
PSDU50 5 0 lbs.
PSDU90 9 0 lbs.
SHORT TERM SPECIFICATION
The following description will assist with ordering the features
desired for this equipment:
Shall be DEAN shortening disposal unit, Model #__________
______,only_______” wide x_______” deep with ________oil
capacity
NO.
SH ORT ENI NG
CA PACI TY
(25 liter s)
(45 liter s)
AS SEM BLE D S IZE m m DR AIN
(811)
(811)
HE IGH T
(mm
9-5/8”
(244)
w/door
open)
9-5/8”
(244)
w/door
open)
HE IGH T WI DTH LE NGT H WE IGH T CLAS S CU BE HE IGH T W IDT H LEN GTH
48”
(1221)
48”
(1221)
15-3/8”
(390)
Overall
11-5/8”
(295)
Tank Onl y
19-7/8
(505)
Overall
16-1/8”
(410)
Tank Onl y
31-7/8”
31-7/8”
NE T
WE IGH T
45 lbs.
(20 kg)
49 lbs.
(22 kg)
SH IPP ING IN FOR MATI ON SH IPP ING DI MEN SIO NS
62 lbs.
(28 kg)
67 lbs.
(30 kg)
85 7 20”
85 10 20’
(508)
(508)
ORDERING DATA
Please specify:
SDU50 -- 50 lb. (25 liter) capacity
SDU90 -- 90 lb. (45 liter) capacity
