Page 1
COD. OTHER CHARACTERISTICS
625010 MAC
•
Stroke 334 mm., for leafs up to 3 mt. long
625020 MAC/EN
•
•
Encoder, stroke 334 mm., for leafs up to 3 mt. long
625030 MAC/R
•
Stroke 334 mm., for leafs up to 2,5 mt. long, not self locking
COD. OTHER CHARACTERISTICS
625040 MAC/24
• •
Stroke 334 mm., for leafs up to 3 mt. long
625042 MAC24/EN
• •
•
Encoder, stroke 334 mm., for leafs up to 3 mt. long
NET230N
NET24N
230V a.c. operators without control board
24V d.c. operators without control board
Electromechanical automations for swing gates
MAC
All models have: fixing plates to be welded included.
Control board to complete the installation: control board cod. 677610 art. NET230N/C (with box)
All models have: fixing plates to be welded included.
Control board to complete the installation: control board cod. 678261 art. NET24/C (with box)
0 1m 2m 3m 3,5m
GUIDE TO USE
800 kg
600 kg
400 kg
200 kg
0 1m 2m 3m
GUIDE TO USE
800 kg
600 kg
400 kg
200 kg
TECHNICAL INFO MAC MAC/EN MAC/R
MAC/24
MAC24/EN
Motor power supply (V) 230 AC ± 10 % (50/60 Hz) 230 AC ± 10 % (50/60 Hz) 230 AC ± 10 % (50/60 Hz) 24 DC
Maximum power absorption (W) 300 300 300 60
Max thrust (N) 1650 1650 1200 1000
Duty cycle (cycles/hours) 18 22 18 40
N. max cycles in 24h. 90 90 90 90
Built-in capacitor (μF) 8 8 10 /
Operating temperature (°C) -20 ÷ 50 -20 ÷ 50 -20 ÷ 50 -20 ÷ 50
Motor thermal protection (°C) 150 150 150 /
90° Opening time (s) 16 16 16 16
Weight with packing (Kg) 8,8 8,8 8,8 8,8
Protection degree IP24 IP24 IP24 IP24
If the leaf length is bigger than 2 meters or if you use
reversible models you must install the electric-lock to
block the gate in closed position
The height and the leaf structure, as well as the presence of strong wind, can cause the reduction of the
value of the data contained in table.
Electric-lock Electric-lock
IN COMPLIANCE
WITH STANDARDS
leaf length leaf length
leaf max weight
leaf max weight
42
Page 2
Cod. 629300
Art. MAC/FM
Mechanical stops for MAC (2 pcs.)
Cod. 668010
Art. 127
Warning sign
Cod. 672580
Art. TR2
Remote control
Black version art. TR2N also
available (page 118)
EXAMPLE OF A TYPICAL INSTALLATION
ELECTRICAL DIAGRAM
4x1 mm² (230V) o 3x1,5 mm² (24V )4x1 mm² (230V) o 3x1,5 mm² (24V )
BB
4x0,5 mm²
2x0,5 mm²
2x0,5 mm²
3x0,5 mm²
2 x 0,5 mm² - RG58
147
168
110
797
DIMENSIONS
SWING GATES
deasy stem.co m
43
Cod. 662030
Art. 104LUX
Pair of adjustable (15°) surface
mounted photocells
3
Cod. 677610
Art. NET230N/C
Universal digital control board for 1 or 2
operators, 230V, with or without magnetic
encoder (with box)
2
Cod. 625020
Art. MAC/EN
Electromechanical operator
for swing gates
1
Cod. 663030
Art. 102LUX
Keyswitch with two contacts, flush
mounted. Supplied with 2 keys.
5
Cod. 664000
Art. PILLY/60
Pair of aluminium columns for photocells,
height 55 cm.
4
Cod. 661062
Art. LED230AI
Led flashing light 230V with
built-in antenna 433Mhz
6
1
1
2
3
3
3
4
4
3
5
6
Page 3
Cod. 629250
Art. COL 515
Anti-falling stainless steel cable
with 2 holes for swing doors
Cod. 661062
Art. LED230AI
Led flashing light 230V with
built-in antenna 433Mhz
Cod. 662020
Art. 104MINILUX
Pair of surface mounted photocells.
Range 20 mt
Cod. 662043
Art. LINEAR/B
Pair of adjustable photocells (180°)
with tx supplied by a LiOn battery.
Range 7/15 Mt
Cod. 663280
Art. DIGIRAD
Wireless keypad
Cod. 664000
Art. PILLY/60
Pair of aluminium columns for photocells,
height 55 cm.
Cod. 629290
Art. BAT
Rechargeable batteries kit for 24V
operators, 12V - 1,3Ah, complete
with wiring cables
Cod. 136024
Art. 110O
Horizontal electric lock complete
with double cylinder and
horizontal selvage art. 109A
Cod. 136004
Art. M
Half European cylinder
Cod. 629320
Art. MAC-LOOK/P
Extension for MAC and LOOK rams
Cod. 677610
Art. NET230N/C
Universal digital control board for 1 or 2
operators, 230V, with or without magnetic
encoder (with box)
Cod. 672580
Art. TR2
Remote control
Black version art. TR2N also available
(page 118)
Cod. 662030
Art. 104LUX
Pair of adjustable (15°) surface
mounted photocells
Cod. 681060
Art. COVER
Vandal-proof aluminium cover for
art. LINEAR and LINEAR/B
Cod. 663270
Art. DIGINET
Hardwired keypad for BUS connections
to MASTER devices of range DE@NET
(NET24N, NET230N, MASTERNET)
Cod. 664010
Art. PILLY/120
Pair of aluminium columns for photocells,
height 100 cm.
Cod. 681050
Art. Green Energy
Solar power kit complete with
art. CHARGER
Cod. 136006
Art. 110V
Empty electric lock (without
European cylinder) with ground
selvage art. 109
Cod. 679140
Art. 100GG
Large PVC box , suitable to include
any other DEA boxes, to grant a
better protection and isolation.
Cod. 629310
Art. MAC/SFR
Adjustable brackets for MAC
Cod. 661082
Art. LED24AI
Led flashing light 24V with
built-in antenna 433Mhz
Cod. 672590
Art. TR4
Remote control
Black version art. TR4N also available
(page 118)
Cod. 662044
Art. LINEAR
Pair of adjustable photocells (180°)
with possibility of syncronized operating.
Range 20 Mt
Cod. 663060
Art. KYO
Aluminium vandal-proof
keyswitch, flush mounted.
Cod. 664020
Art. PILLY/base
Pair of fixing plates for columns
to be cemented.
Cod. 675510
Art. 251/2
Hardwired 2 channels receiver, surface
mounted (complete with box 100F)
(433Mhz)
Cod. 136005
Art. D
Double European cylinder

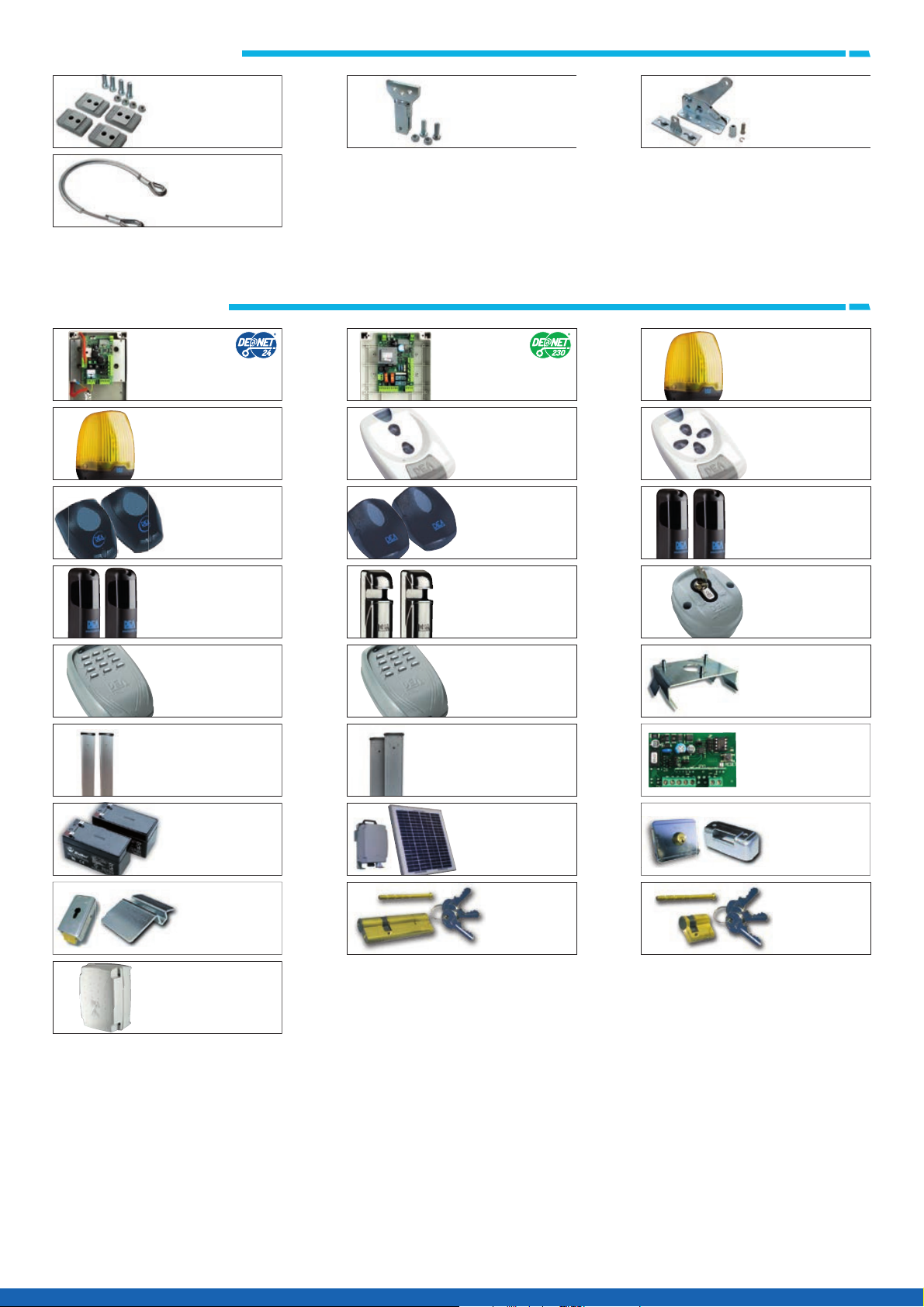

SPECIFIC ACCESSORIES
OTHER ACCESSORIES
Cod. 678261
Art. NET24N/C
Universal digital control board for 1 or 2
operators, 24V, with or without magnetic
encoder (with box)
Cod. 629300
Art. MAC/FM
Mechanical stops for MAC (2 pcs.)
44
