DEA LOOK User Manual

COD. OTHER CHARACTERISTICS

627000 351/SC

•

320mm

For leafs up to 3 mt. long

627012 351EN/SC

•

320mm •

With encoder, for leafs up to 3 mt. long

627021 352/SC

•

320mm

With limit switches, for leafs up to 3 mt. long

627031 353/SC

•

320mm

Not self-locking, for leafs up to 3 mt. long

627041 354/SC

•

320mm

With limit switches, not self-locking for leafs up to 3 mt. long

627053 355/SC

•

520mm

For leafs up to 4,5 mt. long

627052 355EN/SC

•

520mm •

With encoder, for leafs up to 4,5 mt. long

627061 356/SC

•

520mm

With limit switches, for leafs up to 4,5 mt. long

627071 357/SC

•

520mm

Not self-locking, for leafs up to 4,5 mt. long

627081 358/SC

•

520mm

With limit switches, not self-locking for leafs up to 4,5 mt. long

COD. OTHER CHARACTERISTICS

627092 371E/SC

•

320mm

For leafs up to 1,8 mt. long

627090 371/SC

• •

320mm

For leafs up to 3 mt. long

627102 371EN/SC

• •

320mm •

With encoder, for leafs up to 3 mt. long

627111 372/SC

• •

320mm

With limit switches, for leafs up to 3 mt. long

627123 373/SC

• •

520mm

For leafs up to 4,5 mt. long

627124 373EN/SC

• •

520mm •

With encoder, for leafs up to 4,5 mt. long

627131 374/SC

• •

520mm

With limit switches, for leafs up to 4,5 mt. long

NET230N

NET24N

230V a.c. operators without control board and rod cover

24V d.c. operators without control board and rod cover

Rod cover

Electromechanical automations for swing gates

LOOK

COD. OTHER CHARACTERISTICS

629340 CS320 320mm

Rod cover stroke 320 mm.

629341 CS520 520mm

Rod cover stroke 520 mm.

IN COMPLIANCE

WITH STANDARDS

All models have: fixing plates to be screwed included, rod cover not included
Control board to complete the installation: control board cod. 677610 art. NET230N/C (with box)

All models have: fixing plates to be screwed included, rod cover not included
Control board to complete the installation: control board cod. 678261 art. NET24N/C (with box)

Limit switches set up: articles 352, 354, 356, 358, 372 and 374 are supplied with built-in limit switches in open and closed position, to be connected to the control board.

TECHNICAL INFO

351

352

351EN

353

354

355

356

355EN

357

358

371E

371

371EN

372

373

374

373EN

Motor power supply (V)

230 AC ± 10 % (50/60 Hz)

24 DC

24 DC

24 DC

Maximum power absorption (W)

300

300

300

3005060

60

Max thrust (N)

1650

1200

1650

1200

500

1000

1000

Duty cycle (cycles/hours)

22 - 25

(vers. 351EN)

22

22 - 25

(vers. 355EN)

22

104040

N. max cycles in 24h.

110

110

110

11050110

110

Built-in capacitor (μF)

810810///

Operating temperature (°C)

-20 ÷ 50

-20 ÷ 50

-20 ÷ 50

-20 ÷ 50

-20 ÷ 50

-20 ÷ 50

-20 ÷ 50

Motor thermal protection (°C)

150

150

150

150//

/

90° Opening time (s)

16

12,5

13,5

15

15

Weight with packing (Kg)

9

9

9,5

9,5

999

Protection degree

46

Cod. 672580

Art. TR2

Remote control

Black version art. TR2N also
available (page 118)

Cod. 668010

Art. 127

Warning sign

EXAMPLE OF A TYPICAL INSTALLATION

ELECTRICAL DIAGRAM

4x1 mm² (230V) o 3x1,5 mm² (24V )4x1 mm² (230V) o 3x1,5 mm² (24V )

BB

4x0,5 mm²

2x0,5 mm²

2x0,5 mm²

3x0,5 mm²

2 x 0,5 mm² - RG58

810 / 1130

12025

1010 / 1530

110

DIMENSIONS

SWING GATES

deasy stem.co m

47

Cod. 662030

Art. 104LUX

Pair of adjustable (15°) surface
mounted photocells

3

Cod. 661062

Art. LED230AI

Led flashing light 230V with
built-in antenna 433Mhz

6

Cod. 664000

Art. PILLY/60

Pair of aluminium columns for photocells,
height 55 cm.

4

Cod. 677610

Art. NET230N/C

Universal digital control board for 1 or 2
operators, 230V, with or without magnetic
encoder (with box)

2

Cod. 627012

Art. 351EN/SC

Electromechanical operator
for swing gates

1

Cod. 663030

Art. 102LUX

Keyswitch with two contacts, flush
mounted. Supplied with 2 keys.

5

1

1

2

5

3

3

4

4

3

3

6

Cod. 629250

Art. COL 515

Anti-falling stainless steel cable
with 2 holes for swing doors

Cod. 661062

Art. LED230AI

Led flashing light 230V with
built-in antenna 433Mhz

Cod. 662020

Art. 104MINILUX

Pair of surface mounted photocells.
Range 20 mt

Cod. 662043

Art. LINEAR/B

Pair of adjustable photocells (180°)
with tx supplied by a LiOn battery.
Range 7/15 Mt

Cod. 663280

Art. DIGIRAD

Wireless keypad

Cod. 664000

Art. PILLY/60

Pair of aluminium columns for photocells,
height 55 cm.

Cod. 629290

Art. BAT

Rechargeable batteries kit for 24V
operators, 12V - 1,3Ah, complete
with wiring cables

Cod. 136024

Art. 110O

Horizontal electric lock complete
with double cylinder and
horizontal selvage art. 109A

Cod. 136004

Art. M

Half European cylinder

Cod. 629311

Art. LOOK/SFR

Adjustable brackets for LOOK

Cod. 677610

Art. NET230N/C

Universal digital control board for 1 or 2
operators, 230V, with or without magnetic
encoder (with box)

Cod. 672580

Art. TR2

Remote control

Black version art. TR2N also available
(page 118)

Cod. 662030

Art. 104LUX

Pair of adjustable (15°) surface
mounted photocells

Cod. 681060

Art. COVER

Vandal-proof aluminium cover for
art. LINEAR and LINEAR/B

Cod. 663270

Art. DIGINET

Hardwired keypad for BUS connections
to MASTER devices of range DE@NET
(NET24N, NET230N, MASTERNET)

Cod. 664010

Art. PILLY/120

Pair of aluminium columns for photocells,
height 100 cm.

Cod. 681050

Art. Green Energy

Solar power kit complete with
art. CHARGER

Cod. 136006

Art. 110V

Empty electric lock (without
European cylinder) with ground
selvage art. 109

Cod. 679140

Art. 100GG

Large PVC box , suitable to include
any other DEA boxes, to grant a
better protection and isolation.

Cod. 629380

Art. LOOK/SB

Adapter kit for doors in slope.

Max gradient 8%

Cod. 661082

Art. LED24AI

Led flashing light 24V with
built-in antenna 433Mhz

Cod. 672590

Art. TR4

Remote control

Black version art. TR4N also available
(page 118)

Cod. 662044

Art. LINEAR

Pair of adjustable photocells (180°)
with possibility of syncronized operating.
Range 20 Mt

Cod. 663060

Art. KYO

Aluminium vandal-proof
keyswitch, flush mounted.

Cod. 664020

Art. PILLY/base

Pair of fixing plates for columns
to be cemented.

Cod. 675510

Art. 251/2

Hardwired 2 channels receiver, surface
mounted (complete with box 100F)
(433Mhz)

Cod. 665000

Art. BLINDOS

Safety enclosure to place external
unlocking device handle

Cod. 136005

Art. D

Double European cylinder

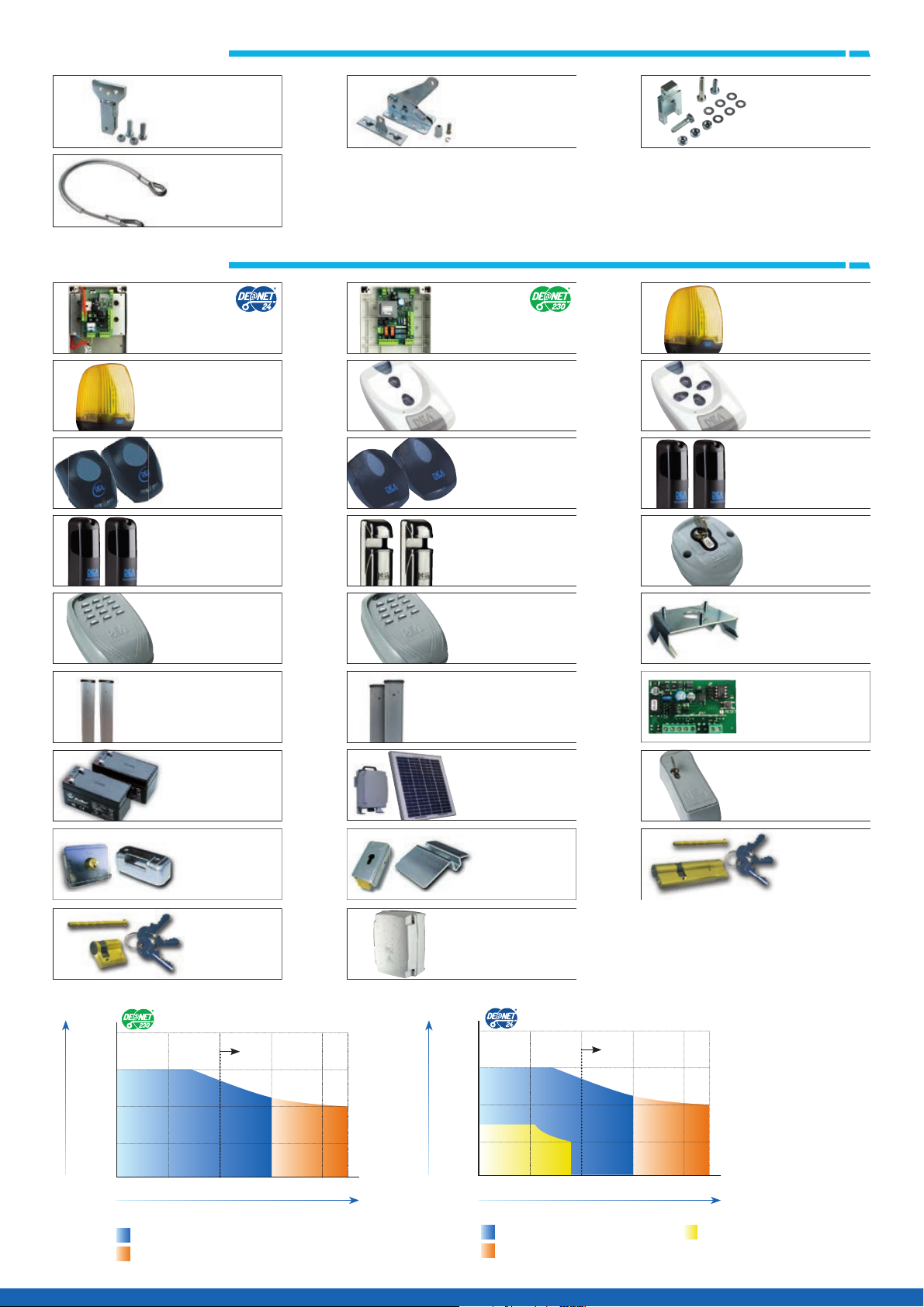

SPECIFIC ACCESSORIES

OTHER ACCESSORIES

Cod. 678261

Art. NET24N/C

Universal digital control board for 1 or 2
operators, 24V, with or without magnetic
encoder (with box)

Cod. 629320

Art. MAC-LOOK/P

Extension for MAC and LOOK rams

GUIDE TO USE GUIDE TO USE

48

If the leaf length is bigger than 2
meters or if you use
reversible models you must install
the electric-lock to block the gate
in closed position

The height and the leaf structure,
as well as the presence of strong
wind, can cause the reduction of
the value of the data contained
in table.

0 1m 2m 3m 4m

800 kg

600 kg

400 kg

200 kg

= models 351 - 351EN - 352 - 353 - 354

= models 355 - 355EN - 356 - 357 - 358

Electric-lock

0 1m 2m 3m 4m

800 kg

600 kg

400 kg

200 kg

= models 371 - 371EN - 372

= models 373 - 374

= model 371E

Electric-lock

leaf length leaf length

leaf max weight

leaf max weight
