Page 1
COD.
EN
OTHER CHARACTERISTICS
637050 LATO220NET
IN COMPLIANCE
WITH STANDARDS
• •
NET230N
For shafts
with
Ø 25mm
•
- Limit switches - Anti-crashing safety device
- Magnetic encoder with 6 mt. long cable and obstacle detection
- Integrated receiver and courtesy light
- Manual unlocking device
637051
LATO220NET/C
IN COMPLIANCE
WITH STANDARDS
• •
NET230N
For shafts
with
Ø 25mm
•
- Limit switches - Anti-crashing safety device
- Magnetic encoder with 6 mt. long cable
- Integrated receiver and courtesy light
- Manual unlocking device for emergency manual manouvre by chain
COD. OTHER CHARACTERISTICS
637031 LATO400EN
• • •
•
For shafts
with
Ø 25mm
- Manual unlocking device
- Magnetic encoder with 6 mt. long cable
637041
LATO400CEN
• • •
•
For shafts
with
Ø 25mm
- Manual unlocking device
- Manual unlocking device for emergency manual manouvre by chain
- Magnetic encoder with 6 mt. long cable
COD. OTHER CHARACTERISTICS
637001 LATO220/EN
• •
•
For shafts
with
Ø 25mm
- Limit switches - Magnetic encoder with 6 mt. long cable
- Manual unlocking device
637011
LATO220/CEN
• •
•
For shafts
with
Ø 25mm
- Limit switches - Magnetic encoder with 6 mt. long cable
- Manual unlocking device
- Manual device for emergency manual manouvre by chain
NET230N
400RR
230V a.c. operators with control board, limit switches and encoder
400V a.c. operators without control board, with limit switches and encoder

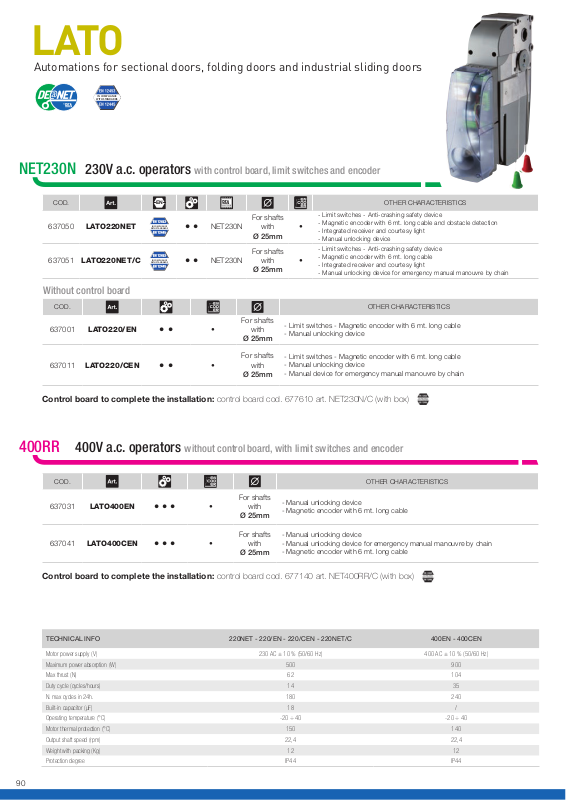

Automations for sectional doors, folding doors and industrial sliding doors
LATO
Control board to complete the installation: control board cod. 677140 art. NET400RR/C (with box)
Control board to complete the installation: control board cod. 677610 art. NET230N/C (with box)
Without control board
IN COMPLIANCE
WITH STANDARDS
TECHNICAL INFO 220NET - 220/EN - 220/CEN - 220NET/C 400EN - 400CEN
Motor power supply (V) 230 AC ± 10 % (50/60 Hz) 400 AC ± 10 % (50/60 Hz)
Maximum power absorption (W) 500 900
Max thrust (N) 62 104
Duty cycle (cycles/hours) 14 35
N. max cycles in 24h. 180 240
Built-in capacitor (μF) 18 /
Operating temperature (°C) -20 ÷ 40 -20 ÷ 40
Motor thermal protection (°C) 150 140
Output shaft speed (rpm) 22,4 22,4
Weight with packing (Kg) 12 12
Protection degree IP44 IP44
90
Page 2
EXAMPLE OF A TYPICAL INSTALLATION
ELECTRICAL DIAGRAM
Cod. 668010
Art. 127
Warning sign
104
322
122
415
234 110
156
266
55
360
DIMENSIONS
INDUSTRIAL SECTIONAL
AND FOLDING DOORS
deasy stem.co m
91
Cod. 679180
Art. 100GP
Buttons wired cover
Cod. 677610
Art. NET230N/C
Universal digital control board for 1 or 2
operators, 230V, with or without magnetic
encoder (with box)
2 32
Cod. 637001
Art. LATO220/EN
Operator for sectional doors,
folding doors and industrial
sliding doors
1
Cod. 661062
Art. LED230AI
Led flashing light 230V with
built-in antenna 433Mhz
4
Cod. 662044
Art. LINEAR
Pair of adjustable photocells (180°)
with possibility of syncronized operating.
Range 20 Mt
3
1
3
3
4
2
4x0,5 mm²
2x0,5 mm²
2x0,5 mm²
2x0,5 mm² - 1xRG58
3x1,5 mm²
Page 3

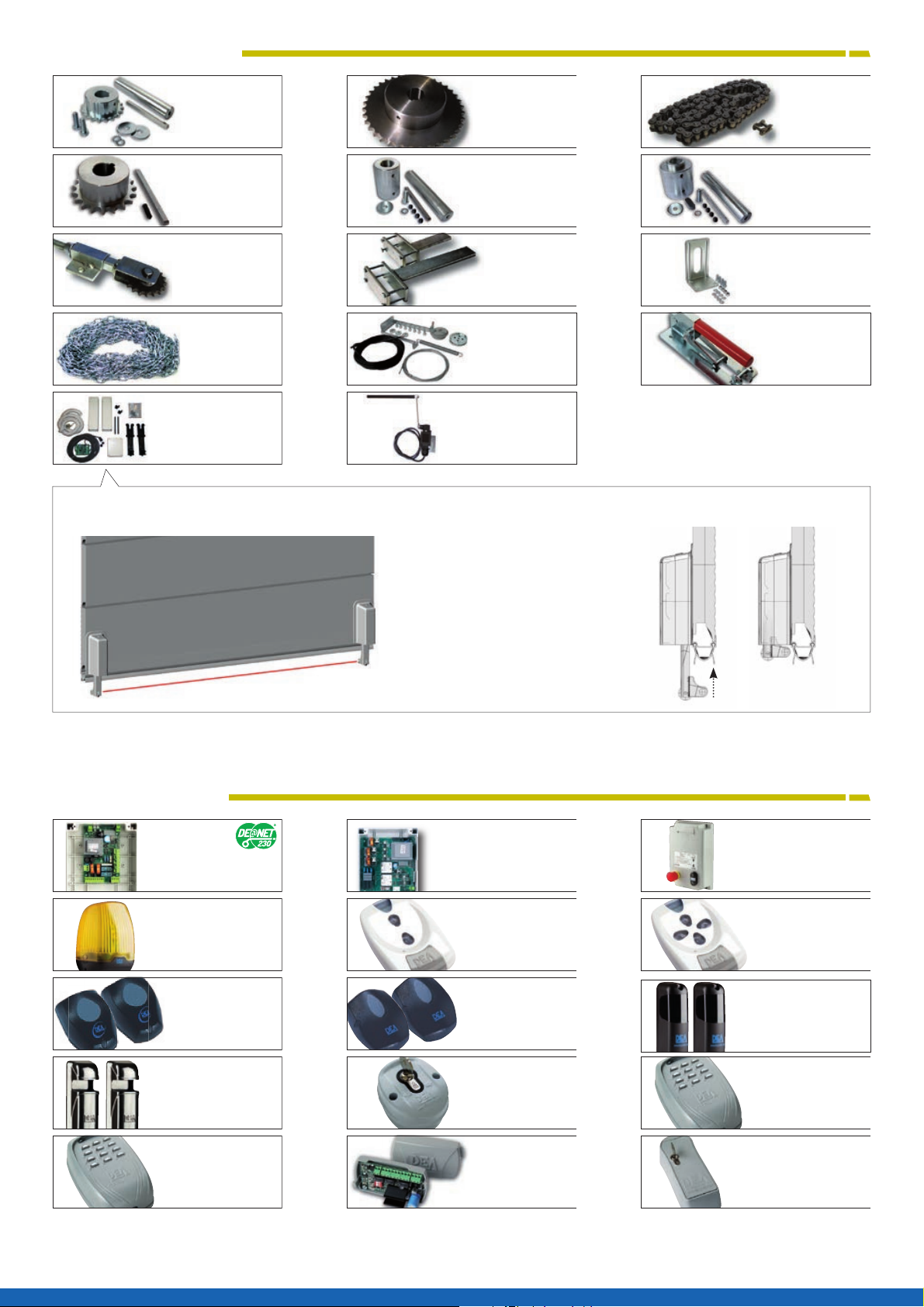

Cod. 639410
Art. L19
Key+Pinion
1/2” Z=19
Cod. 639010
Art. 800C/TEN
Chain tightener
Cod. 639500
Art. CG
25 mt. genoese chain
Cod. 662070
Art. 104SEZ
Pair of patented system photocells for
the total protection of sectional doors:
to avoid impact measurements,
as required by En standards
Cod. 639030
Art. 800C/CZ38
Key+Pinion 1/2” Z=38
Cod. 639450
Art. LBA25
Socket for cable coiler shaft
Ø=25,4
Cod. 639020
Art. 800C/F
Chain anchoring brackets
Cod. 639530
Art. LATO/SF
Unlocking device kit for LATO.
To be used with BLINDOS
or LATOM
Cod. 639000
Art. 800C/ACC
Joint, chain (mt. 2)
Cod. 639440
Art. LBA40
Socket for cable coiler shaft
Ø=40
Cod. 639420
Art. LE
Fixing plate
Cod. 639480
Art. LATOM
Unlocking handle
SPECIFIC ACCESSORIES
Cod. 639430
Art. LAC19
Key+Pinion 1/2”
Z=19 + shaft extension
Cod. 661062
Art. LED230AI
Led flashing light 230V with
built-in antenna 433Mhz
Cod. 662020
Art. 104MINILUX
Pair of surface mounted photocells.
Range 20 mt
Cod. 681060
Art. COVER
Vandal-proof aluminium cover for
art. LINEAR and LINEAR/B
Cod. 663270
Art. DIGINET
Hardwired keypad for BUS connections
to MASTER devices of range DE@NET
(NET24N, NET230N, MASTERNET)
Cod. 677140
Art. 400RR/C
Digital control board three-phase 400V
or single phase 230V for sliding gates
(with box)
Cod. 672580
Art. TR2
Remote control
Black version art. TR2N also available
(page 118)
Cod. 662030
Art. 104LUX
Pair of adjustable (15°) surface
mounted photocells
Cod. 663060
Art. KYO
Aluminium vandal-proof
keyswitch, flush mounted.
Cod. 639520
Art. micro
Save-spring micro switch
Cod. 679180
Art. 100GP
Buttons wired cover
Cod. 672590
Art. TR4
Remote control
Black version art. TR4N also available
(page 118)
Cod. 662043
Art. LINEAR/B
Pair of adjustable photocells (180°)
with tx supplied by a LiOn battery.
Range 7/15 Mt
Cod. 663280
Art. DIGIRAD
Wireless keypad
Cod. 665000
Art. BLINDOS
Safety enclosure to place external
unlocking device handle
OTHER ACCESSORIES
Cod. 677610
Art. NET230N/C
Universal digital control board for 1 or 2
operators, 230V, with or without magnetic
encoder (with box)
Cod. 681020
Art. MASTERNET
Interface receiver for BUS devices.
Not necessary for control boards art.
NET24N and NET230N
EXAMPLE OF INSTALLATION OF SAFETY PHOTOCELLS ART. 104SEZ
92
