Page 1
COD. OTHER CHARACTERISTICS
621000 200
• •
Underground operator with connection lever
621040 200CL
• •
Underground operator with connection lever and complete with 8 m of cable
621010 200L
• •
Underground operator with connection lever, slow version
621060 200/EN
• •
•
Underground operator with connection lever and encoder
621070 200/CLEN
• •
•
Underground operator with connection lever, encoder and complete with 8 m of cable
COD. OTHER CHARACTERISTICS
621020 200/24
• • •
Underground operator with connection lever
621050 200/24CL
• • •
Underground operator with connection lever and complete with 8 m of cable
NET230N
NET24N
230V a.c. operators withoutout control board
24V d.c. operators without control board
Electromechanical underground
automations for swing gates
GHOST 200
All models have: foundation box and limit switches not included (see on page 72)
Control board to complete the installation: control board cod. 677610 art. NET230N/C (with box)
All models have: foundation box and limit switches not included (see on page 72)
Control board to complete the installation: control board cod. 678261 art. NET24N/C (with box)
0 1m 2m 3m 4m
GUIDE TO USE
800 kg
600 kg
400 kg
200 kg
Electric-lock
If the leaf length is bigger than 2 meters or if you use
reversible models you must install the electric-lock to
block the gate in closed position
The height and the leaf structure, as well as the presence
of strong wind, can cause the reduction of the value of the
data contained in table.
IN COMPLIANCE
WITH STANDARDS
TECHNICAL INFO
200 - 200CL
200/EN - 200/CLEN
200L
200/24
200/24CL
Motor power supply (V) 230 AC ± 10 % (50/60 Hz) 230 AC ± 10 % (50/60 Hz) 24 DC
Maximum power absorption (W) 400 330 150
Max thrust (N) 320 300 210
Duty cycle (cycles/hours) 20 - 28 (vers. 200/EN) 18 40
N. max cycles in 24h. 200 200 280
Built-in capacitor (μF) 12,5 12,5
Operating temperature (°C) -20 ÷ 50 -20 ÷ 50 -20 ÷ 50
Motor thermal protection (°C) 150 150 /
90° Opening time (s) 17 26 16
Weight with packing (Kg) 14,5 14,5 14
Protection degree IP67 IP67 IP67
leaf length
leaf max weight
70
Page 2
Cod. 629000 Art. 215
Foundation box with cataphoresis
treatment complete with gate support
and unlocking device
Cod. 668010
Art. 127
Warning sign
Cod. 672580
Art. TR2
Remote control
Black version art. TR2N also
available (page 118)
EXAMPLE OF A TYPICAL INSTALLATION
ELECTRICAL DIAGRAM
4x1 mm² (230V) o 3x1,5 mm² (24V )4x1 mm² (230V) o 3x1,5 mm² (24V )
B
B
4x0,5 mm²
2x0,5 mm²
3x0,5 mm²
2 x 0,5 mm² - RG58
2x0,5 mm²
65
345
420
225
6
1
3
3
4
1
2
3
3
5
4
DIMENSIONS
SWING GATES
deasy stem.co m
71
Cod. 661062
Art. LED230AI
Led flashing light 230V with
built-in antenna 433Mhz
6
Cod. 677610
Art. NET230N/C
Universal digital control board for 1 or 2
operators, 230V, with or without magnetic
encoder (with box)
2
Cod. 662030
Art. 104LUX
Pair of adjustable (15°) surface
mounted photocells
3
1
Cod. 663030
Art. 102LUX
Keyswitch with two contacts, flush
mounted. Supplied with 2 keys.
5
Cod. 664000
Art. PILLY/60
Pair of aluminium columns for photocells,
height 55 cm.
4
Cod. 621060
Art. 200/EN
Electromechanical underground
operator for swing gates
1
Page 3
Cod. 629020
Art. 216
Device to be fixed into boxes 215
or 215I to get an opening angle
up to 180°
Cod. 661062
Art. LED230AI
Led flashing light 230V with
built-in antenna 433Mhz
Cod. 662020
Art. 104MINILUX
Pair of surface mounted photocells.
Range 20 mt
Cod. 662043
Art. LINEAR/B
Pair of adjustable photocells (180°)
with tx supplied by a LiOn battery.
Range 7/15 Mt
Cod. 663280
Art. DIGIRAD
Wireless keypad
Cod. 664000
Art. PILLY/60
Pair of aluminium columns for photocells,
height 55 cm.
Cod. 629290
Art. BAT
Rechargeable batteries kit for 24V
operators, 12V - 1,3Ah, complete
with wiring cables
Cod. 629010
Art. 215I
Stainless steel foundation box
complete with gate support and
unlocking device
Cod. 677610
Art. NET230N/C
Universal digital control board for 1 or 2
operators, 230V, with or without magnetic
encoder (with box)
Cod. 672580
Art. TR2
Remote control
Black version art. TR2N also available
(page 118)
Cod. 662030
Art. 104LUX
Pair of adjustable (15°) surface
mounted photocells
Cod. 681060
Art. COVER
Vandal-proof aluminium cover for
art. LINEAR and LINEAR/B
Cod. 663270
Art. DIGINET
Hardwired keypad for BUS connections
to MASTER devices of range DE@NET
(NET24N, NET230N, MASTERNET)
Cod. 664010
Art. PILLY/120
Pair of aluminium columns for photocells,
height 100 cm.
Cod. 681050
Art. Green Energy
Solar power kit complete with
art. CHARGER
Cod. 629030
Art. 218
Mechanical limit switch
Cod. 661082
Art. LED24AI
Led flashing light 24V with
built-in antenna 433Mhz
Cod. 672590
Art. TR4
Remote control
Black version art. TR4N also available
(page 118)
Cod. 662044
Art. LINEAR
Pair of adjustable photocells (180°)
with possibility of syncronized operating.
Range 20 Mt
Cod. 663060
Art. KYO
Aluminium vandal-proof
keyswitch, flush mounted.
Cod. 664020
Art. PILLY/base
Pair of fixing plates for columns
to be cemented.
Cod. 675510
Art. 251/2
Hardwired 2 channels receiver, surface
mounted (complete with box 100F)
(433Mhz)
Cod. 665000
Art. BLINDOS
Safety enclosure to place external
unlocking device handle

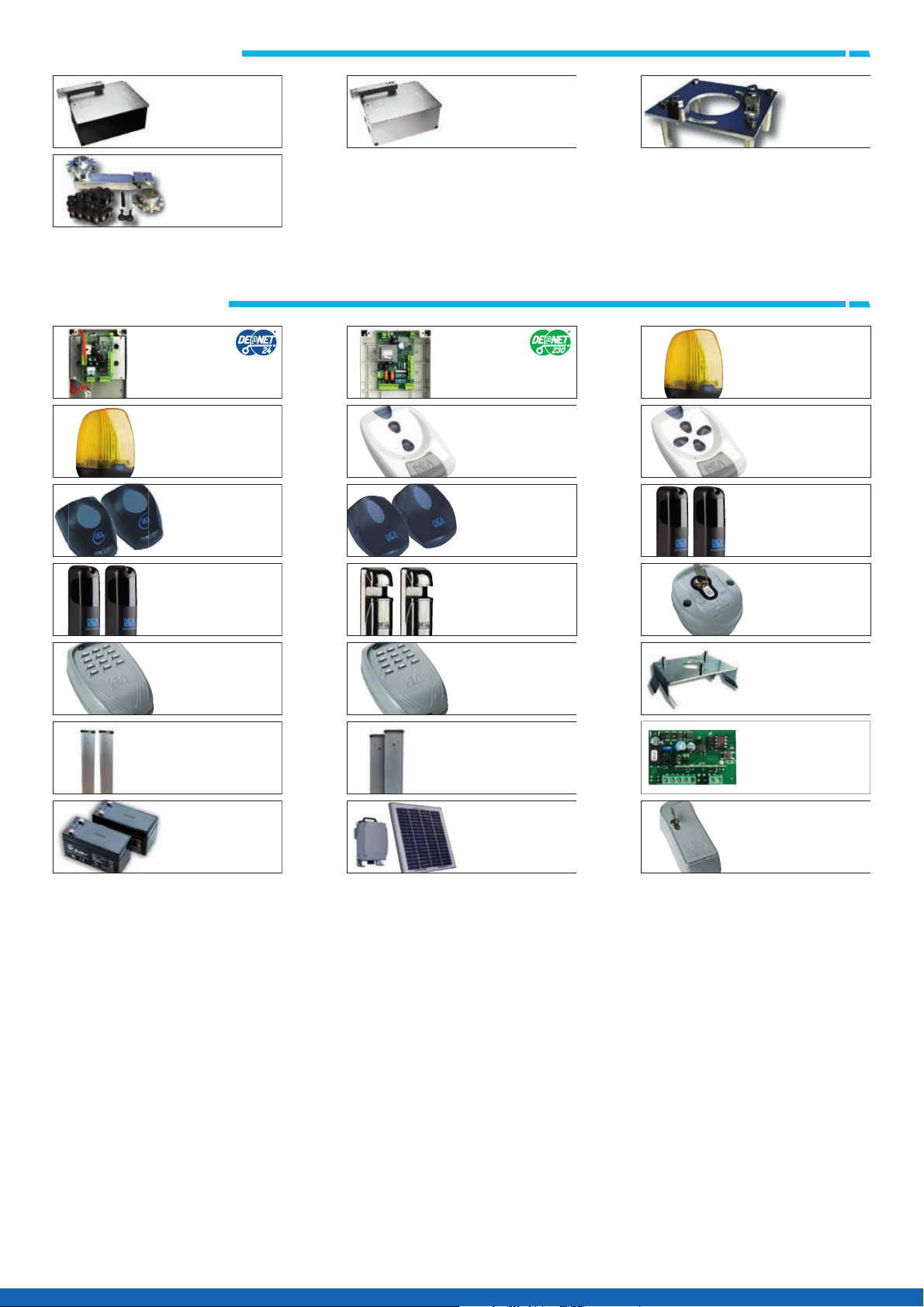

SPECIFIC ACCESSORIES
OTHER ACCESSORIES
Cod. 629000 Art. 215
Foundation box with cataphoresis
treatment complete with gate support
and unlocking device
Cod. 678261
Art. NET24N/C
Universal digital control board for 1 or 2
operators, 24V, with or without magnetic
encoder (with box)
72
