DEA Ghost 100 User Manual

SUMMER 2013

COD. OTHER CHARACTERISTICS

621250 100

•

Underground operator with connection lever and mechanical limit switches

621252 100/CL

•

Underground operator with connection lever, mechanical limit switches and complete with 7 m of cable

621251 100/EN

•

•

Underground operator with connection lever, mechanical limit switches and encoder

621253 100EN/CL

•

•

Underground operator with connection lever, mechanical limit switches, encoder and complete with 7 m of cable

COD. OTHER CHARACTERISTICS

621260 100/24

• •

Underground operator with connection lever and mechanical limit switches

621262 100/24CL

• •

Underground operator with connection lever, mechanical limit switches and complete with 7 m of cable

621261 100/24EN

• •

•

Underground operator with connection lever, mechanical limit switches and encoder

621263 100/24EN/CL

• •

•

Underground operator with connection lever, mechanical limit switches, encoder and complete with 7 m of cable

NET230N

NET24N

230V a.c. operators withoutout control board, with mechanic limit switches

24V d.c. operators withoutout control board, with mechanic limit switches

Electromechanical underground automations
for swing gates

GHOST 100

All models have: foundation box not included (see on page 68)
Control board to complete the installation: control board cod. 677610 art. NET230N/C (with box)

All models have: foundation box not included (see on page 68)
Control board to complete the installation: control board cod. 678261 art. NET24N/C (with box)

0 1m 2m 3m 3,5mt

GUIDE TO USE

650 kg

450 kg

250 kg

150 kg

Electric-lock

If the leaf length is bigger than 2 meters or if you use reversible models you
must install the electric-lock to block the gate in closed position

The height and the leaf structure, as well as the presence of strong wind, can
cause the reduction of the value of the data contained in table.

IN COMPLIANCE

WITH STANDARDS

TECHNICAL INFO

100 - 100/CL

100/EN - 100EN/CL

100/24 - 100/24CL

100/24EN - 100/24ENCL

Motor power supply (V)

230 AC ± 10 % (50/60 Hz)

24V DC

Maximum power absorption (W) 250 50

Coppia max (Nm) 250 170

Duty cycle (cycles/hours) 18 - 25 (vers. 100EN) 35

N. max cycles in 24h. 120 140

Built-in capacitor (μF) 8 /

Operating temperature (°C) -20 ÷ 50 -20 ÷ 50

Motor thermal protection (°C) 150 /

90° Opening time (s) 16 15

Weight with packing (Kg) 14 14

Protection degree IP67 IP67

leaf length

leaf max weight

66

EXAMPLE OF A TYPICAL INSTALLATION

ELECTRICAL DIAGRAM

4x1 mm² (230V) o 3x1,5 mm² (24V)4x1 mm² (230V) o 3x1,5 mm² (24V)

B

B

4x0,5 mm²

2x0,5 mm²

3x0,5 mm²

2 x 0,5 mm² - RG58

2x0,5 mm²

Cod. 629003 Art. 115

Foundation box with cataphoresis
treatment complete with gate support
and unlocking device

Cod. 621251 Art. 100/EN

Electromechanical underground operator
for swing gates

Cod. 668010

Art. 127

Warning sign

Cod. 672580

Art. TR2

Remote control

Black version art. TR2N also
available (page 118)

410

225

65

345

Cod. 661062

Art. LED230AI

Led flashing light 230V with
built-in antenna 433Mhz

6

6

DIMENSIONS

SWING GATES

deasy stem.co m

67

Cod. 677610

Art. NET230N/C

Universal digital control board for 1 or 2
operators, 230V, with or without magnetic
encoder (with box)

2

Cod. 662030

Art. 104LUX

Pair of adjustable (15°) surface
mounted photocells

3

1 1

Cod. 663030

Art. 102LUX

Keyswitch with two contacts, flush
mounted. Supplied with 2 keys.

5

Cod. 664000

Art. PILLY/60

Pair of aluminium columns for photocells,
height 55 cm.

4

1

3

3

4

1

2

3

3

5

4

Cod. 629021

Art. 116G

Device to be fixed into boxes 115
or 115I to get an opening angle
up to 180°.

Cod. 661062

Art. LED230AI

Led flashing light 230V with
built-in antenna 433Mhz

Cod. 662020

Art. 104MINILUX

Pair of surface mounted photocells.

Range 20 mt

Cod. 662043

Art. LINEAR/B

Pair of adjustable photocells (180°)
with tx supplied by a LiOn battery.
Range 7/15 Mt

Cod. 663280

Art. DIGIRAD

Wireless keypad

Cod. 664000

Art. PILLY/60

Pair of aluminium columns for photocells,
height 55 cm.

Cod. 629290

Art. BAT

Rechargeable batteries kit for 24V
operators, 12V - 1,3Ah, complete
with wiring cables

Cod. 629013

Art. 115I

Stainless steel foundation box
complete with gate support and
unlocking device

Cod. 677610

Art. NET230N/C

Universal digital control board for 1 or 2
operators, 230V, with or without magnetic
encoder (with box)

Cod. 672580

Art. TR2

Remote control

Black version art. TR2N also available
(page 118)

Cod. 662030

Art. 104LUX

Pair of adjustable (15°) surface
mounted photocells

Cod. 681060

Art. COVER

Vandal-proof aluminium cover for
art. LINEAR and LINEAR/B

Cod. 663270

Art. DIGINET

Hardwired keypad for BUS connections
to MASTER devices of range DE@NET
(NET24N, NET230N, MASTERNET)

Cod. 664010

Art. PILLY/120

Pair of aluminium columns for photocells,
height 100 cm.

Cod. 681050

Art. Green Energy

Solar power kit complete with
art. CHARGER

Cod. 629031

Art. 118

Mechanical limit switches

Cod. 661082

Art. LED24AI

Led flashing light 24V with
built-in antenna 433Mhz

Cod. 672590

Art. TR4

Remote control

Black version art. TR4N also available
(page 118)

Cod. 662044

Art. LINEAR

Pair of adjustable photocells (180°)
with possibility of syncronized operating.
Range 20 Mt

Cod. 663060

Art. KYO

Aluminium vandal-proof
keyswitch, flush mounted.

Cod. 664020

Art. PILLY/base

Pair of fixing plates for columns
to be cemented.

Cod. 675510

Art. 251/2

Hardwired 2 channels receiver, surface
mounted (complete with box 100F)
(433Mhz)

Cod. 665000

Art. BLINDOS

Safety enclosure to place external
unlocking device handle

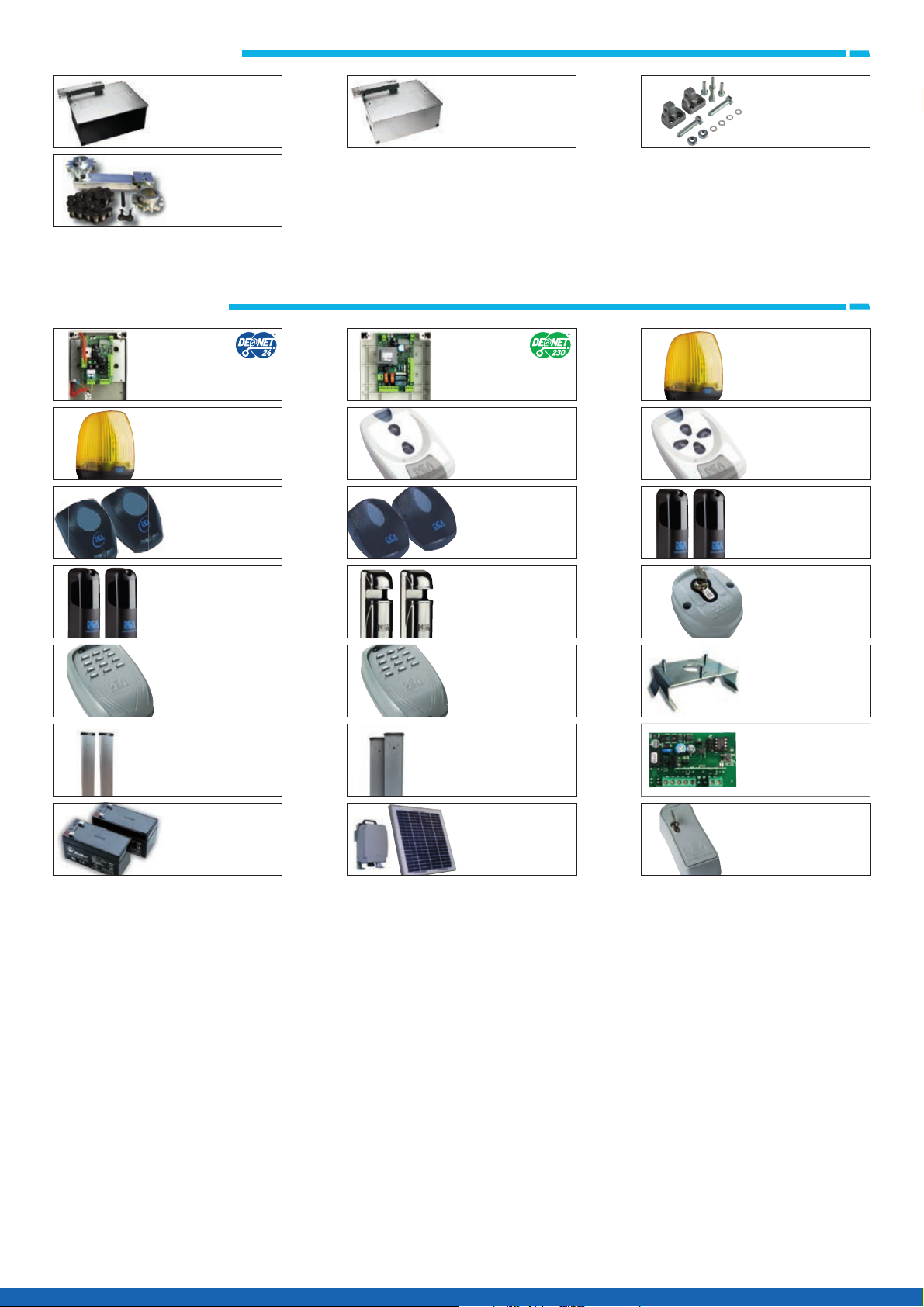

SPECIFIC ACCESSORIES

OTHER ACCESSORIES

Cod. 629003 Art. 115

Foundation box with cataphoresis
treatment complete with gate support
and unlocking device

Cod. 678261

Art. NET24N/C

Universal digital control board for 1 or 2
operators, 24V, with or without magnetic
encoder (with box)

68
