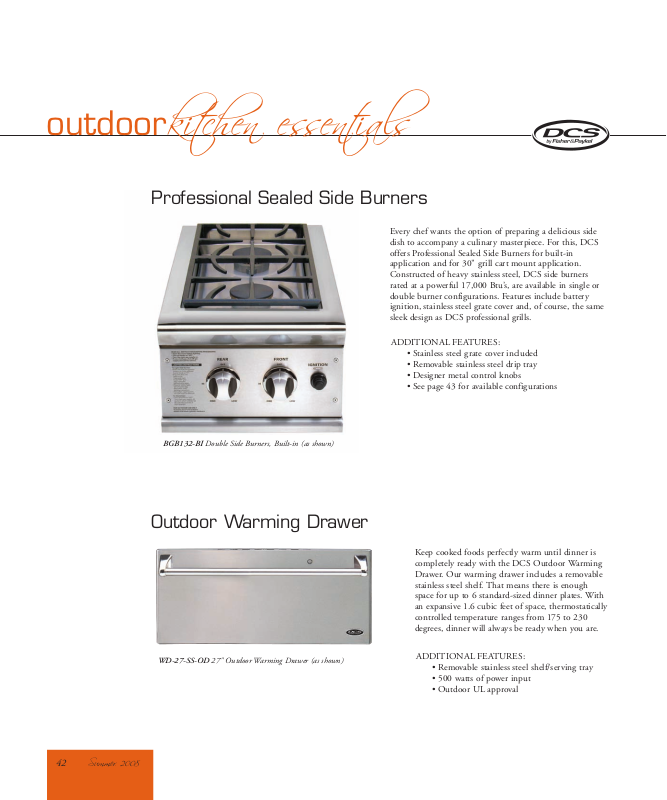

Professional Sealed Side Burners
Every chef wants the option of preparing a delicious side dish to accompany a culinary masterpiece. For this, DCS offers Professional Sealed Side Burners for built-in application and for 30" grill cart mount application. Constructed of heavy stainless steel, DCS side burners rated at a powerful 17,000 Btu’s, are available in single or double burner configurations. Features include battery ignition, stainless steel grate cover and, of course, the same sleek design as DCS professional grills.
ADDITIONAL FEATURES:
• Stainless steel grate cover included
• Removable stainless steel drip tray
• Designer metal control knobs
• See page 43 for available configurations
ide Burners, Built-in (as shown)
BGB132-BI D
ouble S
Outdoor Warming Drawer
WD-27-SS-OD 27" Outdoor Warming Drawer (as shown)
eep cooked foods per
K completely r Drawer. Our warming drawer includes a removable stainless steel shelf. space for up to 6 standar an expansiv controlled temperature ranges from 175 to 230 degrees, dinner will always be ready when you are.
ADDITIONAL FEATURES:
eady with the DCS Outdoor Warming
e 1.6 cubic feet of space, thermostatically
• Removable stainless steel shelf/serving tray
• 500 watts of power input
• Outdoor UL approval
fectly warm until dinner is
That means ther
d-siz
e is enough
ed dinner plates.
W
ith
42 Summer 2008
Summer 2008 43
Ordering Data: Please specify gas type (natural or propane) when ordering.
MODEL NUMBER WD-27-SS-OD
DRAWER SPACE 1.6 CUBIC FEET
REMOVABLE SHELF/SERVING TRAY
TYPE 304 ST
AINLESS STEEL
Gas Requirements:
Natural
• 1/2" NPT male with a 3/8" flare adapter
• Operational Pressure: 4" W.C.
• Supply Pressure: 6” to 9” W.C.
Power Requirements:
• 120V 60Hz
• 3 wire
• 15 amp circuit
MODEL NUMBER BGB131 BGB131-BI BGB132 BGB132-BI
30” CART MOUNT
BUILT-IN ✔✔
SIDE BURNER(S) 1 @ 17,000 Btu/hr 1 @ 17,000 Btu/hr 2 @ 17,000 Btu/hr 2 @ 17,000 Btu/hr
SHIPPING WEIGHT (LBS) 35.4 35.8 60.6 64.0
SHIPPING DIMENSIONS (HEIGHT X WIDTH X DEPTH) 13.5 x 14.5 x 19 13.5 x 14.5 x 19 16 x 18 x 30 16 x 18 x 30
B
B
B
Note: the deck is not required
8
8
Built-in Side Burner Dimensions 30” Cart Mount Side Burner Dimensions
Professional Side Burner Island Preparation
NOTE: Cart Mount Side Burners are not designed for built-in applications.
Warming Drawer Dimensions
Warming Drawer Island Preparation
MODEL A B
BGB131-BI 12” 6” min.
BGB132-BI 22-3/8” 6” min.
POWER CORD
A 120 Volt AC GFI outlet should be located below the Warming Drawer
2 x 4’s or similar support
min. cabinet depth
1-1/2” min. to bottom of counter
top
Propane
• 1/2" NPT male with a 3/8" flare adapter
• Operational Pressure: 10" W.C.
• Supply Pressure: 11” to 14” W.C.
BGB132-BI
B
GB131-BI
B
GB131
BGB132
BGB131 Single Side Burner
B
GB132 Double Side Burner
B
GB131-BI Single Side Burner
B
GB132-BI Double Side Burner
