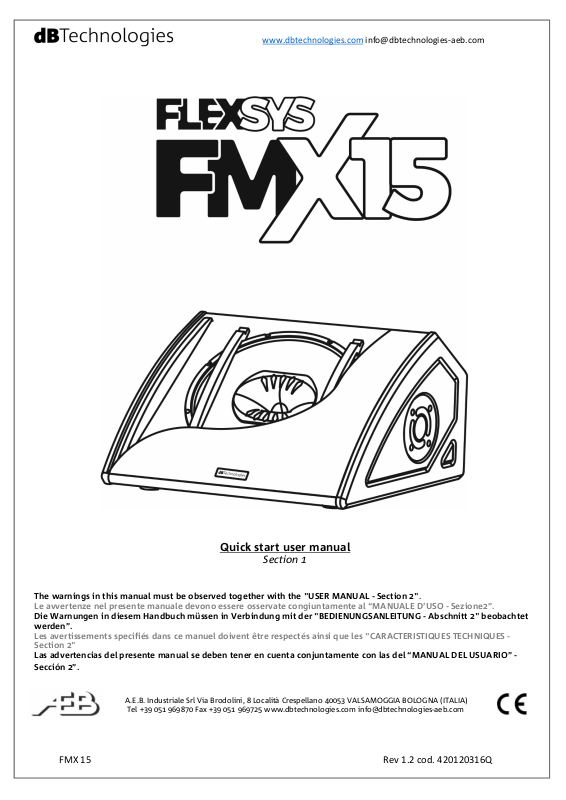

dB Technologies FMX15 User manual
www.dbtechnologies.com info@dbtechnologies-aeb.com
Quick start user manual
Section 1
The warnings in this manual must be observed together with the "USER MANUAL - Section 2".
Le avvertenze nel presente manuale devono essere osservate congiuntamente al “MANUALE D’USO - Sezione2”.
Die Warnungen in diesem Handbuch müssen in Verbindung mit der "BEDIENUNGSANLEITUNG - Abschnitt 2" beobachtet
werden”.
Les avertissements specifiés dans ce manuel doivent être respectés ainsi que les "CARACTERISTIQUES TECHNIQUES Section 2"
Las advertencias del presente manual se deben tener en cuenta conjuntamente con las del “MANUAL DEL USUARIO” Sección 2”.
A.E.B. Industriale Srl Via Brodolini, 8 Località Crespellano 40053 VALSAMOGGIA BOLOGNA (ITALIA)
Tel +39 051 969870 Fax +39 051 969725 www.dbtechnologies.com info@dbtechnologies-aeb.com
FMX 15 Rev 1.2 cod. 420120316Q
www.dbtechnologies.com info@dbtechnologies-aeb.com
Thank you for choosing a dBTechnologies Product!
The FMX 15 is a versatile coaxial active stage monitor. It is equipped with one 1” compression driver (1.3” voice coil),
and one 15” woofer (2” voice coil). The coverage pattern is 60° (H) x 90° (V), (the horn is rotatable) and the mechanical
design allows also the vertical usage (36 mm diameter pole mount hole). A powerful DSP can adapt the live or
playback performances to different usage scenarios. The balanced audio input allows the usage of a microphone or
a line source (a mixer or instrument).
Check the site www.dbtechnologies.com for the complete user manual!
1) Unpacking
The box contains:
N°1 FMX 15
N°1 Mains cable (VDE)
This quick start and warranty documentation
2) Easy installation
FMX 15 is equipped with:
The acoustical design allows to face different
environments. The dispersion pattern is shown in the
upper picture.
As described, the related pattern data are:
a) vertical coverage: 90°
b) horizontal coverage: 60°
The horn is rotatable. See other information in the
A –Integrated/inner handles
B – 36 mm pole mount
Those mechanical particulars were thought for an easy
use and for different configuration needs.
In case of vertical usage, please see also the EQ
configuration in “Connections and controls” section.
complete user manual.
FMX 15 Rev 1.2 cod. 420120316Q
