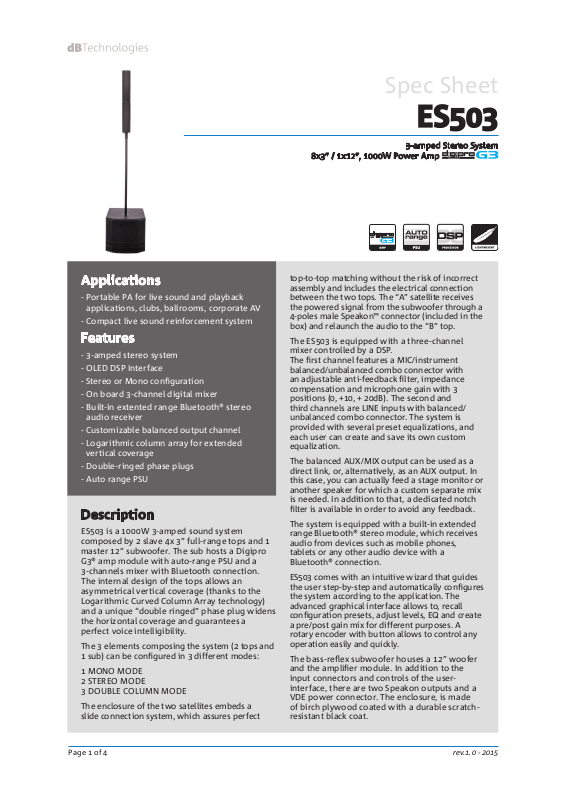

Spec Sheet
ES503
3-amped Stereo System
8x3” / 1x12”, 1000W Power Amp
Applications
- Portable PA for live sound and playback
applications, clubs, ballrooms, corporate AV
- Compact live sound reinforcement system
Features
- 3-amped stereo system
- OLED DSP Interface
- Stereo or Mono conguration
- On board 3-channel digital mixer
- Built-in extented range Bluetooth® stereo
audio receiver
- Customizable balanced output channel
- Logarithmic column array for extended
vertical coverage
- Double-ringed phase plugs
- Auto range PSU
Description
ES503 is a 1000W 3-amped sound system
composed by 2 slave 4x 3” full-range tops and 1
master 12” subwoofer. The sub hosts a Digipro
G3® amp module with auto-range PSU and a
3-channels mixer with Bluetooth connection.
The internal design of the tops allows an
asymmetrical vertical coverage (thanks to the
Logarithmic Curved Column Array technology)
and a unique “double ringed” phase plug widens
the horizontal coverage and guarantees a
perfect voice intelligibility.
The 3 elements composing the system (2 tops and
1 sub) can be congured in 3 different modes:
1 MONO MODE
2 STEREO MODE
3 DOUBLE COLUMN MODE
The enclosure of the two satellites embeds a
slide connection system, which assures perfect
top-to-top matching without the risk of incorrect
assembly and includes the electrical connection
between the two tops. The “A” satellite receives
the powered signal from the subwoofer through a
4-poles male Speakon™ connector (included in the
box) and relaunch the audio to the “B” top.
The ES503 is equipped with a three-channel
mixer controlled by a DSP.
The rst channel features a MIC/instrument
balanced/unbalanced combo connector with
an adjustable anti-feedback lter, impedance
compensation and microphone gain with 3
positions (0, +10, + 20dB). The second and
third channels are LINE inputs with balanced/
unbalanced combo connector. The system is
provided with several preset equalizations, and
each user can create and save its own custom
equalization.
The balanced AUX/MIX output can be used as a
direct link, or, alternatively, as an AUX output. In
this case, you can actually feed a stage monitor or
another speaker for which a custom separate mix
is needed. In addition to that, a dedicated notch
lter is available in order to avoid any feedback.
The system is equipped with a built-in extended
range Bluetooth® stereo module, which receives
audio from devices such as mobile phones,
tablets or any other audio device with a
Bluetooth® connection.
ES503 comes with an intuitive wizard that guides
the user step-by-step and automatically congures
the system according to the application. The
advanced graphical interface allows to, recall
conguration presets, adjust levels, EQ and create
a pre/post gain mix for different purposes. A
rotary encoder with button allows to control any
operation easily and quickly.
The bass-reex subwoofer houses a 12” woofer
and the amplier module. In addition to the
input connectors and controls of the userinterface, there are two Speakon outputs and a
VDE power connector. The enclosure, is made
of birch plywood coated with a durable scratchresistant black coat.
Page 1 of 4
rev.1.0 - 2015
ES503
Technical Specications
Technical Data
Speaker Type 3-amped Stereo System with two full-range tops and one
Acoustical Data
Frequency Response [-10dB] 37 - 15.000 Hz
Max SPL 121 dB
MF-HF 8x 3”
MF - H F Type Neodymium
LF 1x 12”
Directivity 95x65°
Amplier
Amp Technology Digipro® G3
Amp Class Class-D
Power Amp 1000 W
Controls 1x OLED display + rotative knob w/push-button
Power Supply SMPS with PSU Auto-range
Power Connection VDE socket
Cooling Convection
Processor
Controller DSP 56 bit
Coverter AD/DA 24 Bit/48 kHz
Factory Presets Flat, Playback, Club, Vocal, Monitor, Antifeedback
User Presets Low Shelving, Semiparametric Filter, High Shelving
Limiter Dual Active, Peak, RMS, Thermal
Crossover Frequency LF-MF 206 Hz
Inputs
Mic/Instrument Channel 1x Combo (XLR/Jack) balanced/unbalanced input
Line Channels 2x Combo (XLR/Jack) balanced/unbalanced inputs
Media Channel 1x built-in hi-range stereo Bluetooth® audio receiver
Mix Output 1x XLR balanced output
Mechanics
Housing (Subwoofer) 15mm Black Painted Birch Plywood
Housing (Tops) Polypropylene PP
Handles 2x lateral side (Subwoofer)
Dimensions WxHxD (Tops) 95x360x137 mm – 3.74x13.98x5.39 in
Dimensions WxHxD (Subwoofer) 465x400x430 mm - 18.3x15.7x16.9 in
Weight (1 Top) 1.9Kg – 4.19lbs.
Weight (Subwoofer) 16.4Kg – 36.16lbs.
subwoofer
1x Audio signal monitoring LED
1x mini USB B port (service data)
Page 2 of 4
rev.1.0 - 2015
