Unpacking"and"Installing"the"M3
Immediately upon receiving your M3, please make a careful inspection for any shipping damage. If
damage is found or suspected, please notify the carrier at once and then contact your dealer.! ! The
DaySequerra M3 is shipped in one carton, which contains: the M3 unit, an AC power cable and this
User Manual.
We strongly encourage you to save the shipping carton and shipping materials supplied with your M3.
They are specially designed to properly protect your M3, and in the event that you need to return it for
service, only these OEM shipping materials can ensure its safe return to our factory.
We provide a limited 1-year warranty on all of our products, but if you don’t register your unit, it’s hard
for us to help you if and when help becomes necessary. So please take a few minutes to complete
the warranty registration form on our web site, www.daysequerra.com. Thank you!
Rack Mount Installation. The M3 chassis has four rack mounting holes in its chassis and has been
designed to fit in a 19” standard 2RU space. Plastic ‘finishing’ washers are recommended to protect
the painted finish around the mounting holes.
Power Connection. The AC power cable supplied with M3 must be connected from the M3’s IEC320
power entry module to an AC mains outlet with a functional earth ground connection. The M3 has been
set at the factory to operate at 120VAC unless otherwise specified on the shipping carton. Please
connect your M3 to an uninterruptible power supply (UPS) to protect against power surges and
brownouts.

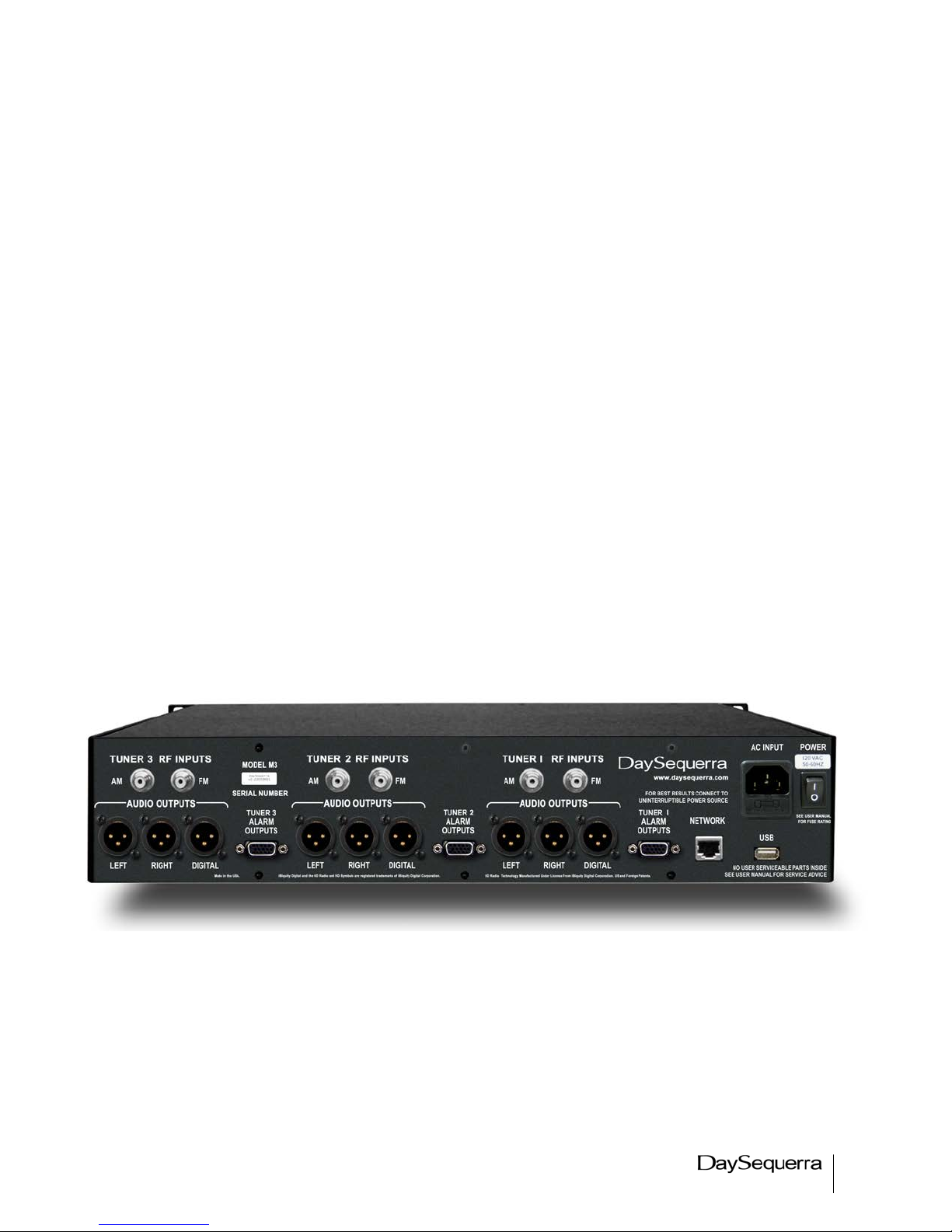

Audio Output Connections. Balanced analog audio outputs are on male XLR connectors on the M3
rear panel with pin 1 GND, pin 2 HIGH (non-inverting) and pin 3 LOW (inverting).
The M3 digital audio output is transformer isolated in AES consumer format on a male XLR connector
on the rear panel with pin 1 XFMR, pin 2 XFMR and pin 3 GND.
Front"Panel"Controls"and"Indicators
The M3 front panel consists of three independent HD Radio
TM
tuner areas, with each area containing
the following ‘dedicated’ controls and displays: VFD, 4 indicator LED’s and 3 control pushbuttons. The
front panel also contains two ‘shared’ switch panels, each consisting of 5 indicator LED’s and 5 control
pushbuttons for directing commands to one of the M3’s three individual tuners based on the Tuner 1, 2,
3 switch selection. The functions of ‘dedicated’ and ‘shared’ controls and displays are described below.
Dedicated Controls and Displays
The following controls and displays are ‘dedicated’ to their respective tuner as defined on the M3 front
panel.
Vacuum florescent display (VFD) – Multi-function display that indicates current tuner band,
frequency, mode, HD Radio
TM
SIS and PAD data, and RDS/RBDS data from analog FM broadcasts.
Also used to display Mode Service, Forcing and Data Display menus.
