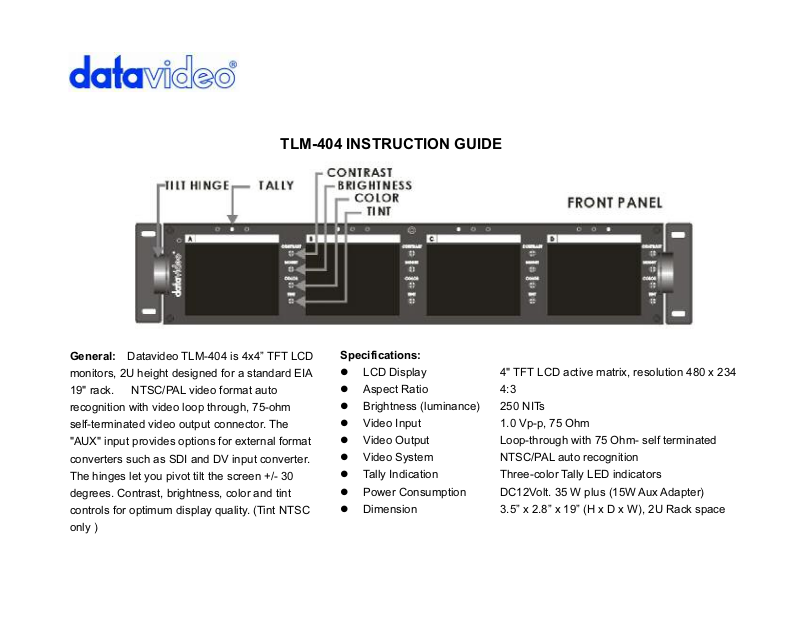

TLM-404 INSTRUCTION GUIDE

General: Datavideo TLM-404 is 4x4” TFT LCD

monitors, 2U height designed for a standard EIA

19" rack. NTSC/PAL video format auto

recognition with video loop through, 75-ohm

self-terminated video output connector. The

"AUX" input provides options for external format

converters such as SDI and DV input converter.

The hinges let you pivot tilt the screen +/- 30

degrees. Contrast, brightness, color and tint

controls for optimum display quality. (Tint NTSC

only )

Specifications:

 LCD Display 4" TFT LCD active matrix, resolution 480 x 234

 Aspect Ratio 4:3

 Brightness (luminance) 250 NITs

 Video Input 1.0 Vp-p, 75 Ohm

 Video Output Loop-through with 75 Ohm- self terminated

 Video System NTSC/PAL auto recognition

 Tally Indication Three-color Tally LED indicators

 Power Consumption DC12Volt. 35 W plus (15W Aux Adapter)

 Dimension 3.5” x 2.8” x 19” (H x D x W), 2U Rack space

TALLY INPUT: D Sub 15 pin connector on the rear panel
works by closing contacts between a ground pin and the
corresponding LED pin as shown on following pin out
table. Do not give power to the pins.

AUX INPUT: D Sub 9 pin connector on the rear panel. Provides
an external video input with input select interface and power
supply. It is reserved for external converters such as SDI or DV
input adaptors.
