Datavideo MB-4-S Users Manual

DAC SERIES
BAT TERY HOLDER

MB-4

Instruction Manual

Table of Contents

FCC COMPLIANCE STATEMENT .................................. 3

WARNINGS AND PRECAUTIONS ................................ 3

WARRANTY .............................................................. 5

STANDARD WARRANTY ............................................... 5

THREE YEAR WARRANTY ............................................. 6

DISPOSAL.................................................................. 7

FEATURES ................................................................. 8

HOW TO MOUNT THE MB-4 ..................................... 8

COMPATIBLE BATTERIES............................................ 9

NOTE ...................................................................... 10

NOTE ...................................................................... 11

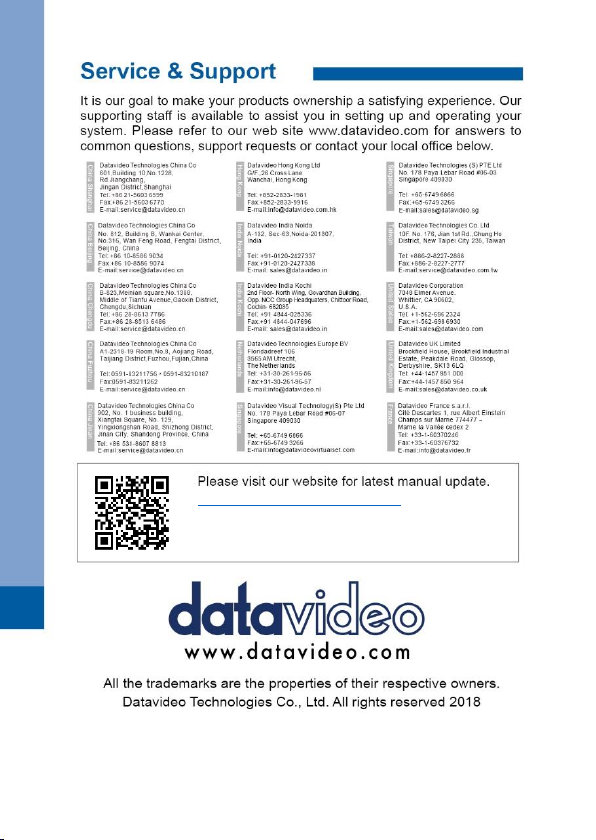

SERVICE & SUPPORT ............................................... 12

Disclaimer of Product & Services

The information offered in this instruction manual is intended as a guide only.
At all times, Datavideo Technologies will try to give correct, complete and
suitable information. However, Datavideo Technologies cannot exclude that
some information in this manual, from time to time, may not be correct or
may be incomplete. This manual may contain typing errors, omissions or
incorrect information. Datavideo Technologies always recommend that you
double check the information in this document for accuracy before making
any purchase decision or using the product. Datavideo Technologies is not
responsible for any omissions or errors, or for any subsequent loss or damage
caused by using the information contained within this manual. Further advice
on the content of this manual or on the product can be obtained by
contacting your local Datavideo Office or dealer.

2

FCC Compliance Statement

This device complies with part 15 of the FCC rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including

interference that may cause undesired operation.

Warnings and Precautions

1. Read all of these warnings and save them for later reference.

2. Follow all warnings and instructions marked on this unit.

3. Unplug this unit from the wall outlet before cleaning. Do not

use liquid or aerosol cleaners. Use a damp cloth for cleaning.

4. Do not use this unit in or near water.

5. Do not place this unit on an unstable cart, stand, or table. The

unit may fall, causing serious damage.

6. Slots and openings on the cabinet top, back, and bottom are

provided for ventilation. To ensure safe and reliable operation
of this unit, and to protect it from overheating, do not block
or cover these openings. Do not place this unit on a bed, sofa,
rug, or similar surface, as the ventilation openings on the
bottom of the cabinet will be blocked. This unit should never
be placed near or over a heat register or radiator. This unit
should not be placed in a built-in installation unless proper
ventilation is provided.

7. This product should only be operated from the type of power

source indicated on the marking label of the AC adapter. If you
are not sure of the type of power available, consult your
Datavideo dealer or your local power company.

8. Do not allow anything to rest on the power cord. Do not

locate this unit where the power cord will be walked on, rolled
over, or otherwise stressed.

9. If an extension cord must be used with this unit, make sure

that the total of the ampere ratings on the products plugged

3

into the extension cord do not exceed the extension cord
rating.

10. Make sure that the total amperes of all the units that are

plugged into a single wall outlet do not exceed 15 amperes.

11. Never push objects of any kind into this unit through the

cabinet ventilation slots, as they may touch dangerous voltage
points or short out parts that could result in risk of fire or
electric shock. Never spill liquid of any kind onto or into this
unit.

12. Except as specifically explained elsewhere in this manual, do

not attempt to service this product yourself. Opening or

removing covers that are marked “Do Not Remove” may

expose you to dangerous voltage points or other risks, and will
void your warranty. Refer all service issues to qualified service
personnel.

13. Unplug this product from the wall outlet and refer to qualified

service personnel under the following conditions:
a. When the power cord is damaged or frayed;
b. When liquid has spilled into the unit;
c. When the product has been exposed to rain or water;
d. When the product does not operate normally under

normal operating conditions. Adjust only those controls
that are covered by the operating instructions in this
manual; improper adjustment of other controls may result
in damage to the unit and may often require extensive
work by a qualified technician to restore the unit to normal
operation;

e. When the product has been dropped or the cabinet has

been damaged;

f. When the product exhibits a distinct change in

performance, indicating a need for service.

4

Warranty

Standard Warranty

 Datavideo equipment are guaranteed against any

manufacturing defects for one year from the date of purchase.

 The original purchase invoice or other documentary evidence

should be supplied at the time of any request for repair under
warranty.

 The product warranty period begins on the purchase date. If

the purchase date is unknown, the product warranty period
begins on the thirtieth day after shipment from a Datavideo
office.

 All non-Datavideo manufactured products (product without

Datavideo logo) have only one year warranty from the date of
purchase.

 Damage caused by accident, misuse, unauthorized repairs,

sand, grit or water is not covered under warranty.

 Viruses and malware infections on the computer systems are

not covered under warranty.

 Any errors that are caused by unauthorized third-party

software installations, which are not required by our
computer systems, are not covered under warranty.

 All mail or transportation costs including insurance are at the

expense of the owner.

 All other claims of any nature are not covered.
 All accessories including headphones, cables, and batteries

are not covered under warranty.

 Warranty only valid in the country or region of purchase.
 Your statutory rights are not affected.

5

Three Year Warranty

 All Datavideo products purchased after

July 1st, 2017 are qualified for a free two
years extension to the standard warranty,
providing the product is registered with
Datavideo within 30 days of purchase.

 Certain parts with limited lifetime expectancy such as LCD

panels, DVD drives, Hard Drive, Solid State Drive, SD Card, USB
Thumb Drive, Lighting, Camera module, PCIe Card are covered
for 1 year.

 The three-year warranty must be registered on Datavideo's

official website or with your local Datavideo office or one of
its authorized distributors within 30 days of purchase.

6

Disposal

For EU Customers only - WEEE Marking

This symbol on the product or on its packaging
indicates that this product must not be disposed of
with your other household waste. Instead, it is your
responsibility to dispose of your waste equipment

for the recycling of waste electrical and electronic equipment. The
separate collection and recycling of your waste equipment at the
time of disposal will help to conserve natural resources and ensure
that it is recycled in a manner that protects human health and the
environment. For more information about where you can drop off
your waste equipment for recycling, please contact your local city
office, your household waste disposal service or the shop where
you purchased the product.

initially used was "EC Mark" and it was officially replaced by "CE
Marking" in the Directive 93/68/EEC in 1993. "CE Marking" is now
used in all EU official documents.

by handing it over to a designated collection point

CE Marking is the symbol as shown on the left of
this page. The letters "CE" are the abbreviation of
French phrase "Conformité Européene" which
literally means "European Conformity". The term

7

Features

 Battery mount and adapter for DAC series
 Plate slides onto the bottom of the DAC
 Supports Sony, Panasonic, Canon (BP-945 / 970G only) and

JVC 14.4V or 7.2V

 Makes your DAC completely portable

 Compatible with: DAC-60 | DAC-70 | DAC-8P | DAC-9P | VP-

597 | TC-200 (Title generator for CG-200)

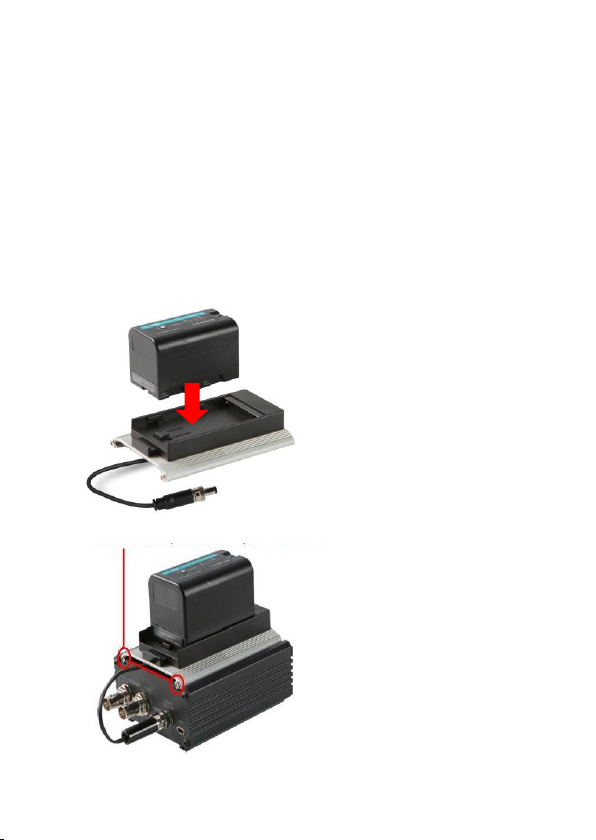

How to mount the MB-4

Use four screws (front and rear side) to secure the MB-4.

8

Supported DV

type

Battery

Voltage

Sony (S1)

SONY BP-U60, BP-U30

14.4V

Sony

L series(S2)

SONY NP-F770/970/960/950 DV
battery

7.2V
Panasonic

Panasonic CGA series DV batteries

7.2V

Canon

Canon BP-945/970G DV batteries

7.2V

Sony (S)

SONY NP-QM series DV batteries

7.2V

JVC

BN-VF823

7.2V

JVC

SSL-JVC50

7.2V

Compatible batteries

9

NOTE

10

NOTE

11

www.datavideo.com/product/MB-4

Jan-29.2019

Ver.: E3
