Datavideo HS-2000L User Manual

Contents

Warranty ...............................................................................................................................................3

Standard Warranty ........................................................................................................................................... 3

Two Year Warranty .......................................................................................................................................... 3

Disposal................................................................................................................................................3

Packing List..........................................................................................................................................3

HS-2000L Connections & Controls ....................................................................................................4

Keyboard.......................................................................................................................................................... 4

Rear Panel ....................................................................................................................................................... 8

Rear Panel Connections .................................................................................................................................. 8

Main Source and Sub Source Rails ............................................................................................................... 10

Transition Effects ........................................................................................................................................... 10

System Configuration Menu........................................................................................................................... 11

Audio Inputs and Levels ...................................................................................................................15

HS-2000L Configuration Utility.........................................................................................................16

Storing New Logos......................................................................................................................................... 16

Setting up a Luma Key overlay with Power Point .......................................................................................... 17

HD-SDI Cabling Advice......................................................................................................................18

Intercom & Monitor Control Panel....................................................................................................19

Monitor Function................................................................................................................................21

Menu Options................................................................................................................................................. 21

Colour Processor ........................................................................................................................................... 22

PIP Menu........................................................................................................................................................ 23

Special Feature Menu .................................................................................................................................... 25

ITC-100SL Slave Unit.........................................................................................................................27

HS-2000L (SE-2000) Specification....................................................................................................29

ITC-50 Specification...........................................................................................................................30

ITC-100SL Specification....................................................................................................................30

Monitor Specification ........................................................................................................................30

Service & Support..............................................................................................................................32

Warranty

Standard Warranty

• Datavideo equipment is guaranteed against any manufacturing defects for one year from the date of purchase.

• The original purchase invoice or other documentary evidence should be supplied at the time of any request for

repair under warranty.

• Damage caused by accident, misuse, unauthorized repairs, sand, grit or water is not covered by this warranty.

• All mail or transportation costs including insurance are at the expense of the owner.

• All other claims of any nature are not covered.

• Cables & batteries are not covered under warranty.

• Warranty only valid within the country or region of purchase.

• Your statutory rights are not affected.

Two Year W a rranty

• All Datavideo products purchased after 01-Oct.-2008 qualify for a free one year extension to the standard

Warranty, providing the product is registered with Datavideo within 30 days of purchase. For information on how to register please visit www.datavideo-tek.com or contact your local Datavideo office or authorized Distributors

• Certain parts with limited lifetime expectancy such as LCD Panels, DVD Drives, Hard Drives are only covered for

the first 10,000 hours, or 1 year (whichever comes first).

Any second year warranty claims must be made to your local Datavideo office or one of its authorized Distributors before the extended warranty expires.

Disposal

For EU Customers only - WEEE Marking.

This symbol on the product indicates that it will not be treated as household waste. It must be handed over to the applicable take-back scheme for the recycling of electrical and electronic equipment. For more detailed information about the recycling of this product, please contact your local Datavideo office.

Packing List

1 x Goose neck MIC

4 x Headphone

4 x ITC-100SL

1 x Tally LED TD-2

4 x XLR Cable + CON 20M

4 x Velcro 50*300mm

1 x AC Power Cord

1 x USB LIGHT

1 x HS-2000L Quick Start Guide

HS-2000L Connections & Controls

Keyboard

1. Audio input selectors / Level Controls

2. Audio meters

3. Menu and Controls

4. Logo & Clock Selection

5. Video Effect: PIP / KEY

6. Transition Speed

7. Transition Effects

8. CUT & TAKE

9. T-Bar

10. Main / Sub Source

11. Audio mixer

12. LCD/ INTERCOM/ MIXER

13. Headphone / MIC / Headphone Socket (Intercom)

14. Headphone Socket (Monitor)

15. Headphone Volume Control

Audio Input Source Selectors / Level Controls

This section of the HS-2000L controls which audio input channel (CH1~CH4)

will be sent to the Audio Bus and its associated Fader.

This row of audio channel selection buttons has LEDs built in to show which

input channel is active. Level control for each audio input source is via the

rotary pots above each of the audio channel selection buttons.

A+V: When this button is engaged or lit, the audio associated with a selected

video input source automatically follows the video through any transition

between the Main and Sub Sources. When the A+V button is inactive, the

audio sources must be switched manually. For more information, see A+V

Audio LED Meters

These meters play a vital part in correctly setting the audio levels to avoid

clipping or other distortion.

The LED style Audio meters, show the signal strength at the Audio Output.

The signal they measure is determined by the sources selected by the Audio

Bus selectors and the levels set by the rotary pots and faders.

Audio Monitor Button

Use the Headphone section to accurately monitor any of the sources (CH1,

CH 2, CH3, CH4) or “Master” output. Repeated presses of the Headphone

Audio Monitor button will cycle through the monitoring choices. In many cases,

headphones may be a more useful and accurate choice than speakers for

audio monitoring.

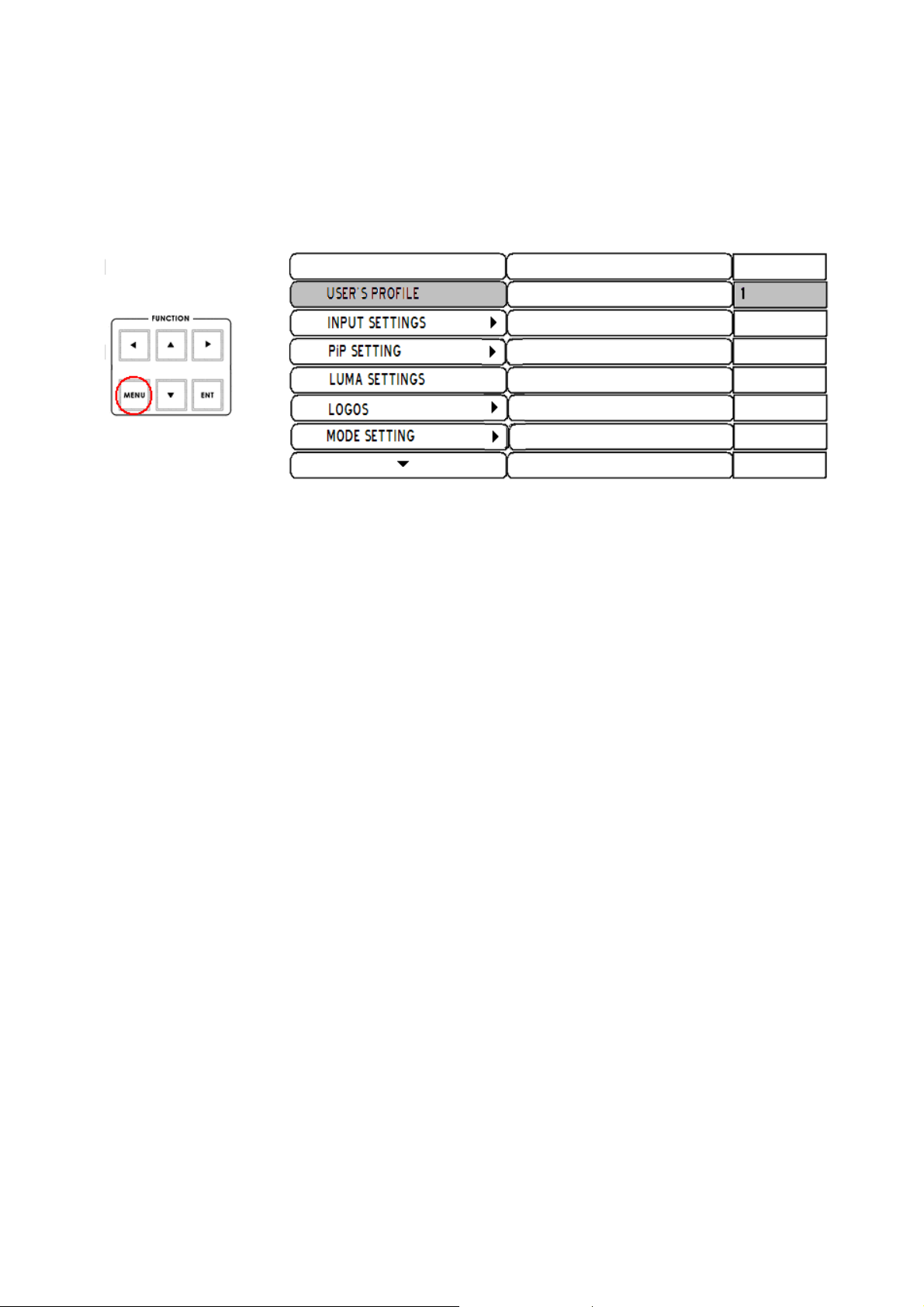

Menu and Controls

Press the Menu button in the HS-2000L function section to enter the System Configuration Menu. Press the up, down, left, and right arrow buttons to navigate the menu options and to change values. Use the ENT button to save

and confirm any setting that has been amended.

Logo Setting

Press the Logo1, Logo2 or Clock buttons to display the selected function on the PVW and PGM screens.

Logo1 and Logo2 or Logo1 and the Clock can both be selected at the same time. Logo2 and the Clock cannot be selected/displayed at the same time.

PIP / KEY

LUMA PVW and LUMA PGM

A Luma key can be performed between 2 inputs and the result sent to the

PVW and PGM display channels. See Setting up a LUMA Key

SET

If you want to enable the PIP function, you must first press the SET key, then press the PIP PVW key and then select the Sub Source channel for the PIP

window. The size and position of the window can be set within the System

Configuration Menu. See PIP SETTING

PIP PVW

Allows the user to see what the PIP window will look like and make any adjustments before the PIP window is taken to the PGM output. Pressing the PIP PVW button toggles the PIP window on and off using a simple dissolve.

PIP PGM

Once the PIP window is ready to be taken to air the PIP PGM button will allow a simple dissolve in and out over the top of the current program output.

Transition Speed

Five buttons used to choose different speeds for a transition effect when using the TAKE button to switch between PVW and PGM sources.

Transition Effects

There are 10 Transition Effects keys. Six of these keys relate to the available

types of WIPE effect. INV (Invert) changes the direction of the chosen WIPE. SFT changes the softness of the WIPE edge. FZ freezes the current PGM image until toggled off or CUT away. MIX is a dissolve effect between the

PVW and PGM sources.

For more information, see Transition Effects

CUT

Forces an immediate switch between the selected main and sub sources. The selected sub source becomes the main program output with no transition effect applied.

TAKE

Starts an automated switch between the main and sub sources. The selected

sub source becomes the main program output with the selected Transition

Effect applied at the selected Effect Speed.

T-Bar

The T-Bar is used to carry out a manual transition such as a wipe, fade, mix or key. When it has travelled as far as it can go the transition is complete.

Calibrating the T-bar:

1. Turn off the HS-2000L power, and push the T-Bar up as far as it can go to its Top or AIR position.

2. Press and hold in the SET and SUB SOURCE 1 buttons at the same time.

3. Have a colleague turn on the HS-2000L power. When the SET button and SUB SOURCE 1 buttons are illuminated yellow release both buttons.

4. Press the CUT button, and push down the T-Bar as far as it can go to its bottom or PVW position.

5. Press the TAKE button, and push the T-Bar up as far as it can go to its Top or AIR position again.

6. Press SET button again to end the calibration process.

WARNING: If you do not follow the T-Bar calibrating steps correctly the T-Bar may work incorrectly.

Main Source

Used to select which of the source input channels or backgrounds that are sent to the Main video PROGRAM output.

Sub Source

Used to select which of the source input channels or backgrounds will be transitioned to or used as a sub source in an effect such as PIP.

Audio mixer

These CH1~CH4 Audio Level Faders are for controlling the CH1~CH4 audio

mix.

These faders correspond to the Audio Source selector buttons and control the

relative volume of each input in the master output as well as the master output

level. They are called faders because they are used to decrease (rather than

increase) the signal levels to create a balanced and pleasing mix. When the

CH1~CH4 Audio Level Faders are set at -6dB, or Unity, they pass the audio

signal through at the same level as when it entered the bus. This is why the

level setting at the Input Bus is so important.

MASTER

This Slider is for controlling the audio level for the Mixed audio output.

LCD / INTERCOM / MIXER

Select Headphone audio source from LCD, INTERCOM or MIXER.

Headset Socket (Intercom)

3.5mm Stereo Socket for combined Microphone Headset.

Headphone Socket (HS-2000L or Monitor) ¼ “/ 6.3mm Stereo Headphone Socket for conventional headphones.

Headphone Volume Control

Controls Headphone or Headset volume level.

Use the Headphone section to accurately monitor any of the sources (LCD,

INTERCOM or MIXER).

Rear Panel

1. HD- SDI IN

Rear Panel Connections

2. HD- SDI IN / DVI-D IN

3. DVI-D IN

4. RS-232 REMOTE

5. TALLY OUT

6. HD- SDI PGM OUT

7. MONITOR HDMI IN

8. AC INPUT

9. POWER ON / OFF

10. MONITOR F/W Upgrade

11. AUDIO OUT

12. TO BELTPACK

13. AUDIO IN

HD- SDI IN Inputs 1 to 3 are HD-SDI inputs only on BNC connections.

HD- SDI IN / DVI-D IN

Input 4 has a choice of two connections HD-SDI (via BNC) or DVI-D. You select the connection you wish to use - for more information, see INPUT 4 MODE

DVI-D IN

DVI-I Signal Input (Digital Input 5).

RS-232

9-pin serial port standard RS-232 interface.

Connect PC to update firmware, Logos or Mixer Configuration.

TALLY OUT

Tally out socket. This supplies tally light information to the Datavideo ITC-50 system.

HD- SDI OUT

4:2:2 SDI Video data supports SMPTE 292M standard at 1.5G Mbps.

SDI transfers professional level video signals and it’s can connect to long distance transmission systems.

MONITOR HDMI IN

MONITOR HDMI IN is an external source for the 17.3" LCD monitor (with LED backlit)

input. This function is not auto sense - for more information, see Source Select

Buttons

AC IN

AC in socket connect the supplied 100~240V 5A PSU to this socket.

POWER

Switches the power On / Off.

MONITOR F/W Upgrade

Socket is for monitor F/W upgrade.

AUDIO OUT

Supports two channels XLR Balanced Audio output.

TO BELTPACK (For Intercom) Channel Input / Output XLR Sockets

Each of the 5 channels has an XLR connector that carries bi-directional signals

between the ITC-50 and ITC-100SL. All connections are contained within the one

cable.

AUDIO IN

The HS-2000L supports four XLR Balanced Audio Input channels.

There are two kinds of switches under AUDIO IN: LINE/MIC switch is used to set the audio as LINE in or MIC in. When LINE in is

selected please also set the 48V ON/OFF switch to OFF in order to prevent burn-out

damage to the circuit.

The 48V ON/OFF switch is for phantom power. If you want to use MIC in, please set the LINE/MIC switch first, and then if using a Condenser microphone turn ON the 48V

ON/OFF switch. If you wish to use a Dynamic microphone please turn OFF the 48V ON/OFF switch.

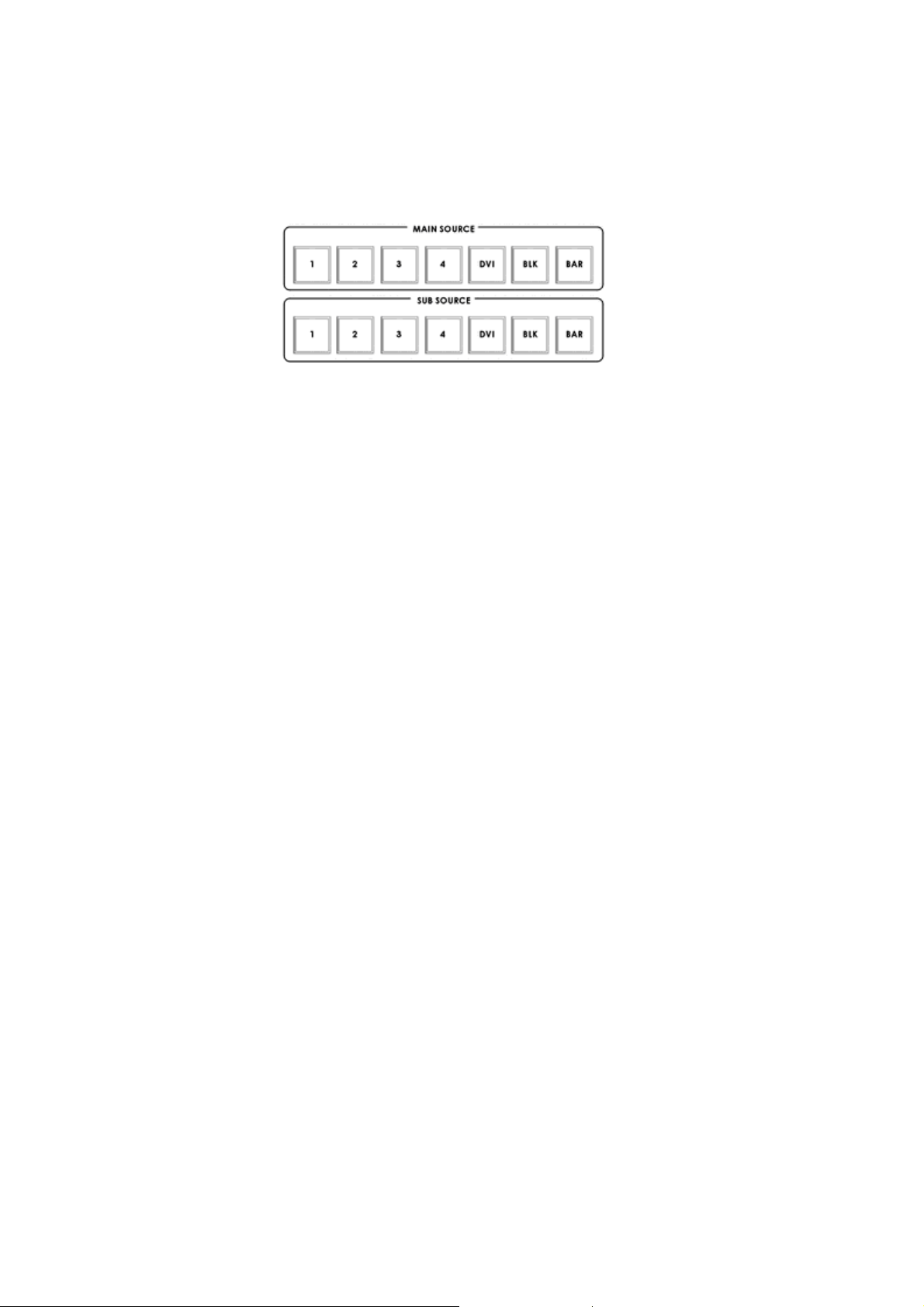

Main Source and Sub Source Rails

The Main Source Rail shows the active channel, this is the Live output. The active channel will also appear as the Program Output (PGM). You can immediately switch or CUT from one input channel to another directly on the Main Source Rail, you will see the PROGRAM Output switch as you press different keys along this rail. As each key is selected or pressed it will turn Red.

The Sub Source Rail shows the Cued channel, the selected channel will appear in the Preview window. The selected key will turn Yellow. The Sub Source selection determines which input will be transitioned to when using any of the transition controls and provides the Sub Source video for Picture in Picture and Key functions.

T ransition Effects

WIPE from upper Left corner to lower Right corner of screen

WIPE from Left to Right of screen

WIPE from Top to Bottom of screen

WIPE from upper Right corner to lower Left corner of screen

WIPE from outside edge of screen to centre of screen

WIPE from Left and Right hand sides into the centre of the screen.

SFT Controls the border softness of the WIPE or effect.

MIX Also known as a fade or dissolve, is a transition where all the pixels of one source are

replaced by all the pixels of another, at a smooth rate, and at the same time.

INV Inverts the WIPE direction – the chosen WIPE moves in the opposite direction.

This freezes the PGM video, press it again, and it returns to the selected Live PGM source.
