Datavideo DAC-9P Users Manual

HDMI TO HD-SDI
CONVERTER

DAC-9P

Instruction Manual

www.datavideo.com

1

Table of Contents

FCC COMPLIANCE STATEMENT ................................................ 2

WARNINGS AND PRECAUTIONS .............................................. 2

WARRANTY ............................................................................. 4

STANDARD WARRANTY ................................................................. 4

THREE YEAR WARRANTY ............................................................... 4

DISPOSAL ................................................................................ 5

CONNECTIONS & CONTROLS ................................................... 6

FRONT PANEL .............................................................................. 6

REAR PANEL ................................................................................ 7

SPECIFICATIONS ...................................................................... 8

SERVICE & SUPPORT .............................................................. 10

Disclaimer of Product & Services

The information offered i n this instruction manua l is intended as a guide on ly. At all times, Datav ideo
Technologies w ill try to give c orrect, complet e and suitable information. However, Datav ideo Technologie s
cannot exclude that some information in this manual, from time to time, may not be correct or m ay be
incomplete. This manual may co ntain typing e rrors, omissions or incorrect information. Da tavideo
Technologies always recommend that you doub le check the informat ion in this docum ent for accuracy
before making any p urchase decision or using th e product. Datavideo Technologies is not responsible for
any omissions or errors , or for any subseque nt loss or damage caus ed by using the in formation contained
within this manual. Further advice on the content of th is manual or on the product can be obtained by
contacting you r local Datavideo Office or dealer.

2

FCC Compliance Statement

This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference

that may cause undesired operation.

Warnings and Precautions

1. Read all of these warnings and save them for later reference.

2. Follow all warnings and instructions marked on this unit.

3. Unplug this unit from the wall outlet before cleaning. Do not use liquid or

aerosol cleaners. Use a damp cloth for cleaning.

4. Do not use this unit in or near water.

5. Do not place this unit on an unstable cart, stand, or table. The unit may

fall, causing serious damage.

6. Slots and openings on the cabinet top, back, and bottom are provided for

ventilation. To ensure safe and reliable operation of this unit, and to
protect it from overheating, do not block or cover these openings. Do not
place this unit on a bed, sofa, rug, or similar surface, as the ventilation
openings on the bottom of the cabinet will be blocked. This unit should
never be placed near or over a heat register or radiator. This unit should
not be placed in a built-in installation unless proper ventilation is
provided.

7. This product should only be operated from the type of power source

indicated on the marking label of the AC adapter. If you are not sure of the
type of power available, consult your Datavideo dealer or your local power
company.

8. Do not allow anything to rest on the power cord. Do not locate this unit

where the power cord will be walked on, rolled over, or otherwise
stressed.

9. If an extension cord must be used with this unit, make sure that the total

of the ampere ratings on the products plugged into the extension cord do
not exceed the extension cord rating.

3

10. Make sure that the total amperes of all the units that are plugged into a

single wall outlet do not exceed 15 amperes.

11. Never push objects of any kind into this unit through the cabinet

ventilation slots, as they may touch dangerous voltage points or short out
parts that could result in risk of fire or electric shock. Never spill liquid of
any kind onto or into this unit.

12. Except as specifically explained elsewhere in this manual, do not attempt

to service this product yourself. Opening or removing covers that are
marked “Do Not Remove” may expose you to dangerous voltage points or
other risks, and will void your warranty. Refer all service issues to qualified
service personnel.

13. Unplug this product from the wall outlet and refer to qualified service

personnel under the following conditions:

a. When the power cord is damaged or frayed;
b. When liquid has spilled into the unit;
c. When the product has been exposed to rain or water;
d. When the product does not operate normally under normal operating

conditions. Adjust only those controls that are covered by the operating
instructions in this manual; improper adjustment of other controls may
result in damage to the unit and may often require extensive work by a
qualified technician to restore the unit to normal operation;

e. When the product has been dropped or the cabinet has been damaged;
f. When the product exhibits a distinct change in performance, indicating

a need for service.

4

Warranty

Standard Warranty

• Datavideo equipment are guaranteed against any manufacturing defects for

one year from the date of purchase.

• The original purchase invoice or other documentary evidence should be

supplied at the time of any request for repair under warranty.

• The product warranty period beings on the purchase date. If the purchase

date is unknown, the product warranty period begins on the thirtieth day
after shipment from a Datavideo office.

• Damage caused by accident, misuse, unauthorized repairs, sand, grit or

water is not covered under warranty.

• Viruses and malware infections on the computer systems are not covered

under warranty.

• Any errors that are caused by unauthorized third-party software

installations, which are not required by our computer systems, are not
covered under warranty.

• All mail or transportation costs including insurance are at the expense of

the owner.

• All other claims of any nature are not covered.

• Cables and batteries are not covered under warranty.

• Warranty only valid in the country or region of purchase.

• Your statutory rights are not affected.

Three Year Warranty

• All Datavideo products purchased after July 1st, 2017 are qualified for a free

two years extension to the standard warranty, providing the product is
registered with Datavideo within 30 days of purchase.

• Certain parts with limited lifetime expectancy such as LCD panels, DVD

drives, Hard Drive, Solid State Drive, SD Card, USB Thumb Drive, Lighting,
Camera module, PCIe Card are covered for 1 year.

• The three-year warranty must be registered on Datavideo's official website

or with your local Datavideo office or one of its authorized distributors
within 30 days of purchase.

5

Disposal

For EU Customers only - WEEE Marking

This symbol on the product or on its packaging indicates
that this product must not be disposed of with your other
household waste. Instead, it is your responsibility to
dispose of your waste equipment by handing it over to a
designated collection point for the recycling of waste
electrical and electronic equipment. The separate

time of disposal will help to conserve natural resources and ensure that it is
recycled in a manner that protects human health and the environment. For
more information about where you can drop off your waste equipment for
recycling, please contact your local city office, your household waste disposal
service or the shop where you purchased the product.

93/68/EEC in 1993. "CE Marking" is now used in all EU official documents.

collection and recycling of your waste equipment at the

CE Marking is the symbol as shown on the left of this page.
The letters "CE" are the abbreviation of French phrase
"Conformité Européene" which literally means "European
Conformity". The term initially used was "EC Mark" and it
was officially replaced by "CE Marking" in the Directive

6

Connections & Controls

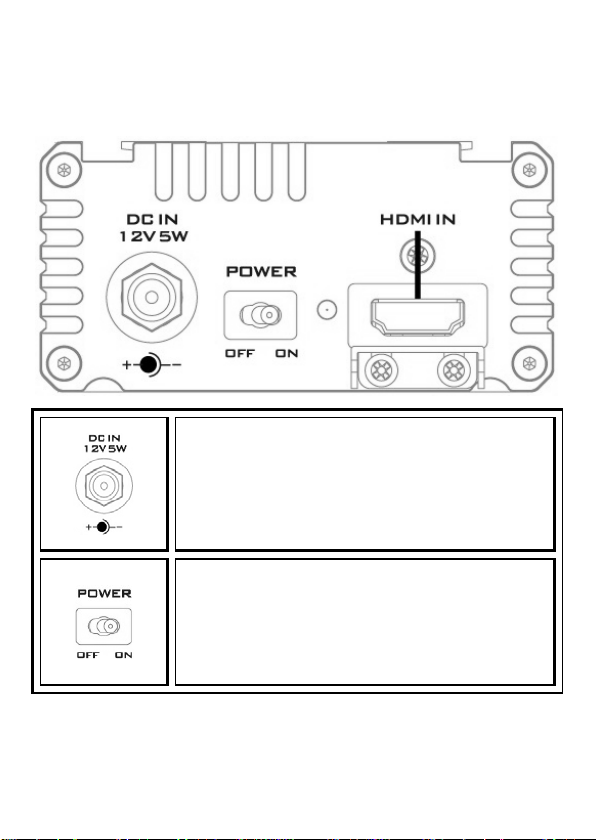

Front Panel

DC In Socket

Connects the supplied 12V PSU to this socket. The
connection can be secured by screwing the outer
fastening ring of the DC In plug to the socket.

Power Switch

Switches power ON/OFF

7

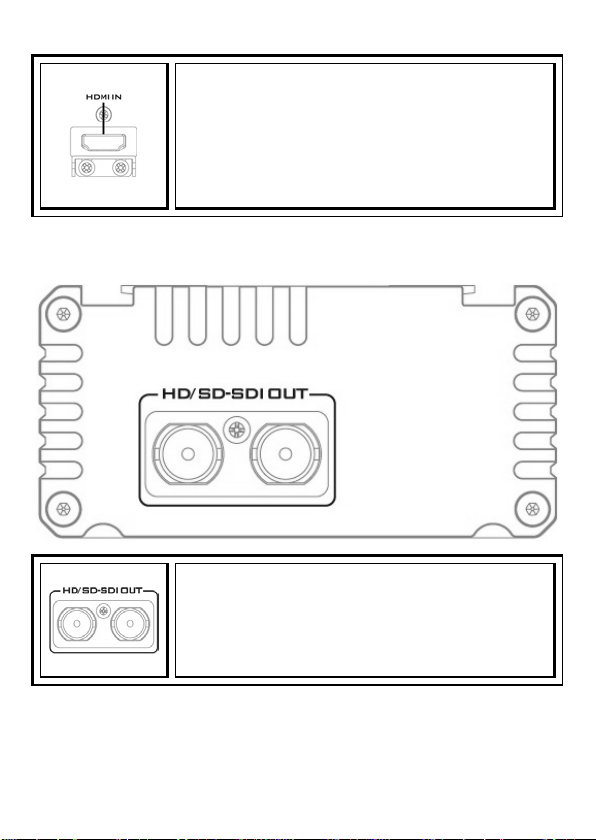

Rear Panel

HDMI Input

HDMI input port

Note: HDMI Audio is embedded into HD/SD-SDI signal.

HD/SD-SDI Output

SDI provides video signals for professional applications
and allows long distance signal transmission.

8

Specifications

Input Interface 1 x HDMI (V1.3) Input

Output Interface 2 x 3G/HD/SD-SDI Output

720 x 480 Interlace

Video Support
Format (HDMI Input)

3G SDI Signal

SD SDI Signal

720 x 576 Interlace
1280 x 720 / 50 / 59.94 / 60 Hz Progressive
1920 x 1080 / 50 / 59.94 / 60 Hz Interlace
1920 x 1080 / 50 / 59.94 / 60 Hz Progressive

SMPTE 292 Standard complied with
Output Return Loss: More than 4.5 dB (3 GHz)
Output Level: 0.8 V

pp

Rise Time: Less than 130 ps
Fall Time: Less than 130 ps
Difference between rise time and fall time is within
50 ps.
Alignment Jitter: Less than 0.3 UI
Timing Jitter: Less than 2.0 UI
Rise time overshoot: 10%
Fall time overshoot: 10%
Equalizer uses 5C-FB cable supporting 100 meters.

SMPTE 292M Standard complied with
Output Return Loss: More than 15 dB (5 MHz to
750 MHz) / More than 10 dB (750 MHz to 1.5 GHz)
Output Level: 0.8 V

pp

Transition Time: 0.4 ∼ 1.5 ns
Difference between rise time and fall time is within
100 ps.
Alignment Jitter: Less than 0.2 UI
Timing Jitter: Less than 0.2 UI
Eye Aperture Ratio: More than 90%
DC Offset: 0 ± 0.5V

± 10%

± 10%

9

Operating
Temperature

Humidity 10% to 90% (non condensing)

Dimensions 145 mm (W) x 85 mm (D) x 30 mm (H)

Weight 0.33 Kg

Power DC 12V / 500 mA (5W)

0°C to 40°C (32°F to 102°F)
