Page 1
VT83C572
PCI TO USB CONTROLLER
Preliminary Release 0.5
DATE : July 10, 1996
VIA TECHNOLOGIES, INC.
Page 2
PRELIMINARY DOCUMENT RELEASE
The material in this document supersedes all previous documentation issued for any of the products
included herein. Please contact VIA Technologies for the latest documentation.
Copyright Notice:
Copyright © 1995, 1996 Via Technologies Incorporated. Printed in Taiwan. ALL RIGHTS RESERVED.
No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or
translated into any language, in any form or by any means, electronic, mechanical, magnetic, optical,
chemical, manual or otherwise without the prior written permission of Via Technologies Incorporated.
Windows 95TM and Plug and PlayTM are registered trademarks of Microsoft Corp.
PCITM is a registered trademark of the PCI Special Interest Group.
All trademarks are the properties of their respective owners.
Disclaimer Notice:
No license is granted, implied or otherwise, under any patent or patent rights of VIA Technologies. VIA
Technologies makes no warranties, implied or otherwise, in regard to this document and to the products
described in this document. The information provided by this document is believed to be accurate and
reliable to the publication date of this document. However, VIA Technologies assumes no responsibility
for any errors in this document. Furthermore, VIA Technologies assumes no responsibility for the use or
misuse of the information in this document and for any patent infringements that may arise from the use
of this document. The information and product specifications within this document are subject to change
at any time, without notice and without obligation to notify any person of such change.
Offices:
5020 Brandin Court 8th Floor, No. 533
Fremont, CA 94538 Chung-Cheng Rd., Hsin-Tien
USA Taipei, Taiwan ROC
Tel: (510) 683-3300 Tel: (886-2) 218-5452
Fax: (510) 683-3301 Fax: (886-2) 218-5453
Page 3
VIA Technologies, Inc. VT83C572
VIA VT83C572
PCI TO USB CONTROLLER
FEATURES
* Universal Serial Bus Interface
− USB specification v.1.0 compatible
− Intel UHCI (Universal Host Controller Interface) v.1.1 register compatible
− Legacy keyboard and PS2 mouse support
− Root hub and two down stream function ports
− Integrated physical layer transceivers
− Normal and low power operating mode
− Operable in both USB-aware (Windows-95 and NT) and USB legacy BIOS support
− Inter-operable with major USB peripherals
* PCI Interface
− PCI specification v.2.1 compliant
− Supports advanced PCI commands
− Multi-level data FIFOs with full scatter and gather capabilities
* 0.5um high speed low power CMOS process
* Single chip 100-pin PQFP device
VT83C572 CONFIGURATION REGISTERS
The VT83C572 PCI to USB controller is fully compatible with the UHCI specification v.1.1. There
are two sets of software accessible registers -- PCI configuration registers and USB I/O registers. The
USB I/O registers are defined in the UHCI v.1.1 specification.
PCI Configuration Registers
Offset Function
1-0 Vendor ID : 1106h (read only)
3-2 Device ID : 3038h (read only)
5-4 Command Register
bit 15-8: reserved
bit 7: Address stepping, default: enabled
bit 6-5: reserved
-1-
Page 4
VIA Technologies, Inc. VT83C572
bit 4: Memory write and invalidate, default: disabled
bit 3: Fixed at 0 (special cycles)
bit 2: Bus master, default: disabled
bit 1: Memory space, default: disabled
bit 0: I/O space, default: disabled
7-6 Status Register
bit 15: reserved
bit 14: Signaled system error
bit 13: Received master abort
bit 12: Received target abort
bit 11: Signaled target abort
bit 10-9: DEVSEL# timing: fixed at 01 (medium)
bit 8-0: reserved
08 Revision ID.
B-9 Class Code Register: Fixed at 0C0300h to indicate the USB Controller
0C Cache Line Size Default: 00h
0D Latency Timer Default: 16h
0E Header Type = 00h (read only)
0F BIST Fixed at 00
23-20 Base address for UHCI v1.1 compliant USB IO Registers
bit 31-16:reserved
bit 15-5:Port address for the base USB IO Registers, corresponding to AD[15:5]
bit 4-0: 00001b
3C Interrupt Line
3D Interrupt Pin, Default = 01h
3E-3F reserved
40 Misc. Control Register 1
bit 7: PCI Memory Command Option
0 - Support Memory Read Line, Memory Read Multiple, Memory Write and Invalidate
1 - Only support Memory Read, Memory Write Commands
bit 6: Babble Option
0 - Automatically disable babbled port when EOF babble occurs.
1 - Don’t disable babbled port.
bit 5: PCI Parity Check Option
0 - Disable PERR generation
1 - Enable parity check and PERR generation
bit 4: reserved
bit 3: USB Data Length Option
0 - Support TD length up to 1280.
1 - Support TD length up to 1023.
bit 2: USB Power Management
-2-
Page 5
VIA Technologies, Inc. VT83C572
0 - Disable USB power management
1 - Enable USB power management
bit 1: DMA Option
0 - 16DW burst access
1 - 8DW burst access
bit 0: PCI Wait State
0 - Zero wait
1 - One wait
41 Misc. Control Register 2
bit7-3: reserved
bit 2: Trap Option
0 - Set trap 60/64 status bits without checking enable bits.
1 - Set trap 60/64 status bits only when trap 60/64 enable bits are set.
bit 1: A20gate Pass Through Option
0 - Pass through A20GATE command sequence defined in UHCI.
1 - Don’t pass through Write I/O port 64
bit 0: reserved
42-5F reserved
60 Serial Bus Release Number fixed at 10h
C0-C1 Legacy Support Register (compliant with UHCI v1.1 specification)
Default=2000h
USB I/O Registers (UHCI v1.1 Compliant)
Offset Function
1-0 USB Command
3-2 USB Status
5-4 USB Interrupt Enable
7-6 Frame Number
B-8 Frame List Base Address
0C Start Of Frame Modify
11-10 Port 1 Status/Control
13-12 Port 2 Status/Control
-3-
Page 6
VIA Technologies, Inc. VT83C572
VT83C572 PIN DESCRIPTION
Signal Name Pin No. I/O Signal Description
PCI Bus Interface
AD[31:0] 98-100, 1-5, 9-
14, 17-19, 31,
32, 34-36, 38,
39, 41, 42, 44-
47, 49, 50
CBE#[3:0] 7, 20, 33, 40 B Command/Byte Enable..
IDSEL 8 I Initialization Device Select.
FRAME# 21 B PCI Bus Frame Indicator.
IRDY# 22 B Initiator Ready Indicator.
TRDY# 23 B Target Ready.
DEVSEL# 24 B Device Select.
STOP# 26 B Stop Indicator.
PAR 30 B Parity.
PERR# 27 B PCI Bus Parity Error.
SERR# 28 I System Error.
LOCK# 29 B PCI Bus Lock.
REQ# 97 O PCI bus request to the bus arbiter.
GNT# 96 I PCI bus grant from the bus arbiter.
INTA # 95 I PCI Interrupt Request.
PCLK 93 I PCI Bus Clock.
PCIRST# 92 O PCI Reset: An active low reset signal for the PCI bus.
B PCI Address/Data Bus: The standard PCI address and data lines. The
address is driven with FRAME# assertion and data is driven or
received in following cycles.
Universal Serial Bus Interface
SD0+ 88 B USB Port 0 Data
SD0- 89 B USB Port 0 Data
SD1+ 84 B USB Port 1 Data
SD1- 85 B USB Port 1 Data
X1 71 I USB Clock input, connected to 48Mhz oscillator or crystal input.
X2 70 O USB 48Mhz crystal connection. Leave unconnected if oscillator is
used.
CPU Interface
SMI# 51 O System Management Interrupt to the processor for legacy keyboard
and mouse support.
Power and Ground
VDD 6, 16, 43, 54,
63, 73, 82, 90,
94
VSS 15, 25, 37, 48,
55, 69, 72, 83,
91
VDDA 87 I USB Differential Output Power Source
VSSA 86 I USB Differential Output Ground
I Power Supply of 4.5 to 5.5V.
I Ground
-4-
Page 7
No.
VIA Technologies, Inc. VT83C572
VT83C572 PIN OUT IN NUMERICAL ORDER
Pin No.
Pin Name Pin
No.
1 AD28 31 AD14 51 SMI# 81 NC
2 AD27 32 AD13 52 NC 82 VDD
3 AD26 33 CBE1# 53 NC 83 VSS
4 AD25 34 AD12 54 VDD 84 SD1+
5 AD24 35 AD11 55 VSS 85 SD16 VDD 36 AD10 56 NC 86 VSSA
7 CBE3# 37 VSS 57 NC 87 VDDA
8 IDSEL 38 AD9 58 NC 88 SD0+
9 AD23 39 AD8 59 NC 89 SD010 AD22 40 CBE0# 60 NC 90 VDD
11 AD21 41 AD7 61 NC 91 VSS
12 AD20 42 AD6 62 NC 92 PCIRST#
13 AD19 43 VDD 63 VDD 93 PCLK
14 AD18 44 AD5 64 NC 94 VDD
15 VSS 45 AD4 65 NC 95 INTA#
16 VDD 46 AD3 66 NC 96 GNT#
17 AD17 47 AD2 67 NC 97 REQ#
18 AD16 48 VSS 68 NC 98 AD31
19 AD15 49 AD1 69 VSS 99 AD30
20 CBE2# 50 AD0 70 X2 100 AD29
21 FRAME# 71 X1
22 IRDY# 72 VSS
23 TRDY# 73 VDD
24 DEVSEL# 74 NC
25 VSS 75 NC
26 STOP# 76 NC
27 PERR# 77 NC
28 SERR# 78 NC
29 LOCK# 79 NC
30 PAR 80 NC
Pin Name Pin
No.
Pin Name Pin
No.
Pin Name
-5-
Page 8
VIA Technologies, Inc. VT83C572
ELECTRICAL CHARACTERISTICS
Absolute Maximum Ratings
Parameter Min Max Unit
Ambient operating temperature 0 70
Storage temperature -55 125
Input voltage -0.5 5.5 Voltage
Output voltage (VDD = 5V) -0.5 5.5 Voltage
o
C
o
C
Output voltage (VDD = 3.1 - 3.6V) -0.5 V
+ 0.5 Voltage
DD
Note :
Stress above these listed cause permanent damage to device. Functional operation of this
device should be restricted to the conditions described under operating conditions.
DC Characteristics
TA-0-70oC, VDD=5V+/-5%, GND=0V
Symbol Parameter Min Max Unit Condition
VIL Input low voltage -.50 0.8 V
VIH Input high voltage 2.0 VDD+0.5 V
VOL Output low voltage - 0.45 V IOL=4.0mA
VOH Output high voltage 2.4 - V IOH=-1.0mA
IIL Input leakage current - +/-10 uA 0<VIN<V
IOZ Tristate leakage current - +/-20 uA 0.45<V
ICC Power supply current - 80 mA
DD
OUT<VDD
-6-
Page 9
VIA Technologies, Inc. VT83C572

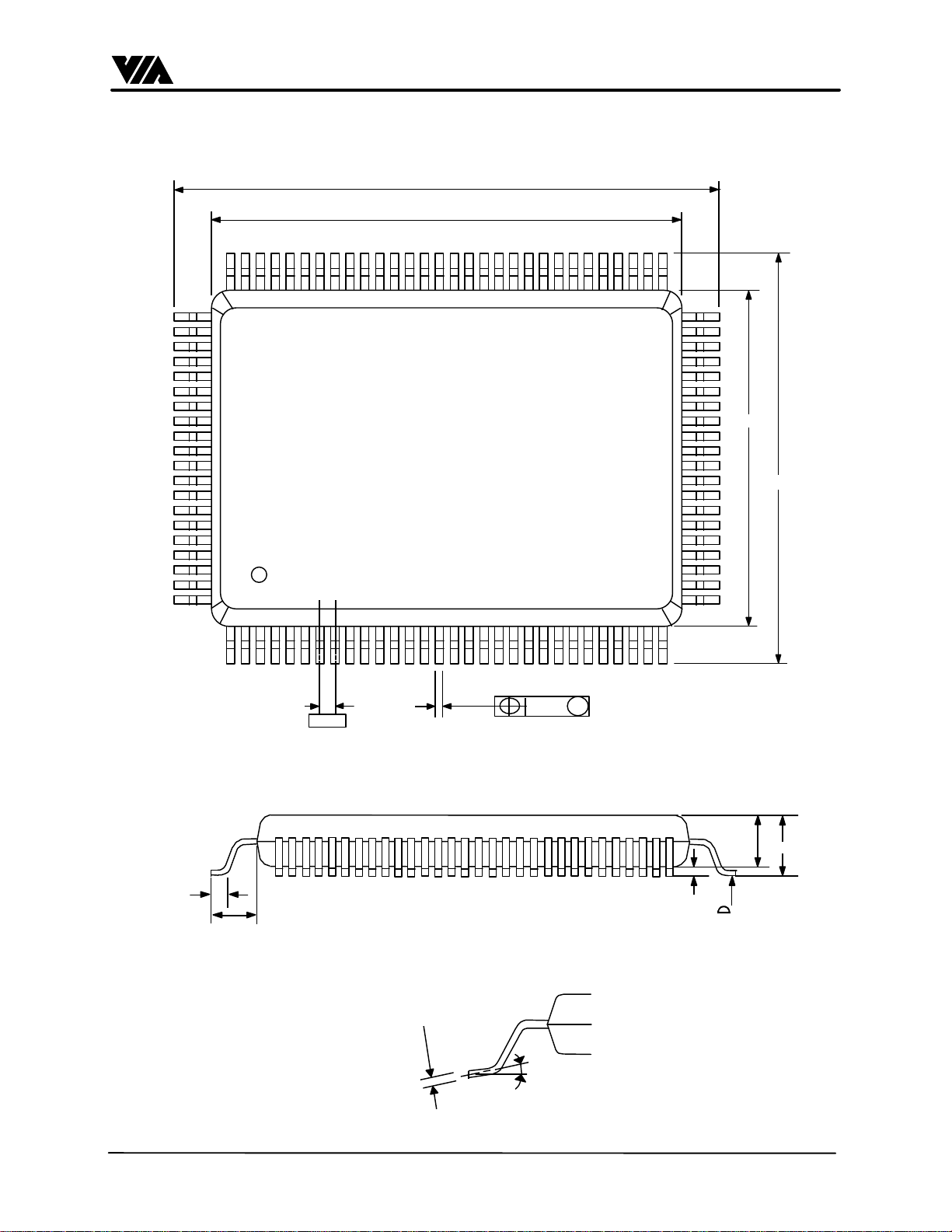

100-PIN PLASTIC RECTANGULAR FLAT PACKAGE
25.0±0.25
20.0±0.1
5180
100
81
1
0.3±0.1
0.65
0.13
M
30
50
14.0±0.1
19.0±0.25
31
1.20±0.15
2.50TPY
0.15±0.05
-7-
0~7
2.72±0.15
0.25±0.2
o
3.302MAX
0.08
