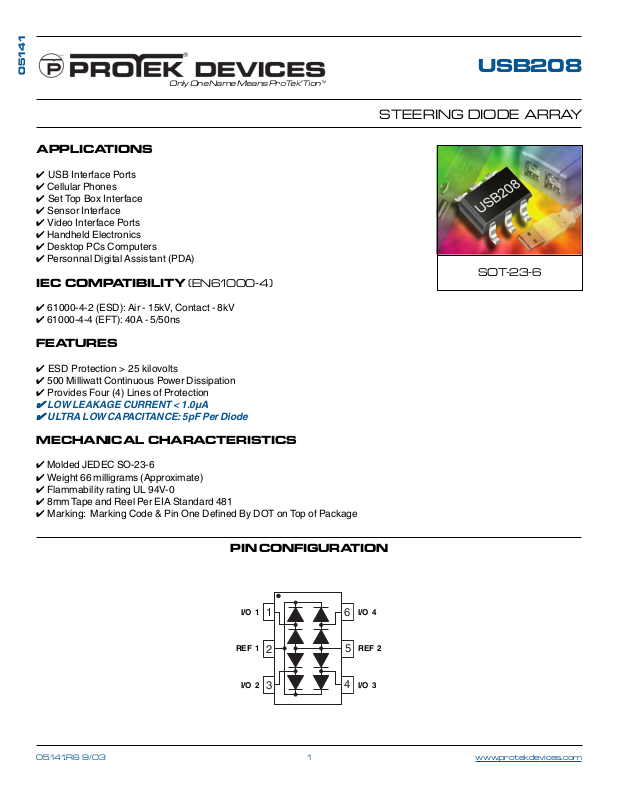

Only One Name Means ProTek’Tion™
APPLICATIONS
✔ USB Interface Ports
✔ Cellular Phones
✔ Set Top Box Interface
✔ Sensor Interface
✔ Video Interface Ports
✔ Handheld Electronics
✔ Desktop PCs Computers
✔ Personnal Digital Assistant (PDA)
IEC COMPATIBILITY (EN61000-4)
✔ 61000-4-2 (ESD): Air - 15kV, Contact - 8kV
✔ 61000-4-4 (EFT): 40A - 5/50ns
FEATURES
USB208
STEERING DIODE ARRAY
SOT-23-6
✔ ESD Protection > 25 kilovolts
✔ 500 Milliwatt Continuous Power Dissipation
✔ Provides Four (4) Lines of Protection
✔ ✔
✔
LOW LEAKAGE CURRENT < 1.0µA
✔ ✔
✔ ✔
✔
ULTRA LOW CAPACITANCE: 5pF Per Diode
✔ ✔
MECHANICAL CHARACTERISTICS
✔ Molded JEDEC SO-23-6
✔ Weight 66 milligrams (Approximate)
✔ Flammability rating UL 94V-0
✔ 8mm Tape and Reel Per EIA Standard 481
✔ Marking: Marking Code & Pin One Defined By DOT on Top of Package
PIN CONFIGURATION
I/O 1
REF 1
1
2
6
5
I/O 4
REF 2
I/O 2 I/O 3
3
105141.R6 9/03 www.protekdevices.com
4
Page 2
DEVICE CHARACTERISTICS
MAXIMUM RATINGS @ 25°C Unless Otherwise Specified
USB208
PARAMETER
Operating Temperature
Storage Temperature
Continuous Power Dissipation
Repetitive Peak Forward Current @ tp=5µs, F=50kHz (Pin 2 - 3)
SYMBOL VALUE
T
J
T
STG
P
PC
I
FRM
-55°C to 150°C
-55°C to 150°C°C
500 mW
700 mA
ELECTRICAL CHARACTERISTICS PER LINE @ 25°C Unless Otherwise Specified
PA R T
NUMBER
DEVICE
MARKING
CODE
USB208 PSB 20
Note 1: Apply a 5V bias between pins 2 (REF 1) to pin 5 (REF 2). Measure Cj between any I/O pins to pin 5 (REF 2) and divide by two.
REPETITIVE
PEAK
REVERSE
VOLTAGE
@ 10µA
V
RRM
VOLTS
MAXIMUM
REVERSE
LEAKAGE
MAXIMUM
FORWARD
VOLTAGE
CURRENT
(PER DIODE)
V
RRM
@ 5V
I
R
µA
@ 50mA
V
F
VOLTS
1 1.2 5
MAXIMUM
CAPACITANCE
(See Note 1)
C
j
pF
UNITS
°C
PEAK FORWARD CURRENT VS FORWARD VOLTAGE
10
8
6
4
2
- Forward Current - A
F
I
0
0 1 2 3 4 5 6 7 8 9
10
FIGURE 1
VF - Forward Voltage - V
LOW FORWARD CURRENT VS FORWARD VOLTAGE
110
90
70
50
30
- Forward Current - mA
F
I
10
800 840 880 920 960
1000
2 www.protekdevices.com05141.R6 9/03
FIGURE 2
VF - Forward Voltage - mV
Page 3
PACKAGE OUTLINE & DIMENSIONS
USB208
D
6
1
V
E
54
2
3
F
A
0.028” (0.70mm)
PACKAGE OUTLINE
K
L
G
C
MOUNTING PAD
0.094” (2.40mm)
0.074” (1.90mm)
0.037” (0.95mm)
0.039” (1.00mm)
SOT-23-6
0º - 10º
J
J
B
M
PACKAGE DIMENSIONS
MILLIMETERS
DIM MIN MAX MIN MAX
A
B
C
D
E
F
G
J
K
L
M
NOTES
1. Dimensioning and tolerances per ANSI Y14.5M, 1985.
2. Controlling Dimension: Inches
3. Dimensions are exclusive of mold flash and metal burrs.
TAPE & REEL ORDERING NOMENCLATURE
1. Surface mount product is taped and reeled in accordance
with EIA-481.
2. Suffix-T7 = 7 Inch Reel - 3,000 pieces per 8mm tape,
i.e.,
3. Suffix-T13 = 13 Inch Reel - 10,000 pieces per 8mm tape,
i.e.,
2.80
1.50
0.90
0.35
0.85
1.70
0.90
0.090
2.60
0.20 TYP
0.35
USB208-T7.
USB208-T13.
3.05
1.75
1.30
0.50
1.05
2.10
1.45
0.20
3.00
0.20 TYP
0.55
Outline & Dimensions: Rev 1 - 11/01, 06013
INCHES
0.110
0.059
0.036
0.014
0.033
0.067
0.036
0.0035
0.102
0.007 TYP
0.014
0.120
0.070
0.051
0.020
0.040
0.083
0.057
0.008
0.118
0.007 TYP
0.022
COPYRIGHT © ProTek Devices 2003
