STPS30L45C

Low drop power Schottky rectifier

Features

■ low forward voltage drop meaning very small

conduction losses

■ low switching losses allowing high frequency

operation

■ low thermal resistance

■ avalanche rated

■ insulated package TO-220FPAB:

– insulating voltage = 2000 V DC
– capacitance = 45 pF

■ avalanche capability specified

Description

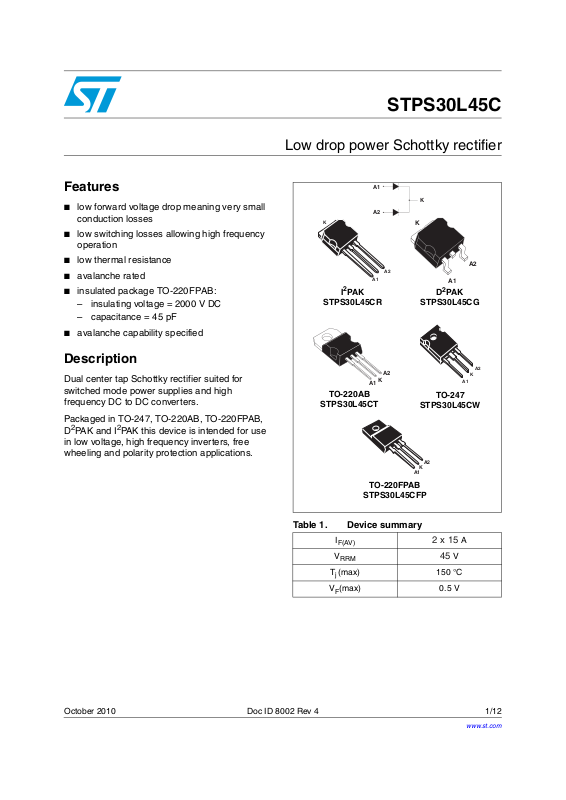

Dual center tap Schottky rectifier suited for
switched mode power supplies and high
frequency DC to DC converters.

Packaged in TO-247, TO-220AB, TO-220FPAB,

2

D

PAK and I2PAK this device is intended for use
in low voltage, high frequency inverters, free
wheeling and polarity protection applications.

K

2

PA K

I

STPS30L45CR

A1

TO-220AB

STPS30L45CT

TO-220FPAB

STPS30L45CFP

A1

K

A2

K

2

PAK

A2

A1

A2

A1

D

STPS30L45CG

A2

K

A2

K

A1

TO-247

STPS30L45CW

A2

K

A1

Table 1. Device summary

I

F(AV)

V

RRM

T

(max) 150 °C

j

(max) 0.5 V

V

F

2 x 15 A

45 V

October 2010 Doc ID 8002 Rev 4 1/12

www.st.com

12

Characteristics STPS30L45C

d

-

1 Characteristics

Table 2. Absolute Ratings (limiting values, per diode)

Symbol Parameter Value Unit

V

I

F(RMS)

I

F(AV)

I

I

RRM

I

RSM

P

T

Repetitive peak reverse voltage 45 V

RRM

Forward rms current 30 A

Average forward
current

Surge non repetitive forward current tp = 10 ms Sinusoidal 220 A

FSM

TO-220AB, TO-247,

2

PAK, D2PA K

I

TO-220FPAB T

=110 °C, δ = 0.5

c

Tc = 135 °C, δ = 0.5

Per diode
Per device

Repetitive peak reverse current tp = 2 µs square F = 1 kHz 1 A

Non repetitive peak reverse current tp = 100 µs square 3 A

Repetitive peak avalanche power tp = 1 µs T

ARM

Storage temperature range -65 to + 150 °C

stg

Maximum operating junction temperature

T

j

(1)

= 25 °C 6000 W

j

15
30

150 °C

dV/dt Critical rate of rise of reverse voltage 10000 V/µs

Ptot

--------------

1. condition to avoid thermal runaway for a diode on its own heatsink

dTj

1

--------------------------

<

Rth j a–()

Table 3. Thermal resistances

Symbol Parameter Value Unit

A

R

R

th(j-c)

th(c)

TO-220FPAB

Junction to case

2

TO-220AB, TO-247, I

PAK, D2PA K

TO-220FPAB 2.5

Coupling

TO-220AB, TO-247, I

2

PAK, D2PA K 0 .1 0

When the diodes 1 and 2 are used simultaneously:

ΔT

(diode 1) = P(diode1) x R

j

(Per diode) + P(diode 2) x R

th(j-c)

Per diode
To ta l

Per diode
To ta l

4

3.2
°C/W

1.60

0.85

°C/W

th(c)

2/12 Doc ID 8002 Rev 4

STPS30L45C Characteristics

Table 4. Static electrical characteristics (per diode)

Symbol Parameter Test Conditions Min. Typ. Max. Unit

(1)

I

R

V

F

Reverse leakage current

(1)

Forward voltage drop

Tj = 25 °C

VR = V

= 125 °C 100 200 mA

T

j

= 25 °C IF = 15 A 0.55

T

j

T

= 125 °C IF = 15 A 0.42 0.50

j

= 25 °C IF = 30 A 0.74

T

j

= 125 °C IF = 30 A 0.59 0.67

T

j

RRM

1. Pulse test: tp = 380 µs, δ < 2%

To evaluate the conduction losses use the following equation: P = 0.330 x I

Figure 1. Average forward power dissipation

PF(av)(W)

12

10

8

6

4

2

0

02468101214161820

versus average forward current
(per diode)

δ = 0.1

δ = 0.05

δ = 0.2

IF(av) (A)

δ = 0.5

δ

δ = 1

T

=tp/T

Figure 2. Average forward current versus

ambient temperature
(

δ = 0.5, per diode)

IF(av)(A)

18
16
14
12
10

8
6
4

tp

2

=tp/T

δ

0

0 25 50 75 100 125 150

Rth(j-a)=15°C/W

T

tp

F(AV)

Rth(j-a)=Rth(j-c)

Tamb(°C)

+ 0.011 I

0.4 mA

F2(RMS)

TO-220AB/TO-247/I²PAK/D²PAK

TO-220FPAB

V

Figure 3. Normalized avalanche power

derating versus pulse duration

P(tp)

ARM

P (1 µs)

ARM

1

0.1

0.01

t (µs)

0.001

0.10.01 1

p

10 100 1000

Figure 4. Normalized avalanche power

derating versus junction
temperature

P(Tj)

ARM

P (25 °C)

ARM

1.2

1

0.8

0.6

0.4

0.2

0

25 50 75 100 125 150

Doc ID 8002 Rev 4 3/12

T (°C)

j

Characteristics STPS30L45C

1

Figure 5. Non repetitive surge peak forward

current versus overload duration

IM(A)

200
180

maximum values, per diode

160
140
120
100

80
60

I

M

40
20

0

1E-3 1E-2 1E-1 1E+0

t

δ

=0.5

t(s)

Tc=25°C

Tc=75°C

Tc=125°C

Figure 7. Relative variation of thermal

impedance junction to case versus
pulse duration

Zth(j-c)/Rth(j-c)

1.0

0.8

Figure 6. Non repetitive surge peak forward

current versus overload duration
(TO-220FPAB only)

IM(A)

140

maximum values, per diode

120

100

80

60

40

I

M

20

0

1E-3 1E-2 1E-1 1E+0

t

δ

=0.5

t(s)

Tc=25°C

Tc=75°C

Tc=125°C

Figure 8. Relative variation of thermal

impedance junction to case versus
pulse duration (TO-220FPAB)

Zth(j-c)/Rth(j-c)

1.0

0.8

δ = 0.5

0.6

0.4

δ = 0.2

δ = 0.1

0.2

Single pulse

0.0
1E-4 1E-3 1E-2 1E-1 1E+0

tp(s)

δ

T

=tp/T

Figure 9. Reverse leakage current versus

reverse voltage applied (typical
values, per diode)

IR(mA)

5E+2

1E+2

1E+1

1E+0

1E-1

1E-2

0 5 10 15 20 25 30 35 40 45

Tj=150°C

Tj=125°C

Tj=100°C

Tj=75°C

Tj=25°C

VR(V)

δ = 0.5

0.6

0.4

δ = 0.2

δ = 0.1

0.2

tp

Single pulse

0.0
1E-3 1E-2 1E-1 1E+0 1E+

tp(s)

Figure 10. Junction capacitance versus

reverse voltage applied (typical
values, per diode)

C(pF)

2000

1000

500

200

VR(V)

100

12 51020 50

δ

=tp/T

T

F=1MHz
Tj=25°C

tp

4/12 Doc ID 8002 Rev 4

STPS30L45C Characteristics

Figure 11. Forward voltage drop versus

forward current (maximum values,
per diode)

Figure 12. Thermal resistance junction to

ambient versus copper surface
under tab for D

2

PAK

IFM(A)

200

100

Typical values

Tj=150°C

10

Tj=125°C

Tj=25°C

VFM(V)

1

0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

Rth(j-a) (°C/W)

80

70

Epoxy printed circuit board FP4,
copper thickness = 35 µm

60

50

40

30

20

10

0

0 5 10 15 20 25 30 35 40

S(cm²)

Doc ID 8002 Rev 4 5/12

Package Information STPS30L45C

2 Package Information

● Epoxy meets UL94, V0

● Cooling method: by conduction (C)

● Recommended torque (TO-220AB, TO-220FPAB): 0.4 to 0.6 N·m

In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK
specifications, grade definitions and product status are available at: www.st.com
ECOPACK

Table 5. TO-220AB package dimensions

®

packages, depending on their level of environmental compliance. ECOPACK®

®

is an ST trademark.

.

Dimensions

Ref

Millimeters Inches

Min. Max. Min. Max.

A 4.40 4.60 0.173 0.181

C

1.23 1.32 0.048 0.051

D 2.40 2.72 0.094 0.107

E 0.49 0.70 0.019 0.027

F 0.61 0.88 0.024 0.034

G 4.95 5.15 0.194 0.202

L2

F2

F1

F

G1

H2

Dia

G

L5

L9

L6

L4

A

C

L7

F1 1.14 1.70 0.044 0.066

F2 1.14 1.70 0.044 0.066

D

G1 2.40 2.70 0.094 0.106

H2 10 10.40 0.393 0.409

L2 16.4 typ. 0.645 typ.

M

L4 13 14 0.511 0.551

E

L5 2.65 2.95 0.104 0.116

L6 15.25 15.75 0.600 0.620

L7 6.20 6.60 0.244 0.259

L9 3.50 3.93 0.137 0.154

6/12 Doc ID 8002 Rev 4

M 2.6 typ. 0.102 typ.

Dia. 3.75 3.85 0.147 0.151

STPS30L45C Package Information

Mounting (soldering) the I2PAK metal slug (heatsink) with alloy, like a surface mount device,
IS NOT PERMITTED. A standard through-hole mounting is mandatory.

Table 6. I2PAK dimensions

Dimensions

L2

Ref.

A

E

c2

A 4.40 4.60 0.173 0.181

Millimeters Inches

Min. Max. Min. Max.

A1 2.40 2.72 0.094 0.107

b 0.61 0.88 0.024 0.035

D

b1 1.14 1.70 0.044 0.067

c 0.49 0.70 0.019 0.028

L1

A1

c2 1.23 1.32 0.048 0.052

D 8.95 9.35 0.352 0.368

L

b1

e 2.40 2.70 0.094 0.106

e1 4.95 5.15 0.195 0.203

b

e

e1

c

E 10 10.40 0.394 0.409

L 13 14 0.512 0.551

L1 3.50 3.93 0.138 0.155

L2 1.27 1.40 0.050 0.055

Doc ID 8002 Rev 4 7/12

Package Information STPS30L45C

Table 7. TO-220FPAB package dimensions

Dimensions

Ref

Millimeters Inches

Min. Max. Min. Max.

A 4.4 4.6 0.173 0.181

A

H

B

B 2.5 2.7 0.098 0.106

D 2.5 2.75 0.098 0.108

E 0.45 0.70 0.018 0.027

Dia

L6

L2

L3

L5

F1

L4

F2

D

F 0.75 1 0.030 0.039

F1 1.15 1.70 0.045 0.067

L7

F2 1.15 1.70 0.045 0.067

G 4.95 5.20 0.195 0.205

G1 2.4 2.7 0.094 0.106

H 10 10.4 0.393 0.409

L2 16 Typ. 0.63 Typ.

F

G1

G

E

L3 28.6 30.6 1.126 1.205

L4 9.8 10.6 0.386 0.417

L5 2.9 3.6 0.114 0.142

L6 15.9 16.4 0.626 0.646

L7 9.00 9.30 0.354 0.366

Dia. 3.00 3.20 0.118 0.126

8/12 Doc ID 8002 Rev 4

STPS30L45C Package Information

Table 8. D

L2

L

L3

2

PAK package dimensions

A

E

B2

B

G

C2

A1

C

A2

M

*

* FLAT ZONE NO LESSTHAN 2mm

Dimensions

Ref

Millimeters Inches

Min. Max. Min. Max.

A 4.40 4.60 0.173 0.181

A1 2.49 2.69 0.098 0.106

A2 0.03 0.23 0.001 0.009

B 0.70 0.93 0.027 0.037

D

B2 1.14 1.70 0.045 0.067

C 0.45 0.60 0.017 0.024

R

C2 1.23 1.36 0.048 0.054

D 8.95 9.35 0.352 0.368

E 10.00 10.40 0.393 0.409

G 4.88 5.28 0.192 0.208

L 15.00 15.85 0.590 0.624

V2

L2 1.27 1.40 0.050 0.055

L3 1.40 1.75 0.055 0.069

M 2.40 3.20 0.094 0.126

R 0.40 typ. 0.016 typ.

V2 0° 8° 0° 8°

Figure 13. D2PAK footprint dimensions (in millimeters)

16.90

10.30

8.90

3.70

5.08

1.30

Doc ID 8002 Rev 4 9/12

Package Information STPS30L45C

Table 9. TO-247 dimensions

Dimensions

Ref.

A 4.85 5.15 0.191 0.203

A1 2.20 2.60 0.086 0.102

b 1.00 1.40 0.039 0.055

Heat-sink plane

E

S

D

L1

L

11223

∅R

L2

b1

b2

b

e

A

c

A1

∅P

3

BACK VIEW

b1 2.00 2.40 0.078 0.094

b2 3.00 3.40 0.118 0.133

c 0.40 0.80 0.015 0.031

(1)

D

E 15.45 15.75 0.608 0.620

e 5.45 typ. 0.215 typ.

L 14.20 14.80 0.559 0.582

L1 3.70 4.30 0.145 0.169

L2 18.50 typ. 0.728 typ.

(2)

∅P

∅R 4.50 5.50 0.177 0.217

S 5.50 typ. 0.216 typ.

1. Dimension D plus gate protrusion does not exceed 20.5 mm

2. Resin thickness around the mounting hole is not less than 0.9 mm

Millimeters Inches

Min. Max. Min. Max.

19.85 20.15 0.781 0.793

3.55 3.65 0.139 0.143

10/12 Doc ID 8002 Rev 4

STPS30L45C Ordering Information

3 Ordering Information

Table 10. Ordering information

Order code Marking Package Weight Base qty Delivery mode

STPS30L45CT STPS30L45CT TO-220AB 2g 50 Tube

STPS30L45CG STPS30L45CG D2PA K 1.8g 50 Tube

2

STPS30L45CG-TR STPS30L45CG D

STPS30L45CW STPS30L45CW TO-247 4.4g 30 Tube

STPS30L45CR STPS30L45CR I2PA K 1.4g 50 Tube

STPS30L45CFP STPS30L45CFP TO-220FPAB 1.9 g 50 Tube

PA K 1.8g 500 Tape and reel

4 Revision history

Table 11. Document revision history

Date Revision Changes

Jul-2003 3B Previous issue

13-Oct-2010 4

Added paragraph above Tab l e 6 and updated I2PAK dimensions in

Ta b le 6 . Updated TO-247 dimensions in Ta bl e 9 .

Doc ID 8002 Rev 4 11/12

STPS30L45C

Please Read Carefully:

Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the
right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any
time, without notice.

All ST products are sold pursuant to ST’s terms and conditions of sale.

Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no
liability whatsoever relating to the choice, selection or use of the ST products and services described herein.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this
document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products
or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such
third party products or services or any intellectual property contained therein.

UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS
OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.

UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT
RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING
APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY,
DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE
GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.

Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void
any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any
liability of ST.

ST and the ST logo are trademarks or registered trademarks of ST in various countries.

Information in this document supersedes and replaces all information previously supplied.

The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.

© 2010 STMicroelectronics - All rights reserved

STMicroelectronics group of companies

Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -

Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America

www.st.com

12/12 Doc ID 8002 Rev 4
