Page 1

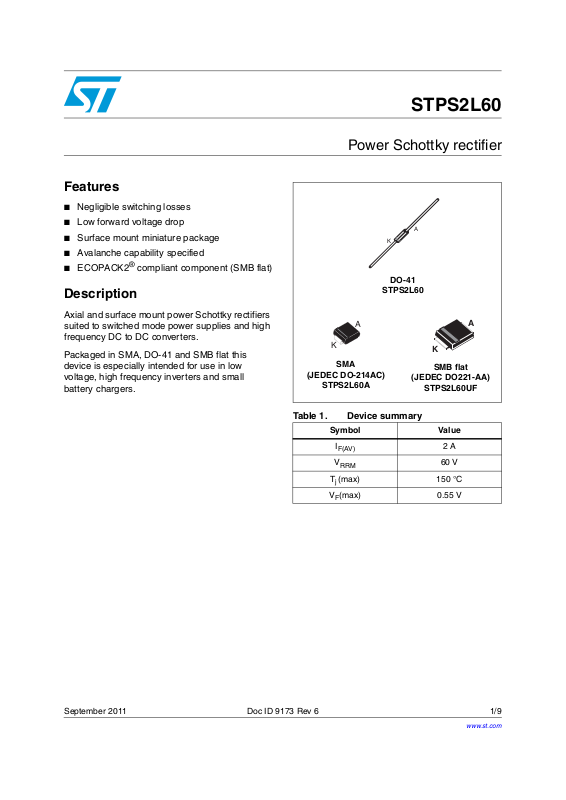

Features

■ Negligible switching losses

■ Low forward voltage drop

■ Surface mount miniature package

■ Avalanche capability specified

■ ECOPACK2

compliant component (SMB flat)

Description

STPS2L60

Power Schottky rectifier

DO-41

STPS2L60

Axial and surface mount power Schottky rectifiers suited to switched mode power supplies and high frequency DC to DC converters.

Packaged in SMA, DO-41 and SMB flat this device is especially intended for use in low voltage, high frequency inverters and small battery chargers.

SMA

(JEDEC DO-214AC)

STPS2L60A

Table 1. Device summary

Symbol Value

F(AV)

RRM

(max) 150 °C

(max) 0.55 V

(JEDEC DO221-AA)

SMB flat

STPS2L60UF

2 A

60 V

September 2011 Doc ID 9173 Rev 6 1/9

www.st.com

Page 2

Characteristics STPS2L60

1 Characteristics

Table 2. Absolute ratings (limiting values)

Symbol Parameter Value Unit

F(RMS)

F(AV)

Repetitive peak reverse voltage 60 V

RRM

Forward rms voltage 10 A

SMB flat T

Average forward current

DO-41 T

Surge non repetitive forward current tp =10 ms sinusoidal 75 A

FSM

Repetitive peak avalanche power tp = 1 µs Tj = 25 °C 1600 W

ARM

Storage temperature range -65 to + 150 °C

stg

Maximum operating junction temperature

= 130 °C δ = 0.5

= 115 °C δ = 0.5

= 110 °C δ = 0.5

(1)

2ASMA T

150 °C

dV/dt Critical rate of rise of reverse voltage 10000 V/µs

Rth(j-a)

dPtot

1. condition to avoid thermal runaway for a diode on its own heatsink

dTj

Table 3. Thermal resistance

Symbol Test conditions Value Unit

SMB flat 15

th(j-l)

Junction-lead

°C/WSMA 25

Lead length = 10 mm DO-41 30

Table 4. Static electrical characteristics

Symbol Parameter Test conditions Min. Typ. Max. Unit

= 25 °C

Reverse leakage

(1)

current

(1)

1. Pulse test: tp = 380 µs, δ < 2%

Forward voltage drop

= 100 °C 2 10 mA

= 25 °C

= 125 °C 0.51 0.55

= 25 °C

= 125 °C 0.62 0.67

To evaluate the conduction losses use the following equation: P = 0.43 x I

2/9 Doc ID 9173 Rev 6

F(AV)

+ 0.06 I

F2(RMS)

= V

= 2 A

= 4 A

100 µA

RRM

0.60

0.77

Page 3

STPS2L60 Characteristics

Figure 1. Average forward power dissipation

versus average forward current

P (W)

F(AV)

1.4

1.3

1.2

1.1

1.0

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0.0

0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4

δ = 0.05

δ = 0.1

δ = 0.2

I (A)

F(AV)

δ = 0.5

=tp/T

δ = 1

Figure 3. Average forward current versus

ambient temperature (δ = 0.5) SMB flat

I (A)

F(AV)

2.2

2.0

1.8

1.6

1.4

1.2

1.0

0.8

0.6

0.4

0.2

0.0

=tp/T

0 25 50 75 100 125 150

SMB FlatSMBflat

SMB Flat

SMBflat R

=40 °C/W

th(j-a)

=2.5 cm²

T (°C)

amb

th(j-a)=Rth(j-l)

Figure 5. Normalized avalanche power

derating versus junction temperature

P(Tj)

ARM

P (25°C)

ARM

1.2

0.8

0.6

0.4

0.2

25 50 75 100 125 150

T (°C)

Figure 2. Average forward current versus

ambient temperature (δ = 0.5) DO-41, SMA

I (A)

F(AV)

2.2

2.0

1.8

1.6

1.4

1.2

1.0

0.8

0.6

0.4

0.2

0.0

=tp/T

0 25 50 75 100 125 150

R =100°C/W

th(j-a)

T (°C)

R=R

th(j-a) th(j-I)

amb

DO-41

SMA

Figure 4. Normalized avalanche power

derating versus pulse duration

P(t)

ARM p

P (1µs)

ARM

0.1

0.01

t (µs)

0.001

0.10.01 1

10 100 1000

Figure 6. Non repetitive surge peak forward

current versus overload duration (maximum values) (SMA)

I (A)

1.E-03 1.E-02 1.E-01 1.E+00

δ=0.5

t(s)

T =25°C

T =75°C

T =125°C

Doc ID 9173 Rev 6 3/9

Page 4

Characteristics STPS2L60

Figure 7. Non repetitive surge peak forward

current versus overload duration (maximum values) (DO-41)

I (A)

1.E-03 1.E-02 1.E-01 1.E+00

δ=0.5

t(s)

T =25°C

T =75°C

T =125°C

Figure 9. Relative variation of thermal

impedance junction to ambient versus pulse duration (SMA)

Z/R

th(j-a) th(j-a)

1.0

epoxy pri nted cir cui t boa rd FR4 , c opper thic kness: 35 µm

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

Single pulse

0.0

1.E-02 1.E-01 1.E+00 1.E+01 1.E+02

t (s)

Figure 11. Relative variation of thermal

impedance junction to lead versus pulse duration (SMB flat)

Z/R

th(j-l) th(j-l)

1.0

epoxy printed circuit board FR4, copper thickness: 35 µm

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

Single pulse

0.1

0.0

1.E-04 1.E-03 1.E-02 1.E-01 1.E+00

t (s)

Figure 8. Non repetitive surge peak forward

current versus overload duration (maximum values) (SMB flat)

I (A)

1.E-03 1.E-02 1.E-01 1.E+00

δ=0.5

t(s)

SMBflat

TL=25°C

TL=75°C

TL=125°C

Figure 10. Relative variation of thermal

impedance junction to ambient versus pulse duration (DO-41)

Z/R

th(j-a) th(j-a)

1.0

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0.0

1.E-01 1.E+00 1.E+01 1.E+02 1.E+03

Single pulse

t (s)

Figure 12. Reverse leakage current versus

reverse voltage applied (typical values)

I (µA)

1.E+05

1.E+04

1.E+03

1.E+02

1.E+01

1.E+00

0 102030405060

T=150°C

T=125°C

T=100°C

T=75°C

T=50°C

T=25°C

V (V)

4/9 Doc ID 9173 Rev 6

Page 5

STPS2L60 Characteristics

Figure 13. Junction capacitance versus

reverse voltage applied (typical values)

C(pF)

1000

100

V (V)

1 10 100

F=1MHz

V =30mV

OSC

T=25°C

Figure 15. Thermal resistance junction to

ambient versus copper surface under each lead (SMA and SMB flat)

R (°C/W)

th(j-a)

130

120

110

100

0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0

epoxy printed circuit board FR4, copper thickness:35 µm

SMA

SMBflat

S(Cu)(cm²)

Figure 14. Forward voltage drop versus

forward current (maximum values, low level)

I (A)

0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6

T=125°C

(maximum values)

T=125°C

(typical values)

V (V)

T=25°C

(maximum values)

Figure 16. Thermal resistance versus lead

length (DO-41)

R (°C/W)

120

100

5 10152025

th(j-a)

th(j-I)

L (mm)

leads

Doc ID 9173 Rev 6 5/9

Page 6

Package information STPS2L60

2 Package information

● Epoxy meets UL94, V0

● Lead-free package

In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK specifications, grade definitions and product status are available at: www.st.com ECOPACK

Table 5. SMB flat dimensions

packages, depending on their level of environmental compliance. ECOPACK®

is an ST trademark.

Dimensions

Ref.

A 0.90 1.10 0.035 0.043

Millimeters Inches

Min. Typ. Max. Min. Typ. Max.

b 1.95 2.20 0.077 0.087

L 2x

L2 2x

c 0.15 0.40 0.006 0.016

D 3.30 3.95 0.130 0.156

E 5.10 5.60 0.200 0.220

L1 2x

E1 4.05 4.60 0.189 0.181

L 0.75 1.50 0.029 0.059

L1 0.40 0.016

L2 0.60 0.024

Figure 17. SMB flat footprint dimensions

5.84

(0.230)

1.20

(0.047)

3.44

(0.136)

millimeters

(inches)

The footprint in Figure 17 has been optimized for the SMB flat package. The footprint of the SMB package can be used instead.

6/9 Doc ID 9173 Rev 6

1.20

(0.047)

2.07

(0.082)

Page 7

STPS2L60 Package information

Table 6. SMA dimensions

Dimensions

Ref.

A1 1.90 2.45 0.075 0.094

A2 0.05 0.20 0.002 0.008

b 1.25 1.65 0.049 0.065

c 0.15 0.40 0.006 0.016

D 2.25 2.90 0.089 0.114

E 4.80 5.35 0.189 0.211

E1 3.95 4.60 0.156 0.181

L 0.75 1.50 0.030 0.059

Figure 18. Footprint, dimensions in mm (inches)

1.4

(0.055) (0.055)

2.63

(0.103)

Millimeters Inches

Min. Max. Min. Max.

1.4

1.64

(0.064)

5.43

(0.214)

Table 7. DO-41 package dimensions

Dimensions

Ref

Millimeters Inches

Min. Max. Min. Max.

A 4.07 5.20 0.160 0.205

B 2.04 2.71 0.080 0.107

C 25.4 1

D 0.71 0.86 0.028 0.034

Doc ID 9173 Rev 6 7/9

Page 8

Ordering information STPS2L60

3 Ordering information

Table 8. Ordering information

Order code Marking Package Weight Base qty Delivery mode

STPS2L60A S26 SMA 0.068 g 5000 Tape and reel

STPS2L60 STPS2L60 DO-41 0.34 g 2000 Ammopack

STPS2L60RL STPS2L60 DO-41 0.34 g 5000 Tape and reel

STPS2L60UF FG26 SMB flat 0.050 g 5000 Tape and reel

4 Revision history

Table 9. Document revision history

Date Revision Changes

Jul-2003 2A Last update.

Aug-2004 3

18-Sep-2008 4 Reformatted to current standards. Added SMB flat package.

30-Sep-2009 5 Updated table 7 package dimensions.

23-Sep-2011 6 Updated SMA package information.

SMA package dimensions update. Reference A1 max changed from 2.70 mm (0.106 inch) to 2.03 mm (0.080 inch).

8/9 Doc ID 9173 Rev 6
