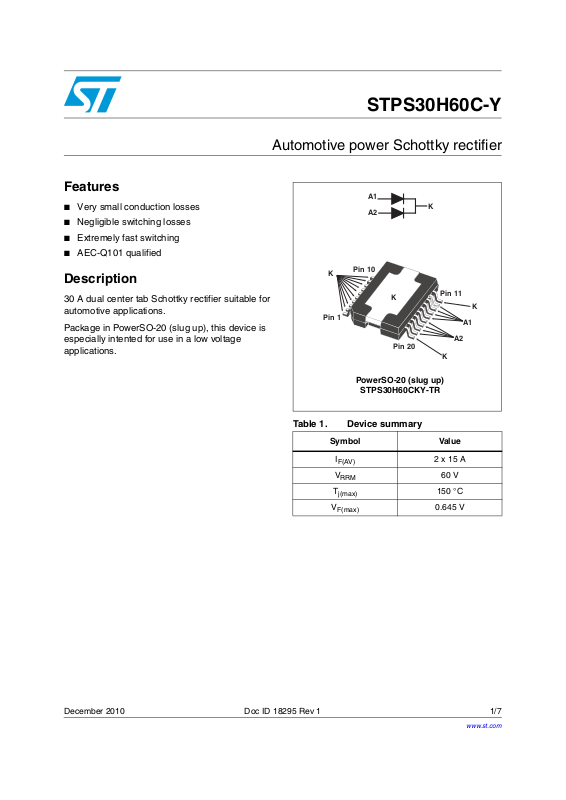

Datasheet STPS30H60C-Y Datasheet (ST)

STPS30H60C-Y

Automotive power Schottky rectifier

Features

■ Very small conduction losses

■ Negligible switching losses

■ Extremely fast switching

■ AEC-Q101 qualified

Description

30 A dual center tab Schottky rectifier suitable for
automotive applications.

Package in PowerSO-20 (slug up), this device is
especially intented for use in a low voltage
applications.

A1

A2

Pin 10

K

K

Pin 1

Pin 20

PowerSO-20 (slug up)

STPS30H60CKY-TR

Table 1. Device summary

Symbol Value

I

F(AV)

V

RRM

T

j(max)

V

F(max)

K

Pin 11

K

A1

A2

K

2 x 15 A

60 V

150 °C

0.645 V

December 2010 Doc ID 18295 Rev 1 1/7

www.st.com

7

Characteristics STPS30H60C-Y

1 Characteristics

Table 2. Absolute rating (limiting value, per diode)

Symbol Parameter Value Unit

V

RRM

IF

(RMS)

IF

(AV)

I

FSM

T

T

1. All anode pins (A1, A2) must be connected

Repetitive peak reverse voltage 60 V

(1)

Forward rms current 45 A

= 140 °C, δ = 0.5

T

c

(1)

Average forward current

square pulse

= 135 °C, δ = 0.5

T

c

square pulse

(1)

Surge non repetitive forward current tp = 10 ms Sinusoidal 250 A

Storage temperature range -65 to +175 °C

stg

T

Operating junction temperature range -40 to +150 °C

j

Recommended reflow soldering temperature range 245 +0/-5 °C

R

Per diode 15

Per device 30

Table 3. Thermal parameters

Symbol Parameter Value Unit

R

R

th(j-c)

th(c)

Junction to case

Per diode
Per device

Coupling 0.27 °C/W

0.95

0.61

°C/W

When diodes 1 and 2 are used simultaneously:
ΔT

j(diode 1)

Table 4. Static electrical characteristics (per diode)

= P

(diode1)

x R

th(j-c)(Per diode)

+ P

(diode 2)

x R

th(c)

A

Symbol Parameter Test conditions Min. Typ. Max. Unit

= 25 °C

T

R

(1)

V

F

1. Pulse test : tp = 380 µs, d < 2%

2. All anode pins (A1, A2) must be connected

current

(2)

Forward voltage drop

Reverse leakage

(1)

I

j

= 125 °C 45 mA

T

j

= 25 °C IF = 15 A 0.580

T

j

T

= 125 °C IF = 15 A 0.515

j

= 25 °C IF = 30 A 0.700

T

j

= 125 °C IF = 30 A 0.645

T

j

V

R

To evaluate the maximum conduction losses use the following equation:
P = 0.385 x I

2/7 Doc ID 18295 Rev 1

+ 0.00867 x I

F(AV)

F2(RMS)

= V

150 µA

RRM

V

STPS30H60C-Y Characteristics

Figure 1. Average forward power dissipation

versus average forward current (per
diode, all anode pins connected)

P (W)

F(AV)

12

δ = 0.05

10

8

6

4

2

0

0 2 4 6 8 101214161820

δ = 0.1

δ = 0.2

δ = t / T

p

δ = 0.5

T

t

p

δ = 1

I (A)

F(AV)

Figure 3. Non repetitive surge peak forward

current versus overload duration
(maximum values)

I (A)

M

300

250

200

150

100

I

50

M

t

δ = 0.5

0

1.E-03 1.E-02 1.E-01 1.E+00

(per diode, all anode pins connected)

T = 25 °C

c

T = 75 °C

c

T = 125 °C

c

t(s)

Figure 5. Reverse leakage current versus

reverse voltage applied (per diode)
(typical values)

I (mA)

R

1.E+02

1.E+01

1.E+00

1.E-01

1.E-02

T = 150 °C

j

T = 125 °C

j

T = 100 °C

j

T = 75 °C

j

T = 50 °C

j

T = 25 °C

j

Figure 2. Average forward current versus

ambient temperature (per diode, all
anode pins connected) (δ = 0.5)

I (A)

F(AV)

18

R

16

14

12

10

8

6

4

2

0

T

δ = t / T

0 25 50 75 100 125 150

t

p

p

R

th(j-a)

= 10 °C/W

th(j-a)

= R

th(j-c)

T (°C)

amb

Figure 4. Relative variation of thermal

impedance junction to case versus
pulse duration

Z/R

th(j-c) th(j-c)

1.0
(per diode, all anode pins connected)

0.9

0.8

0.7

0.6

0.5

0.4

Single pulse

0.3

0.2

0.1

0.0

1.E-04 1.E-03 1.E-02 1.E-01 1.E+00 1.E+01

t (s)

p

Figure 6. Junction capacitance versus

reverse voltage applied (per diode)
(typical values)

C(nF)

10.0

1.0

F=1MHz

V=30mV

osc RMS

T=25°C

j

1.E-03
0 5 10 15 20 25 30 35 40 45 50 55 60

V (V)

R

0.1
1 10 100

V (V)

R

Doc ID 18295 Rev 1 3/7

Characteristics STPS30H60C-Y

Figure 7. Forward voltage drop versus

forward current (per diode, all
anode pins connected, low level)

I (A)

FM

30

T = 125 °C

25

20

15

10

5

0

0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8

j

(Maximum values)

T = 125 °C

j

(Typical values)

T = 25 °C

j

(Maximum values)

V (V)

FM

Figure 8. Forward voltage drop versus

forward current (per diode, all
anode pins connected, high level)

I (A)

FM

100.0

T = 125 °C

j

(Maximum values)

T = 125 °C

10.0

1.0

0.1

j

(Typical values)

T = 25 °C

j

(Maximum values)

0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1

V (V)

FM

4/7 Doc ID 18295 Rev 1

STPS30H60C-Y Package information

2 Package information

In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK
specifications, grade definitions and product status are available at: www.st.com
ECOPACK

Table 5. PowerSO-20 (slug up) dimensions

R

E3

H

®

packages, depending on their level of environmental compliance. ECOPACK®

®

is an ST trademark.

Dimensions

Ref

Millimeter Inch

Min Typ Max Min Typ Max

A 3.25 3.5 0.128 0.138

A2 3 3.15 3.3 0.118 0.124 0.13

A4 0.8 1 0.031 0.039

-C-

GC

c

A4

V

E

E2

A5

DETAIL A

A

A2

D2 (x2)

M

10

e

SEATING PLANE

(COP LANAR ITY)

a1

L

0.35

S

DETAIL A

Gage Plane

E1

11

A5 0.15 0.2 0.25 0.006 0.008 0.01

a1 0.03 -0.04 0.0012 -0.0016

b 0.4 0.53 0.016 0.021

c 0.23 0.32 0.009 0.012

(1)

D

15.8 16 0.622 0.63

D1 9.4 9.8 0.37 0.385

D2 1 0.039

PSO20DME

E 13.9 14.5 0.547 0.57

(1)

E1

10.9 11.1 0.429 0.437

E2 2.9 0.114

E3 5.8 6.2 0.228 0.244

D1

D

e3

e 1.12 1.27 1.42 0.044 0.05 0.056

e3 11.43 0.45

.

N

b

N

1

hx45°

20

E2

G 0 0.1 0 0.004

H 15.5 15.9 0.61 0.625

h 1.1 0.043

L 0.8 1.1 0.031 0.043

N10°10°

R 0.6 0.024

S0° 8°0° 8°

V5° 7°5° 7°

1. These measurements do not include mold flash or protrusions.
Mold flash or protrusions shall not exceed 0.15 mm (0.006”). Critical dimensions: E, a1, e, and G.

Doc ID 18295 Rev 1 5/7

Ordering information STPS30H60C-Y

3 Ordering information

Table 6. Ordering information

Order code Marking Package Weight Base qty Delivery mode

STPS30H60CKY-TR PS30H60CY PowerSO-20 1.93 g 600 Tape and reel

4 Revision history

Table 7. Document revision history

Date Revision Changes

02-Dic-2010 1 First issue.

6/7 Doc ID 18295 Rev 1
