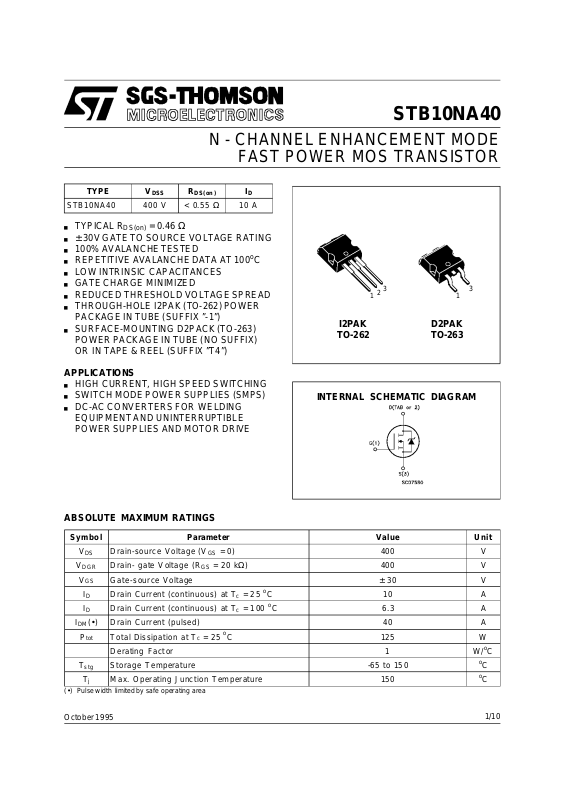

STB10NA40

N - CHANNEL ENHANCEMENT MODE

FAST POWER MOS TRANSISTOR

TYPE V

DSS

R

DS(on )

I

D

STB 10NA40 400 V < 0. 55 Ω 10 A

 TYPICALR
 ± 30V GATE TOSOURCE VOLTAGE RATING
 100% AVALANCHETESTED
 REPETITIVEAVALANCHEDATAAT100
 LOW INTRINSIC CAPACITANCES
 GATECHARGE MINIMIZED
 REDUCEDTHRESHOLD VOLTAGESPREAD
 THROUGH-HOLE I2PAK (TO-262)POWER

DS(on)

= 0.46 Ω

o

C

PACKAGEIN TUBE(SUFFIX ”-1”)

 SURFACE-MOUNTING D2PACK(TO-263)

POWERPACKAGEIN TUBE(NO SUFFIX)
OR IN TAPE & REEL (SUFFIX ”T4”)

APPLICATIONS

 HIGH CURRENT, HIGHSPEED SWITCHING
 SWITCHMODE POWER SUPPLIES(SMPS)
 DC-AC CONVERTERSFOR WELDING

EQUIPMENTANDUNINTERRUPTIBLE
POWERSUPPLIESAND MOTOR DRIVE

3

2

1

I2PAK

TO-262

1

D2PAK
TO-263

INTERNAL SCHEMATIC DIAGRAM

3

ABSOLUTE MAXIMUM RATINGS

Symbol Parameter Val ue Uni t

V

V

V

I

DM

P

T

(•) Pulsewidth limitedby safe operating area

October 1995

Drain-source Voltage (VGS= 0) 400 V

DS

Drain- gate Voltage ( RGS=20kΩ) 400 V

DGR

Gate-s ource Voltage ± 30 V

GS

I

Drain Current (continuous) at Tc=25oC10A

D

I

Drain Current (continuous) at Tc=100oC6.3A

D

(•) Drain Current (pulsed) 40 A

Tot al Dissipat ion at Tc=25oC 125 W

tot

Derat ing Fa ct or 1 W/
Sto rage Tem perature -65 t o 15 0

stg

T

Max. Operat ing Juncti on Temper at u r e 150

j

o
o

o

C
C
C

1/10

STB10NA40

THERMAL DATA

R

thj-case

R

thj-amb

R

thc-sink

T

AVALANCHE CHARACTERISTICS

Symb ol Param et er Max V al ue Uni t

I

AR

E

E

I

AR

Therm al Resistanc e Juncti on-c ase Max
Therm al Resistanc e Juncti on-am b ient Max
Therm al Resistanc e Case-sink Ty p
Maxim um Lead Tem p era t ure For So ldering Purpose

l

Avalanc h e Current , Repet it ive or Not -Repetiti ve
(pulse width limited by T

Single Pulse Avalanche Energy

AS

(starting T
Repetit ive Avalanche Energy

AR

=25oC, ID=IAR,VDD=50V)

j

(pulse width limited by T

max, δ <1%)

j

max, δ <1%)

j

Avalanc h e Current , Repet it ive or Not -Repetiti ve

=100oC, pulse wi dt h limited by Tjmax, δ <1%)

(T

c

1

62.5

0.5

300

10 A

500 mJ

20 mJ

6.3 A

o

C/W

o

C/W

o

C/W

o

C

ELECTRICAL CHARACTERISTICS (T

=25oC unlessotherwise specified)

case

OFF

Symb ol Par amete r Test Cond i ti ons Min. Typ . Max. Uni t

V

(BR)DSS

Drain-s ource

ID= 250 µ AVGS=0 400 V

Break down Vol t age

I

DSS

I

GSS

Zero Gate Voltage
Drain Current (V

GS

Gat e- body Leakage
Current (V

DS

=0)

=0)

V

= Max Rating

DS

= Max Rating x 0.8 Tc=125oC

V

DS

V

= ± 30 V ± 100 nA

GS

250

1000µAµA

ON (∗)

Symb ol Par amete r Test Cond i ti ons Min. Typ . Max. Uni t

V

GS(t h)

R

DS(on)

I

D(on)

Gat e T hreshold Voltage VDS=VGSID= 250 µA 2.25 3 3.75 V
Sta t ic Drain-sour ce O n

Resistance

VGS= 10V ID=5A

=10V ID=5A Tc=100oC

V

GS

On S t ate Drain Current VDS>I

D(on)xRDS(on)max

10 A

0.46 0.55

1.1

VGS=10V

DYNAMIC

Symb ol Par amete r Test Cond i ti ons Min. Typ . Max. Uni t

g

(∗)Forward

fs

Tra nsconductanc e

C

C

C

Input Capacitance

iss

Out put Capacitanc e

oss

Reverse Transfer

rss

Capacit an c e

VDS>I

D(on)xRDS(on)maxID

=5A 5 7.2 S

VDS=25V f=1MHz VGS= 0 1180

200

55

1600

260

75

Ω
Ω

pF
pF
pF

2/10

STB10NA40

ELECTRICAL CHARACTERISTICS (continued)

SWITCHING ON

Symb ol Par amete r Test Cond i ti ons Min. Typ . Max. Uni t

t

d(on)

t

r

Turn-on Time
Rise Time

VDD= 200 V ID=5A

=47 Ω VGS=10V

R

G

(see tes t circuit, figure 3)

(di/dt)

Turn-on Current Slope VDD= 320 V ID=10A

on

=47 Ω VGS=10V

R

G

(see tes t circuit, f igure 5)

Q
Q
Q

Total Ga te Charge

g

Gat e- Source C har ge

gs

Gate-Drain Charge

gd

VDD=320V ID=10A VGS=10V 54

SWITCHING OFF

Symb ol Par amete r Test Cond i ti ons Min. Typ . Max. Uni t

t

r(Voff)

t

Off-volt ag e Rise Time

t

Fall Time

f

Cross-over Time

c

VDD= 320 V ID=10A

=47 Ω VGS=10V

R

G

(see tes t circuit, figure 5)

SOURCEDRAIN DIODE

35

11550155

250 A/µs

75 nC

8

27

75
30

120

105

45

160

ns
ns

nC
nC

ns
ns
ns

Symb ol Par amete r Test Cond i ti ons Min. Typ . Max. Uni t

I

SDM

I

SD

Source-drain C urr ent

(•)

Source-drain C urr ent

10
40

(pulsed)

(∗) For ward On Voltage ISD=10A VGS=0 1.6 V

V

SD

t

Q

Revers e Recovery

rr

Time
Revers e Recovery

rr

ISD=10A di/dt=100A/µs

=100V Tj=150oC

V

DD

(see tes t circuit, figure 5)

470

6.5

Charge

I

RRM

Revers e Recovery

27.5

Current

(∗) Pulsed: Pulse duration =300 µs,duty cycle 1.5 %
(•) Pulse widthlimitedby safeoperating area

Safe Operating Area ThermalImpedance

A
A

ns

µC

A

3/10

STB10NA40

Derating Curve

TransferCharacteristics

Output Characteristics

Transconductance

Static Drain-sourceOn Resistance

4/10

Gate Charge vs Gate-source Voltage

STB10NA40

CapacitanceVariations

NormalizedOn Resistance vs Temperature

NormalizedGate Threshold Voltage vs
Temperature

Turn-onCurrent Slope

Turn-offDrain-source VoltageSlope

Cross-overTime

5/10

STB10NA40

SwitchingSafe OperatingArea

Source-drainDiode Forward Characteristics

AccidentalOverload Area

Fig. 1: UnclampedInductive Load Test Circuit

6/10

Fig. 2: Unclamped Inductive Waveform

STB10NA40

Fig. 3: SwitchingTimes Test Circuits For

ResistiveLoad

Fig. 5: TestCircuit For InductiveLoad Switching
And DIodeRecoveryTimes

Fig. 4: GateCharge test Circuit

7/10

STB10NA40

TO-262 (I2PAK) MECHANICAL DATA

DIM.

MIN. TYP. MAX. MIN. TYP. MAX.

A 4.3 4.6 0.169 0.181

A1 2.49 2.69 0.098 0.106

B 0.7 0.93 0.027 0.036
B1 1.2 1.38 0.047 0.054
B2 1.25 1.4 0.049 0.055

C 0.45 0.6 0.017 0.023
C2 1.21 1.36 0.047 0.053

D 9 9.35 0.354 0.368

e 2.44 2.64 0.096 0.104

E 10 10.28 0.393 0.404

L 13.2 13.5 0.519 0.531

L1 3.48 3.78 0.137 0.149
L2 1.27 1.37 0.050 0.054

mm inch

8/10

C

A

A1

C2

B2

B

e

E

L1

L2

D

L

TO-263 (D2PAK) MECHANICAL DATA

STB10NA40

DIM.

MIN. TYP. MAX. MIN. TYP. MAX.

A 4.3 4.6 0.169 0.181
A1 2.49 2.69 0.098 0.106

B 0.7 0.93 0.027 0.036
B2 1.25 1.4 0.049 0.055

C 0.45 0.6 0.017 0.023
C2 1.21 1.36 0.047 0.053

D 9 9.35 0.354 0.368

E 10 10.28 0.393 0.404

G 4.88 5.28 0.192 0.208

L 15 15.85 0.590 0.624

L2 1.27 1.37 0.050 0.054
L3 1.4 1.75 0.055 0.068

mm inch

E

A

C2

L2

D

L

L3

B2

B

A1

C

G

9/10

STB10NA40
