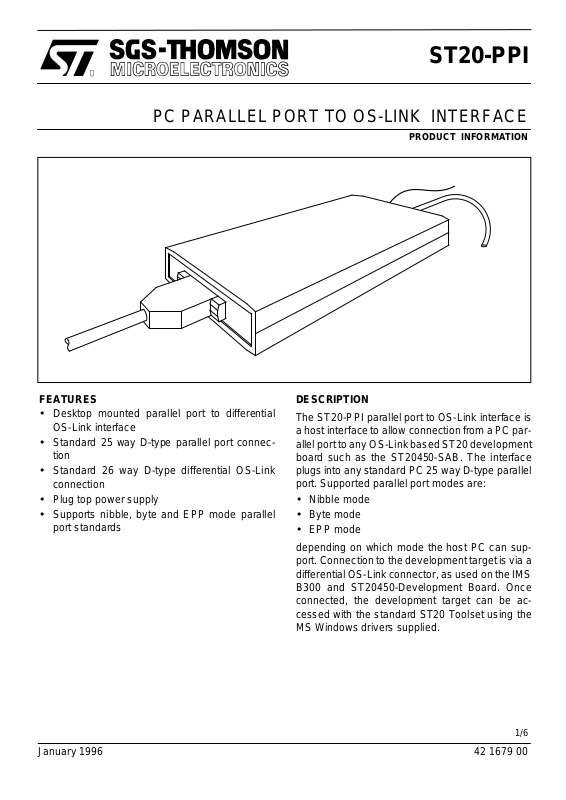

PRODUCT INFORMATION
PC PARALLEL PORT TO OS-LINK INTERFACE
ST20-PPI
42 1679 00January 1996
FEATURES
• Desktop mounted parallel port to differential
OS-Link interface
• Standard 25 way D-type parallel port connection
• Standard 26 way D-type differential OS-Link
connection
• Plug top power supply
• Supports nibble, byte and EPP mode parallel
port standards
DESCRIPTION
The ST20-PPI parallel port to OS-Link interface is
a host interface to allow connection from a PC parallel port to any OS-Link based ST20 development
board such as the ST20450-SAB. The interface
plugs into any standard PC 25 way D-type parallel
port. Supported parallel port modes are:
• Nibble mode
• Byte mode
• EPP mode
depending on which mode the host PC can support. Connection to the development target is via a
differential OS-Link connector, as used on the IMS
B300 and ST20450-Development Board. Once
connected, the development target can be accessed with the standard ST20 Toolset using the
MS Windows drivers supplied.
Page 2
ST20-PPI PC Parallel Port to OS-Link Interface
2/6
1 Introduction
The ST20-PPI parallel port to OS-Link interface is a host interface to allow connection
from a PC parallel port to any OS-Link based ST20 development board such as the
ST20450-SAB. The interface plugs into any standard PC 25 way D-type parallel port.
Supported parallel port modes are:
• Nibble mode
• Byte mode
• EPP mode
depending on which mode the host PC can support. Connection to the development
target is via a differential OS-Link connector, as used on the IMS B300 and ST20450Development Board. Once connected, the development target can be accessed with
the standard ST20 Toolset using the MS Windows drivers supplied.
2 Installation
2.1 Hardware Installation
The ST20-PPI has three connections: Parallel port; Differential OS-Link and Power
supply. To install the hardware, the following steps should be followed:
• Plug the 25-way D-type of the par allel port cable built into the interf ace, into the
parallel port of the PC
• Plug the target development system into the 26-way D-type using a differential
OS-Link cable or the differential-to-single ended cable depending on the link
interface available on the target board
NOTE: To comply with EMC regulations this cable must use shielded cable
with shielded headshells at either end.
• Plug power supply cable into PSU socket of the interface
• Plug the power supply into the mains socket.
• Switch on the PC
• Switch on the power supply. The power LED on the interface should illuminate
when the power supply is switched on
Page 3
ST20-PPI PC Parallel Port to OS-Link Interface
3/6
Figure 2.1 ST20-PP1 connections
2.2 Software Installation
For installation of the DLL and VxD drivers, please refer to the ST20 Toolset software
installation documentation.
ST20-PPI
Development
Target e.g.
PC
Differential
Cable
ST20450-SAB
To mains
adaptor
Parallel port
cable
Page 4
ST20-PPI PC Parallel Port to OS-Link Interface
4/6
3 Connectors
3.1 Differential Link Connector
Table 3.1 26 way D-type connector
3.2 Power Supply Connector
The ST20-PPI uses a 2.5mm power connector. The voltage range is 8-13V dc.
Pin Description Pin Description
1 +notSSDownReset 14 GND
2 +notSSDownAnalyse 15 GND
3 +notSSDownError 16 GND
4 +notSSUpReset 17 GND
5 +notSSUpAnalyse 18 GND
6 +notSSUpError 19 -notSSDownReset
7 +LinkOut 20 -notSSDownAnalyse
8 +LinkIn 21 -notSSDownError
9 GND 22 -notSSUpReset
10 GND 23 -notSSUpAnalyse
11 GND 24 -notSSUpError
12 GND 25 -LinkOut
13 GND 26 -LinkIn
GND+V
Page 5
ST20-PPI PC Parallel Port to OS-Link Interface
5/6
3.3 Parallel Port Connector
Table 3.2 Parallel port connector pinout
4 Field Support
SGS-THOMSON Microelectronics Limited products are supported worldwide through
Sales Offices and authorized distributors.
5 Ordering information
Table 5.1 Ordering information
Pin Description Pin Description
1 notWRITE 10 D3-D7
2 D0 11 notWAIT
3 D1 12 D2-D6
4 D2 13 D1-D5
5 D3 14 notDATA
6 D4 15 D0-D4
7 D5 16 notINIT
8 D6 17 notADDR
9 D7 18..25 Ground
Description Order Number
ST20-PPI Parallel Port to OS-Link Interface (US) ST20-PPI/110
ST20-PPI Parallel Port to OS-Link Interface (European) ST20-PPI/220
ST20-PPI Parallel Port to OS-Link Interface (UK) ST20-PPI/UK
Page 6
6/6
