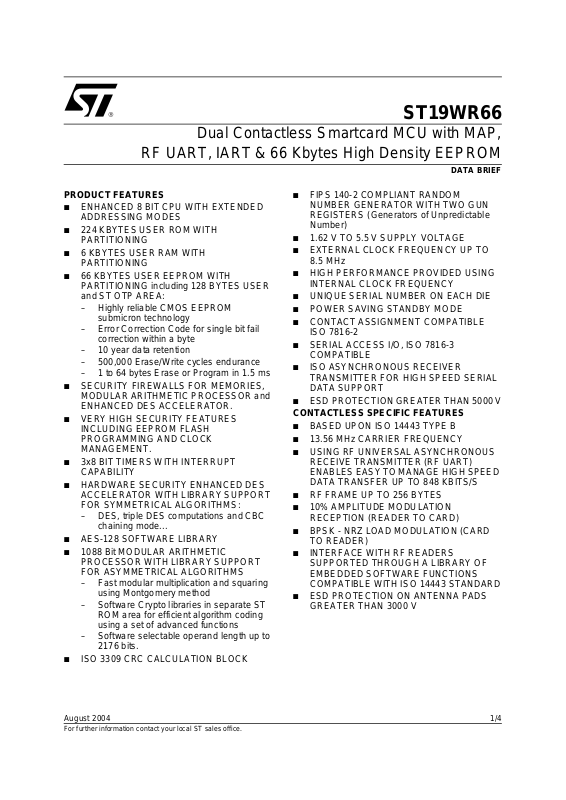

ST19WR66
Dual Contactless Smartcard MCU with MAP,
RF UART, IART & 66 Kbytes High Density EEPROM
DATA BRIEF
PRODUCT FEATURES
■ ENHANCED 8 BIT CPU WITH EXTENDED
ADDRESSING MODE S
■ 224 KBYTES USER ROM WITH
PARTITIONING
■ 6 KBYTES USER RAM WITH
PARTITIONING
■ 66 KBYTES USER EEPROM WITH
PARTITIONIN G including 1 2 8 BYTES U SER
and ST OTP AREA:
– Highly reliable CMOS EEPROM
submicron technology
– Error Correction Code for si ngle bit fa il
correction within a byte
– 10 year data retention
– 500,000 Erase/Write cycles endurance
– 1 to 64 bytes Erase or Program in 1.5 ms
■ SECURITY FIREWALLS FOR MEMORIES,
MODULAR ARITHMETIC PROCESSOR and
ENHANCED DES ACCELERATOR.
■ VERY HIGH SECURITY FEATURES
INCLUDING EEPROM FLASH
PROGRAMMING AND CLOCK
MANAGEMENT.
■ 3x8 BIT TIMERS WITH INTERRUPT
CAPABILITY
■ HARDWARE SECURITY ENHANCED DES
ACCELERATOR WIT H L IBRARY SUPPORT
FOR SYMMETRICAL ALGORITHMS:
– DES, triple DES computations and CBC
chaining mode...
■ AES-128 SOFTWARE LIBRARY
■ 1088 Bit MODULAR ARITHMETIC
PROCESSOR WITH LIBRARY SUPPORT
FOR ASYMMETRICAL ALGORITHMS
– Fast modular multiplication and squaring
using Montgomery method
– Software Crypto libraries in separate ST
ROM area for efficient algorithm coding
using a set of advanced functions
– Software selectable operand length up to
2176 bits.
■ ISO 3309 CRC CALCULATION BLOCK
■ FIPS 140-2 COMPLIANT RANDOM
NUMBER GENERATOR WITH TWO GUN
REGISTERS (Generators of Unpredictabl e
Number)
■ 1.62 V TO 5.5 V SUPPLY VOLTAGE
■ EXTERNAL CLOCK FREQUENCY UP TO
8.5 MHz
■ HIGH PERFORMANCE PROVIDED USING
INTERNAL CLOCK FREQUENCY
■ UNIQUE SERIAL NUMBER ON EACH DIE
■ POWER SAVING STANDBY MODE
■ CONTACT ASSIGNMENT COM PAT IBLE
ISO 7816-2
■ SERIAL ACCESS I/O, ISO 7816-3
COMPATIBLE
■ ISO ASYNCHRONOUS RECEIVER
TRANSMITTER FOR HIGH SPEE D SERIAL
DATA SUPPORT
■ ESD PROTECTION GREATER THA N 5000 V
CONTACTLESS SPECIFIC FEATURES
■ BASED UPON ISO 14443 TYPE B
■ 13.56 MHz CARRIER FREQUENCY
■ USING RF UNIVERSAL ASYNCHRONOUS
RECEIVE TRANSMITTER (RF UART)
ENABLES EASY TO MA NAGE HIGH SPEED
DATA TRANSFER UP TO 848 KBITS/S
■ RF FRAME UP TO 256 BYTES
■ 10% AMPLITUDE MODULATION
RECEPTION (READER TO CARD)
■ BPSK - NRZ LOAD MODULATION (CARD
TO READER)
■ INTERFACE WITH RF READERS
SUPPORTED THROUGH A LIBRAR Y OF
EMBEDDED SOFTWARE FUNCTIONS
COMPATIBLE WITH ISO 14443 STANDARD
■ ESD PROTECTION ON ANTENNA PADS
GREATER THAN 3000 V
August 2004
For further information contact your local ST sales office.
1/4
4
Page 2
ST19WR66
Figure 1. Delivery Form
Micromodule Wafer
259a.ai
Function
RSA 1024 bits signature with CRT
(2)
RSA 1024 bits signature without CRT
(2)
Speed
85 ms
282 ms
(1)
RSA 1024 bits verification (e=’$10001’)5.5 ms
RSA 1024 bits key generation 2.5 s
RSA 2048 bits signature with CRT
(2)
570 ms
RSA 2048 bits verification (e=’$10001’)91 ms
Triple DES (with enhanced security) 58.0 µs
Single DES (with enhanced security) 43.0 µs
1. Typical v alues, ind ependent from external c lock
frequency and suppl y vo l ta ge.
2. CRT: Ch i nes e Remainder Theorem.
2/4
Page 3
ST19WR66
HARDWARE DESCRIPTION
The product, member of the ST19W platform, is a
serial access microcontroller specially designed
for cost effective secure portable applications.
It is manufactured using an advanced highly reliable ST CMOS EEPROM technology.
It is based on the STMicroelectronics 8 bit CPU already implemented o n the ST19X produc t family
and includes on-chip memories: User ROM, User
RAM and EEPROM with state of the art security
featur es. ROM, RAM and EEPROM memo ries can
be configured into partitions with customized access rules .
An additional ST ROM contains all ST provided
functions and libraries.
Access from any memory area to another are protected by hardware FIREWALLS. Access rules are
User defined and can be selected by mask options
or during the life of the product.
Figure 2. Block Diagram
RAM
EEPROM
USER ROM
The chip includes an Enhance d DES accelerator
which is accessible via cryptographic s oftware libraries located in ST ROM.
The chip includes also a MAP which is based on a
1088 bits processor architecture. It processes
modular multiplication, squaring and additional
calculations up to 2176 bit operands.
Internal Modular Arithmetic Processor (MA P) and
enhanced DES accelerator are designed to speed
up cryptographic calculations using Public Key Algorithms and Secret Key Algorithms.
An RF Inteface including an RF Universal Asychornous Receiver Transmitter (UART) enables
contactless communication up to 848 Kbits/s compatible with the ISO 14443-N standard.
As with all the other S T19W products, a serial interface fully compatible with the ISO7816 standard
for Smartcard applications is available.
A CRC calculation block is also available and i s directly accessible by the User.
ST ROM, RF
and CRYPTO
LIBRARIES
EDES
ACCELE-
RATOR
MAP
MEMORY ACCESS FIREWALL
INTERNAL BUS
CRC
Module
Clock
Gene-
rator
Module
CLK
3 x 8
Bit
Timer
Secu-
rity
Admin.
RESET
Gun A
&
Gun B
Vcc
SOFTWARE DEVELOPMENT
Software development and firmware generation
(ROM and options) a re supported by a com prehensive set of development tools, dedicated at development and validation of softwares:
– Smartcard ICs Emulator,
ST ROM, MAP and EDES FIREWALL
8 Bit
CPU
GND
1 Serial
I/O
Inter-
face
IART
I/O
RF
Inter-
face
AC0 AC1
RF
UART
529
– ST19X simulation package,
TM
– ScDevTools environment for Windows
NT,
2000, XP based stations,
– Powerful C/C++ compiler and debugger are
also available (third party tools).
– RF contactless demo kit based upon ISO
14443 type B standard.
