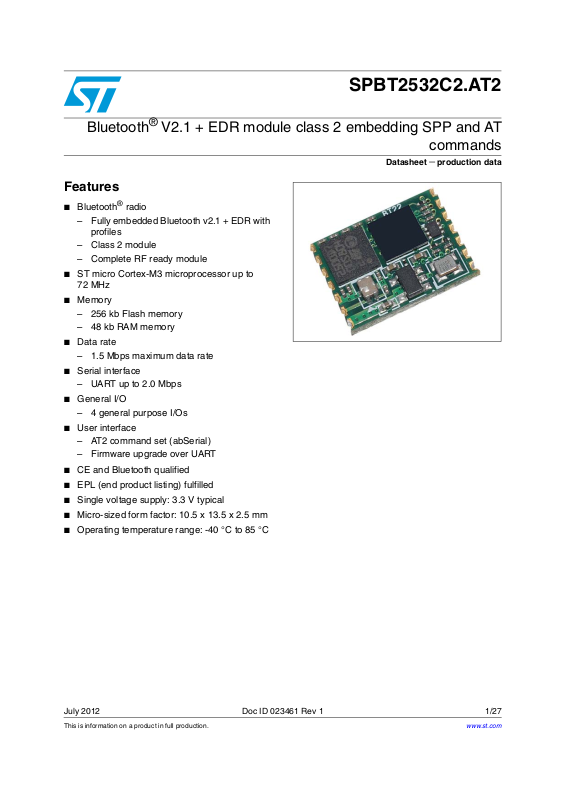

Page 1
SPBT2532C2.AT2
Bluetooth® V2.1 + EDR module class 2 embedding SPP and AT
commands
Datasheet − production data
Features
profiles
®
radio
■ Bluetooth
– Fully embedded Bluetooth v2.1 + EDR with
– Class 2 module
– Complete RF ready module
■ ST micro Cortex-M3 microprocessor up to
72 MHz
■ Memory
– 256 kb Flash memory
– 48 kb RAM memory
■ Data rate
– 1.5 Mbps maximum data rate
■ Serial interface
– UART up to 2.0 Mbps
■ General I/O
– 4 general purpose I/Os
■ User interface
– AT2 command set (abSerial)
– Firmware upgrade over UART
■ CE and Bluetooth qualified
■ EPL (end product listing) fulfilled
■ Single voltage supply: 3.3 V typical
■ Micro-sized form factor: 10.5 x 13.5 x 2.5 mm
■ Operating temperature range: -40 °C to 85 °C
July 2012 Doc ID 023461 Rev 1 1/27
This is information on a product in full production.
www.st.com
27
Page 2
Contents SPBT2532C2.AT2
Contents
1 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2 RoHS compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4 Software architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4.1 Lower layer stack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4.2 Upper layer stack: Amp'ed UP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4.3 AT command set: abSerial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4.4 Bluetooth firmware implementation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5 Hardware specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5.1 Recommended operating conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5.2 Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5.3 High speed CPU mode current consumption . . . . . . . . . . . . . . . . . . . . . . 11
5.4 Standard CPU mode current consumption . . . . . . . . . . . . . . . . . . . . . . . . 11
5.5 I/O operating characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.6 Selected RF characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.7 Pin assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5.8 Pin placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5.9 Layout drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
6 Hardware block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
7 Hardware design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
7.1 Module reflow installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
7.2 GPIO interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
7.3 UART interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
8 Application information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
8.1 Antenna choice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
8.2 Antenna coupling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
2/27 Doc ID 023461 Rev 1
Page 3
SPBT2532C2.AT2 Contents
8.3 Example of trace calculation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
8.4 Reset circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
8.4.1 External reset circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
8.4.2 Internal reset circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
9 Regulatory compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
10 Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
11 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Doc ID 023461 Rev 1 3/27
Page 4
List of tables SPBT2532C2.AT2
List of tables
Table 1. Recommended operating conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Table 2. Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Table 3. High speed CPU mode current consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Table 4. Standard CPU mode current consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Table 5. I/O operating characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Table 6. Selected RF characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Table 7. Pin assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Table 8. Soldering. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Table 9. Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Table 10. Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
4/27 Doc ID 023461 Rev 1
Page 5
SPBT2532C2.AT2 List of figures
List of figures
Figure 1. FW architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

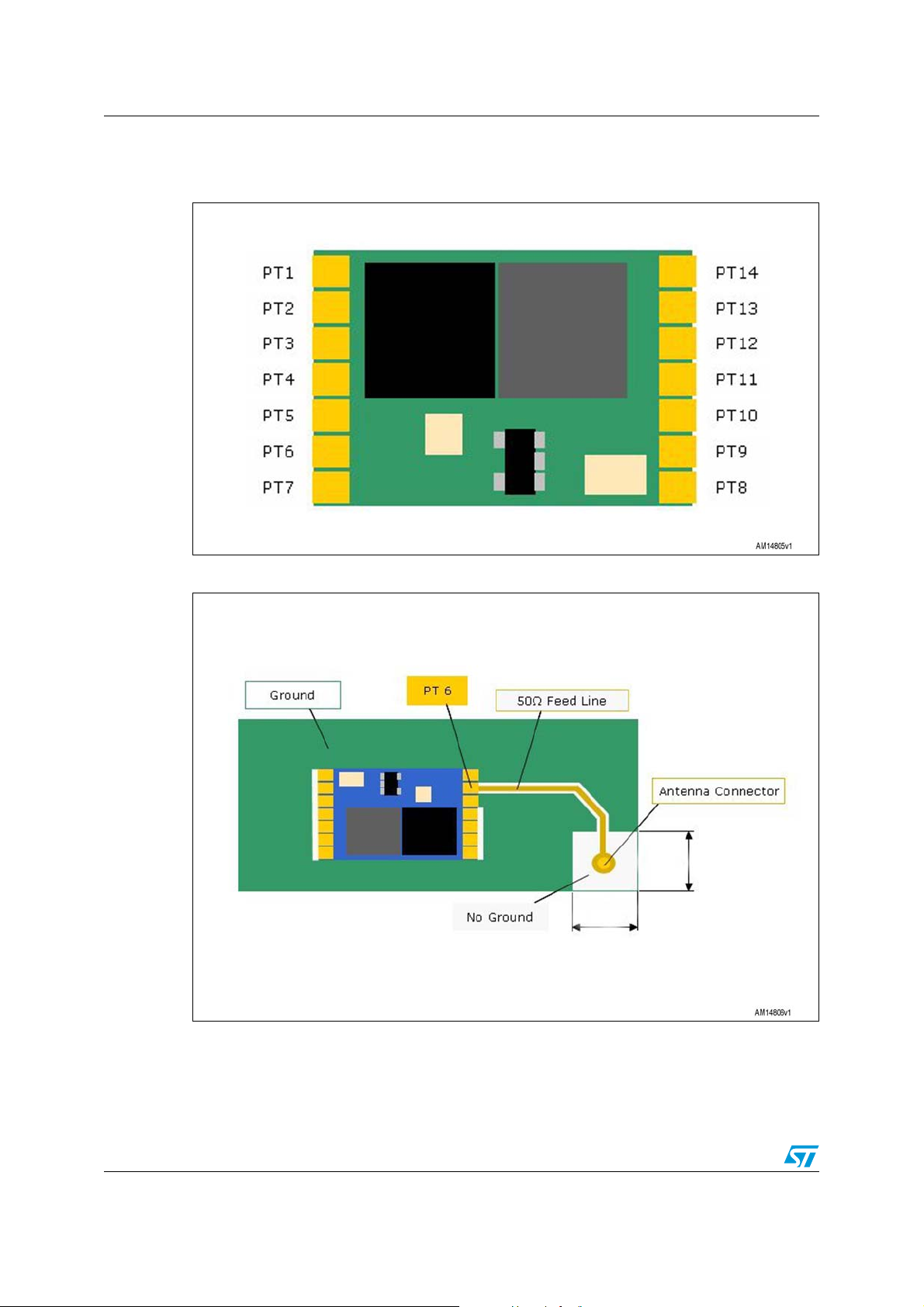

Figure 2. Pin placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Figure 3. Ground plane diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Figure 4. Layout drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

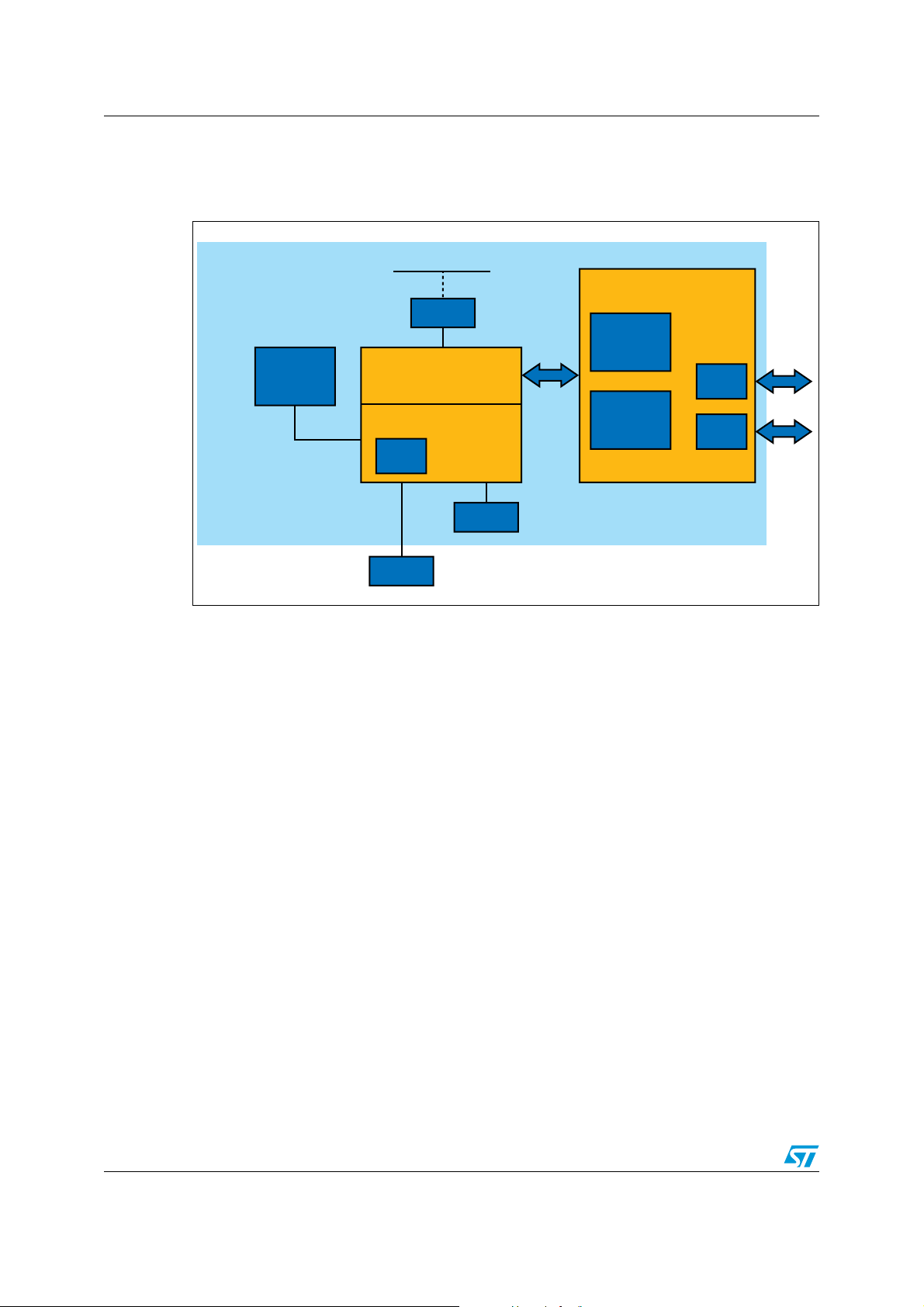

Figure 5. SPBT2532C2.AT2 module block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Figure 6. Soldering profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Figure 7. Connection to host device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

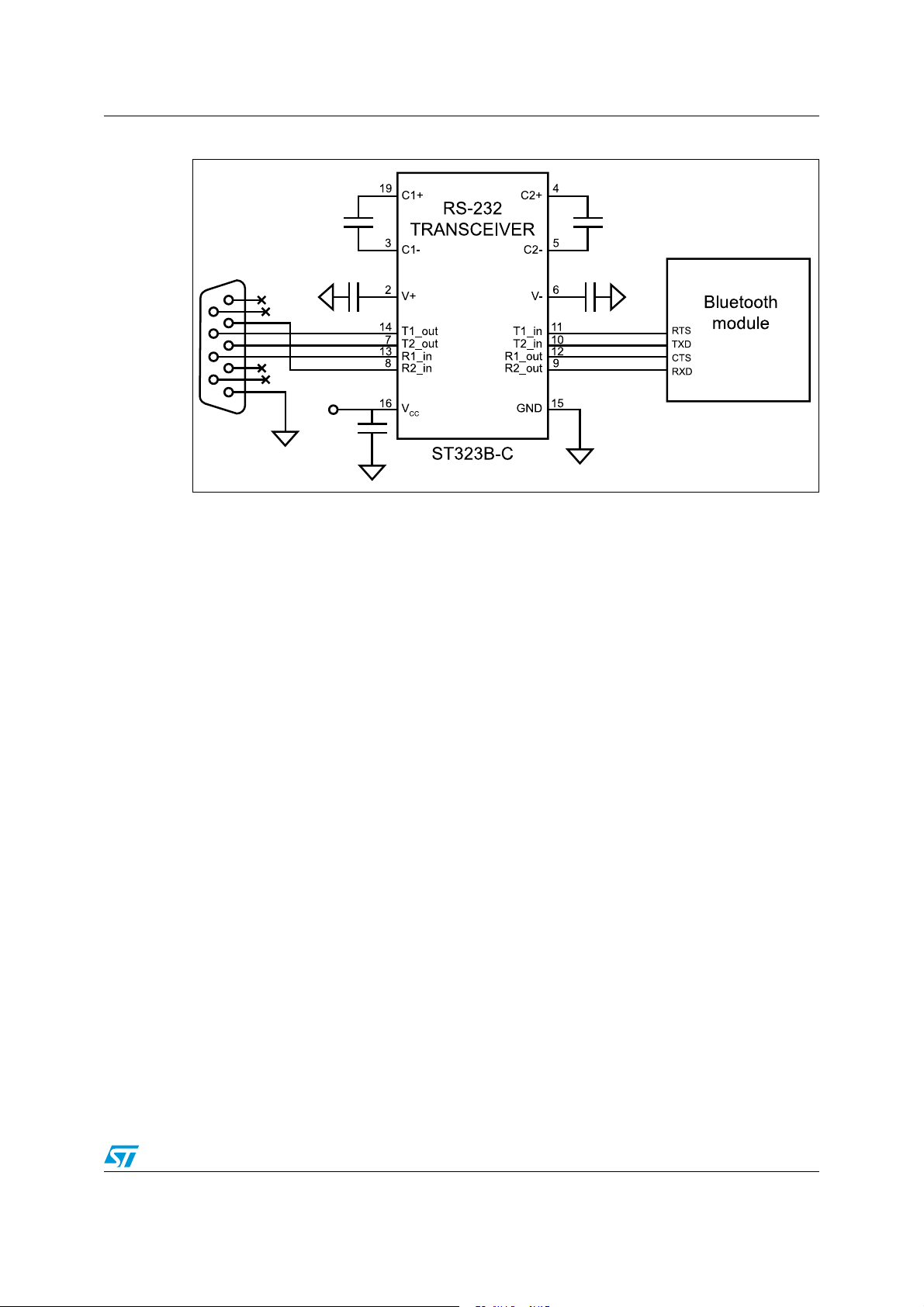

Figure 8. Typical RS232 circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Figure 9. Example of antenna integration on the STEVAL-SPBT2ATV3. . . . . . . . . . . . . . . . . . . . . . 20
Figure 10. Antenna printed on PCB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Figure 11. SMD antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Figure 12. SMA connector for external antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

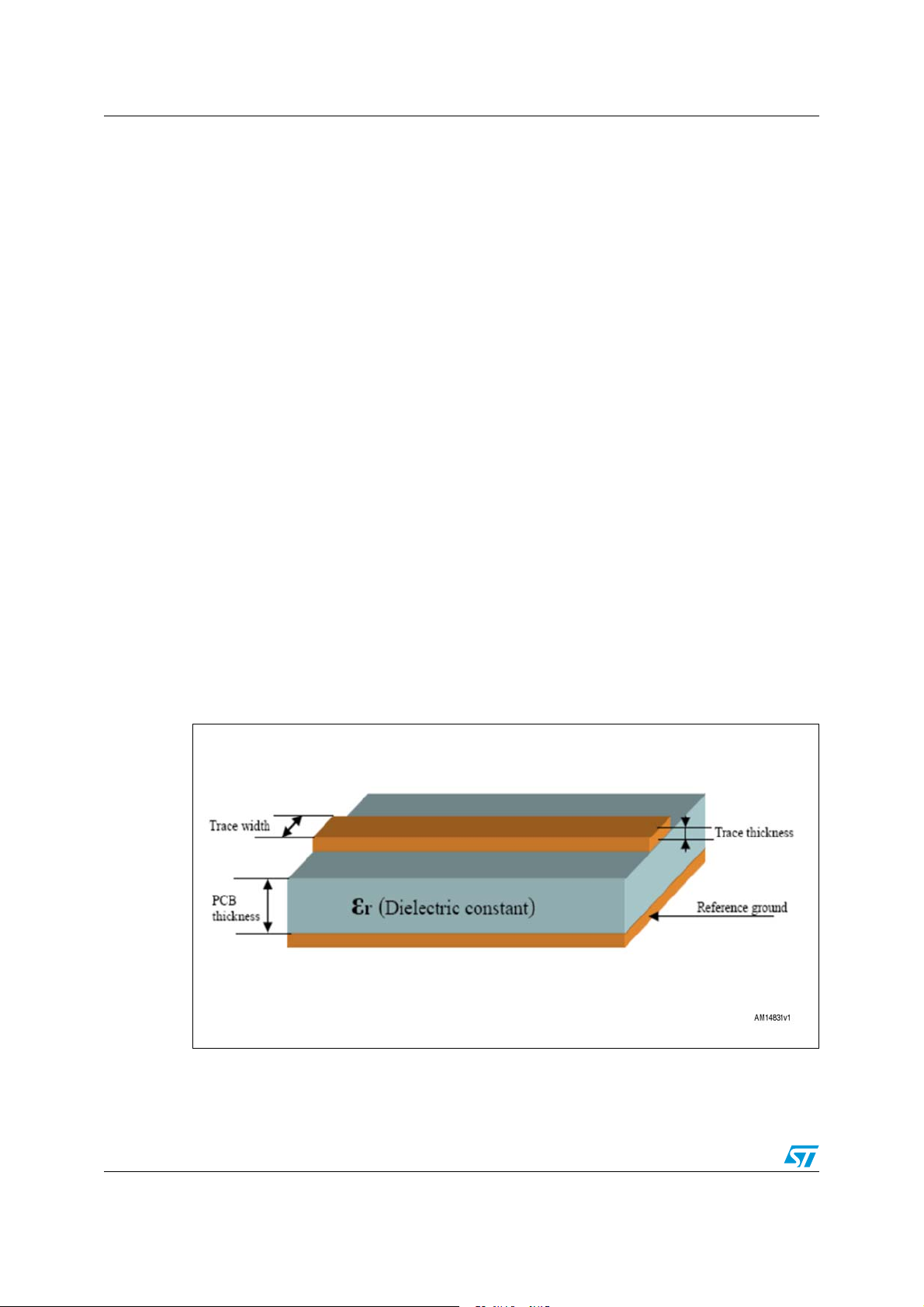

Figure 13. Parameters for trace matching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

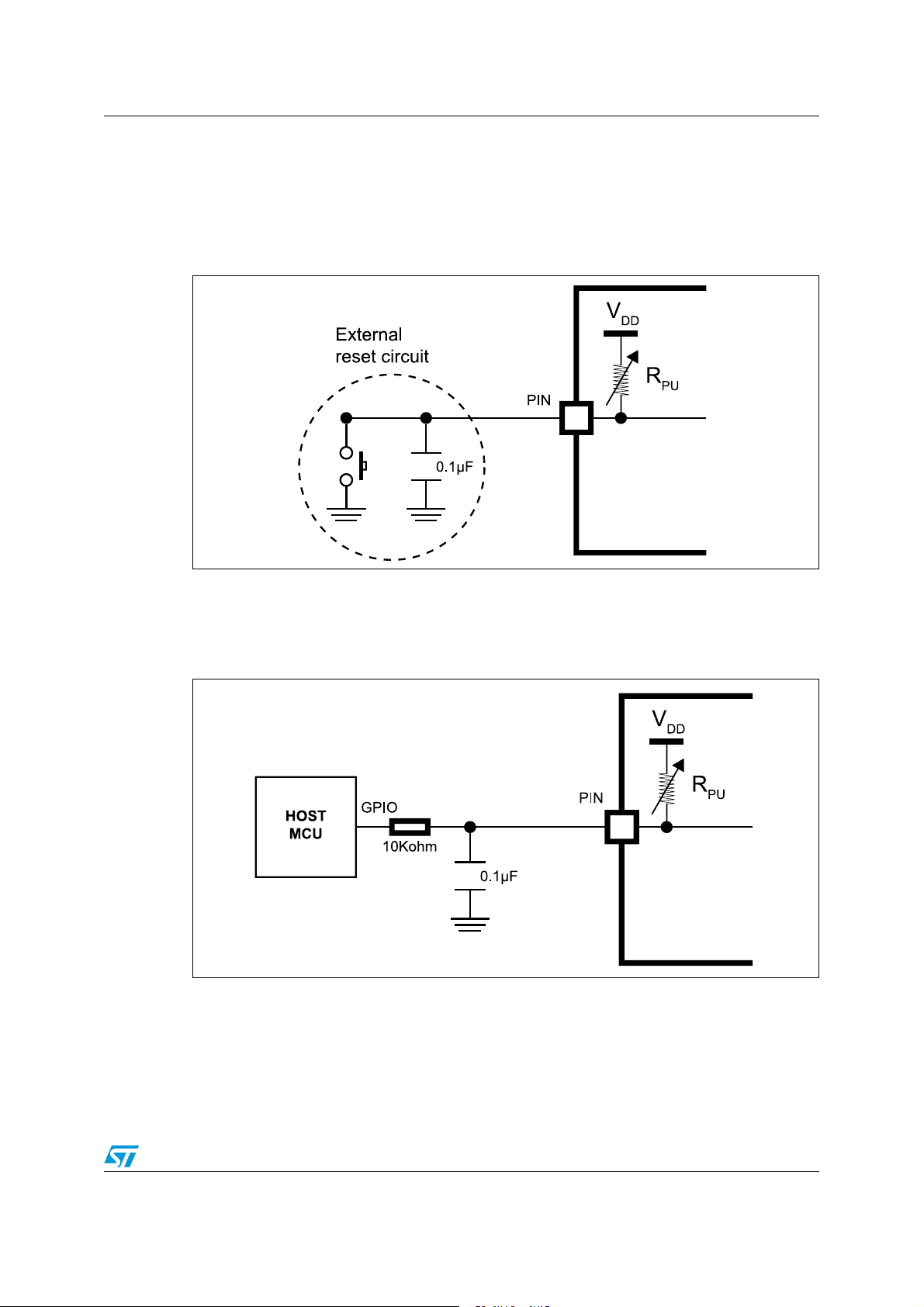

Figure 14. External reset circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Figure 15. Internal reset circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Doc ID 023461 Rev 1 5/27
Page 6
Description SPBT2532C2.AT2
1 Description
The SPBT2532C2.AT2 is an easy to use Bluetooth module, compliant with Bluetooth v2.1 +
EDR.
The module is the smallest form factor available which provides a complete RF platform.
The SPBT2532C2.AT2 enables electronic devices with wireless connectivity, not requiring
any RF experience or expertise for integration into the final product. The SPBT2532C2.AT2
module, being a certified solution, optimizes the time to market of the final application.
The module is designed for maximum performance in the minimum possible size including
fast speed UART and 4 general purpose I/O lines, several serial interface options, and up to
1.5 Mbps data throughput.
The SPBT2532C2.AT2 is a surface mount PCB module that provides fully embedded,
ready-to-use Bluetooth wireless technology. The reprogrammable Flash memory contains
embedded firmware for serial cable replacement using the Bluetooth SPP profile.
Embedded Bluetooth AT2 command firmware is a friendly interface, which realizes a simple
control for cable replacement, enabling communication with most Bluetooth enabled
devices, provided that the devices support the SPP profile. The SPBT2532C2.AT2,
supporting iAP profile, provides communication with Android
iOS Bluetooth enabled devices.
™
, smartphones, and Apple®
An Apple authentication IC is required to exchange data with an Apple device or access an
Apple device application. The AT2 FW includes the Bluetooth SPP profile capable of
recognizing the Apple authentication chip.
Customers using the Apple authentication IC must register as developers to become an
Apple certified MFI member. License fees may apply, for additional information visit:
http://developer.apple.com/programs/which-program/index.html.
Certified MFI developers developing electronic accessories that connect to the iPod
iPhone
®
, and iPad® gain access to technical documentation, hardware components,
®
,
technical support and certification logos.
Customized firmware for peripheral device interaction, power optimization, security, and
other proprietary features may be supported and can be ordered pre-loaded and configured.
6/27 Doc ID 023461 Rev 1
Page 7
SPBT2532C2.AT2 RoHS compliance
2 RoHS compliance
ST modules are RoHS compliant and comply with ECOPACK® norms.
3 Applications
■ Serial cable replacement
■ M2M industrial control
■ Service diagnostic
■ Data acquisition equipment
■ Machine control
■ Sensor monitoring
■ Security system
■ Mobile health.
Doc ID 023461 Rev 1 7/27
Page 8
Software architecture SPBT2532C2.AT2
4 Software architecture
4.1 Lower layer stack
● Bluetooth v2.1 + EDR
● Device power modes: active, sleep and deep sleep
● Wake-on Bluetooth feature optimized power consumption of host CPU
● Authentication and encryption
● Encryption key length from 8 bits to 128 bits
● Persistent Flash memory for BD address and user parameter storage
● All ACL (asynchronous connection less) packet types
● Point-to-point supported
● Master/slave switch supported during connection and post connection
● Dedicated inquiry access code for improved inquiry scan performance
● Dynamic packet selection channel quality driven data rate to optimize link performance
● Dynamic power control
● 802.11b co-existence AFH.
4.2 Upper layer stack: Amp'ed UP
● SPP, IAP, SDAP and GAP protocols
● RFComm, SDP, and L2CAP supported
● Multipoint with simultaneous slaves.
4.3 AT command set: abSerial
The complete command list including the iAP commands is reported in the UM1547 user
manual.
8/27 Doc ID 023461 Rev 1
Page 9
SPBT2532C2.AT2 Software architecture
4.4 Bluetooth firmware implementation
Figure 1. FW architecture
abSerial AT Command Set
and/or custom application
Application
layer API
HCI over UART
iAP
Upper layer stack + BT
profiles:Amp’edUP
Lower layer BT stack
Bluetooth controller
AM14808v1
Doc ID 023461 Rev 1 9/27
Page 10
Hardware specifications SPBT2532C2.AT2
5 Hardware specifications
General conditions (VIN = 3.3 V and 25 °C).
5.1 Recommended operating conditions
Table 1. Recommended operating conditions
Rating Min. Typ. Max. Unit
Operating temperature range
(1)
-40 - 85 °C
Supply voltage V
Signal pin voltage - 3.0 - V
RF frequency 2400 - 2483.5 MHz
1. @ CPU 8MHz, @ CPU 32MHZ - 16 MHz max. operating temperature is 55 °C.
IN
5.2 Absolute maximum ratings
Table 2. Absolute maximum ratings
Rating Min. Typ. Max. Unit
Storage temperature range -55 - +105 °C
Supply voltage, V
I/O pin voltage, V
RF input power - -5 dBm
Input voltage on non-5 V tolerant pin 0.3 +4.0 V
IN
IO
2.8 3.3 3.6 V
-0.3 + 5.0 V
-0.3 + 5.5 V
10/27 Doc ID 023461 Rev 1
Page 11
SPBT2532C2.AT2 Hardware specifications
5.3 High speed CPU mode current consumption
● High speed CPU mode
– CPU 32 MHz, maximum operating temperature 55 °C
– UART supports up to 921 Kbps
– Data throughput up to 1.5 Mbps
– Shallow sleep enabled.
Table 3. High speed CPU mode current consumption
Modes (typical power consumption) Avg. Unit
ACL data 115 K baud UART at max. throughput (master) 41 mA
ACL data 115 K baud UART at max. throughput (slave) 41 mA
Connection, no data traffic, master 28.9 mA
Connection, no data traffic, slave 34.5 mA
Standby, without deep sleep 28 mA
Standby, with deep sleep 3.1 mA
Bluetooth power down / CPU standby 25 µA
5.4 Standard CPU mode current consumption
● Standard CPU mode
– CPU 8 MHz, maximum operating temperature 85 °C
– UART supports up to 115 Kbps
– Data throughput up to 200 Kbps
– Shallow sleep enabled.
Table 4. Standard CPU mode current consumption
Mode (typical power consumption) Avg. Unit
ACL data 115 K baud UART at max. throughput (master) 25.8 mA
ACL data 115 K baud UART at max. throughput (slave) 25.8 mA
Connection, no data traffic, master 11.9 mA
Connection, no data traffic, slave 16.9 mA
Standby, without deep sleep 11.2 mA
Standby, with deep sleep 2.6 mA
Bluetooth power down / CPU standby 25 µA
Doc ID 023461 Rev 1 11/27
Page 12
Hardware specifications SPBT2532C2.AT2
5.5 I/O operating characteristics
Table 5. I/O operating characteristics
Symbol Parameter Min. Max. Unit Conditions
V
IL
V
IH
V
OL
V
OH
I
OL
I
OH
R
PU
R
PD
Low-level input voltage - 0.9 V VIN, 3.0 V
High-level input voltage 2.1 - V VIN, 3.0 V
Low-level output voltage - 0.4 V VIN, 3.0 V
High-level output voltage 2.2 - V VIN, 3.0 V
Low-level output current - 4.0 mA VOL = 0.4 V
High-level output current - 4.0 mA VOH = 2.2 V
Pull-up resistor 80 120 kΩ Resistor turned on
Pull-down resistor 80 120 kΩ Resistor turned on
5.6 Selected RF characteristics
Table 6. Selected RF characteristics
Parameter Conditions Typ. Unit
Antenna load 50 ohm
Radio receiver
Sensitivity level BER < .001 with DH5 -85 dBm
Maximum usable level BER < .001 with DH1 +8 dBm
Input VSWR 2.5:1
Radio transmitter
Maximum output power 50 Ω load +2 dBm
Initial carrier frequency tolerance ± 30 kHz
20 dB bandwidth for modulated carrier 935 kHz
12/27 Doc ID 023461 Rev 1
Page 13
SPBT2532C2.AT2 Hardware specifications
5.7 Pin assignment
Table 7. Pin assignment
Name Type Pin# Description ALT function
(1) (2)
UART i nte rface
RXD I 13 Receive data ADC 3 Y
TXD O 14 Transmit data ADC 2 Y
2
RTS O 12 Request to send (active low)
CTS I 11 Clear to send (active low)
ADC 0 I
ADC 1 I
C clock/aux
UART Rx
2
C data/aux
UART Tx
Boot loader
Boot 0 I 9 Boot 0
Power and ground
Vin 8 V
in
GND 5,7 GND
Reset
RESETN I 10 Reset input (active low for 5 ms)
Antenna
5 V
tolerant
Y
Y
Initial state
ANT
RF
I/O
6 50 Ω Rx/Tx antenna port
GPIO - general purpose input/output
GPIO [1] I/O 1 General purpose input/output SPI MISO Y Input pull-down
GPIO [2] I/O 2 General purpose input/output SPI MOSI/I2S_SD Y Floating
GPIO [3] I/O 3 General purpose input/output SPI SCLK/ I2S_CK Y Input pull-down
GPIO [4] I/O 4 General purpose input/output SPI SS/I2S_WS Y Input pull-down
1. ADC pin functions are not 5 V tolerant when used as ALT pin function. Otherwise the I/O pins are all 5 V tolerant.
2. Please note that the usage of ALT function is dependant upon the firmware that is loaded into the module, and is beyond
the scope of this document. The AT command interface uses the main UART by default.
Doc ID 023461 Rev 1 13/27
Page 14
Hardware specifications SPBT2532C2.AT2
5.8 Pin placement
Figure 2. Pin placement
Figure 3. Ground plane diagram
14/27 Doc ID 023461 Rev 1
Page 15
SPBT2532C2.AT2 Hardware specifications
5.9 Layout drawing
Figure 4. Layout drawing
1 GPI0 01
2 GPI0 02
3 GPI0 03
4 GPI0 04
5 GND
6 ANT
7 GND
All dimensions are in millimeters.
Drawing is not in scale.
TXD 14
RXD 13
RTS 12
CTS 11
RESET 10
BOOT 9
VIN 8
pad size: 0.76x1.07
10.5x13.5x2.5 mm (height tolerance +/- 0.1 mm)
AM14832v1
Doc ID 023461 Rev 1 15/27
Page 16
Hardware block diagram SPBT2532C2.AT2
6 Hardware block diagram
Figure 5. SPBT2532C2.AT2 module block diagram
Battery or Supply
ARM Cortex MCU
STM32
Regulator
256K Flash
BP
Filter
Host Controller
Interface
UART
GPIO
STLC2500DB
I2S/
PCM
LPO
Clock
48K RAM
UART
AM14807v1
16/27 Doc ID 023461 Rev 1
Page 17
SPBT2532C2.AT2 Hardware design
7 Hardware design
The SPBT2532C2.AT2 module with AT2 command embedded FW supports UAR and GPIO
hardware interfaces. Note that the usage of these interfaces is dependent upon the firmware
that is loaded into the module, and is beyond the scope of this document. The AT2
command interface uses the main UART by default.
Note: 1 All unused pins should be left floating; do not ground.
2 All GND pins must be well grounded.
3 The area around the module should be free of any ground planes, power planes, trace
routings, or metal, for 6 mm from the antenna in all directions.
4 Traces should not be routed underneath the module.
7.1 Module reflow installation
The SPB2532C2.AT2 is a surface mount Bluetooth module supplied on a 14-pin, 6-layer
PCB. The final assembly recommended reflow profiles are indicated here below.
The soldering phase must be executed with care: in order to avoid undesired melting
phenomenon, particular attention must be paid to the setup of the peak temperature.
The following are some suggestions for the temperature profile based on IPC/JEDEC JSTD-020C, July 2004 recommendations.
Table 8. Soldering
Profile feature PB-free assembly
Average ramp-up rate (T
Preheat:
– Temperature min. (T
– Temperature max. (T
–Time (t
Time maintained above:
– Temperature T
– Temperature T
Peak temperature (T
Time within 5 °C of actual peak temperature (T
Ramp-down rate 6 °C/sec
Time from 25 °C to peak temperature 8 minutes max.
min. to ts max.)(ts)
s
L
L
) 240 + 0 °C
P
to TP) 3 °C/sec max.
SMAX
min.)
S
max.)
S
) 10-20 sec
P
150 °C
200 °C
60-100 sec
217 °C
60-70 sec
Doc ID 023461 Rev 1 17/27
Page 18
Hardware design SPBT2532C2.AT2
Figure 6. Soldering profile
!-V
7.2 GPIO interface
All GPIOs are capable of sinking and sourcing 4 mA of I/O current. GPIO [1] is internally
pulled down with 100 kΩ (nominal) resistors.
7.3 UART interface
The UART is compatible with the 16550 industry standard. Four signals are provided with
the UART interface. The TXD and RXD pins are used for data while the CTS and RTS pins
are used for flow control.
Figure 7. Connection to host device
(OST
"LUETOOTH
-ODULE
18/27 Doc ID 023461 Rev 1
!-V
Page 19
SPBT2532C2.AT2 Hardware design
Figure 8. Typical RS232 circuit
!-V
Doc ID 023461 Rev 1 19/27
Page 20
Application information SPBT2532C2.AT2
8 Application information
Here below there are some suggestions to better implement the module in the final
application.
● Avoid that traces with switching signals are routed on the motherboard below the
module. The best condition would be to have a ground plane underneath the module
● Connect the supply voltage ground of the module with the other grounds present on the
motherboard in a star ground configuration.
Keep the RF ground separate from the module supply voltage ground; the two grounds are
already connected inside the module in one point, a possible implementation can be seen in
Figure 9.
Figure 9. Example of antenna integration on the STEVAL-SPBT2ATV3
8.1 Antenna choice
The RF output pin must be connected to an antenna which may be:
● Antenna directly printed on the PCB (Figure 10)
● Integrated SMD antenna, including but not limited to the following examples
(Figure 11):
– Johanson Technology 2450T18A100S
– Antenova 30-30-A5839-01
– Murata ANCV12G44SAA127
– Pulse W3008
– Yageo CAN4311153002451K.
The external antenna connected by means of an SMA connector (Figure 12).
20/27 Doc ID 023461 Rev 1
Page 21
SPBT2532C2.AT2 Application information
Figure 10. Antenna printed on PCB
Note: This is an antenna design indication. Since antenna dimension depends on PCB material,
thickness,
please refer to antenna calculator literature.
Figure 11. SMD antenna
εr constant and design, among other parameters, to dimension it correctly,
Figure 12. SMA connector for external antenna
Doc ID 023461 Rev 1 21/27
Page 22
Application information SPBT2532C2.AT2
8.2 Antenna coupling
Despite the type of antenna chosen, the connection between the RF out pin and the
antenna must be realized to get the maximum power transfer.
As a general rule, the characteristic impedance (Z0) of the connection must be fixed at the
value of 50 Ω. The connection trace must be matched to respect such a condition.
50 Ω¸ matching depends on various factors and elements that must be taken into
consideration:
● Type of material, i.e. FR4 or others
● The electrical characteristics of the material, among them the electric constant, ε r, at
2.4 GHz
● PCB and traces mechanical dimensions:
– PCB thickness
– Reference ground thickness
– Trace width
– Trace thickness.
8.3 Example of trace calculation
Example of strip line calculation:
● To get a strip line of 50 Ω, using a 1 mm thick FR4 board, with an εr = 4.3 at 2.4 GHz,
with Cu thickness of 41 µm, the strip line width must be 1.9 mm (micro strip type
calculation).
Tools for calculating the characteristic impedance, based on the physical and mechanical
characteristics of the PCB, can be easily found online.
Figure 13. Parameters for trace matching
22/27 Doc ID 023461 Rev 1
Page 23
SPBT2532C2.AT2 Application information
8.4 Reset circuit
Two types of system reset circuits are detailed below.
8.4.1 External reset circuit
Figure 14. External reset circuit
2%3%4
Note: RPU ranges from 30 kΩ
to 50 kΩ internally.
8.4.2 Internal reset circuit
Figure 15. Internal reset circuit
Note: 1 R
2R
ranges from 30 kΩ to 50 kΩ internally.
PU
should be from 1 kΩ to 10 kΩ.
RST
!-V
2%3%4
!-V
Doc ID 023461 Rev 1 23/27
Page 24
Regulatory compliance SPBT2532C2.AT2
9 Regulatory compliance
● BQB
– BQB qualified design, QD ID: B016360
– Product type: End Product
– TGP version: Core 2.1/2.1 + EDR TCRL-2009-1
– Core spec version: 2.1/2.1 + EDR
– Product descriptions: Bluetooth module
● CE
– CE Expert opinion: 307-ARAJ00079
– Measurements have been performed in accordance with (report available on
request):
– EN 300 328 V 1.7.1 (2006-10)
– EN 301 489-17 V 2.1.1 (2009)
– EN60950-1:2006 +A11:2009+A1:2010
CE certified:
(a)
(b)
(c)
a. EN 300 328 V 1.7.1 (2006-10): “electromagnetic compatibility and radio spectrum matters (ERM); wideband
transmission systems; data transmission equipment operating in the 2.4 GHZ ISM band and using wideband
modulation techniques; harmonized EN covering essential requirements under article 3.2 of the R&TTE
directive”.
b. EN 301 489-17 V 2.1.1 (2009): “electromagnetic compatibility and radio spectrum matters (ERM);
electromagnetic compatibility (EMC) standard for radio equipment and services; part 17: specific condition for
2.4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment”.
c. EN60950-1:2006 +A11:2009+A1:2010: “Information technology equipment - safety”.
24/27 Doc ID 023461 Rev 1
Page 25
SPBT2532C2.AT2 Ordering information
10 Ordering information
Table 9. Ordering information
Order code Description
SPBT2532C2.AT2 Class 2 OEM Bluetooth antenna module
Doc ID 023461 Rev 1 25/27
Page 26
Revision history SPBT2532C2.AT2
11 Revision history
Table 10. Document revision history
Date Revision Changes
18-Jul-2012 1 First release.
26/27 Doc ID 023461 Rev 1
Page 27
SPBT2532C2.AT2
Please Read Carefully:
Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the
right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any
time, without notice.
All ST products are sold pursuant to ST’s terms and conditions of sale.
Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no
liability whatsoever relating to the choice, selection or use of the ST products and services described herein.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this
document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products
or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such
third party products or services or any intellectual property contained therein.
UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS
OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.
UNLESS EXPRESSLY APPROVED IN WRITING BY TWO AUTHORIZED ST REPRESENTATIVES, ST PRODUCTS ARE NOT
RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING
APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY,
DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE
GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.
Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void
any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any
liability of ST.
ST and the ST logo are trademarks or registered trademarks of ST in various countries.
Information in this document supersedes and replaces all information previously supplied.
The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.
© 2012 STMicroelectronics - All rights reserved
STMicroelectronics group of companies
Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -
Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America
www.st.com
Doc ID 023461 Rev 1 27/27
Loading...
