INTEGRATED CIRCUITS

DATA SH EET

SAA4952WP

Memory controller

Objective specification
File under Integrated Circuits, IC02

1997 Jun 10

Philips Semiconductors Objective specification

Memory controller SAA4952WP

FEATURES

• Support for acquisition, display and deflection PLL

• 50/100 Hz (or 60/120 Hz) scan conversion

• Progressive scan 50 Hz/1250 lines (60 Hz/1050 lines)

interlaced or 50 Hz/625 lines (60 Hz/525 lines)
non-interlaced in serial memory structure

• 50 Hz/625 lines (60 Hz/525 lines) mode support for a
PALplus system and basic features

• Acquisition frequencies 12, 13.5, 16 and 18 MHz and
display frequencies of 27, 32 and 36 MHz (2fH) in every
combination, horizontal compression (support for 4 : 3
and 14 : 9 display on a 16 : 9 screen) and horizontal
zoom

• Configured as a three clock system with a fixed 27 MHz
deflection clock (deflection controlled by the TDA9151)

• Configured as a two-clock system (deflection controlled
by e.g. TDA9152)

• Single clock for 50 Hz vertical and 15.625 kHz
horizontal frequency

• Support of new IC generations [PAN-IC (SAA4995WP),
VERIC (SAA4997H), MACPACIC (SAA4996H) and
LIMERIC (SAA4945H)]

• Support for two or one field memories

• Still picture

• Support for memory types such as TMS4C2970/71

• Internal simple Multi-PIP (3 × 3) or (4 × 4) conversion

• Multi-PIP support with an external PIP module/full

performance

• Programmable via microcontroller port

• Capability of reading the length of incoming fields via

microcontroller port

• Golden SCART option (clock generation for TDA9151)

• Acquisition is able to operate with external sync and

clock of digital sources (slave mode)

• Generator mode for the display, stable still picture or
OSD in the event of no input source.

GENERAL DESCRIPTION

The memory controller SAA4952WP is the improved
version of the SAA4951WP. The circuit has been designed
for high-end TV sets using 2f

technics. For basic feature

H

modules a 1fH mode can be activated. In this situation the
controller supplies the system with a line-locked clock.
The new device has been designed to be able to operate
in the hardware environment of the SAA4951WP.

The circuit provides all necessary write, read and clock
pulses to control different field memory concepts.
Furthermore the drive signals for the horizontal and
vertical deflection power stages are also generated.

The device is connected to a microcontroller via an 8-bit
data bus. The microcontroller receives commands via the
I2C-bus. Due to this fact the START and STOP conditions
of the main output control signals are programmable and
the SAA4952WP can be set in different function modes
depending on the TV feature concept that is used.

QUICK REFERENCE DATA

SYMBOL PARAMETER MIN. TYP. MAX. UNIT

V

DD

I

DD

f

LLDFL,LLD

f

acq

T

amb

supply voltage 4.5 5 5.5 V
supply current − 35 − mA
operating frequency of display and deflection part −−33 MHz
acquisition frequency −−37 MHz
operating ambient temperature 0 − 85 °C

ORDERING INFORMATION

PACKAGE

TYPE NUMBER

NAME DESCRIPTION VERSION

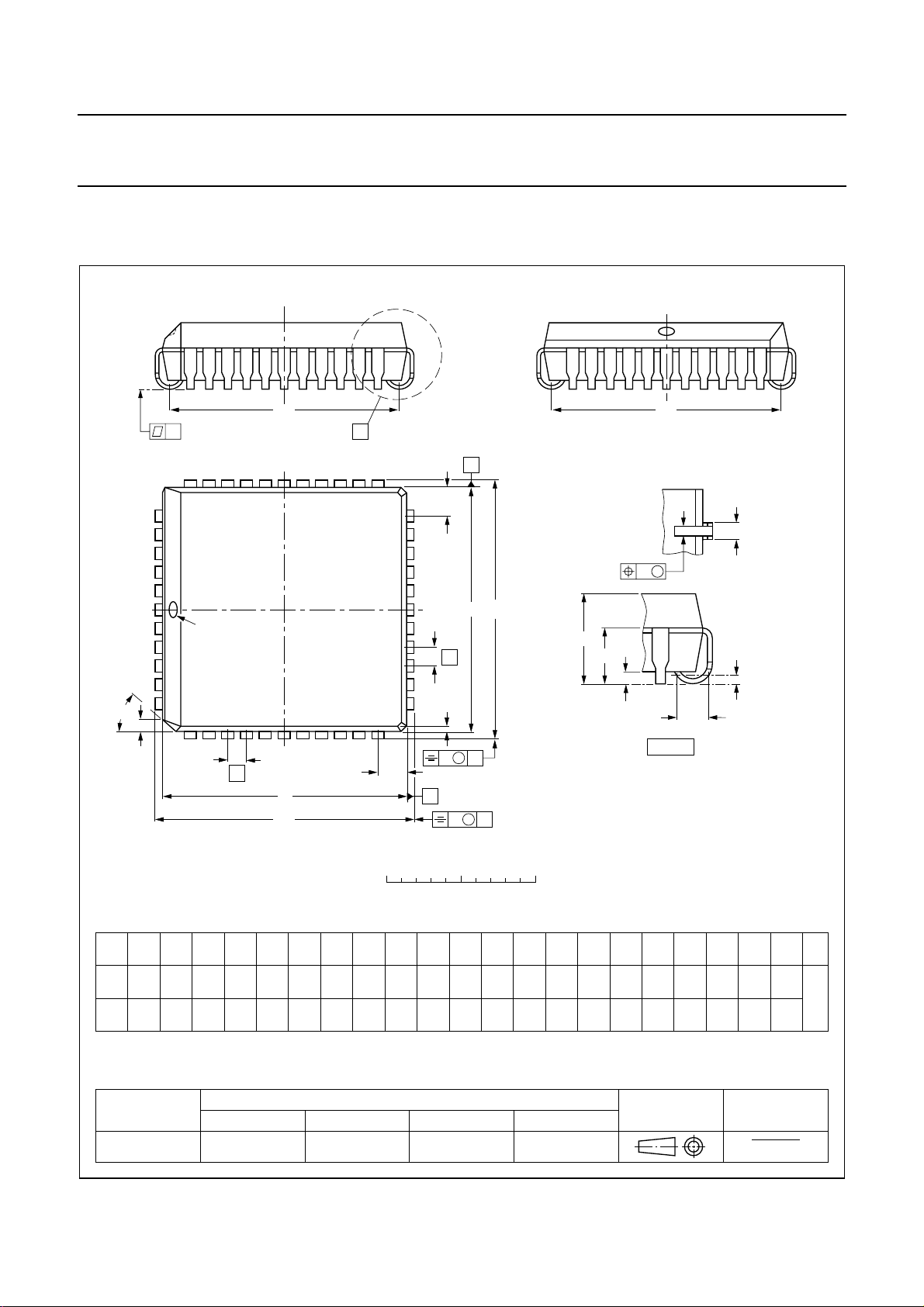

SAA4952WP PLCC44

plastic leaded chip carrier; 44 leads

SOT187-2

1997 Jun 10 2

Philips Semiconductors Objective specification

Memory controller SAA4952WP

BLOCK DIAGRAM

ALE

handbook, full pagewidth

WRD P0 P1 P2

21 22 25 26 27 28 29 30 31 32

P3 P4 P5 P6 P7

STROBE

LLA

(12, 13.5, 16, 18 MHz)

TEST

SDP
SSC

VACQ

(50/60 Hz)

LLDFL

(27, 32, 36 MHz)

LLD

(32, 36 MHz)

MICROCONTROLLER

INTERFACE

9

13

40
5
41

39

DEFLECTION

33

43

TIMING

LOGIC

ACQUISITION
HORIZONTAL

TIMING

VACQS

ACQUISITION

VERTICAL

TIMING

DISPLAY

VERTICAL

TIMING

DISPLAY

HORIZONTAL

TIMING

2, 10, 23, 36

SAA4952WP

IE

PROCESSING

HWE1

VWE1

VWE2
VRE1
VRE2

VD

HWE2
HRE

HD

12, 24, 34, 44

÷ 2

LOGIC

LOGIC

14

11

16

42

35
37

38

15

17

18

19

20

7

3
6

8

1

4

IE1
IE2

SWC1
SWC05
HRA/BLNA

CLV

WE1

RSTW1

HRDFL
HDFL

VDFL

WE2

HVCD

RE1

RE2

BLND
HRD

SRC

V

DD1

Fig.1 Block diagram.

1997 Jun 10 3

to V

DD4

V

SS1

to V

SS4

MHA724

Philips Semiconductors Objective specification

Memory controller SAA4952WP

PINNING

SYMBOL PIN I/O DESCRIPTION

HRD 1 O horizontal reference signal output (display PLL)
V

DD1

SWC1 3 O serial write clock output for memory 1
SRC 4 O serial read clock output
SDP 5 I select deflection processor input
SWC05 6 O serial write clock output, SWC1 divided-by-2
IE1 7 O input enable signal output (memory 1)
WE1 8 O write enable signal output (memory 1)
STROBE 9 I strobe signal input
V

DD2

HRA/BLNA 11 I/O horizontal reference signal output (acquisition part)/horizontal blanking

V

SS1

LLA 13 I line-locked clock signal input (acquisition part)
IE2 14 O input enable signal output (memory 2)
WE2 15 O write enable signal output (memory 2)
CLV 16 O horizontal signal output (acquisition part)
HVCD 17 O horizontal, vertical or composite blanking signal output (display part)
RE1 18 O read enable signal output (memory 1)
RE2 19 O read enable signal output (memory 2)
BLND 20 O horizontal blanking signal output (display part)
ALE 21 I address latch enable signal input
WRD 22 I write/read data signal input
V

DD3

V

SS2

P0 25 I/O data input/output signal bit 0
P1 26 I/O data input/output signal bit 1
P2 27 I/O data input/output signal bit 2
P3 28 I/O data input/output signal bit 3
P4 29 I/O data input/output signal bit 4
P5 30 I/O data input/output signal bit 5
P6 31 I/O data input/output signal bit 6
P7 32 I/O data input/output signal bit 7 (MSB = Most Significant Bit)
LLDFL 33 I line-locked clock signal input (deflection part)
V

SS3

HRDFL 35 O horizontal reference signal output (deflection part)
V

DD4

HDFL 37 O horizontal synchronization signal output (deflection part)
VDFL 38 O vertical synchronization signal output (deflection part)
VACQ 39 I vertical synchronization signal input (acquisition part)

2 supply supply voltage 1

10 supply supply voltage 2

signal input, reset for horizontal acquisition counters (acquisition part)

12 − ground 1

23 supply supply voltage 3
24 − ground 2

34 − ground 3

36 supply supply voltage 4

1997 Jun 10 4

Philips Semiconductors Objective specification

Memory controller SAA4952WP

SYMBOL PIN I/O DESCRIPTION

TEST 40 I test input
SSC 41 I select single clock system input
RSTW1 42 O reset write signal output (memory 1)
LLD 43 I line-locked clock signal input (display part)
V

SS4

44 − ground 4

handbook, full pagewidth

IE1

WE1

STROBE

V

DD2

HRA/BLNA

V

SS1

LLA

IE2

WE2

CLV

HVCD

SS4

SDP
5

19

RE2

SWC1

SRC

4

3

SAA4952WP

21

20

ALE

BLND

V
2

22

WRD

SWC05

6

7
8

9
10
11
12
13
14
15
16
17

18

RE1

DD1

HRD
1

23

DD3

V

V
44

24

SS2

V

LLD
43

25

P0

RSTW1

SSC

42

41

27

26
P1

P2

TEST
40

28
P3

39
38
37
36
35
34
33
32
31
30
29

MHA723

VACQ
VDFL
HDFL
V

DD4

HRDFL
V

SS3

LLDFL
P7
P6
P5
P4

Fig.2 Pin configuration.

1997 Jun 10 5

Philips Semiconductors Objective specification

Memory controller SAA4952WP

FUNCTIONAL DESCRIPTION

The SAA4952WP is a memory controller intended to be
used for scan conversion in TV receivers. This conversion
is performed from 50 to 100 Hz or from 60 to 120 Hz.
Besides the doubling of the field frequency a progressive
scan conversion can be activated (50 Hz/1250 lines or
60 Hz/1050 lines). For low cost PALplus receivers a
simple 50 Hz/1fH mode can be performed. The device
supports up to three separate PLL circuits. The acquisition
PLL can operate with frequencies of 12, 13.5, 16 or
18 MHz. In a three-clock system the deflection PLL
operates with 27 MHz (see Fig.11). An additional display
PLL generates 32 or 36 MHz. If a two-clock system is
chosen the deflection PLL can operate with all possible
display frequencies (27, 32 and 36 MHz) and the extra
PLL can be omitted (see Fig.12). In a system using the
deflection processor TDA9151, three PLLs are necessary
because the 27 MHz clock is needed for the deflection.
If other deflection processors are used (e.g. TDA9152) two
PLLs are sufficient. The 50 Hz/1f
single clock.

Frequency doubling is possible for input data rates of
12, 13.5, 16 and 18 MHz. Displaying a 4 : 3 picture on a
16 : 9 screen is possible by using the clock configuration
12/32 MHz and 13.5/36 MHz. A 14 : 9 picture can be
displayed on a 16 : 9 screen by the frequency
combinations 16/36 MHz or 12/32 MHz. The VCO and
loop filter are peripheral parts of each PLL, the clock
divider and generation of the reference pulse for the phase
detector are internally provided.

The device generates all write, read and clock pulses to
control a field memory in the desired mode. The required
signals are programmable via an 8-bit parallel
microcontroller port.

Figure 1 shows the block diagram of the SAA4952WP.
The clock signal LLA from the VCO is input at pin 13, a
horizontal reference pulse HRA for the phase discriminator
is output at pin 11. By setting the clock divider to different
values the PLL can be forced to operate with different
clock frequencies. The acquisition part can also be
configured to operate with an external clock frequency
from a digital source. Pin 11 is used as an input pin.
The horizontal reference pulse BLNA is supplied externally
to reset the horizontal counters. This mode is intended to
be used together with, for example, a digital colour
decoder which provides the clock and reference pulses.

The signals HWE1, CLV and HVACQS are generated in
the horizontal acquisition processing part. The vertical
processing block supplies the signals RSTW1 as well as a
vertical enable signal (VWE1) for the combined write

mode operates with a

H

enable signal with a horizontal and vertical part (WE1).
The START and STOP position of the pulses are
programmable, whereas the increment equals 2 (4) clock
cycles in the horizontal part and 1 line in the vertical part.
For HWE1 an additional 2-bit fine delay is available.

Display related control signals are derived from the display
clock. The functions are similar to the acquisition part.
The clock frequency can be switched to 27, 32 or 36 MHz.
In the event of a three-clock system using the TDA9151
the 27 MHz clock frequency is generated by an additional
deflection PLL. In the horizontal part the pulses HWE2,
HR2, HD and BLND are programmable in increments of
2 (4) clock cycles, each one adjustable by an additional
2-bit fine delay. The vertical processing block generates
VDFL and enable signals for the horizontal part (VWE2,
VRE1, VRE2 and VD).

The 16 kHz PLL reference pulse HRDFL is generated from
the display clock frequencies (27, 32 or 36 MHz) and the
32 kHz deflection pulse HDFL. In the three-clock system
the deflection pulses are derived from an extra 27 MHz
clock, independent of the chosen mode of the scan
converter module.

The field length of two successive fields is measured in the
vertical acquisition part. The sampling of VACQ is
performed internally via the signal HVACQS, a pulse
which occurs every 32 µs. The position of this pulse is
programmable via the microcontroller interface to ensure
correct sampling of VACQ.

The measured length of the fields can be read by the
microcontroller. Depending on these values the
microcontroller selects an appropriate setting to achieve
an optimized display performance.

The 100 Hz vertical synchronizing signal VDFL is
generated in accordance with the measured length of the
incoming fields. The position towards the video data of this
pulse can also be selected by the microcontroller.
Furthermore two field identification signals for 50 Hz and
for 100 Hz are generated internally to mark the
corresponding display fields for the microcontroller.

The SAA4952WP supports two different Multi
Picture-In-Picture (MPIP) modes. In addition to the
features of the SAA4951WP the new controller is able to
generate a 3 × 3 MPIP without an external PIP module.
The PIP is obtained in a simple way by storing each third
pixel and line of the source into the memory. The display
is able to run free and is not synchronized to the PIP
source in this mode. One of the nine MPIPs can show a
live picture while the others are frozen.

1997 Jun 10 6

Philips Semiconductors Objective specification

Memory controller SAA4952WP

By changing the active MPIP in a sequence all PIPs are
sequentially updated.

The second Multi-PIP option needs an extra PIP module.
This module produces a PIP picture which is originally
displayed at the bottom right position of the screen.
The information of the PIP picture is stored at a desired
position in the field memories. Depending on the
compression mode of the PIP module, the MPIP display
can be configured via software control
(e.g. 4 × 3, 4 × 4, etc.).

For basic features and PALplus systems a 50 Hz/1f
single clock mode is provided. Switching between a 2f

H

H

and the 1fH mode is performed by the SAA4952WP
hardware pin SHF to avoid wrong HDFL frequencies
which might occur in the event of a software controlled
selection. For the same reason the deflection processor is
selected via pin SDP, whereas in the case of the TDA9152
or another deflection processor without the need of a
constant 27 MHz clock, only two PLLs are necessary.

ICs from the new IC generation such as PALplus,
LIMERIC and PAN-IC need to be supplied with two clocks.
The frequency of one clock equals the frequency of the
output data (13.5, 16 or 18 MHz). A second clock operates
with twice the frequency (27, 32 or 36 MHz).
The SAA4952WP generates the necessary signals,
whereas SWC05 is obtained by dividing LLA by a factor of
two.

The display section can be set into a fixed mode via the
microcontroller port. This allows a generator mode
function for displaying OSD without a stable input signal.
A still picture can be shown on the screen completely
decoupled from the input of the converter. The generator
mode can also be used if the MPIP function is activated.

Microcontroller interface

The SAA4952WP is connected to a microcontroller via
pins P0 to P7, ALE and WRD. This controller receives
commands from the I

2

C-bus and sets the register of the
SAA4952WP accordingly. Figure 3 shows the timing of
these signals. Address and data are transmitted
sequentially on the bus with the falling edge of ALE
denoting a valid address and the falling edge of WRD
denoting valid data. The individual registers, their address
and their function are listed in Tables 1 to 12. Various
START and STOP registers are 9 bits wide, in this
instance the MSB is combined with MSBs of other signals
or fine delay control bits in an extra control register which
has to be addressed and loaded separately.

In order to load the proper values to the vertical control
registers (VWE2, VRE1 and VRE2) in the event of e.g.
median filtering, information about the current 100 Hz field
is necessary. To obtain this data, the microcontroller
sends the address 80H (read mode) which puts the
SAA4952WP in output mode for the next address/data
cycle. For this one cycle the WRD pin works as a RDN pin.

The microcontroller is able to read the length of the
incoming fields. The length is measured in multiples of
32 µs. The result of the measurement is a 10-bit data
word. The first 8 bits can be accessed under read address
81H. Register 80H contains the MSB and the 9th bit.
The exact knowledge of the field length makes it possible
to decide in which standard the input signal was
transmitted. The microcontroller is able to detect
non-standard sources such as a VCR in trick modes. It is
also possible to decide whether the input is interlaced or
non-interlaced. The vertical control signals to the
memories are adapted to the source to obtain a stable
display.

handbook, full pagewidth

ALE

WRD

DATA

ADDRESS

DATA

ADDRESS

Fig.3 Microcontroller interface timing.

1997 Jun 10 7

DATA

ADDRESS

MGH133

Philips Semiconductors Objective specification

Memory controller SAA4952WP

Internal registers
Table 1 Vertical display related pulses

ADDRESS

(HEX)

REGISTER FUNCTION

40 VDFLSTA
41 VDFLSTO
42 VWE2STA
43 VWE2STO
44 VRE2STA
45 VRE2STO
46 VRE1STA
47 VRE1STO
53 VDSTA
54 VDSTO
55 VDMSB

62 SETFIELD1

63 SETFIELD2

(1)

start of VDFL pulse (only 8-bit)

(1)

stop of VDFL pulse (only 8-bit)

(2)

start of vertical write enable 2 (lower 8 of 9 bits)

(2)

stop of vertical write enable 2 (lower 8 of 9 bits)

(2)

start of vertical read enable 2 (lower 8 of 9 bits)

(2)

stop of vertical read enable 2 (lower 8 of 9 bits)

(2)

start of vertical read enable 1 (lower 8 of 9 bits)

(2)

stop of vertical read enable 1 (lower 8 of 9 bits)

(2)

start of vertical display signal (lower 8 of 9 bits)

(2)

stop of vertical display signal (lower 8 of 9 bits)

(2)

bit 0: MSB of VRE1STA
bit 1: MSB of VRE1STO
bit 2: MSB of VWE2STA
bit 3: MSB of VWE2STO
bit 4: MSB of VRE2STA
bit 5: MSB of VRE2STO
bit 6: MSB of VDSTA
bit 7: MSB of VDSTO

(1)

field length to be set by the microcontroller in the generator mode (lower 8 of 10 bits);
bit 0 = LSB

(1)

field length to be set by the microcontroller in the generator mode;

bit 0: bit 8 of field length
bit 1: bit 9 of field length (MSB)

Notes

1. VDFLSTA, VDFLSTO, SETFIELD1 and SETFIELD2 are programmable in increments of half lines (16 µs/32 µs).

2. The memory control signals VWE2, VRE1 and VRE2 as well as VD can be changed in steps of one display line.

1997 Jun 10 8

Philips Semiconductors Objective specification

Memory controller SAA4952WP

Table 2 Horizontal display related pulses

ADDRESS

(HEX)

48 BLNDSTA start of horizontal blanking pulse (lower 8 of 9 bits)
49 BLNDSTO stop of horizontal blanking pulse (lower 8 of 9 bits)
4A HWE2STA start of horizontal write enable 2 (lower 8 of 9 bits)

4B HWE2STO stop of horizontal write enable 2 (lower 8 of 9 bits)
4C HRESTA start of horizontal read enable (lower 8 of 9 bits)
4D HRESTO stop of horizontal read enable (lower 8 of 9 bits)

56 HDSTA start of horizontal display signal HD (lower 8 of 9 bits)

57 HDSTO stop of horizontal display signal HD (lower 8 of 9 bits)
4E HDMSB bit 0: MSB of BLNDSTA

4F HDDEL bit 0: fine delay of BLND (LSB)

64 HVSP1 horizontal pulse 1 for frame synchronization, 8-bit resolution

65 HVSP2 horizontal pulse 2 for frame synchronization, 8-bit resolution

66 HVSP3 horizontal pulse 3 for frame synchronization, 8-bit resolution

67 HVSP4 horizontal pulse 4 for frame synchronization, 8-bit resolution

REGISTER FUNCTION

bit 1: MSB of BLNDSTO
bit 2: MSB of HWE2STA
bit 3: MSB of HWE2STO
bit 4: MSB of HRESTA
bit 5: MSB of HRESTO
bit 6: MSB of HDSTA
bit 7: MSB of HDSTO

bit 1: fine delay of BLND (MSB)
bit 2: fine delay of HWE2 (LSB)
bit 3: fine delay of HWE2 (MSB)
bit 4: fine delay of HRE (LSB)
bit 5: fine delay of HRE (MSB)
bit 6: fine delay of HD (LSB)
bit 7: fine delay of HD (MSB)

1997 Jun 10 9

Philips Semiconductors Objective specification

Memory controller SAA4952WP

Table 3 Vertical acquisition related pulses

ADDRESS

(HEX)

50 VWE1STA

51 VWE1STO

52 VAMSB bit 0: MSB of VWE1STA

REGISTER FUNCTION

(1)

start of vertical write enable (lower 8 of 9 bits)

(1)

stop of vertical write enable (lower 8 of 9 bits)

bit 1: MSB of VWE1STO
bit 2:

BRE = 0: normal operation
BRE = 1: RE output is blanking every second line in program scan mode

bit 3:

BWE = 0: normal operation
BWE = 1: WE2 output is blanking every second line in program scan mode

bit 4: BPRR: Blanking Phase Relation RE for program

BPRR = 0: AND connection HRDFL and HRE
BPRR = 1: AND connection HRDFLN and HRE

bit 5: BPRW: Blanking Phase Relation WE2 for program

BPRW = 0: AND connection HRDFL and HWE2
BPRW = 1: AND connection HRDFLN and HWE2

bit 6: BVRA: Blanking Vertical Reset Acquisition

BVRA = 0: reset blanking disabled
BVRA = 1: reset blanking enabled

bit 7: BVRD: Blanking Vertical Reset Display

BVRD = 0: reset blanking disabled
BVRD = 1: reset blanking enabled

Note

1. VWE1 programmable in steps of 1 line (64 µs).

1997 Jun 10 10

Philips Semiconductors Objective specification

Memory controller SAA4952WP

Table 4 Horizontal acquisition related pulses

ADDRESS

(HEX)

58 CLVSTA start of clamp pulse

59 CLVSTO stop of clamp pulse
5A HWE1STA start of horizontal write enable 1 (lower 8 of 9 bits)
5B HWE1STO stop of horizontal write enable 1 (lower 8 of 9 bits)
5C HAMSBDEL bit 0: MSB of HWE1STA

5D HVACQS1 VACQ sample pulse 1
5E HVACQS2 VACQ sample pulse 2

Table 5 Mode registers

ADDRESS

(HEX)

60 MODE0 mode register 0; see Table 7

61 MODE1 mode register 1; see Table 10

REGISTER FUNCTION

bit 1: MSB of HWE1STO
bit 2: fine delay of HWE1 (LSB)
bit 3: fine delay of HWE1 (MSB)
bit 4: PWC05: Phase of Write Clock SWC05, determines the phase relationship of

SWC05 towards BLNA or HRA
bit 5: SFR: Select Field Recognition mode
bit 6: FRD: Field Recognition Disabled (FRD = 1)
bit 7: don’t care

REGISTER FUNCTION

Table 6 Read registers

ADDRESS

(HEX)

81 FIELDINF2 bit 0: bit 8 of field length measurement

80 FIELDINF1 result of field length measurement (lower 8 of 10 bits)

1997 Jun 10 11

REGISTER FUNCTION

bit 1: bit 9 of field length measurement (MSB)
bit 2: LSB of display field count
bit 3: field recognition for incoming source
bit 4: MSB of display field count

Philips Semiconductors Objective specification

Memory controller SAA4952WP

Table 7 Mode0 register description

REGISTER BIT NAME REMARKS

MODE0 0 (LSB) FSA0 frequency select acquisition 0; see Table 8

1 FSA1 frequency select acquisition 1; see Table 8
2 FSD0 frequency select display 0; see Table 9
3 FSD1 frequency select display 1; see Table 9
4 SDAF select doubled acquisition frequency

SDAF = 0: normal operation
SDAF = 1: doubled acquisition frequency (2f

5 IMPIP MPIP select bit

IMPIP = 0: normal operation
IMPIP = 1: MPIP mode active

6 INPIP number of PIPs

INPIP = 0: 3 × 3 MPIP
INPIP = 1: 4 × 4 MPIP

7 GMOD generator mode for display

GMOD = 0: normal operation
GMOD = 1: generator mode for display; field length measurement is

disabled

)

a

Table 8 Acquisition frequency

FSA1 FSA0 FREQUENCY (MHz)

0 0 12.0
0 1 13.5
1 0 16.0
1 1 18.0

Table 9 Display frequency

FSD1 FSD0 FREQUENCY (MHz)

0 0 27.0
0 1 27.0
1 0 32.0
1 1 36.0

1997 Jun 10 12

Philips Semiconductors Objective specification

Memory controller SAA4952WP

Table 10 Mode1 register description

REGISTER BIT NAME REMARKS

MODE1 0 DR display raster

1 STPWM1 stop writing to memory 1; still picture mode; STROBE signal can override still

picture mode
2 STPWM2 stop writing to memory 2; still picture mode
3 SD0 select mode of display signal at pin 17; bit 0
4 GSC golden SCART mode

GSC = 0: normal operation

GSC = 1: golden SCART mode
5 SD1 select mode of display signal at pin 17; bit 1; see Table 11
6 EXTLLA external acquisition clock

EXTLLA = 0: normal operation

EXTLLA = 1: LLA and horizontal reference pulse BLNA (horizontal reset)

from external digital source
7 VFS vertical frequency select

VFS = 0: 100/120 Hz

VFS = 1: 50/60 Hz

Table 11 Signal mode at pin 17

SD1 SD0 MODE

0 0 horizontal signal HD at the output
0 1 vertical signal VD at the output
1 0 composite signal CD (derived from HD and VD by AND connection) at the output
1 1 composite signal CD at the output

Table 12 Display modes

CONTROL BITS

VFS

(1)

SSC

(2)

DR

(3)

DISPLAY MODE (NUMBER OF LINES VALID FOR STANDARD PAL)

0 0 0 100 Hz (312.5 lines) ABAB raster
0 0 1 100 Hz (313, 312.5, 312 and 312.5 lines) AABB raster
0 1 0 not allowed
0 1 1 not allowed
1 0 0 50 Hz (625 lines) 1 : 1; non-interlaced
1 0 1 50 Hz (1250 lines) 2 : 1; interlaced
1 1 0 50 Hz (312.5 lines) 2 : 1
1 1 1 not allowed

Notes

1. VFS: Vertical Frequency Select; register MODE1; bit 7.

2. SSC: Select Single Clock SAA4952WP input pin 41.

3. DR: Display Raster; register MODE1; bit 0.

1997 Jun 10 13

Philips Semiconductors Objective specification

Memory controller SAA4952WP

Description of the acquisition part

LLA
This is the main input clock pulse for the acquisition part of

the memory controller normally generated by an external
PLL circuit. Depending on the chosen system application
LLA operates on the different frequencies of 12, 13.5, 16
and 18 MHz. When SDAF = 1 these frequencies are
doubled to 24, 27, 32 and 36 MHz. The PLL circuit is
controlled by the Analog Burst Key pulse (ABK) provided
by an inserted synchronization circuit (i.e. TDA2579 or
TDA9141) and the horizontal reference signal (HRA)
supplied by the SAA4952WP.

SWC1
The acquisition clock input signal LLA is connected via the

memory controller circuit SAA4952WP. LLA is internally
buffered and output as serial write clock for memory 1.
Additionally SWC1 is used as a clock signal for the
analog-to-digital converter (e.g. TDA8755).

SWC05
The signal SWC05 is obtained by dividing the clock LLA by

a factor of two. SWC05 is needed for feature concepts
containing new IC generations such as PALplus, LIMERIC
or PAN-IC.

HRA/BLNA
The horizontal reference output pulse (HRA) is used as the

digital feedback pulse for the phase comparator of the
acquisition PLL. The duty cycle of the signal is 50%.
The positive edge of HRA indicates the internal counter
reset.

When the memory controller operates in a digital
environment, a horizontal reference signal (BLNA) and a
suitable acquisition clock pulse have to be supplied from
the externally used circuits (i.e. SAA7151A, DMSD and
SAA7157, CGC). The rising edge of BLNA resets the
internal horizontal acquisition counters of the
SAA4952WP.

CLV
The horizontal video clamping output pulse is generated

by the acquisition clock signal LLA and can be used as a
clamp pulse for the incoming luminance and chrominance
signals Y, U and V for the analog-to-digital converter.
The time reference of CLV is the LOW-to-HIGH transition
of the HRA signal. In comparison to the SAA4951WP the
signal CLV has no internal influence on the vertical
processing and is free programmable.

WE1
A HIGH level on this output pin enables picture data to be

written to field memory 1. WE1 is a composite signal,
which includes the horizontal write enable signal (HWE1)
and the vertical write enable signal (VWE1). The position
of HWE1 can be programmed without restrictions.

It is possible to delay the horizontal timing of WE1 by up to
three LLA clock cycles. WE1 operates at a vertical
frequency of 50/60 Hz.

IE1
This output signal is used as a data input enable for

memory 1. A logic HIGH level on this output pin enables
the data information to be written into field memory 1.
The still picture function is controlled via signal IE1. When
this mode is selected, IE1 is switched to a LOW level. It is
possible to disable the still picture mode with externally
supplied STROBE pulses. Using this function a live PIP
insertion into a frozen main picture is possible, as the write
pointer of memory 1 is still incremented, depending on the
level of WE1. The STROBE input is not sampled in the
controller. This means that the display part of the PIP
module should be synchronized to the IPQ write clock.

HVACQS
The vertical synchronization signal for the acquisition part

(VACQ) is sampled by the pulse HVACQS twice per line.
This signal consists of the two programmable pulses
HVACQS1 and HVACQS2 (see Fig.4). To ensure a save,
sampling the position of each pulse (two per line) can be
programmed in steps of four LLA clock cycles. The signal
is referenced to the rising edge of HRA.

1997 Jun 10 14

Philips Semiconductors Objective specification

Memory controller SAA4952WP

Table 13 Horizontal programming range of CLV, HWE1 and HVACQS
Nr (programmed start value of corresponding signal) not equal Nf (programmed stop value of corresponding signal).

ACQUISITION FREQUENCY

(MHz)

12 CLV

13.5 CLV

16 CLV

18 CLV

TIMING EQUATIONS PROGRAMMING RANGE

= (4Nr + 2)LLA 0 ≤ Nr < 191

r

CLV

= (4Nf + 2)LLA 0 ≤ Nf < 191

f

HWE1

HWE1
HVACQS1 = (4N
HVACQS2 = (4M

HWE1

HWE1
HVACQS1 = (4N
HVACQS2 = (4M

HWE1

HWE1
HVACQS1 = (4N
HVACQS2 = (4M

HWE1

HWE1
HVACQS1 = (8N
HVACQS2 = (8M

= (2Nr + 2)LLA 0 ≤ Nr < 383

r

= (2Nf + 2)LLA 0 ≤ Nf < 383

f

(1)

+ 2)LLA 0 ≤ N < 191

(2)

+ 2)LLA 0 ≤ M < 191

= (4Nr + 2)LLA 0 ≤ Nr < 215

r

= (4Nf + 2)LLA 0 ≤ Nf < 215

CLV

f

= (2Nr + 2)LLA 0 ≤ Nr < 431

r

= (2Nf + 2)LLA 0 ≤ Nf < 431

f

(1)

+ 2)LLA 0 ≤ N < 215

(2)

+ 2)LLA 0 ≤ M < 215

= (4Nr + 2)LLA 0 ≤ Nr < 255

r

CLV

= (4Nf + 2)LLA 0 ≤ Nf < 255

f

= (2Nr + 2)LLA 0 ≤ Nr < 511

r

= (2Nf + 2)LLA 0 ≤ Nf < 511

f

(1)

+ 2)LLA 0 ≤ N < 255

(2)

+ 2)LLA 0 ≤ M < 255

= (8Nr + 2)LLA 0 ≤ Nr < 143

r

CLV

= (8Nf + 2)LLA 0 ≤ Nf < 143

f

= (4Nr + 2)LLA 0 ≤ Nr < 287

r

= (4Nf + 2)LLA 0 ≤ Nf < 287

f

(1)

+ 2)LLA 0 ≤ N < 143

(2)

+ 2)LLA 0 ≤ M < 143

Notes

1. N: programmed value of HVACQS1 pulse.

2. M: programmed value of HVACQS2 pulse.

The programmed values include the MSB setting contained in HAMSBDEL.
For SDAF = 1 the factors in front of Nr and Nf are doubled.
For EXTLLA = 1 the equations for LLA = 18 MHz are valid.
The programming margins depend on the used external clock frequency.

1

---------------------­LLAEXT

N× 64 µs≤

1997 Jun 10 15

Philips Semiconductors Objective specification

Memory controller SAA4952WP

VACQ
This is the 50 Hz vertical synchronization input signal

derived from a suitable vertical synchronization circuit
(i.e. TDA2579). The LOW-to-HIGH transition of this pulse
is the timing reference of all vertical control signals of the
SAA4952WP.

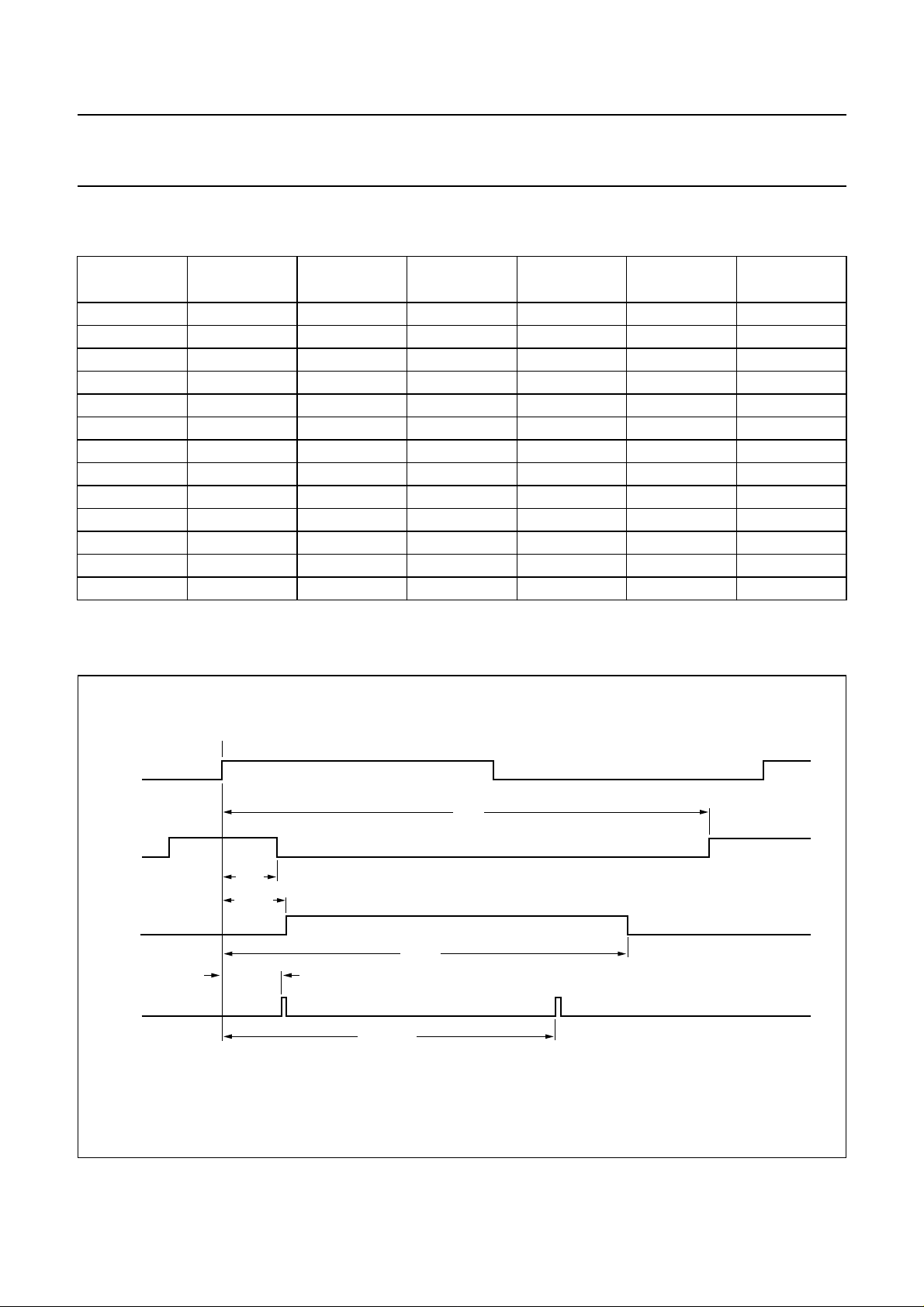

The vertical acquisition timing is illustrated in Fig.5. VWE1
is resynchronized with HWE1 internally. Nr and Nf can
represent values varying between 1 and 511, whereas Nf
should be programmed in accordance with the expected
field length (PAL 312, NTSC 262). If the incoming fields
are shorter than programmed the memory controller resets
VWE1 itself.

RSTW1
The reset write output pulse 1 starts the write address

pointer of field memory 1. The RSTW1 signal is derived
from the 50 Hz vertical acquisition pulse (VACQ) and has
a pulse width of 32 µs.

STROBE
The asynchronous, active HIGH, STROBE input controls

the input enable signal IE1 to memory 1 in the still picture
mode (see Section “IE1”).

Display and deflection part

LLD
The input signal LLD is a line-locked clock for the display

side of the memory controller.
In the event of a two-clock system the possible display

frequencies (27, 32 and 36 MHz) are derived from one
switchable external PLL. The internal system clocks LLD is
supplied via the input LLDFL. The input pin LLD is not used
and its level can be fixed. This configuration is foreseen for
applications using the TDA9152 or other deflection
controllers which do not need a clock supply.

In applications using the TDA9151 a 27 MHz clock is
always required. The system has to operate in a
three-clock mode. The deflection PLL generates the
27 MHz clock frequency only, whereas the display PLL
generates the 32 and 36 MHz in parallel, if conversion
modes are used which operate with these display
frequencies. If the display is operating with 27 MHz, LLD is
switched to the deflection PLL input and the third PLL can
be omitted. The 32 and 36 MHz PLL is synchronized on
the horizontal deflection pulse (HDFL). A digital feedback
signal (HRD) to the phase comparator is supplied by the
memory controller.

In the 50 Hz/1f
The display, deflection and acquisition clocks are equal.

SRC
The display clock input signal from inputs LLD or LLDFL is

buffered in the memory controller. Depending on the
selected mode one of them is output as Serial Read Clock
(SRC) for the field memories. Additionally SRC is used as
a clock pulse for the writing of memory 2, the noise
reduction circuit NORIC and the back-end circuit BENDIC
or for PROZONIC (instead of NORIC) and the following
DAC.

HRD
The Horizontal Reference Display pulse (HRD) has a duty

cycle of 50% and a frequency of 32 kHz. HRD is the
reference pulse for the horizontal timing of the control
signals RE1, RE2, WE2, HD and BLND generated by the
display part of the SAA4952WP in the event of a
three-clock system with a selected display frequency of
32 or 36 MHz.

HVSP
The vertical display counter is incremented with every

HVSP pulse (see Fig.6). The HVSP signal is created from
the four pulses HVSP1 to HVSP4. The distance between
the pulses has to be programmed to 16 µs. The HVSP
signal is the equivalent to the HVACQS signal of the
vertical acquisition part. The HVSP1 pulse should be
programmed 32 µs after the HVACQS1 pulse. This
programming ensures that the vertical picture stability is
also kept in the event of unstable sources such as VCRs.

BLND
The output signal BLND is a horizontal blanking pulse and

is, for example, used for the peripheral circuits NORIC and
BENDIC. A LOW level indicates the blanking interval, a
HIGH level indicates valid data from the memories. It is
possible to delay the horizontal timing of BLND by up to
three LLD clock pulses.

WE2
A HIGH level on this output pin enables picture data to be

written to field memory 2. WE2 is a composite signal which
includes the horizontal write enable signal and the vertical
write enable signal. The horizontal timing of WE2 can be
delayed by up to three steps of LLD clock pulses.

mode only one system clock is required.

H

1997 Jun 10 16

Philips Semiconductors Objective specification

Memory controller SAA4952WP

HVCD
The memory controller supplies a display related output

which can generate, depending on the microcontroller
initialization, three different signals. The desired mode is
activated via microcontroller register MODE1 (control bits
SD0 and SD1).

RE1
The output RE1 is the read enable signal for field

memory 1. A HIGH level enables the picture data to be
read from the memory. RE1 is a composite signal and
includes the horizontal read enable timing (HRE) and the
vertical read enable timing (VRE). It is possible to delay the
horizontal timing of RE1 by up to three display clock

Table 14 Mode setting of SAA4952WP output HVCD

SD1 SD0 MODE OF OUTPUT PIN 17

0 0 horizontal output signal HD; programmable

via HDSTA and HDSTO

0 1 vertical output signal VD; programmable via

VDSTA and VDSTO

1 X composite output signal HVCD; logical

AND connection of HD and VD

pulses. The horizontal timing of RE1 and RE2 is equal.

RE2
The output RE2 is the read enable signal for field

memory 2. A HIGH level enables the picture data to be
read from memory. RE2 is a composite signal and includes
the horizontal read enable timing (HRE) and the vertical
read enable timing (VRE2). The horizontal timing of RE2
can be delayed by up to three display clock pulses.
The new memory controller supplies two completely

IE2
This output signal is used as data input enable for

memory 2. A logic HIGH level on this output pin enables

independent VRE signals, VRE1 and VRE2. VRE1 is not
generated as an adjustable delay of VRE2 as in the
SAA4951WP.

the data information to be written to field memory 2.

Table 15 Programming range of horizontal display signals (BLND, HRE, HWE2, HD and HVSP1 to HVSP4); see Fig.6
Nr (programmed start (rise) value of corresponding signal) not equal Nf (programmed stop (fall) value of corresponding

signal).

ACQUISITION FREQUENCY

(MHz)

TIMING EQUATIONS PROGRAMMING RANGE

27 HDSPr= (2Nr + 2)LLD 0 ≤ Nr < 431

HDSP

HVSP

32 HDSP

HDSP

HVSP

36 HDSP

HDSP

HVSP

= (2Nf + 2)LLD 0 ≤ Nf < 431

f

(1)

n

r
f

(1)

n

r
f

(1)

n

(2)

= (4N

+ 2)LLD 0 ≤ N < 215
= (2Nr + 2)LLD 0 ≤ Nr < 511
= (2Nf + 2)LLD 0 ≤ Nf < 511

(2)

= (4N

+ 2)LLD 0 ≤ N < 255
= (4Nr + 4)LLD 0 ≤ Nr < 287
= (4Nf + 4)LLD 0 ≤ Nf < 287

(2)

= (8N

+ 4)LLD 0 ≤ N < 145

Notes

1. HVSP

= HVSP1 to HVSP4.

n

2. N: programmed value of HVSP pulse.

LLD equals LLDFL for 27 MHz display in the three-clock system.
LLD input is not used in the two-clock mode (internally switched to LLDFL input).
The programmed values include the MSB settings contained in HDMSB.

1997 Jun 10 17

Philips Semiconductors Objective specification

Memory controller SAA4952WP

The vertical display signal can be programmed in a range
of Nr, Nf from 1 to 511. The setting should correspond to
the source (PAL, NTSC) and the expected standard field
length. For the display the vertical read window should not
exceed the write window. In the event of non-standard
sources with shortened field lengths the memory controller
disables the vertical control signals if the programmed
STOP setting cannot be reached.

LLDFL
The input signal LLDFL is the main line-locked clock pulse

for the display and deflection part generated by an external
PLL circuit. The frequency of LLDFL is 27, 32 or 36 MHz
for a two-clock system. It is fixed to 27 MHz if the
three-clock system is chosen. In this mode, display clocks
of 32 and 36 MHz are generated by an extra display PLL.
The PLL circuit operates on the burst key pulse (ABK) of
the acquisition part and the horizontal reference signal
HRDFL generated by the deflection part of the memory
controller.

The LLDFL should not fall below 24 MHz because this
clock is used to sample the input signals at the memory
controller port (P0 to P7), ALE and WRD.

HRDFL
This horizontal output signal is the reference pulse for the

horizontal deflection drive signal HDFL. The duty cycle of
HRDFL is 50% and the cycle time is 64 µs (PAL). For the
golden SCART mode the cycle time is reduced to 32 µs.

VDFL
This is the vertical synchronization output signal generated

by the vertical deflection part of the memory controller.
The timing reference of VDFL is the LOW-to-HIGH
transition of the vertical acquisition input pulse VACQ.
Normally VDFL has a pulse width of 2.5 × HDFL = 80 µs
and a cycle time of 100 Hz.

HDFL
The output signal HDFL is used for driving the connected

horizontal deflection circuit. HDFL has a cycle time of
32 µs and a pulse width of 64 × LLDFL = 2.37 µs in the 2f
mode (see Fig.8).

Control inputs and outputs

WRD
This is the write/read enable control signal supplied by the

microcontroller. The HIGH-to-LOW transition of WRD
indicates valid data.

P0

TO P7

The SAA4952WP is controlled by the bidirectional parallel
port bus P0 to P7 of a microcontroller. Address and data
are transmitted sequentially on the parallel bus.

TEST
The TEST input pin has to be connected to ground.

SDP
The SDP input pin has to be connected to ground for a

three-clock system. This configuration has to be chosen if
the TDA9151 is controlling the deflection. Connecting SDP
to the supply voltage switches the memory controller into
the two-clock mode.

Table 16 SDP mode pin setting

SDP REMARK

0 three-clock system; supports TDA9151
1 two-clock system

SSC
The Select Single Clock (SSC) control pin has to be

connected to ground to activate a 2fHmode and a multi
clock system. For the 50 Hz/1fH mode in a single clock
system the input is connected to the supply (VDD).

Table 17 SCC mode pin setting

SCC REMARK

02f

mode (100/120 Hz; progressive scan);

H

two-clock or three-clock system

11f

mode (50/60 Hz; 15.625/15.75 kHz);

H

single clock system

TIMING SPECIFICATION

H

The internal delays of the output signals referenced to the
respective clock are given in Table 18.

ALE
The address latch enable input signal ALE is provided by

the microcontroller. A falling edge of ALE denotes a valid
address.

1997 Jun 10 18

Philips Semiconductors Objective specification

Memory controller SAA4952WP

Table 18 Delay table (see Fig.9)
Worst case conditions: V

= 4.5 V and T

DD

=85°C. Typical case conditions: VDD= 5 V and T

amb

amb

=25°C.

CLK OUTPUT

LOAD

(pF)

t

h(min)

(ns)

t

h(typ)

(ns)

t

pd(max)

(ns)

LLA SWC1 15 2 3 11 8
LLA SWC05 15 4 5 13 10

LLD SRC 45 3 4 10 8

(1)

LLDFL

SRC 45 3 4 10 8
LLA WE1 15 7 8 18 13
LLD WE2 10 7 8 18 13
LLD RE1 10 8 9 18 13
LLD RE2 10 7 7 18 13

LLDFL HDFL 25 7 7 12 10

LLD BLND 25 8 9 19 13
LLD HVCD 25 8 8 20 15
LLA CLV 25 7 8 12 10

LLDFL VDFL 25 7 7 12 9

Note

1. Source for SRC depends on the setting of register MODE0 and the level on the SDP pin.

t

pd(typ)

(ns)

handbook, full pagewidth

HRA

CLV

HWE1

HVACQS

CLV

f

HWE1

HVACQS1

CLV

r

r

HWE1

f

HVACQS2

MHA725

Fig.4 Horizontal acquisition timing.

1997 Jun 10 19

Philips Semiconductors Objective specification

Memory controller SAA4952WP

handbook, full pagewidth

(1) Vr(WE1) =Nr × line.
(2) Vf(WE1) = Nf × line.

VACQ

VWE1

RSTW1

Vr(WE1)

(1)

(2)

Vf(WE1)

MHA726

Fig.5 Vertical acquisition timing.

handbook, full pagewidth

HRD or
HRDFL

HDSP

r

(1)

HDSP

HDSP

(2)

HVSP

n

(2)

HVSP

(1) HDSP = BLND, HRE and HWE2.
(2) HVSP consists of the 4 pulses HVSP1 to HVSP4 (HVSPn).

f

Fig.6 Programmable horizontal display signals.

1997 Jun 10 20

MHA727

Philips Semiconductors Objective specification

Memory controller SAA4952WP

handbook, full pagewidth

VACQ

VDSP

r

VDSP

VDSP

f

RSTW2

MHA728

handbook, full pagewidth

HRDFL

HDFL

Fig.7 Vertical display timing [VDSP = V(WE2) and V(RE1/2)].

1728 × LLDFL

864 × LLDFL

64 × LLDFL 64 × LLDFL

MHA729

Fig.8 Horizontal deflection timing (example for 27 MHz).

1997 Jun 10 21

Philips Semiconductors Objective specification

Memory controller SAA4952WP

handbook, full pagewidth

CLK

OUTPUT

t

h

t

pd

MHA733

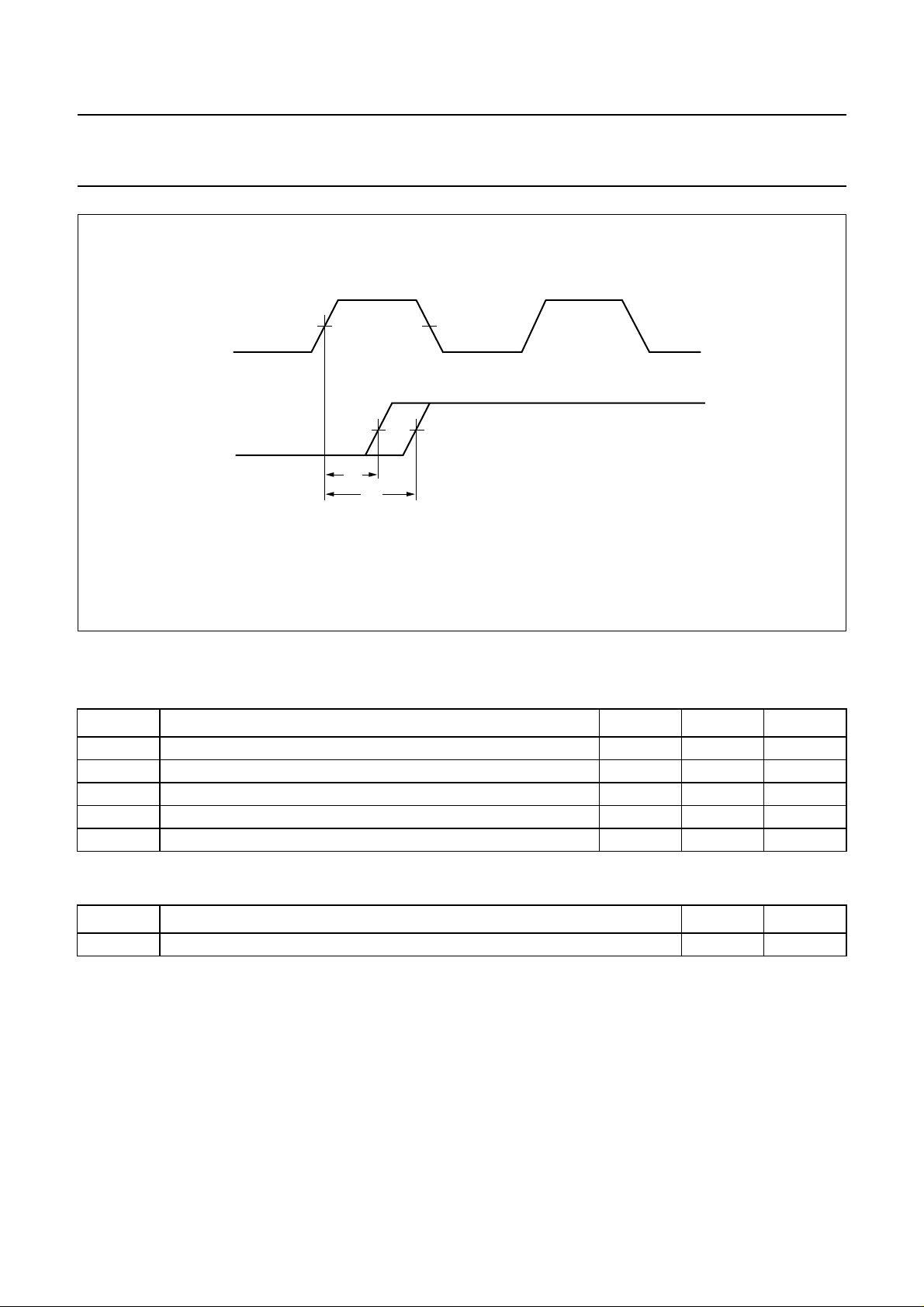

Fig.9 Timing diagram.

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134).

SYMBOL PARAMETER MIN. MAX. UNIT

V

DD

V

i

f

clk

T

stg

T

amb

supply voltage −0.5 +6.0 V
input voltage −0.5 VDD+ 0.5 V
clock frequency − 38 MHz
storage temperature −40 +125 °C
operating ambient temperature 0 85 °C

THERMAL CHARACTERISTICS

SYMBOL PARAMETER VALUE UNIT

R

th j-c

thermal resistance from junction to case 46 K/W

1997 Jun 10 22

Philips Semiconductors Objective specification

Memory controller SAA4952WP

CHARACTERISTICS

V

=5V; T

DD

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

V

DD

I

DD

f

acq

f

LLDFL,LLD

C

i

V

IL

V

IH

V

OL

V

OH

T

j

T

amb

=25°C; unless otherwise specified.

amb

supply voltage 4.5 5 5.5 V
supply current − 35 − mA
acquisition frequency −−33 MHz
operating frequency of display and deflection part note 1 24 − 37 MHz
input capacitance − 10 15 pF
LOW level input voltage −−0.8 V
HIGH level input voltage 2.0 −−V
LOW level output voltage Io= 4 mA; note 2 −−0.4 V
HIGH level output voltage Io= −4 mA; note 2 2.4 3.4 − V
junction temperature −−125 °C
operating ambient temperature 0 − 85 °C

Notes

1. f

= 24 MHz for LLDFL, if the data at the microcontroller port P0 to P7, ALE and WRD is supplied from a

min

microcontroller clocked with 12 MHz.

2. For SRC Io= ±8 mA.

APPLICATION INFORMATION

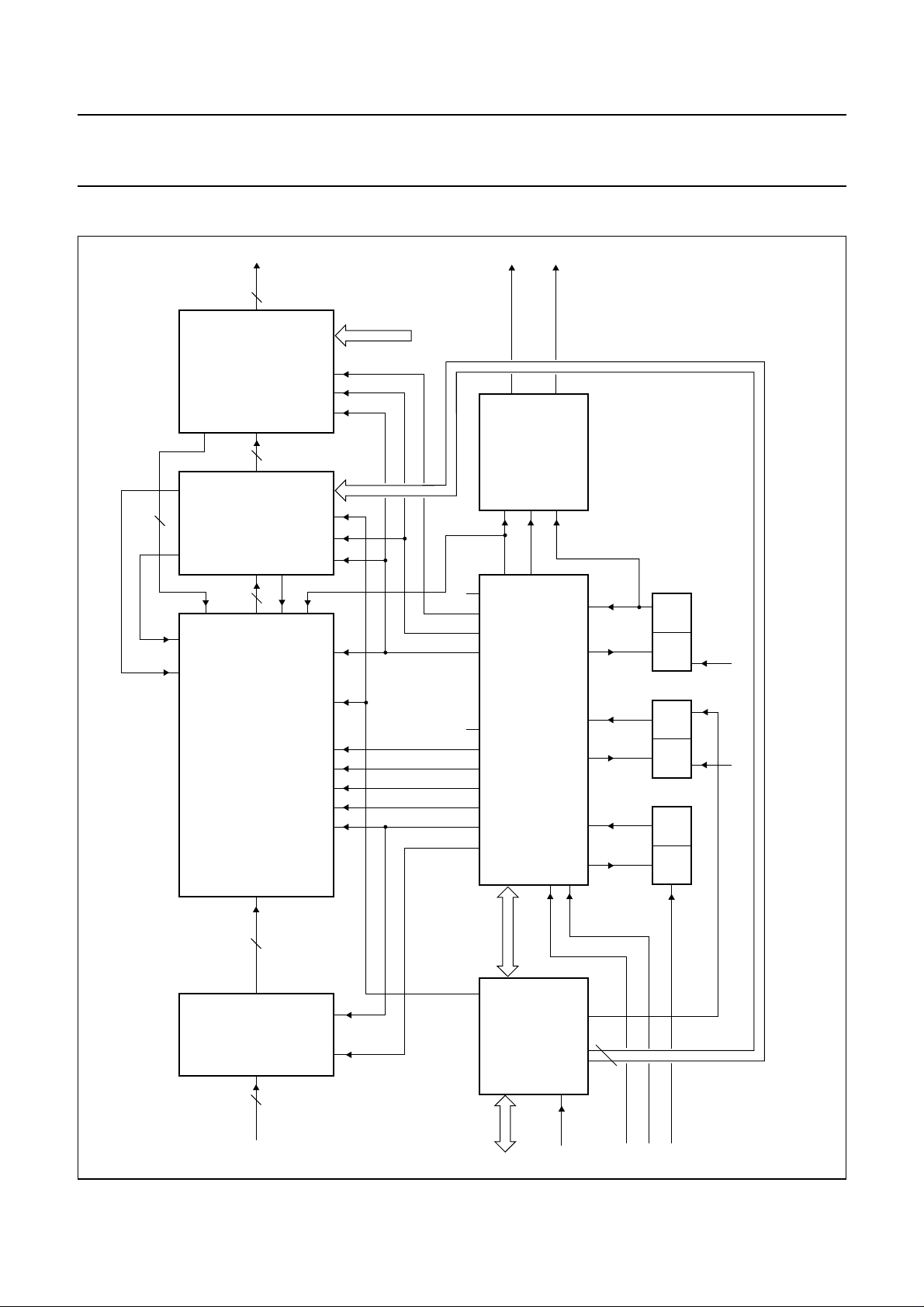

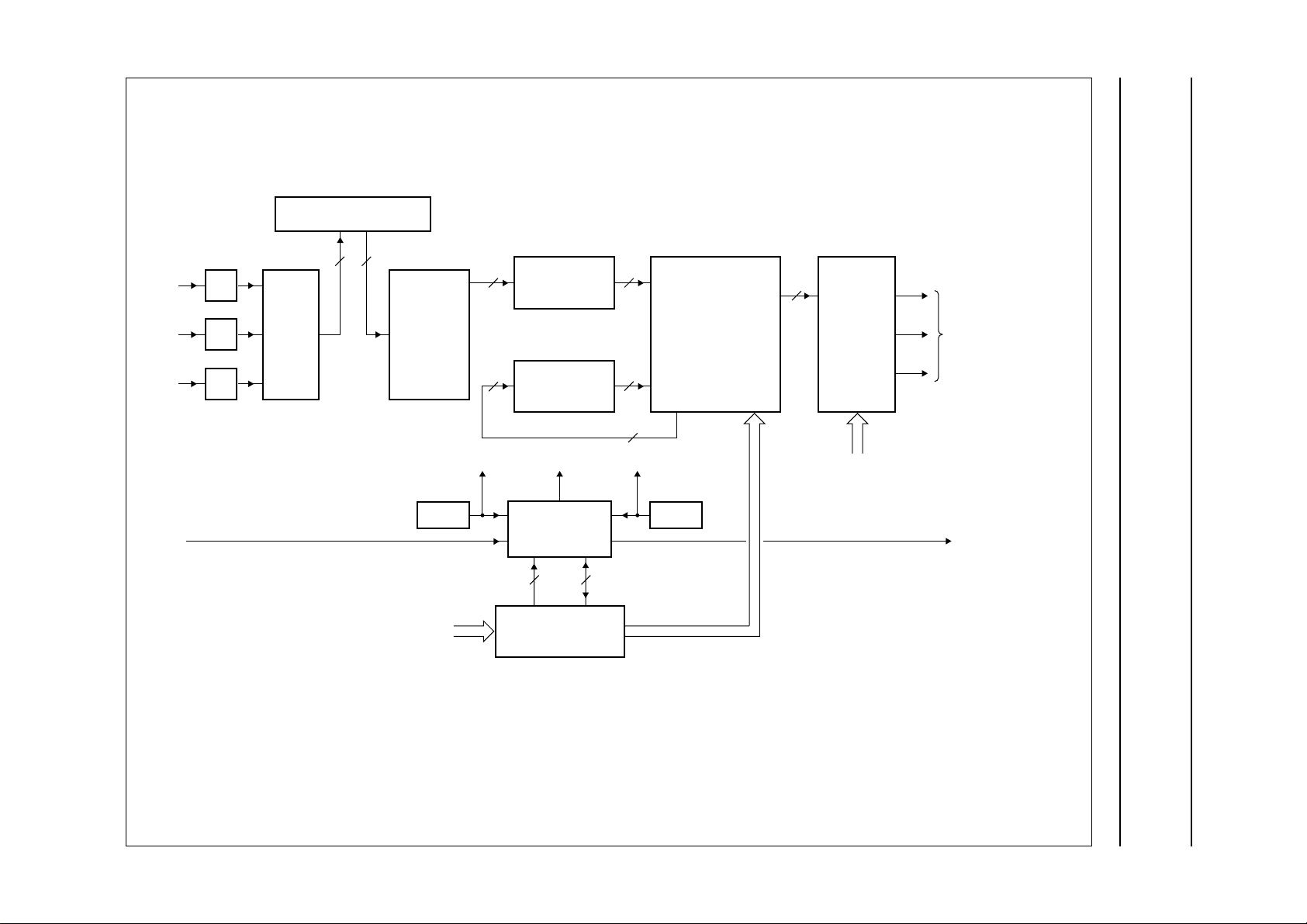

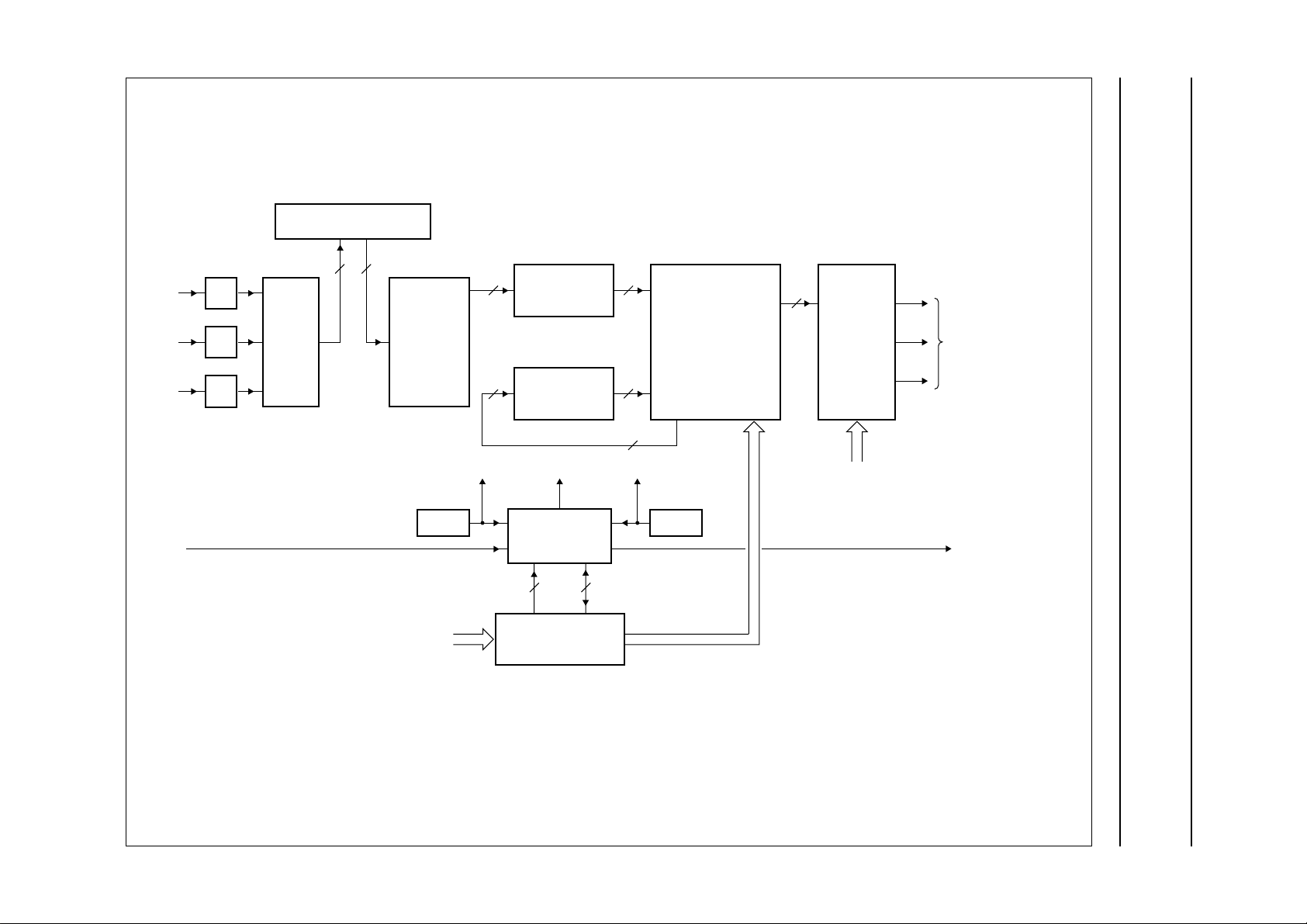

Figure 10 illustrates a block diagram of the application
environment of the memory controller SAA4952WP.
The full option chip set of the new TV feature system
controlled by the I2C-bus includes the following circuits:

TDA8755

ADC.

SAA4955TJ

3 Mbit video RAM.

SAA4995WP

PANorama-IC (PAN-IC) for linear horizontal zoom and
compression, non-linear (panorama) horizontal aspect
ratio conversion.

SAA4990H

Progressive scan-Zoom and Noise reduction IC
(PROZONIC) with line flicker reduction.

SAA4991WP

The Motion Estimation/Compensation Line flicker
reduction ZOom and Noise reduction IC is abbreviated as
MELZONIC.

SAA4952WP

Memory controller.

S87C654-4A44

Microcontroller.

SAA7165

VEDA2, DAC with digital CTI and luminance peaking.

1997 Jun 10 23

Philips Semiconductors Objective specification

Memory controller SAA4952WP

Application diagrams

V

H

MHA730

VEDA2

SAA7165

YUV

3

VIDEO

ENHANCED

DAC

CTI, PEAKING

C-bus

2

I

RE1 output

RE2 output

book, full pagewidth

24

12

PROZONIC

SAA4990H

NOISE

SCAN, LFR,

PROGRESSIVE

REDUCTION

CROSS-COLOUR

VERTICAL ZOOM,

WE2

24

2 × SAA4955TJ

MEMORY BLOCK

REDUCTION

VDFL

HVCD
RE1
SRC

IE2
RSTW1
WE1
IE1
SWC1

CLV

16 3 7 8 42 14 15 1942018

TDA9151

DEFLECTION

LLDFL

27 MHz

HDFL

38

37

143 35 33

SAA4952WP

MEMORY CONTROLLER

21,22

25 to 32

11 13

9

39

32, 36 MHz 27 MHz

LLA

12, 13.5, 16

HRA HRD HRDFL LLDFLLLD

18 MHz

VCO

PD

VCO

PD

VCO

PD

CLV

HDFL

Fig.10 Application diagram.

acquisition display deflection

12

ADC

RSTR

SWC1

CLV

TDA8755

3

YUV

1997 Jun 10 24

ALE, WRD

C-bus

2

I

P0 to P7

MICRO-

CONTROLLER

P83C652/4FBA

VDFL

2

STROBE

VACQ

COMP

SNERT-bus

ABK

1997 Jun 10 25

d

book, full pagewidth

Philips Semiconductors Objective specification

Memory controller SAA4952WP

FEATURE CONNECTOR

12

12

Y

LPF

U

LPF

V

LPF

ADC

TDA8755

PAN-IC

SAA4995WP

12

12

MEMORY 1

SAA4955TJ

1 ×

MEMORY 2

SAA4955TJ

1 ×

12

12

PROZONIC

SAA4990H

VERTICAL ZOOM

LINE FLICKER

REDUCTION

NOISE AND

CROSS-COLOUR

REDUCTION

12

VEDA2

SAA7165

CTI

Y-PEAKING

DAC

Y

video processor

U

TDA4780
RGB output stages
TDA6111

V

HA, VA

12

f

D

VCO2

VCO1

f

A

CONTROL

MEMORY

CONTROLLER

SAA4952WP

CONTROL DATA

2

I

C-bus

2

MICROCONTROLLER

8

SNERT-bus

S87C654

MHA731

Fig.11 Block diagram of a full-options IPQ module MK6.

I2C-bus

HD, VD

to
deflection
processor

1997 Jun 10 26

b

ook, full pagewidth

Philips Semiconductors Objective specification

Memory controller SAA4952WP

FEATURE CONNECTOR

12

12

Y

LPF

U

LPF

V

LPF

ADC

TDA8755

PAN-IC

SAA4995WP

12

12

MEMORY 1

SAA4955TJ

1 ×

MEMORY 2

SAA4955TJ

1 ×

12

12

MELZONIC

SAA4991WP

MOTION ESTIMATION
AND COMPENSATION

LINE FLICKER

REDUCTION

NOISE AND

CROSS-COLOUR

REDUCTION

VERTICAL ZOOM

12

VEDA2

SAA7165

CTI

Y-PEAKING

DAC

Y

video processor

U

TDA4780
RGB output stages
TDA6111

V

HA, VA

12

f

A

VCO1 VCO2

CONTROL

MEMORY

CONTROLLER

f

D

SAA4952WP

CONTROL DATA

I2C-bus

2

MICROCONTROLLER

8

SNERT-bus

S87C654

MHA732

Fig.12 Block diagram of a full-options IPQ module MK7.

I2C-bus

HD, VD

to
deflection
processor

Philips Semiconductors Objective specification

Memory controller SAA4952WP

PACKAGE OUTLINE

PLCC44: plastic leaded chip carrier; 44 leads

e

D

y

40

44

1

pin 1 index

6

β

k

717

e

D

H

D

X

2939

SOT187-2

e

E

A

Z

E

28

H

E

E

A

A

1

A

e

18

k

1

v M

Z

D

A

4

B

v M

B

w M

detail X

b

p

b

1

(A )

3

L

p

0 5 10 mm

scale

DIMENSIONS (millimetre dimensions are derived from the original inch dimensions)

UNIT A

mm

inches

A

1

min. max. max. max. max.

4.57

0.51

4.19

0.180

0.020

0.165

A

0.25

0.01

A

4

3

3.05

0.12

b

0.53

0.33

0.021

0.013

b

p

1

0.81

0.66

0.032

0.026

(1)

D

16.66

16.51

0.656

0.650

(1)

E

eH

16.66

1.27

16.51

0.656

0.05

0.650

e

D

16.00

14.99

0.630

0.590

e

16.00

14.99

0.630

0.590

E

17.65

17.40

0.695

0.685

Note

1. Plastic or metal protrusions of 0.01 inches maximum per side are not included.

OUTLINE
VERSION

SOT187-2

IEC JEDEC EIAJ

112E10 MO-047AC

REFERENCES

1997 Jun 10 27

H

E

D

17.65

17.40

0.695

0.685

k

1.22

1.07

0.048

0.042

k

0.51

0.020

1

0.057

0.040

L

p

1.44

1.02

EUROPEAN

PROJECTION

(1) (1)

Z

Z

E

D

ywv β

0.18 0.100.18

0.007 0.0040.007

2.16

0.085

2.16

0.085

o

45

ISSUE DATE

92-11-17
95-02-25

Philips Semiconductors Objective specification

Memory controller SAA4952WP

SOLDERING
Introduction

There is no soldering method that is ideal for all IC
packages. Wave soldering is often preferred when
through-hole and surface mounted components are mixed
on one printed-circuit board. However, wave soldering is
not always suitable for surface mounted ICs, or for
printed-circuits with high population densities. In these
situations reflow soldering is often used.

This text gives a very brief insight to a complex technology.
A more in-depth account of soldering ICs can be found in
our

“IC Package Databook”

Reflow soldering

Reflow soldering techniques are suitable for all PLCC
packages.

The choice of heating method may be influenced by larger
PLCC packages (44 leads, or more). If infrared or vapour
phase heating is used and the large packages are not
absolutely dry (less than 0.1% moisture content by
weight), vaporization of the small amount of moisture in
them can cause cracking of the plastic body. For more
information, refer to the Drypack chapter in our

Reference Handbook”

Reflow soldering requires solder paste (a suspension of
fine solder particles, flux and binding agent) to be applied
to the printed-circuit board by screen printing, stencilling or
pressure-syringe dispensing before package placement.

Several techniques exist for reflowing; for example,
thermal conduction by heated belt. Dwell times vary
between 50 and 300 seconds depending on heating
method. Typical reflow temperatures range from
215 to 250 °C.

(order code 9398 652 90011).

“Quality

(order code 9398 510 63011).

Wave soldering

Wave soldering techniques can be used for all PLCC
packages if the following conditions are observed:

• A double-wave (a turbulent wave with high upward
pressure followed by a smooth laminar wave) soldering
technique should be used.

• The longitudinal axis of the package footprint must be
parallel to the solder flow.

• The package footprint must incorporate solder thieves at
the downstream corners.

During placement and before soldering, the package must
be fixed with a droplet of adhesive. The adhesive can be
applied by screen printing, pin transfer or syringe
dispensing. The package can be soldered after the
adhesive is cured.

Maximum permissible solder temperature is 260 °C, and
maximum duration of package immersion in solder is
10 seconds, if cooled to less than 150 °C within
6 seconds. Typical dwell time is 4 seconds at 250 °C.

A mildly-activated flux will eliminate the need for removal
of corrosive residues in most applications.

Repairing soldered joints

Fix the component by first soldering two diagonally­opposite end leads. Use only a low voltage soldering iron
(less than 24 V) applied to the flat part of the lead. Contact
time must be limited to 10 seconds at up to 300 °C. When
using a dedicated tool, all other leads can be soldered in
one operation within 2 to 5 seconds between
270 and 320 °C.

Preheating is necessary to dry the paste and evaporate
the binding agent. Preheating duration: 45 minutes at
45 °C.

1997 Jun 10 28

Philips Semiconductors Objective specification

Memory controller SAA4952WP

DEFINITIONS

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.

1997 Jun 10 29

Philips Semiconductors Objective specification

Memory controller SAA4952WP

NOTES

1997 Jun 10 30

Philips Semiconductors Objective specification

Memory controller SAA4952WP

NOTES

1997 Jun 10 31

Philips Semiconductors – a worldwide company

Argentina: see South America
Australia: 34 Waterloo Road, NORTH RYDE, NSW 2113,

Tel. [phone], Fax. [phone]
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213,

Tel. [phone], Fax. [phone]
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,

220050 MINSK, Tel. [phone], Fax. [phone]

Belgium: see The Netherlands
Brazil: see South America
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15th floor,

51 James Bourchier Blvd., 1407 SOFIA,
Tel. [phone], Fax. [phone]

Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. [phone]

China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. [phone], Fax. [phone]

Colombia: see South America
Czech Republic: see Austria
Denmark: Prags Boulevard 80, PB 1919, DK-2300 COPENHAGEN S,

Tel. [phone], Fax. [phone]
Finland: Sinikalliontie 3, FIN-02630 ESPOO,

Tel. [phone], Fax. [phone]
France: 4 Rue du Port-aux-Vins, BP317, 92156 SURESNES Cedex,

Tel. [phone], Fax. [phone]
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,

Tel. [phone], Fax. [phone]
Greece: No. 15, 25th March Street, GR 17778 TAVROS/ATHENS,

Tel. [phone], Fax. [phone]

Hungary: see Austria
India: Philips INDIA Ltd, Shivsagar Estate, A Block, Dr. Annie Besant Rd.

Worli, MUMBAI 400 018, Tel. [phone], Fax. [phone]

Indonesia: see Singapore
Ireland: Newstead, Clonskeagh, DUBLIN 14,

Tel. [phone], Fax. [phone]
Israel: RAPAC Electronics, 7 Kehilat Saloniki St, PO Box 18053,

TEL AVIV 61180, Tel. [phone], Fax. [phone]
Italy: PHILIPS SEMICONDUCTORS, Piazza IV Novembre 3,

20124 MILANO, Tel. [phone], Fax. [phone]
Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku, TOKYO 108,

Tel. [phone], Fax. [phone]
Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,

Tel. [phone], Fax. [phone]
Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,

Tel. [phone], Fax. [phone]
Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,

Tel. [phone]

Middle East: see Italy

Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,

Tel. [phone], Fax. [phone]
New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,

Tel. [phone], Fax. [phone]
Norway: Box 1, Manglerud 0612, OSLO,

Tel. [phone], Fax. [phone]
Philippines: Philips Semiconductors Philippines Inc.,

106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. [phone], Fax. [phone]

Poland: Ul. Lukiska 10, PL 04-123 WARSZAWA,
Tel. [phone], Fax. [phone]

Portugal: see Spain
Romania: see Italy
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,

Tel. [phone], Fax. [phone]
Singapore: Lorong 1, Toa Payoh, SINGAPORE 1231,

Tel. [phone], Fax. [phone]

Slovakia: see Austria
Slovenia: see Italy
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,

2092 JOHANNESBURG, P.O. Box 7430 Johannesburg 2000,
Tel. [phone], Fax. [phone]

South America: Rua do Rocio 220, 5th floor, Suite 51,
04552-903 São Paulo, SÃO PAULO - SP, Brazil,
Tel. [phone], Fax. [phone]

Spain: Balmes 22, 08007 BARCELONA,
Tel. [phone], Fax. [phone]

Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. [phone], Fax. [phone]

Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. [phone], Fax. [phone]

Taiwan: Philips Semiconductors, 6F, No. 96, Chien Kuo N. Rd., Sec. 1,
TAIPEI, Taiwan Tel. [phone], Fax. [phone]

Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,
Tel. [phone], Fax. [phone]

Turkey: Talatpasa Cad. No. 5, 80640 GÜLTEPE/ISTANBUL,
Tel. [phone], Fax. [phone]

Ukraine: PHILIPS UKRAINE, 4 Patrice Lumumba str., Building B, Floor 7,
252042 KIEV, Tel. [phone], Fax. [phone]

United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
MIDDLESEX UB3 5BX, Tel. [phone], Fax. [phone]

United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. [phone]

Uruguay: see South America
Vietnam: see Singapore
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,

Tel. [phone], Fax.[phone]

For all other countries apply to: Philips Semiconductors, Marketing & Sales Communications,
Building BE-p, P.O. Box 218, 5600 MD EINDHOVEN, The Netherlands, Fax. [phone]

© Philips Electronics N.V. 1997 SCA54
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.

Internet: http://www.semiconductors.philips.com

Printed in The Netherlands 547047/20/01/pp32 Date of release: 1997 Jun 10 Document order number: 9397 750 01973
