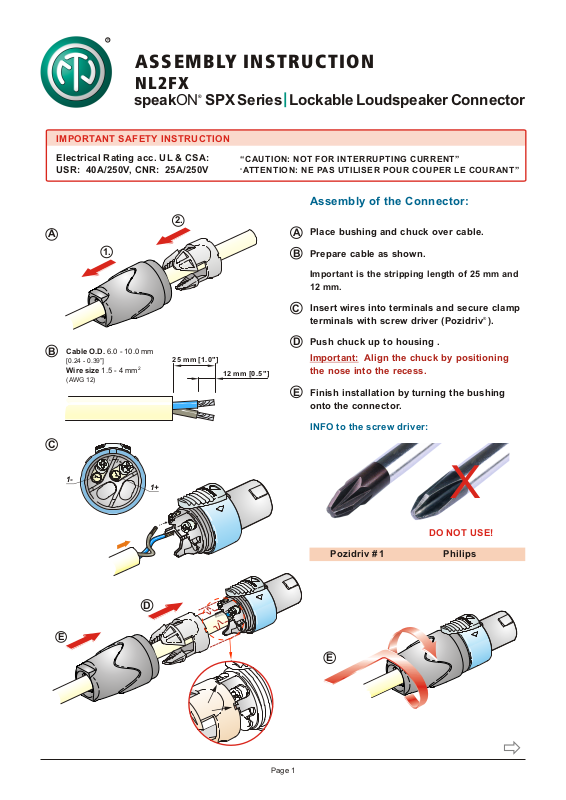

ASSEMBLY INSTRUCTION
NL 2 F X
speakON SPX Series Lockable Loudspeaker Connector
IMPORTANT SAFETY INSTRUCTION
®
Electrical Rating acc. UL & CSA:
USR: 40A/250V, CNR: 25A/250V
2.
A
1.
Cable O.D. 6.0 - 10.0 mm
B
[0.24 - 0.39”]
Wire size 1.5 - 4 mm
(AWG 12)
2
25 mm [1.0"]
“CAUTIO N: NOT FOR INTER RUPTI NG CURRENT ”
“ATTENTION: NE PAS UTI LISER POUR COUPER LE COURA NT”
Assembly of the Connector:
Place bushing and chuck over cable.
A
Prepare cable as shown.
B
Important is the stripping length of 25 mm and
12 mm.
Insert wires into terminals and secure clamp
C
terminals with screw driver (Pozidriv ).
Push chuck up to housing .
D
Important: Align the chuck by positioning
12 mm [0.5"]
the nose into the recess.
Finish installation by turning the bushing
E
onto the connector.
INFO to the screw driver:
®
C
1-
1
+
1-
1+
X
DO NOT USE!
Pozidriv # 1 Philips
D
E
E
Page 1
ð
Page 2
ASSEMBLY INSTRUCTION speakON NL4FX /
I
NL4FRX
Handling of the Connector:
Engagement: Separation:
2.
1.
1.
2.
L
I
ECH
T
EN
STE
I
N
3.
L
I
E
C
H
TE
N
S
TEIN
NEUTRIK AG LI T: +423 / 237 24 2 4 F: +423 / 232 53 93
NEUTRIK USA Inc. USA T: +1 704 / 972 3050 F: +1 704 / 438 9202
NEUTRIK UK Ltd. UK T: +44 1983 / 811 441 F: +44 1983 / 811 439
NEUTRIK Vertriebs Gm bH DE / NL / AT/DK T: +49 8131 / 280 890 F: +49 8131 / 280 8 30
Draft. Nr.: BDA 348 / 3102M2081 Up date: 27.05.2013
( )
www.neutrik.c om
