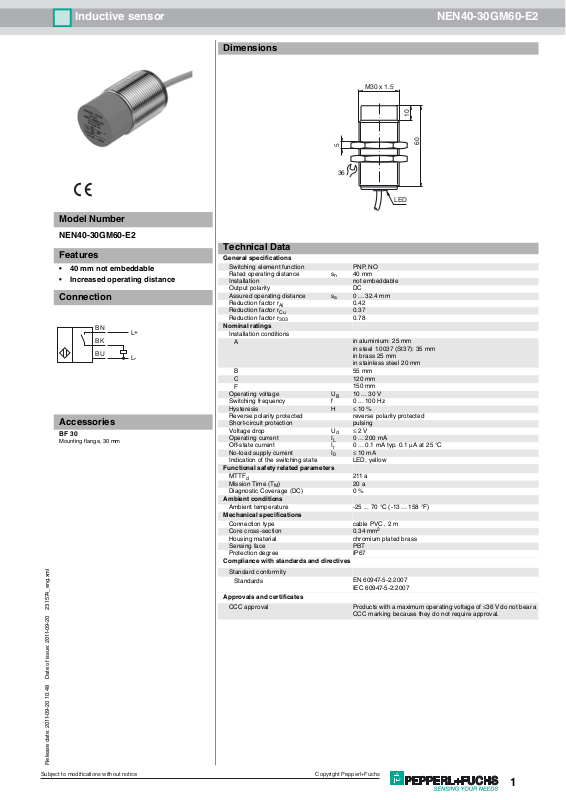

Inductive sensor NEN40-30GM60-E2
Dimensions
M30 x 1.5
10
Model Number
NEN40-30GM60-E2
Features
• 40 mm not embeddable
• Increased operating distance
Connection
BN
BK
BU
L+
L-
Accessories
BF 30
Mounting flange, 30 mm
5
60
36
LED
Technical Data
General specifications
Switching element function PNP, NO
Rated operating distance s
Installation not embeddable
Output polarity DC
Assured operating distance sa0 ... 32.4 mm
Reduction factor r
Reduction factor rCu 0.37
Reduction factor r
Nominal ratings
Installation conditions
A
B
C
F
Operating voltage UB10 ... 30 V
Switching frequency f 0 ... 100 Hz
Hysteresis H ≤ 10 %
Reverse polarity protected reverse polarity protected
Short-circuit protection pulsing
Voltage drop U
Operating current I
Off-state current I
No-load supply current I
Indication of the switching state LED, yellow
Functional safety related parameters
MTTFd 211 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 0 %
Ambient conditions
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)
Mechanical specifications
Connection type cable PVC , 2 m
Core cross-section 0.34 mm
Housing material chromium plated brass
Sensing face PBT
Protection degree IP67
Compliance with standards and directives
Standard conformity
Standards
Approvals and certificates
CCC approval Products with a maximum operating voltage of ≤36 V do not bear a
0.42
Al
0.78
303
40 mm
n
in aluminium: 25 mm
in steel 1.0037 (St37): 35 mm
in brass 25 mm
in stainless steel 20 mm
55 mm
120 mm
150 mm
≤ 2 V
d
0 ... 200 mA
L
0 ... 0.1 mA typ. 0.1 µA at 25 °C
r
≤ 10 mA
0
2
EN 60947-5-2:2007
IEC 60947-5-2:2007
CCC marking because they do not require approval.
Release date: 2011-09-20 10:48 Date of issue: 2011-09-20 231574_eng.xml
Subject to modifications without notice
Copyright Pepperl+Fuchs
1
Page 2
Inductive sensor NEN40-30GM60-E2
Installation conditions
B F
metal-free zone
sensing face
support
CA
Release date: 2011-09-20 10:48 Date of issue: 2011-09-20 231574_eng.xml
Subject to modifications without notice
Copyright Pepperl+Fuchs
2
