Datasheet MSC82307 Datasheet (SGS Thomson Microelectronics)

RF & MICROWAVE TRANSISTORS

.REFRACTORY/GOLD METALLIZATION

.VSWR CAPABILITY 20:1 @ RATED

CONDITIONS

.HERMETIC STRIPAC

.P

= 7.0 W MIN. WITH 9.6 dB GAIN

OUT



PACKAGE

ORDER CO DE

MSC82307

PIN CONNECTION

MSC82307

GENERAL PURPOSE AMPLIFIER APPLICATIONS

PRELIMINARY DATA

.250 2LFL (S010)

hermetical ly sealed

BRANDING

82307

DESCRIPTION

The MSC82307 is a common base hermetically
sealed silicon NPN microwave power transistor
utilizi ng a rugg ed overla y die geometry. This devic e
is capable of withstanding 20:1 load VSWR at
any phase angle under rated conditions.

The MSC82307 was designed for Class C ampli­fier/oscillator applications in the 1.5 - 2.3 GHz fre­quency range.

ABSOLUTE MAXIMUM RATINGS (T

Symbol Parameter Value Unit

P

DISS

I

C

V

CC

T

J

T

STG

THERMAL DATA

R

TH(j-c)

*Applies only to rated RF amplifier operation

Power Dissipation* (TC ≤ 50˚C) 21.4 W
Device Current* 1.2 A
Collector-Supply Voltage* 26 V
Junction Temperature 200
Storage Temperature

Junction-Case Thermal Resistance* 7.0

case

= 25°C)

1. Collector 3. Emitter

2. Base 4. Base

65 to +200

−

°
°

°

C/W

C
C

October 1992

1/3

MSC82307

ELECTRICAL SPECIFICATIONS (T

case

= 25°C)

STATIC

Symbol Test Condi tions

BV
BV
BV

I

CBO

h

CBO
EBO
CER

FE

IC = 1mA IE = 0mA 44 — — V
IE = 1mA IC = 0mA 3.5 — — V
IC = 5mA RBE = 10Ω 44 — — V
VCB = 22V — — 0 .5 mA
VCE = 5V IC = 500mA 30 — 300 —

Min. Typ. Max.

Valu e

DYNAMIC

Symbol Test Conditi ons

P

OUT

η

cf = 2.3 GHz PIN = 0.76 W VCC = 22 V 40 45 — %

G

P

C

OB

f = 2.3 GHz PIN = 0.76 W VCC = 22 V 7.0 8.0 — W

f = 2.3 GHz PIN = 0.76 W VCC = 22 V 9.6 10.2 — dB
f = 1 MHz VCB = 22 V — — 8.5 pF

Value

Min. Typ. Max.

Unit

Unit

TEST CIRCUIT

Ref.: Dwg. No. C125518
All dimensions are in inches.

Frequency 2.3 GHz

RF Amplifier Power Output Test

2/3

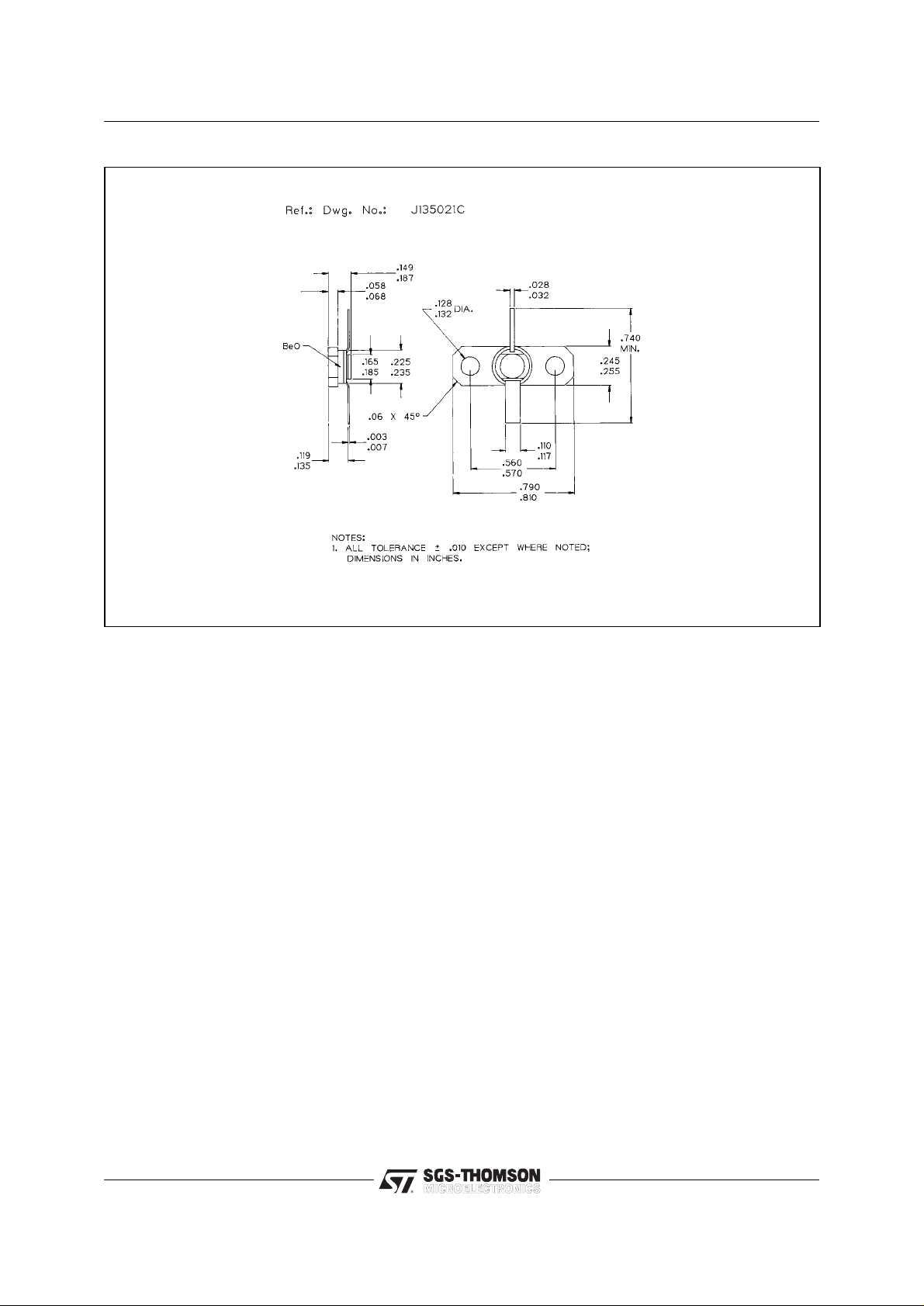

PACKAGE MECHANICAL DATA

MSC82307
