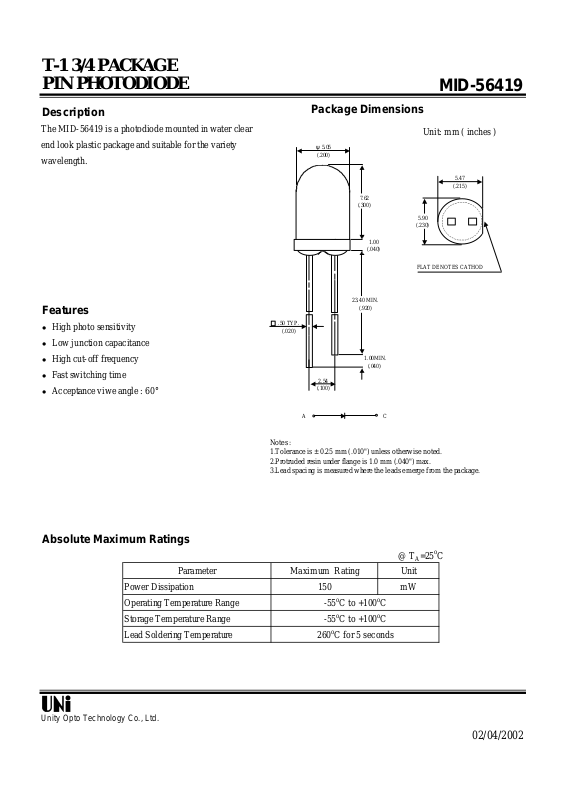

Page 1
T-1 3/4 PACKAGE
PIN PHOTODIODE
MID-56419
Description
(.200)
(.300)
(.230)
The MID-56419 is a photodiode mounted in water clear
end look plastic package and suitable for the variety
wavelength.
Features
l High photo sensitivity
l Low junction capacitance
l High cut-off frequency
l Fast switching time
l Acceptance viwe angle : 60°
Package Dimensions
Unit: mm ( inches )
ψ5.05
5.47
(.215)
7.62
5.90
1.00
(.040)
FLAT DENOTES CATHOD
23.40 MIN.
(.920)
.50 TYP.
(.020)
1.00MIN.
(.040)
2.54
(.100)
Absolute Maximum Ratings
Parameter Maximum Rating Unit
Power Dissipation 150 mW
Operating Temperature Range
Storage Temperature Range
Lead Soldering Temperature
A
Notes :
1.Tolerance is ± 0.25 mm (.010") unless otherwise noted.
2.Protruded resin under flange is 1.0 mm (.040") max.
3.Lead spacing is measured where the leads emerge from the package.
C
@ TA=25oC
-55oC to +100oC
-55oC to +100oC
260oC for 5 seconds
Unity Opto Technology Co., Ltd.
02/04/2002
Page 2
MID-56419
Optical-Electrical Characteristics
2
2
60
Parameter Test Conditions Symbol Min. Type . Max. Unit
Reverse Break Down Voltage
IR=100µA V
Ee=0
Reverse Dark Current
VR=10V I
Ee=0
Open Circuit Voltage λ=940nm
Ee=0.1mW/cm
Rise Time
Fall Time
Light Current
VR =10V λ=940nm
RL=50Ω
VR =5V , λ=940nm I
Ee=0.1mW/cm
Total Capacitance
VR =3V , f=1MHZ C
Ee=0
Typical Optical-Electrical Characteristic Curves
(BR)R
V
D
OC
30
Tr 30
Tf 30
L
T
350
12
25
@ TA=25oC
30
V
nA
mV
nsec
µA
pF
4000
3000
2000
Dark Current - pA
1000
0
0 5 10 15 20
Reverse Volatage - V
R
FIG.1 DARK CURRENT VS REVERSE VOLTAGE
2
)
℃
/ Ip 25
amb
TEMP=25oC, Ee=0 mW/cm
1.4
1.2
1.0
0.8
0.6
0.4
0.2
Photocurrent ( Ip
0.0
-30 -10 10 30 50 70
Ambeint Temperature- oC
FIG.3 PHOTOCURRENT VS AMBIENT
TEMPERATURE
100
80
40
Capacitance C - pF
20
0
0.01 0.1 1 10 100
Reverse Voltage- V
R
FIG.2 CAPACITANCE VS. REVERSE VOLTAGE
F=1MHZ, Ee=0mW/cm
1000.0
100.0
10.0
1.0
2
Dark Current IR - nA
0.1
0 20 40 60 80 100
Ambient Temperature-oC
FIG.4 DARK CURRENT VS AMBIENT
TEMPERATURE
VR=10, Ee=0 mw/cm
2
Unity Opto Technology Co., Ltd.
02/04/2002
Page 3
MID-56419
Typical Optical-Electrical Characteristic Curves
90°
VS. AMBIENT TEMPERATURE
VS. WAVELENGTH
1
0.1
Relative Response Sensitivity
0.01
0.2 0.5 0.8 1.1 1.4
λWavelength (nm)
FIG.5 RELATIVE SPECTRAL SENSITIVITY
0° 10° 20°
30°
40°
1.0
0.9
0.8
Relative Sensitivity
50°
60°
70°
80°
0.5 0.3 0.1 0.2 0.4 0.6
FIG .7 SENSITIVITY DIAGRAM
1000
A
µ
100
10
1
Photocurrnet Ip -
0.1
0.01 0.1 1 10
Irradiance Ee (mW/cm2)
FIG.6 PHOTOCURRENT VS.
IRRADIANCE = 950 nm
200
150
100
50
Total Power Dissipation mW
0
0 20 40 60 80 100
Ambient Temperature -oC
FIG.8 TOTAL POWER DISSIPATION
Unity Opto Technology Co., Ltd.
02/04/2002
