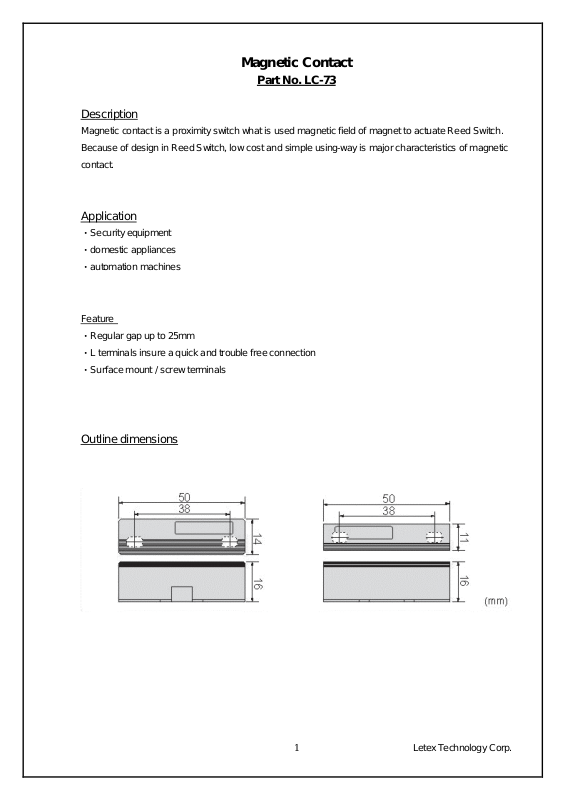

1
Magnetic Contact
Part No. LC-73
Description
Magnetic contact is a proximity switch what is used magnetic field of magnet to actuate Reed Switch. Because of design in Reed Switch, low cost and simple using-way is major characteristics of magnetic contact.
Application
Security equipmentdomestic appliancesautomation machines
Feature
Regular gap up to 25mmL terminals insure a quick and trouble free connectionSurface mount / screw terminals
Outline dimensions
Letex Technology Corp.
Page 2
2
Magnetic Contact
Curie temperature (Tc)
Temperature
30 G (11 msec)
RH 72 hrs
Part No. LC-73
Switch
Contact arrangement Closed loop Switching voltage (Max.) 100v AC/DC Switching current (Max.) 0.5 A Contact capacity (Max.) 10 VA Initial contact (Max.) 0.2 Ohm Carry current (Max.) 1 A Breakdown voltage 200 VDC Insulation resistance (Min.) 100 Mohm Switch cycle 5×107 cycle at 30V 0.1ADC
Magnet
Material Anisotropic ferrite Residual flux density (Br) 3300~3600 Gauss Maximun energy product (BH) (Max.) 2.5~3.5 MG.Oe
Gap
Sense gap (Min.) 25mm
Physical characteristic
Vibration 20 G(10~55 HZ) Shock
Heat shock
450
-20~+60
-25~+65
(30Min.) (30Min.) 100 cycle Package drop Drop height 80 cm Humidity
80 95
Letex Technology Corp.
