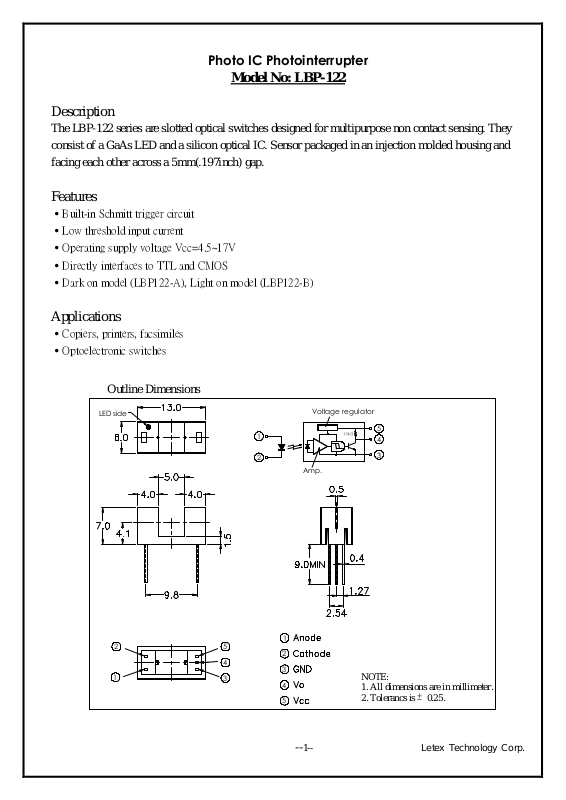

Photo IC Photointerrupter
Voltage regulator
Model No: LBP-122
Description
The LBP-122 series are slotted optical switches designed for multipurpose non contact sensing. They
consist of a GaAs LED and a silicon optical IC. Sensor packaged in an injection molded housing and
facing each other across a 5mm(.197inch) gap.
Features
˙Built-in Schmitt trigger circuit
˙Low threshold input current
˙Operating supply voltage Vcc=4.5~17V
˙Directly interfaces to TTL and CMOS
˙Dark on model (LBP122-A), Light on model (LBP122-B)
Applications
˙Copiers, printers, facsimiles
˙Optoelectronic switches
Outline Dimensions
LED side
1
2
Amp.
15kΩ
5
4
3
2
1
5
4
3
1
2
3
4
5
NOTE:
1. All dimensions are in millimeter.
2. Tolerancs is ±0.25.
--1-- Letex Technology Corp.
Page 2
Absolute Maximum Ratings (Ambient Temperature: 25℃)
Storage T emperature
T stg
Operating Temperature
g Temperature
T sol
Vcc=5V, I
Vcc=5V, I
Vcc=5V, I
Output
Vcc=5V,
Combination
(LBP-122-A)
(LBP-122-B)
Forward current IF 50 mA
Reverse voltage VR 5 V
Input
Peak forward current IFP 1 A
Power dissipation P 75 mW
Supply voltage VCC 17 V
Output
Low level output current IOL 50 mA
Power dissipation PO 250 mW
Solderin
Electrical Specifications (Ambient Temperature: 25℃)
Forward voltage VF 1.2 1.4 V IF=20mA
Reverse current IR 10 µA VR=4V
Operating supply voltage VCC 4.5 17 V
Low level output voltage VOL 0.15 0.4 V
High level output voltage VOH 4.9 V
Low level supply current ICCL 2.5 5.0 mA
Photo IC Photointerrupter
Model No: LBP-122
Item Symbol Rating Units Note
Pulse width≦100μs,
Duty ratio=0.01
-40 to +100
T op -25 to +85
260
Item Symbol MIN. TYP. MAX. Units Conditions
℃
℃
℃
10 seconds max.
IoL=16mA,
F=5mA
F=0
F=5mA
High level supply current ICCH 1.0 3.0 mA
High-Low threshold input current IFHL 1.0 5.0 mA Vcc=5V
Hysteresis IFLH / IFHL 0.55 0.75 0.95 Vcc=5V
High-Low propagation time
Low-High propagation time
Rise Time
Fall Time
tPHL
tPLH
LBP122-
A
LBP122-
B
LBP122-
A
LBP122-
B
tr
tf
5.0 15.0
3.0 9.0
3.0 9.0
µs
5.0 15.0
0.1 0.5
0.05 0.5
Note: The following illustrations show the definition of respond delay time.
0
0
input
output
t
PLH
t
t
t
PHL
0
0
input
output
t
PHL
t
PLH
IF=0
Vcc=5V
IF=5mA
RL=280Ω
t
t
--2-- Letex Technology Corp.
