Diode
Silicon Carbide Schottky Diode
Final Datasheet
Rev. 2.1 2017-07-21
IDH05G120C5
5th Generation CoolSiC™ 1200 V SiC Schottky Diode

5th Generation CoolSiC™ 1200 V SiC Schottky Diode
CoolSiCTM SiC Schottky Diode
Features:
Revolutionary semiconductor material - Silicon Carbide
No reverse recovery current / No forward recovery
Temperature independent switching behavior
Low forward voltage even at high operating temperature
Tight forward voltage distribution
Excellent thermal performance
Extended surge current capability
Specified dv/dt ruggedness
Qualified according to JEDEC1) for target applications
Pb-free lead plating; RoHS compliant
Benefits
System efficiency improvement over Si diodes
Enabling higher frequency / increased power density solutions
System size / cost savings due to reduced heatsink requirements and smaller magnetics
Reduced EMI
Highest efficiency across the entire load range
Robust diode operation during surge events
High reliability
RelatedLinks: www.infineon.com/sic
Applications
Solar inverters
Uninterruptable power supplies
Motor drives
Power Factor Correction
Package pin definitions
Pin 1 and backside – cathode
Pin 2 – anode
Key Performance and Package Parameters
1) J-STD20 and JESD22
Final Data Sheet 2 Rev. 2.1, 2017-07-21

5th Generation CoolSiC™ 1200 V SiC Schottky Diode
Table of Contents
Description .................................................................................................................................................. 2
Table of Contents ........................................................................................................................................ 3
Maximum Ratings ....................................................................................................................................... 4
Thermal Resistances .................................................................................................................................. 4
Electrical Characteristics ............................................................................................................................. 5
Electrical Characteristics Diagram .............................................................................................................. 6
Package Drawings ...................................................................................................................................... 9
Revision History ........................................................................................................................................ 10
Disclaimer ................................................................................................................................................. 11
Final Data Sheet 3 Rev. 2.1, 2017-07-21

5th Generation CoolSiC™ 1200 V SiC Schottky Diode
Repetitive peak reverse voltage
Continues forward current for R
th(j-c,max)
TC = 161°C, D=1
TC = 135°C, D=1
TC = 25°C, D=1
Surge non-repetitive forward current,
sine halfwave
TC=25°C, tp=10ms
TC=150°C, tp=10ms
Non-repetitive peak forward current
TC = 25°C, tp=10 µs
i²t value
TC = 25°C, tp=10 ms
TC = 150°C, tp=10 ms
Diode dv/dt ruggedness
VR=0…960V
Power dissipation
TC = 25°C
Soldering temperature,
wavesoldering only allowed at leads,
1.6mm (0.063 in.) from case for 10 s
Mounting torque
M3 and M4 screws
Diode thermal resistance,
junction – case
Thermal resistance,
junction – ambient
Maximum ratings
Thermal Resistances
Final Data Sheet 4 Rev. 2.1, 2017-07-21

5th Generation CoolSiC™ 1200 V SiC Schottky Diode
IF= 5A, Tj=25°C
IF= 5A, Tj=150°C
VR=1200V, Tj=25°C
VR=1200V, Tj=150°C
VR=1 V, f=1 MHz
VR=400 V, f=1 MHz
VR=800 V, f=1 MHz
Electrical Characteristics
Static Characteristics, at Tj=25°C, unless otherwise specified
Dynamic Characteristics, at Tj=25°C, unless otherwise specified
Final Data Sheet 5 Rev. 2.1, 2017-07-21

5th Generation CoolSiC™ 1200 V SiC Schottky Diode
Figure 1. Power dissipation as a function
of case temperature, P
tot
=f(TC),
R
th(j-c),max
Figure 2. Diode forward current as function
of temperature, Tj≤175°C,
R
th(j-c),max
, parameter D=duty cycle,
Vth, R
diff
@ Tj=175°C
Figure 3. Typical forward characteristics,
IF=f(VF), tp= 10 µs, parameter: Tj
Figure 4. Typical forward characteristics in surge
current, IF=f(VF), tp= 10 µs,
parameter: Tj
Electrical Characteristics Diagram
Final Data Sheet 6 Rev. 2.1, 2017-07-21

5th Generation CoolSiC™ 1200 V SiC Schottky Diode

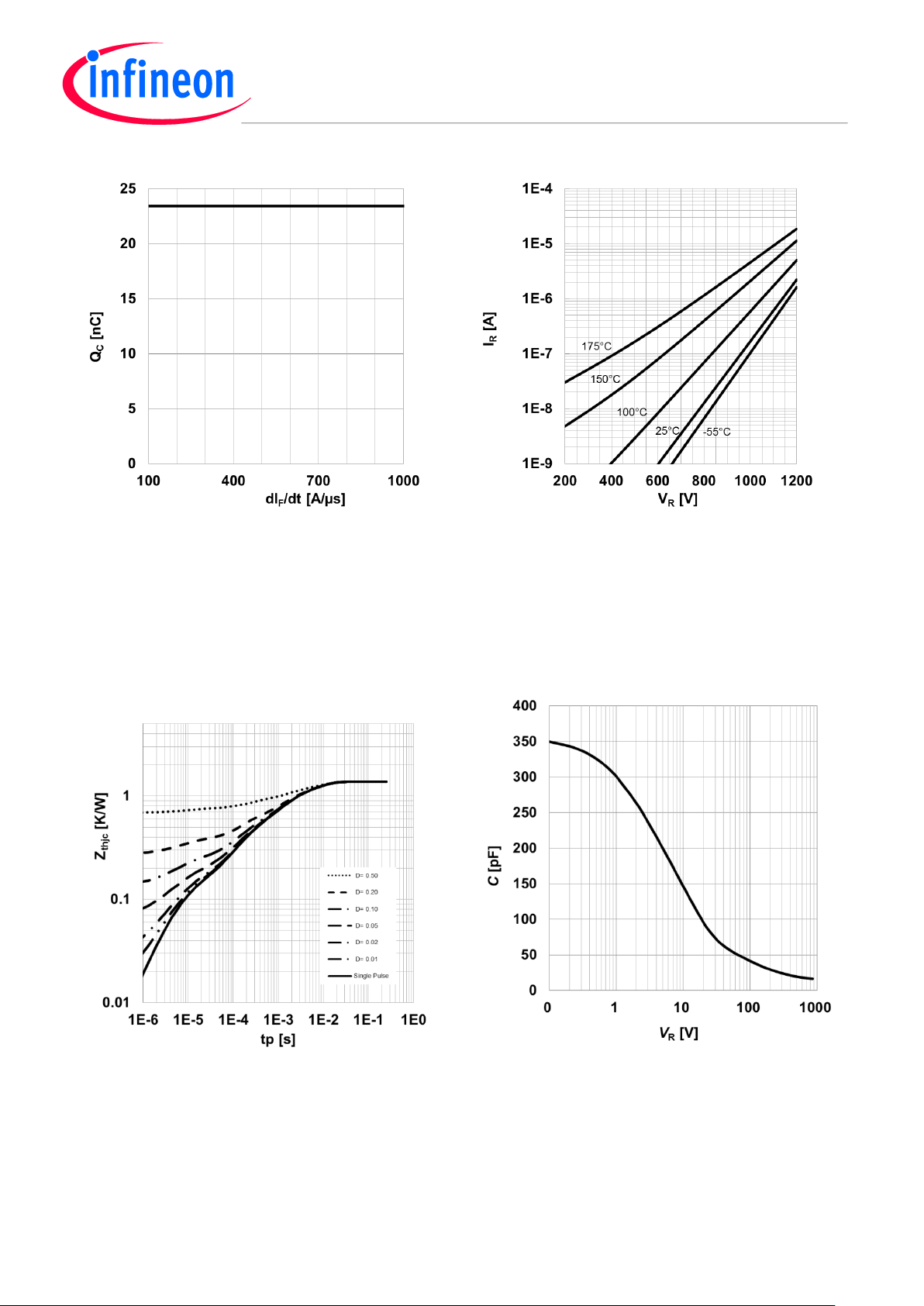

Figure 5. Typical capacitive charge as function
of current slope1, QC=f(dIF/dt), Tj=150°C
1) Only capacitive charge, guaranteed by design.
Figure 6. Typical reverse current as function
of reverse voltage, IR=f(VR), parameter: Tj
Figure 7. Max. transient thermal impedance,
Z
th,jc
=f(tP), parameter: D=tP/T
Figure 8. Typical capacitance as function of
reverse voltage, C=f(VR); Tj=25°C; f=1 MHz
Final Data Sheet 7 Rev. 2.1, 2017-07-21

5th Generation CoolSiC™ 1200 V SiC Schottky Diode
Figure 9. Typical capacitively stored energy as
function of reverse voltage,
Final Data Sheet 8 Rev. 2.1, 2017-07-21

5th Generation CoolSiC™ 1200 V SiC Schottky Diode
Package Drawings
Final Data Sheet 9 Rev. 2.1, 2017-07-21

5th Generation CoolSiC™ 1200 V SiC Schottky Diode
Revision: 2017-07-21, Rev. 2.1
Subjects (major changes since last version)
Revision History
Disclaimer
We Listen to Your Comments
Any information within this document that you feel is wrong, unclear or missing at all?
Your feedback will help us to continuously improve the quality of this document.
Please send your proposal (including a reference to this document) to: erratum@infineon.com
Final Data Sheet 10 Rev. 2.1, 2017-07-21
