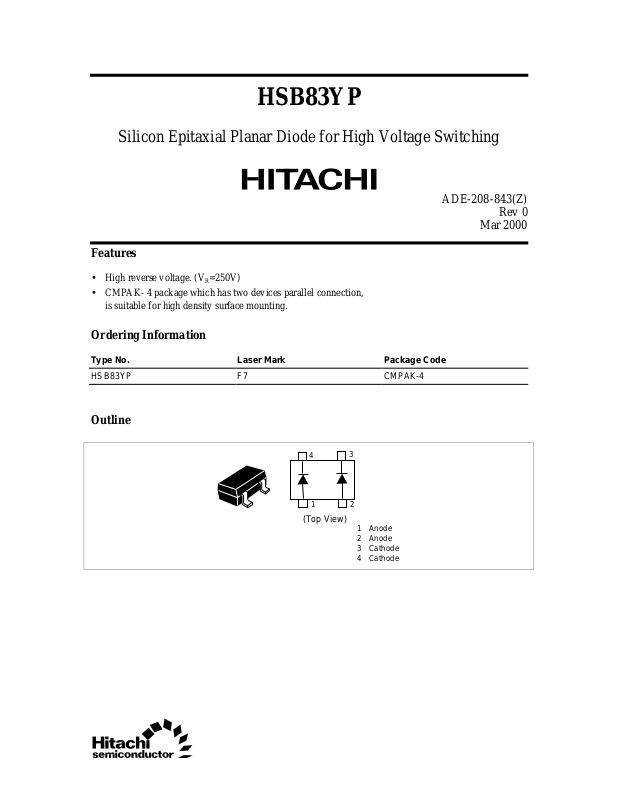

HSB83YP
Silicon Epitaxial Planar Diode for High Voltage Switching
Features
• High reverse voltage. (VR=250V)
• CMPAK- 4 package which has two devices parallel connection,
is suitable for high density surface mounting.
Ordering Information
Type No. Laser Mark Package Code
HSB83YP F7 CMPAK-4
ADE-208-843(Z)
Rev 0
Mar 2000
Outline
4
1
(Top View)
3
2
1 Anode
2 Anode
3 Cathode
4 Cathode
Page 2
HSB83YP
Absolute Maximum Ratings (Ta = 25°C) *
2
Item Symbol Value Unit
Peak reverse voltage V
Reverse voltage V
Peak forward current I
Non-Repetitive peak
RM
R
FM
*1
I
FSM
300 V
250 V
300 mA
2A
forward surge current
Average rectified current I
O
100 mA
Junction temperature Tj 125 °C
Storage temperature Tstg -55Å`+125 °C
Note 1. Value at duration of 10msec.
Note 2. Two device total.
Electrical Characteristics (Ta = 25°C) *
1
Item Symbol Min Typ Max Unit Test Condition
Forward voltage V
Reverse current I
F
R1
I
R2
−−1.2 V IF = 100 mA
−−0.2 µAVR = 250V
−−100 VR = 300V
Capacitance C −−3.0 pF VR = 0V, f = 1 MHz
Reverse recovery
t
rr
−−100 ns IF = IR =30 mA, Irr = 3mA, RL= 100Ω
time
Note 1. Per one device.
2
Page 3
Main Characteristic
HSB83YP
-2
10
-3
10
-4
10
(A)
F
-5
10
-6
10
-7
Forward current I
10
-8
10
-9
10
0 0.2 0.4
Forward voltage V
0.6 0.8
F
Fig.1 Forward current Vs. Forward voltage
f=1MHz
(V)
1.0
-5
10
-6
10
(A)
R
-7
10
Reverse current I
-8
10
-9
10
0 50 200
100
150
Reverse voltage V R (V)
Fig.2 Reverse current Vs. Reverse voltage
250
10
1.0
Capacitance C (pF)
-1
10
10
-1
1.0
Reverse voltage V R (V)
Fig.3 Capacitance Vs. Reverse voltage
10
3
Page 4
HSB83YP
Package Dimensions
0.3 – 0.05
2.0 – 0.2
1.3 – 0.2
0.65
0.65
0.3 – 0.05
0.4250.425 1.25 – 0.1
2.1 – 0.2
+ 0.1
0.16
— 0.06
0 — 0.1
Unit: mm
0.3 – 0.05
0.65 0.65
1.3 – 0.2
0.3 – 0.05
0.2
0.9 – 0.1
Hitachi Code
JEDEC
EIAJ
Mass
CMPAK-4
Conforms
0.006 g
4
Page 5
HSB83YP
