GaAs MMIC SMT FREQUENCY DOUBLER 0.85 - 2.0 GHz INPUT

HMC187MS8

FEBRUARY 2001

Features

CONVERSION LOSS: 16 dB

Fo, 3Fo, 4Fo ISOLATION: 40 dB

INPUT DRIVE LEVEL: 10 to 20 dBm

3

MULTIPLIERS

SMT

V01.0800

General Description

The HMC187MS8 is a miniature frequency
doubler in a plastic 8-lead MSOP package.
The suppression of the undesired funda­mental and higher order harmonics is typi­cally 40 to 50 dB with respect to input signal
levels. The doubler uses same diode/balun
structures used in Hittite MMIC mixers. The
doubler is ideal for high volume applications
where frequency doubling of a lower fre­quency is more economical than directly
generating a higher frequency. The passive
Schottky diode doubler technology contrib­utes no measurable additive phase noise
onto the multiplied signal.

GuaranteedPerformance, 50 Ohm system -40 to +85 deg C

Typical Electrical Performance vs. Drive Level

10 dBm 15 dBm 20 dBm Units

Input Frequency Range 1.25-1.75 1.0-1.75 0.85-2.0 GHz

Output Frequency Range 2.5-3.5 2.0-3.5 1.7-4.0 GHz
Conversion Loss 20 15 16 dB

Performance for Input Signals in the 1.0 - 1.75 GHz Band (+15dBm Drive)

Min. Typ. Max. Units

Fo Isolation (with respect to input level) 35 45 dB

3Fo Isolation (with respect to i nput level) 46 52 dB
4Fo Isolation (with respect to i nput level) 33 40 dB

12 Elizabeth Drive, Chelmsford, MA 01824 Phone: [phone] Fax: [phone] Web Site: www.hittite.com

3 - 26

MICROWAVE CORPORATION

HMC187MS8 SMT FREQUENCY DOUBLER 0.85 - 2.0 GHz INPUT

HMC187MS8

V01.0800

Conversion Loss @ +15 dBm
Drive Level

0

-5

-10

-15

-20

-25

CONVERSION GAIN (dB)

-30

-35
123456

OUTPUT FREQUENC Y (GHz)

+85 C

-40 C+25 C

Input Return Loss
vs. Drive Level

0

-5

-10

-15

-20

INPUT RETUR N LOS S (dB)

-25

-30

0.5 1 1.5 2 2.5 3

15 dBm

INPUT FREQUENCY (GHz)

10 dBm

13 dBm

17 dBm

FEBRUARY 2001

Isolation @ +15 dBm
Drive Level *

0

-10

-20
1FO

-30

-40

ISOLATIO N (dB )

-50

-60

-70

024681012

4FO

3FO

FREQUENCY (GHz)

* With respect to input level

Output Return Loss for
Several Input Frequencies

0

1GHz

-5

-10

-15

-20

OUTPUT RETURN LOSS (dB)

-25

1.75 GHz

2.5 GHz

012345678910

OUTPUT FREQUENC Y (GHz)

3

MULTIPLIERS

SMT

Note: Output return loss measured at 2fo, with +10 dBm,
+15 dBm, and +20 dBm drive levels on input of doubler.

12 Elizabeth Drive, Chelmsford, MA 01824 Phone: [phone] Fax: [phone] Web Site: www.hittite.com

3 - 27

MICROWAVE CORPORATION

HMC187MS8 SMT FREQUENCY DOUBLER 0.85 - 2.0 GHz INPUT

HMC187MS8

FEBRUARY 2001

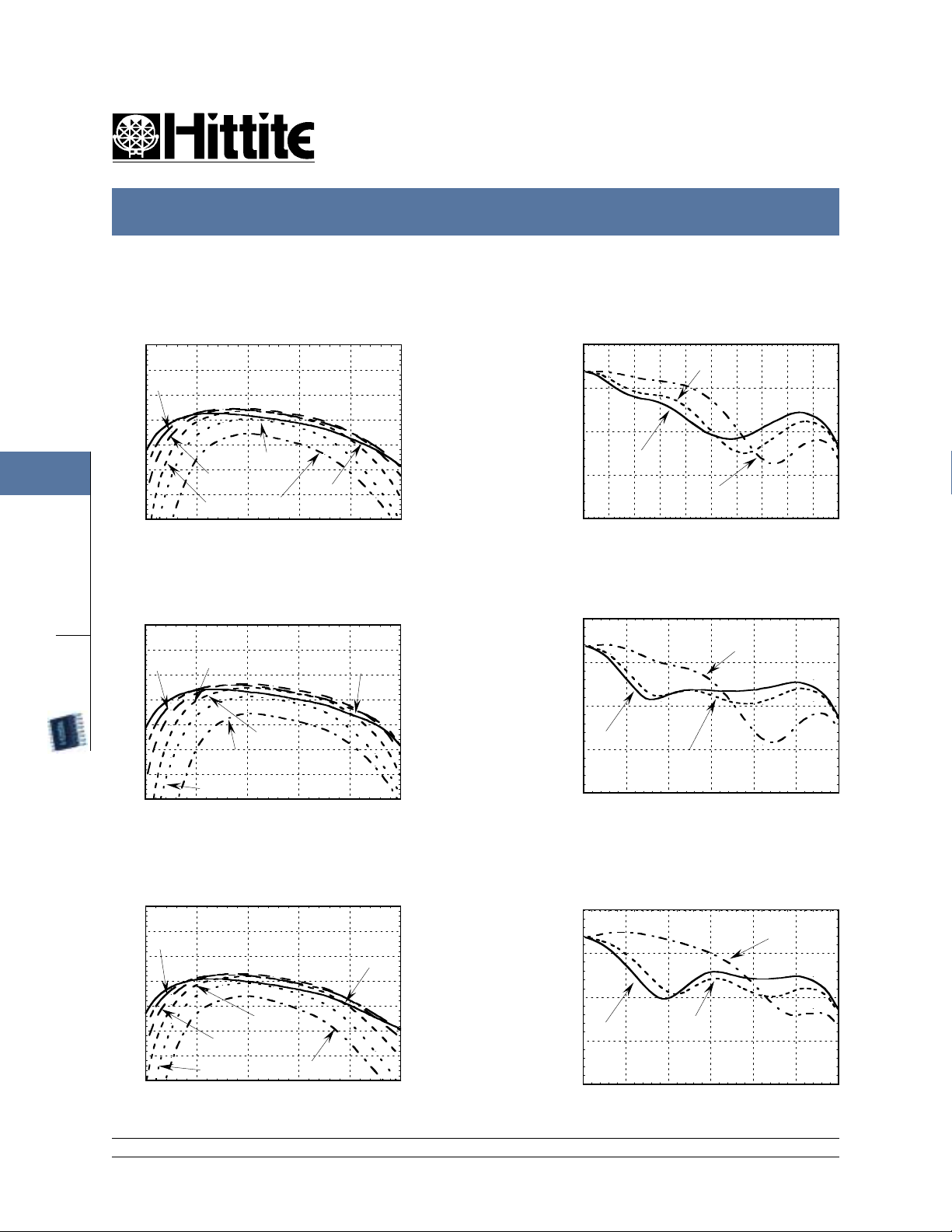

Conversion Gain@ 25 Deg C
vs. Drive Level

3

Conversion Gain @ -40 Deg C
vs. Drive Level

MULTIPLIERS

SMT

0

-5
17 dBm

-10

-15

-20

-25

CONVERSION G AIN (dB)

-30

-35
123456

0

-5
17 dBm

-10

-15

-20

-25

CONV ERSIO N G AIN (dB)

-30

-35
123456

15 dBm

13 dBm

OUTPUT FREQUENCY (GHz)

15 dBm

11 dBm

OUTPUT FREQUENC Y (GHz)

11 dBm

20 dBm

9dBm

20 dBm

13 dBm

9dBm

V01.0800

Output Return Loss with
1 GHz Input

0

15 dBm

-5

-10

-15

OUTPUT RETURN LOSS (dB0

-20

17 dBm

10 dBm

0 0.6 1.2 1.8 2.4 3 3.6 4.2 4.8 5 .4 6

OUTPUT FREQUENC Y (GHz)

Output Return Loss with

1.75 GHz Input

0

10 dBm

-5

-10

17 dBm

-15

OUTPUT RETURN LOSS (dB)

-20
0123456

15 dBm

OUTPUT FREQUENC Y (G Hz)

Conversion Gain @ +85 Deg C
vs. Drive Level

0

-5
17 dBm

-10

-15

-20

-25

CONVERSION G AIN (dB)

-30

-35
123456

15 dBm

11 dBm

13 dBm

9dBm

OUTPUT FREQUENCY (GHz)

20 dBm

Output Return Loss with

2.5 GHz Input

0

10 dBm

-5

-10

17 dBm

-15

OUTPUT RETURN LOSS (dB)

-20
0123456

15 dBm

OUTPUT FREQUENC Y (GHz)

12 Elizabeth Drive, Chelmsford, MA 01824 Phone: [phone] Fax: [phone] Web Site: www.hittite.com

3 - 28

MICROWAVE CORPORATION

HMC187MS8 SMT FREQUENCY DOUBLER 0.85 - 2.0 GHz INPUT

HMC187MS8

V01.0800

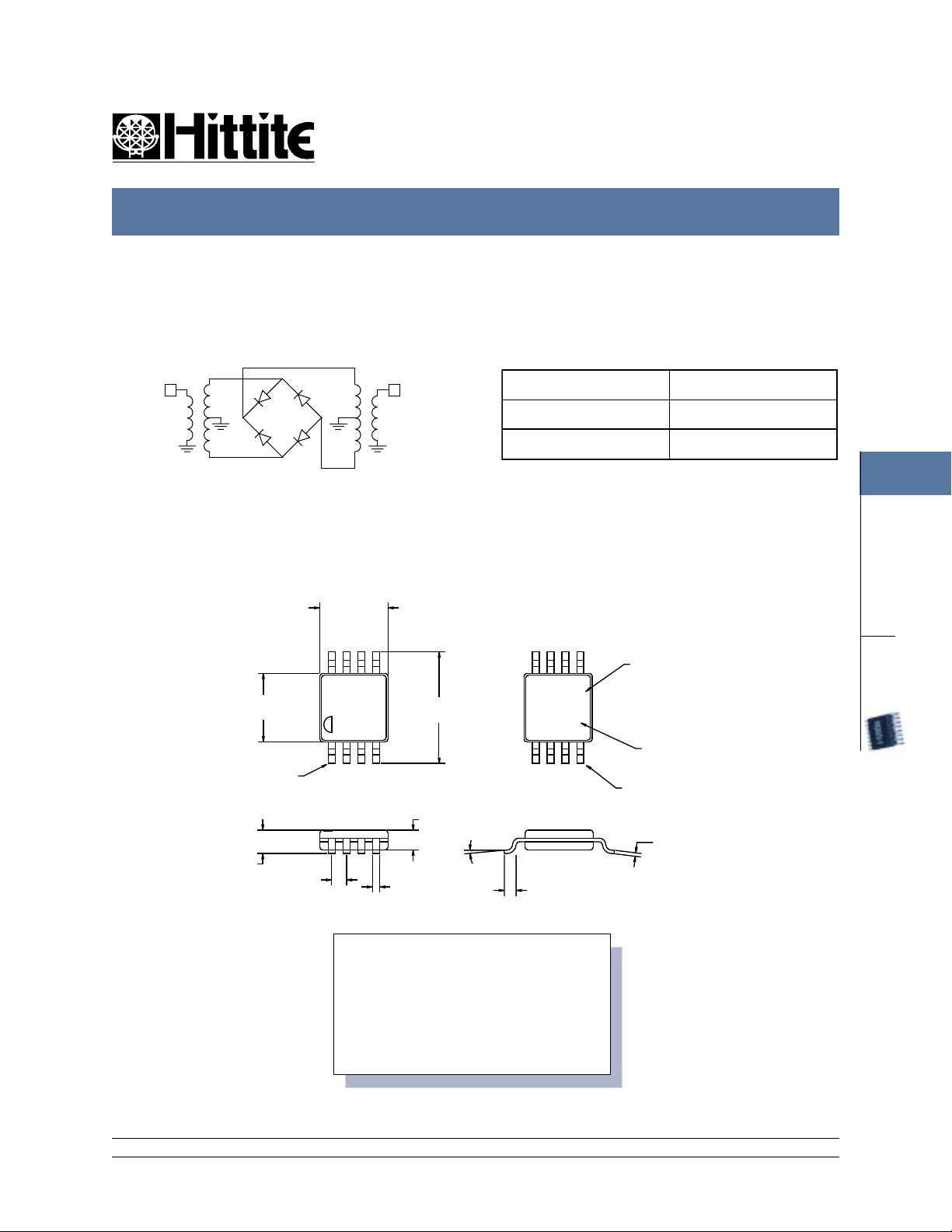

Schematic

RF OUT RF IN

(PIN 2) (PIN 7)

Outline Drawing

0.116/ 0.120
(2.95/ 3.05)

OUT

0.116/ 0.120
(2.95/ 3.05)

HMC

187

0.188/ 0.196
(4.78/ 4.98)

FEBRUARY 2001

Absolute Maximum Ratings

evirDtupnImBd72+

erutarepmeTegarotSC.ged051+ot56-

erutarepmeTgnitarepOC.ged58+otc04-

LOT NUMBER

XXXX

YYWW

3

MULTIPLIERS

SMT

DATE CODE
YY= YEAR

PIN 1

0.038/ 0.042
(0.96/ 1.07)

12 Elizabeth Drive, Chelmsford, MA 01824 Phone: [phone] Fax: [phone] Web Site: www.hittite.com

0.0256 TYP
(0.65)

IN

0.032/ 0.036
(0.81/ 0.91)

0 to 5 DEG

0.012 TYP
(0.30)

1. MATERIAL:
A) PACKAGE BODY - LOW STRESS INJECTION-MOLDED
PLASTIC, SILICA & SILICONE IMPREGNATED.
B) LEADFRAME MATERIAL : COPPER ALLOY

2. PLATING: LEAD - TIN SOLDER PLATE

3. DIMENSIONS ARE IN INCHES (MILLIMETERS). UNLESS
OTHERWISE SPECIFIED ALL TOLERANCES ARE
±0.005(±0.13).

4. ALL UNLABELED LEADS ARE GROUND.

0.021 MIN TYP
(0.53)

WW= WEEK

PIN 1 (REF)

0.005/ 0.007
(0.13/ 0.18)
