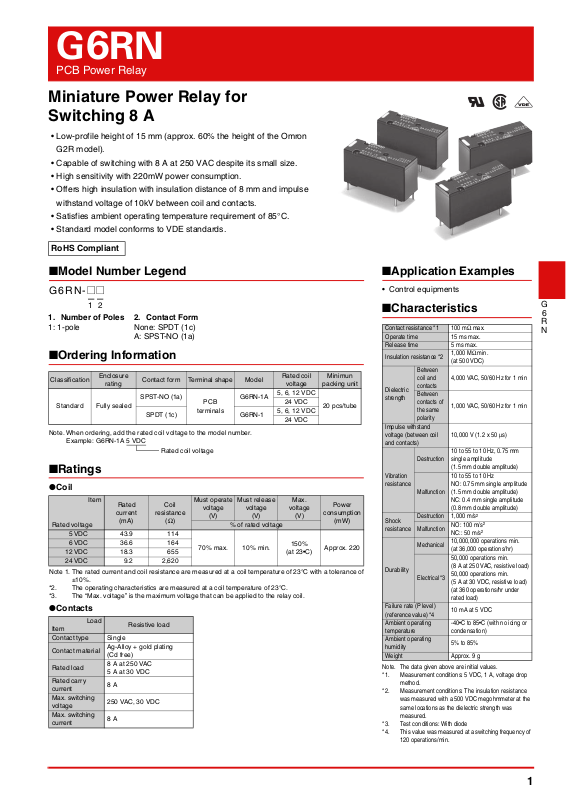

Page 1
G6RN
■Application Examples
• Control equipments
■Characteristics
Note. The data given above are initial values.
*1. Measurement conditions: 5 VDC, 1 A, voltage drop
method.
*2. Measurement conditions: The insulation resistance
was measured with a 500 VDC megohmmeter at the
same locations as the dielectric strength was
measured.
*3. Test conditions: With diode
*4. This value was measured at a switching frequency of
120 operations/min.
Contact resistance *1 100 mΩ max.
Operate time 15 ms max.
Release time 5 ms max.
Insulation resistance *2
1,000 M
Ω
min.
(at 500 VDC)
Dielectric
strength
Between
coil and
contacts
4,000 VAC, 50/60 Hz for 1 min
Between
contacts of
the same
polarity
1,000 VAC, 50/60 Hz for 1 min
Impulse withstand
voltage (between coil
and contacts)
10,000 V (1.2 x 50
μ
s)
Vibration
resistance
Destruction
10 to 55 to 10 Hz, 0.75 mm
single amplitude
(1.5 mm double amplitude)
Malfunction
10 to 55 to 10 Hz
NO: 0.75 mm single amplitude
(1.5 mm double amplitude)
NC: 0.4 mm single amplitude
(0.8 mm double amplitude)
Shock
resistance
Destruction
1,000 m/s
2
Malfunction
NO: 100 m/s
2
NC:: 50 m/s
2
Durability
Mechanical
10,000,000 operations min.
(at 36,000 operations/hr)
Electrical *3
50,000 operations min.
(8 A at 250 VAC, resistive load)
50,000 operations min.
(5 A at 30 VDC, resistive load)
(at 360 operations/hr under
rated load)
Failure rate (P level)
(reference value) *4
10 mA at 5 VDC
Ambient operating
temperature
-40•C to 85•C (with no icing or
condensation)
Ambient operating
humidity
5% to 85%
Weight Approx. 9 g
■Model Number Legend
G6RN-@@
——
12
1. Number of Poles
1: 1-pole
2. Contact Form
None: SPDT (1c)
A: SPST-NO (1a)
■Ordering Information
■Ratings
●Coil
Note 1. The rated current and coil resistance are measured at a coil temperature of 23°C with a tolerance of
±10%.
*2. The operating characteristics are measured at a coil temperature of 23°C.
*3. The “Max. voltage” is the maximum voltage that can be applied to the relay coil.
●Contacts
Classification
Enclosure
rating
Contact form Terminal shape Model
Rated coil
voltage
Minimun
packing unit
Standard Fully sealed
SPST-NO (1a)
PCB
terminals
G6RN-1A
5, 6, 12 VDC
20 pcs/tube
24 VDC
SPDT (1c) G6RN-1
5, 6, 12 VDC
24 VDC
Item
Rated voltage
Rated
current
(mA)
Coil
resistance
(Ω)
Must operate
voltage
(V)
Must release
voltage
(V)
Max.
voltage
(V)
Power
consumption
(mW)
% of rated voltage
5 VDC 43.9 114
70% max. 10% min.
150%
(at 23•C)
Approx. 220
6 VDC 36.6 164
12 VDC 18.3 655
24 VDC 9.2 2,620
Load
Item
Resistive load
Contact type Single
Contact material
Ag-Alloy + gold plating
(Cd free)
Rated load
8 A at 250 VAC
5 A at 30 VDC
Rated carry
current
8 A
Max. switching
voltage
250 VAC, 30 VDC
Max. switching
current
8 A
Note. When ordering, add the rated coil voltage to the model number.
Example: G6RN-1A 5 VDC
Rated coil voltage
PCB Power Relay
Miniature Power Relay for
Switching 8 A
• Low-profile height of 15 mm (approx. 60% the height of the Omron
G2R model).
• Capable of switching with 8 A at 250 VAC despite its small size.
• High sensitivity with 220mW power consumption.
• Offers high insulation with insulation distance of 8 mm and impulse
withstand voltage of 10kV between coil and contacts.
• Satisfies ambient operating temperature requirement of 85°C.
• Standard model conforms to VDE standards.
RoHS Compliant
G
6
R
N
1
Page 2
G6RN PCB Power Relay
0 3 5 10 30 50 100 250 500
Switching current (A)
Switching Voltage (V)
50
30
10
8
5
3
1
0.5
0.3
0.1
DC resistive load
AC resistive load
200
180
160
150
140
130
120
110
100
80
0
-40 20 23 30 40 50 60 70 80 90 100
Maximum coil voltage (%)
Ambient Temperature (°C)
100
80
60
40
20
0
-40 -20 0 20 40 60 80 100
Operate/Release voltage (percentage of rated value) (%)
Ambient Temperature (°C)
Must operate voltage
Must release voltage
Sample:
G6RN-1 12 VDC
Number of Relays:
5 pcs
max.
min.
X
max.
min.
X
Sample: G6RN-1 24 VDC
Number of Relays: 5 pcs
Test conditions: The value at which
malfunction occurred was measured
after applying shock to the test piece 3
times each in 6 directions along 3 axes.
Standard value: 100m/s
2
at contact A,
50m/s
2
at contact B
28.5
±0.5
10
±0.5
15
±0.5
3.2
3.219
3.5
7.62
0.5
21
45 3
(1.19)
7.62
±0.1
Five, 1.3-dia. holes
(1.19)
(1.5)
(1.6)
19
±0.1
3.2
±0.1
3.2
±0.1
G6RN-1
PCB Mounting Holes
(Bottom View)
Terminal Arrangement/
Internal Connections
(Bottom View)
(No coil polarity)
G6RN-1A
PCB Mounting Holes
(Bottom View)
Terminal Arrangement/
Internal Connections
(Bottom View)
(No coil polarity)
■Approved Standards
●The rated values approved by each of the safety standards may be different from the
performance characteristics individually defined in this catalog.
UL Recognized (File No. E41515)
EN/TÜV Certified
(Registration No. 6135)
Model
Number of
poles
Coil ratings Contact ratings
Number of test
operations
G6RN-1 1 5 to 48 VDC 8 A, 250 VAC 85°C 6,000
Model
Number of
poles
Coil ratings Contact ratings
Approved switching
operations
G6RN-1
G6RN-1A
1 5, 6, 12, 24, 48 VDC 8 A, 250 VAC (Resistive) 85°C 10,000
■Precautions
●Please refer to “PCB Relays
Common Precautions” for correct
use.
■Engineering Data
●Maximum Switching Capacity ●Durability ●Ambient Temperature vs.
Maximum Coil Voltage
●Ambient Temperature vs.
Maximum Coil Voltage
G
6
R
N
100
50
operations)
4
30
Durability (x 10
10
5
3
1
0 2 4 6 8 10
●Shock Malfunction
G6RN-1
Y
contact A
X
88.2
contact B
1,000
250 VAC resistive load
30 VDC resistive load
Switching Current (A)
Z
1,0001,000
Note. The maximum coil voltage refers to the
maximum value in a varying range of operating
power voltage, not a continuous voltage.
■Dimensions
Unit: m/
1,000
X'
2
Y
s
Y'
Four, 1 .3-dia. holes
±0.1
19
Shock direction
XX'
7.62
±0.1
5.1
(2.8)(1.6)
Z
Z'
(1.19)
±0.1
(1.19)
21
5 3
1,000
Z'
1,000
Y'
±0.5
±0.5
28.5
±0.5
15
19 5.1
10
3.5
0.5
7.62
2
Page 3
G6RN PCB Power Relay
• Application examples provided in this document are for reference only. In actual applications, confirm equipment functions and safety before using the product.
• Consult your OMRON representative before using the product under conditions which are not described in the manual or applying the product to nuclear control systems, railroad
systems, aviation sys
tems, vehicles, combustion systems, medical equipment, amusement machines, safety equipment, and other systems or equipment that may have a serious
influence on lives and property if used improperly. Make sure that the ratings and performance characteristics of the product provide a margin of safety for the system or
equipment, and be
sure to provide the system or equipment with double safety mechanisms.
OMRON Corporation
Electronic and Mechanical Components Company
Contact: www.omron.com/ecb
Cat. No. J182-E1-01
0812(0207)(O)
Note: Do not use this document to operate the Unit.
