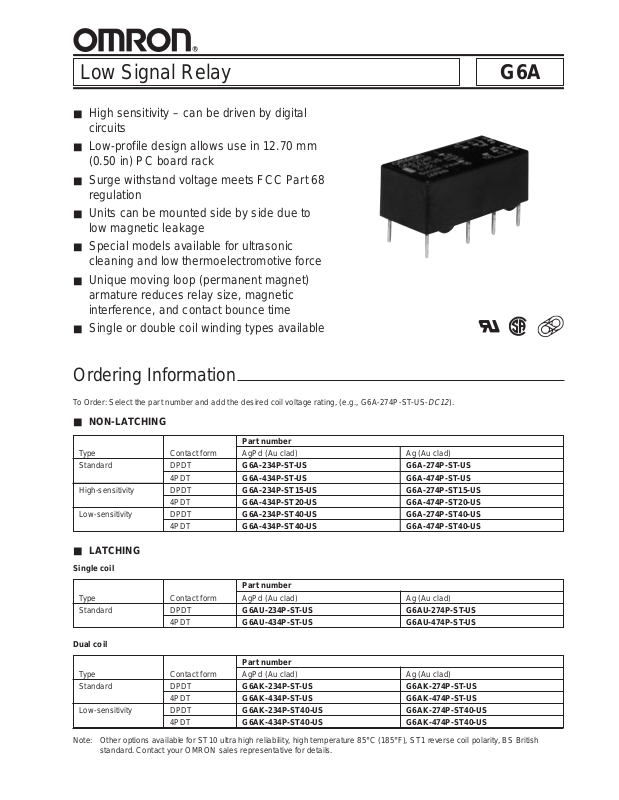

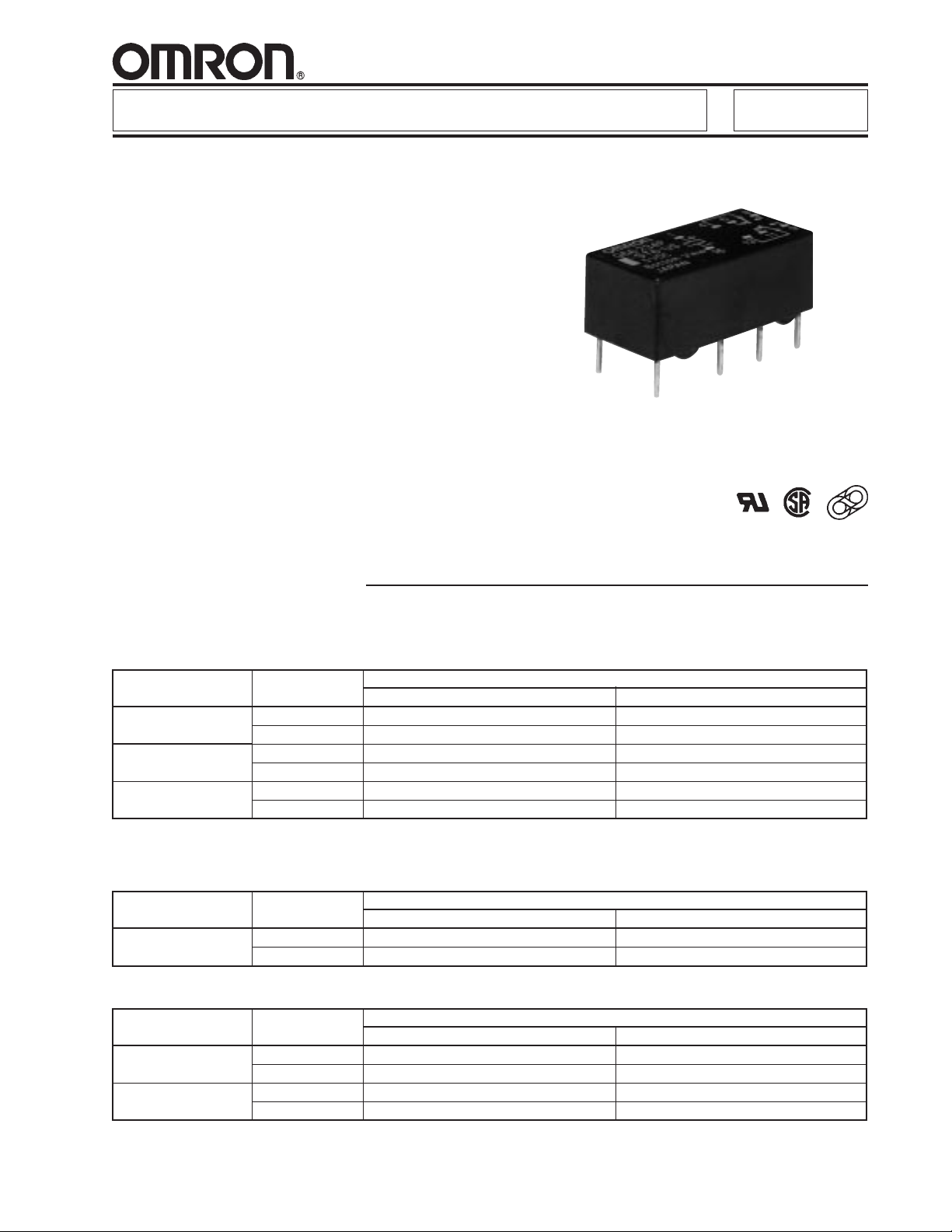

Page 1
Low Signal Rela y G6A
■ High sensitivity – can be driven by digital
circuits
■ Low-profile design allows use in 12.70 mm
(0.50 in) PC board rack
■ Surge withstand voltage meets FCC Part 68
regulation
■ Units can be mounted side by side due to
low magnetic leakage
■ Special models available for ultrasonic
cleaning and low thermoelectromotive force
■ Unique moving loop (permanent magnet)
armature reduces relay size, magnetic
interference, and contact bounce time
■ Single or double coil winding types available
Ordering Information
To Order: Select the part number and add the desired coil voltage rating, (e.g., G6A-274P-ST-US-
■ NON-LATCHING
Part number
Type Contact form AgPd (Au clad) Ag (Au clad)
Standard DPDT G6A-234P-ST-US G6A-274P-ST-US
4PDT G6A-434P-ST-US G6A-474P-ST-US
High-sensitivity DPDT G6A-234P-ST15-US G6A-274P-ST15-US
4PDT G6A-434P-ST20-US G6A-474P-ST20-US
Low-sensitivity DPDT G6A-234P-ST40-US G6A-274P-ST40-US
4PDT G6A-434P-ST40-US G6A-474P-ST40-US
■ LATCHING
Single coil
Part number
Type Contact form AgPd (Au clad) Ag (Au clad)
Standard DPDT G6AU-234P-ST-US G6AU-274P-ST-US
4PDT G6AU-434P-ST-US G6AU-474P-ST-US
Dual coil
Part number
Type Contact form AgPd (Au clad) Ag (Au clad)
Standard DPDT G6AK-234P-ST-US G6AK-274P-ST-US
4PDT G6AK-434P-ST-US G6AK-474P-ST-US
Low-sensitivity DPDT G6AK-234P-ST40-US G6AK-274P-ST40-US
4PDT G6AK-434P-ST40-US G6AK-474P-ST40-US
DC12
).
Note: Other options available for ST10 ultra high reliability, high temperature 85° C (185° F), ST1 reverse coil polarity, BS British
standard. Contact your OMRON sales representative for details.
Page 2
G6A G6A
Specifications
■ CONTACT DATA
Type G6A-234P-ST(15, 40)-US, G6A-434P-ST(20, 40)-US G6A-274P-ST(15, 40)-US, G6A-474P-ST(20, 40)-US
Load Resistive load (p.f. = 1) Inductive load (p.f. = 0.4) Resistive load (p.f. = 1) Inductive load (p.f. = 0.4)
Rated load 0.30 A at 125 VAC, 0.20 A at 125 VAC, 0.50 A at 125 VAC, 0.25 A at 125 VAC,
Contact material AgPd (Au clad) AgPd (Au clad) Ag (Au clad) Ag (Au clad)
Carry current 3 A 3 A 3 A 3 A
Max. operating voltage 250 VAC, 220 VDC 250 VAC, 220 VDC 250 VAC, 220 VDC 250 VAC, 220 VDC
Max. operating current 2 A 1 A 2 A 1 A
Max. switching capacity 125 VA, 60 W 62.50 VA, 30 W 125 VA, 60 W 62.50 VA, 30 W
Min. permissible load 10 µ A, 10 mVDC 10 µ A, 10 mVDC 10 µ A, 10 mVDC 10 µ A, 10 mVDC
G6AK-234P-ST(40)-US, G6AK-434P-ST(40)-US G6AK-274P-ST(40)-US, G6AK-474P-ST(40)-US
G6AU-234P-ST-US, G6AU-434P-ST-US G6AU-274P-ST-US, G6AU-474P-ST-US
(L/R = 7 ms) (L/R = 7 ms)
1 A at 30 VDC 0.50 A at 30 VDC 2 A at 30 VDC 1 A at 30 VDC
■ COIL DATA
Standard non-latching DPDT (G6A-234P-ST-US, G6A-274P-ST-US)
Coil inductance
Rated Rated Coil
voltage current resistance
(VDC) (mA) (Ω)
3 66.70 45 0.07 0.07 70% max. 10% min. 200% Approx. 200
5 40 125 0.20 0.18
6 33.30 180 0.29 0.26
9 22.20 405 0.63 0.57
12 16.70 720 1.10 1.06 150%
24 8.30 2,880 4.50 4.10
48 4.90 9,750 13.70 12.50
(ref. value) (H)
Armature Armature
OFF ON
Pick-up Dropout Maximum Power
voltage voltage voltage
% of rated voltage
at 23°C
(73° F)
at 70°C
(158° F)
consumption
(mW)
Approx. 235
High-sensitivity non-latching DPDT (G6A-234P-ST15-US, G6A-274P-ST15-US)
Coil inductance
Rated Rated Coil
voltage current resistance
(VDC) (mA) (Ω)
1.50 100 15 0.02 0.02 80% max. 10% min. 200% Approx. 150
3 50 60 0.09 0.08
4.50 33.30 135 0.22 0.20
5 30 167 0.25 0.21
6 25 240 0.35 0.31
9 16.70 540 0.80 0.70
12 12.50 960 1.35 1.25
24 6.30 3,840 5.60 5.10
48 3.20 15,000 22.50 20.00
Note: The rated current and coil resistance are measured at a coil temperature of 23° C (73° F) with a tolerance of ± 10%.
(ref. value) (H)
Armature Armature
OFF ON
Pick-up Dropout Maximum Power
voltage voltage voltage
% of rated voltage
consumption
(mW)
2
Page 3
G6A G6A
■ COIL DATA (continued)
Low-sensitivity non-latching DPDT (G6A-234P-ST40-US, G6A-274P-ST40-US)
Coil inductance
Rated Rated Coil
voltage current resistance
(VDC) (mA) (Ω)
3 133.30 22.50 0.03 0.02 70% max. 10% min. 150% Approx. 400
5 80 62.50 0.08 0.07
6 66.70 90 0.11 0.10
9 44.30 203 0.27 0.23
12 33.30 360 0.52 0.43 110%
24 16.70 1,440 2.10 1.80
48 8.30 5,760 7.50 6.40
Standard non-latching 4PDT (G6A-434P-ST-US, G6A-474P-ST-US)
Rated Rated Coil
voltage current resistance
(VDC) (mA) (Ω)
3 120 25 0.05 0.05 70% max. 10% min. 150% Approx. 360
5 72.50 69 0.14 0.12
6 60 100 0.20 0.17
9 40 225 0.45 0.38
12 30 400 0.80 0.68 110% max.
24 15 1,600 3.20 2.70
48 7.50 6,400 12.80 10.90
(ref. value) (H)
Armature Armature
OFF ON
Coil inductance
(ref. value) (H)
Armature Armature
OFF ON
Pick-up Dropout Maximum Power
voltage voltage voltage
% of rated voltage
at 23°C
(73° F)
at 70°C
(158° F)
Pick-up Dropout Maximum Power
voltage voltage voltage
% of rated voltage
at 23°C
(73° F)
at 70°C
(158° F)
consumption
(mW)
consumption
(mW)
High-sensitivity non-latching 4PDT (G6A-434P-ST20-US, G6A-474P-ST20-US)
Coil inductance
Rated Rated Coil
voltage current resistance
(VDC) (mA) (Ω)
3 66.70 45 — — 70% max. 10% min. 200% max. Approx. 200
5 40 125 — —
6 33.30 180 — —
9 22.20 405 — —
12 16.70 720 — —
24 8.30 2,880 — —
48 4.20 11,520 — —
Low-sensitivity non-latching 4PDT (G6A-434P-ST40-US, G6A-474P-ST40-US)
Rated Rated Coil
voltage current resistance
(VDC) (mA) (Ω)
3 133.30 22.50 0.04 0.02 70% max. 10% min. 150% Approx. 400
5 80 62.50 0.12 0.09
6 66.70 90 0.17 0.13
9 44.30 203 0.42 0.30
12 33.30 360 0.70 0.52 110% max.
24 16.70 1,440 2.80 2.20
48 8.30 5,760 10.20 8.60
(ref. value) (H)
Armature Armature
OFF ON
Coil inductance
(ref. value) (H)
Armature Armature
OFF ON
Pick-up Dropout Maximum Power
voltage voltage voltage
% of rated voltage
at 50°C
(122° F)
Pick-up Dropout Maximum Power
voltage voltage voltage
% of rated voltage
at 23°C
(73° F)
at 70°C
(158° F)
consumption
(mW)
consumption
(mW)
Note: The rated current and coil resistance are measured at a coil temperature of 23° C (73° F) with a tolerance of ± 10%.
3
Page 4
G6A G6A
■ COIL DATA (continued)
Standard single coil latching DPDT (G6AU-234P-ST-US, G6AU-274P-ST-US)
Coil inductance
Rated Rated Coil
voltage current resistance
(VDC) (mA) (Ω)
3 33.70 89 0.15 0.11 70% max. 70% max. 200% Approx. 100
5 20 250 0.44 0.35
6 16.70 360 0.64 0.48
9 11.10 810 1.38 1.07
12 8.30 1,440 2.50 2 150%
24 4.20 5,760 9.20 7.20
48 2.50 19,000 28.50 22
Standard dual coil latching DPDT (G6AK-234P-ST-US, G6AK-274P-ST-US)
Coil inductance (ref. value) (H)
Rated Rated Coil Set coil Reset coil pick-up pick-up Maximum Power
voltage current resistance
(VDC) (mA) (Ω)
3 66.70 45 0.04 0.03 0.03 0.04 70% max. 70% max. 200% Approx. 200
5 36 139 0.11 0.08 0.08 0.11
6 30 200 0.16 0.12 0.12 0.16
9 20 450 0.38 0.28 0.28 0.38 Approx. 180
12 15 800 0.60 0.45 0.45 0.60 150% max.
24 7.50 3,200 2.10 1.50 1.50 2.10
48 4.20 11,520 8.50 6.30 6.30 8.50
Armature Armature Armature Armature
OFF ON OFF ON
(ref. value) (H)
Armature Armature
OFF ON
Set Reset
pick-up pick-up Maximum Power
voltage voltage voltage
% of rated voltage
at 23°C
(73° F)
at 70°C
(158° F)
Set Reset
voltage v oltage voltage
% of rated voltage
at 23°C
(73° F)
at 70°C
(158° F)
consumption
(mW)
Approx. 120
consumption
(mW)
Approx. 200
Dual coil latching low-sensitivity DPDT (G6AK-234P-ST40-US, G6AK-274P-ST40-US)
Coil inductance (ref. value) (H)
Rated Rated Coil Set coil Reset coil pick-up pick-up Maximum Power
voltage current resistance
(VDC) (mA) (Ω)
3 120 25 0.02 0.01 0.01 0.02 70% max. 70% max. 150% max. Approx. 360
5 72.50 69 0.05 0.04 0.04 0.05
6 60 100 0.07 0.05 0.05 0.07
9 40 225 0.16 0.12 0.12 0.16
12 30 400 0.28 0.20 0.20 0.28 110% max.
24 15 1,600 1.10 0.75 0.75 1.10
48 7.50 6,400 4 2.90 2.9 4
Note: The rated current and coil resistance are measured at a coil temperature of 23° C (73° F) with a tolerance of ± 10%.
Armature Armature Armature Armature
OFF ON OFF ON
Set Reset
voltage voltage voltage
% of rated voltage
at 23°C
(73° F)
at 70°C
(158° F)
consumption
(mW)
4
Page 5
G6A G6A
■ COIL DATA (continued)
Standard single coil latching 4PDT (G6AU-434P-ST-US, G6AU-474P-ST-US)
Coil inductance
Rated Rated Coil
voltage current resistance
(VDC) (mA) (Ω)
3 106.80 28.10 0.03 0.02 70% max. 70% max. 150% Approx. 320
5 64 78.10 0.08 0.06
6 53.30 112.50 0.11 0.08
9 35.60 253 0.25 0.18
12 26.70 450 0.45 0.32 110%
24 13.30 1,800 1.80 1.30
48 6.70 7,200 7.00 5.20
Standard dual coil latching 4PDT (G6AK-434P-ST-US, G6AK-474P-ST-US)
Coil inductance (ref. value) (H)
Rated Rated Coil Set coil Reset coil pick-up pick-up Maximum Power
voltage current resistance
(VDC) (mA) (Ω)
3 106.80 28.10 0.03 0.02 0.02 0.03 70% max. 70% max. 150% Approx. 320
5 64 78.10 0.08 0.06 0.06 0.08
6 53.30 112.50 0.11 0.08 0.08 0.11
9 35.60 253 0.25 0.18 0.18 0.25
12 26.70 450 0.45 0.32 0.32 0.45 110% max.
24 13.30 1,800 1.80 1.30 1.30 1.80
48 6.70 7,200 7.00 5.20 5.20 7.00
Armature Armature Armature Armature
OFF ON OFF ON
(ref. value) (H)
Armature Armature
OFF ON
Set Reset
pick-up pick-up Maximum Power
voltage voltage voltage
% of rated voltage
at 23°C
(73° F)
at 70°C
(158° F)
Set Reset
voltage voltage voltage
% of rated voltage
at 23°C
(73° F)
at 70°C
(158° F)
consumption
(mW)
consumption
(mW)
Dual coil latching low-sensitivity 4PDT (G6AK-434P-ST40-US, G6AK-474P-ST40-US)
Coil inductance (ref. value) (H)
Rated Rated Coil Set coil Reset coil pick-up pick-up Maximum Power
voltage current resistance
(VDC) (mA) (Ω)
3 120 25 0.02 0.02 0.02 0.02 70% max. 70% max. 150% max. Approx. 360
5 72.50 69 0.07 0.05 0.05 0.07
6 60 100 0.09 0.08 0.08 0.09
9 40 225 0.18 0.14 0.14 0.18
12 30 400 0.30 0.23 0.23 0.30 110% max.
24 15 1,600 1.20 0.82 0.82 1.20
48 7.50 6,400 4.40 3.20 3.20 4.40
Note: The rated current and coil resistance are measured at a coil temperature of 23° C (73° F) with a tolerance of ± 10%.
Armature Armature Armature Armature
OFF ON OFF ON
Set Reset
voltage voltage voltage
% of rated voltage
at 23°C
(73° F)
at 70°C
(158° F)
consumption
(mW)
5

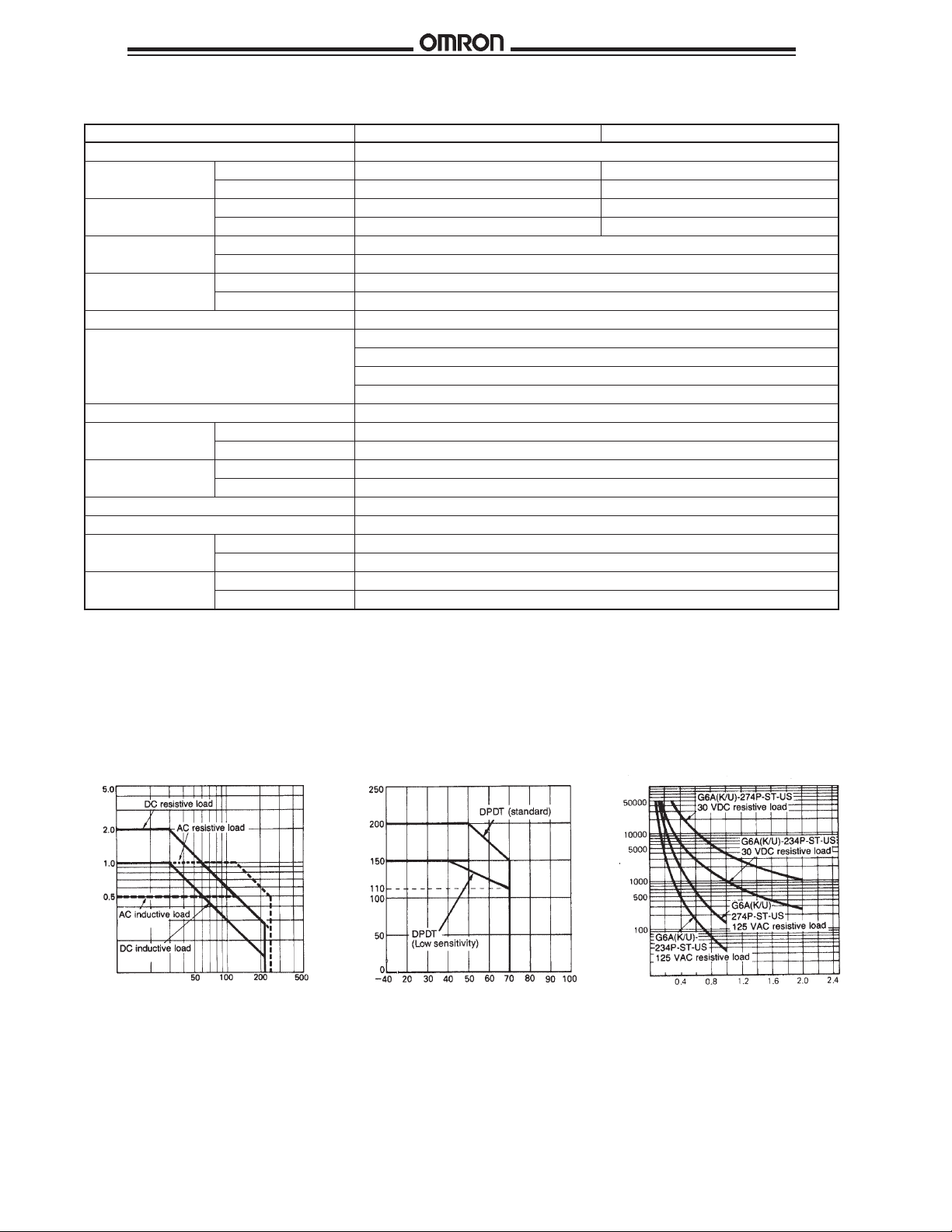

Page 6
G6A G6A
■ CHARACTERISTICS
Type Non-latching Latching
Contact resistance 50 mΩ max.
Operate (set) time DPDT 5 ms max. (mean value: approx. 3 ms) 5 ms max. (mean value: approx. 2.50 ms)
4PDT 7 ms max. (mean v alue: approx. 3.80 ms) 7 ms max. (mean value: approx. 3.30 ms)
Release (reset) time DPDT 3 ms max. (mean value: appro x. 1.20 ms) 5 ms max. (mean value: approx. 2.50 ms)
4PDT 5 ms max. (mean v alue: approx. 1.30 ms) 7 ms max. (mean value: approx. 2.70 ms)
Bounce time Operate Actual value approx. 0.50 ms
Release Actual value approx. 0.50 ms
Operating Mechanical 36,000 operations/hour
frequency
Insulation resistance 1,000 MΩ min. (at 500 VDC)
Dielectric strength (see note 2) 1,000 VAC, 50/60 Hz for 1 minute between coil and contacts
Surge withstand voltage (see note 3) 1,500 V 10 x 160 µ s (conforms to FCC Part 68)
Vibration Mechanical durability 10 to 55 Hz; 5 mm (0.20 in) double amplitude
Shock Mechanical durability 1,000 m/s2 (Approx. 100 G)
Ambient temperature -40° to 70° C (-40° to 158° F)
Humidity 45% to 85% RH
Service life (see note 4) Mechanical 100 million operations min. (at 36,000 operations/hour)
Weight DPDT Approx. 3.5 g (0.12 oz)
Electrical 1,800 operations/hour (under rated load)
1,000 VAC, 50/60 Hz for 1 minute between contacts of different poles
1,000 VAC, 50/60 Hz for 1 minute between contacts of same pole
250 VAC, 50/60 Hz for 1 minute between set and reset coils
Malfunction durability 10 to 55 Hz; 3.30 mm (0.13 in) double amplitude
Malfunction durability DPDT: 500 m/s2 (Approx. 50 G); 4PDT: 300 m/s2 (Approx. 30 G)
Electrical See “Characteristic Data”
4PDT Approx 6.0 g (0.21 oz)
Note: 1. Data shown are of initial value.
2. The dielectric strength of Type G6A-2D34P-ST-US is 500 VAC when the relay is not energized.
3. The surge withstand of Type G6A-2D34P-ST-US is 1,000 V 10 x 160 µ s when the relay is not energized.
4. The mechanical service life of Type G6A-2D34P-ST-US is 10,000,000 operations min.
■ CHARACTERISTIC DATA
Maximum switching capacity
DPDT
Rated operating current (A)
Rated operating voltage (V)
Ambient temperature vs.
maximum voltage (reference only)
Maximum voltage (%)
Ambient temperature (° C)
Electrical service life
DPDT
operations)
3
Service life (x10
Rated operating current (A)
6
Page 7
G6A G6A

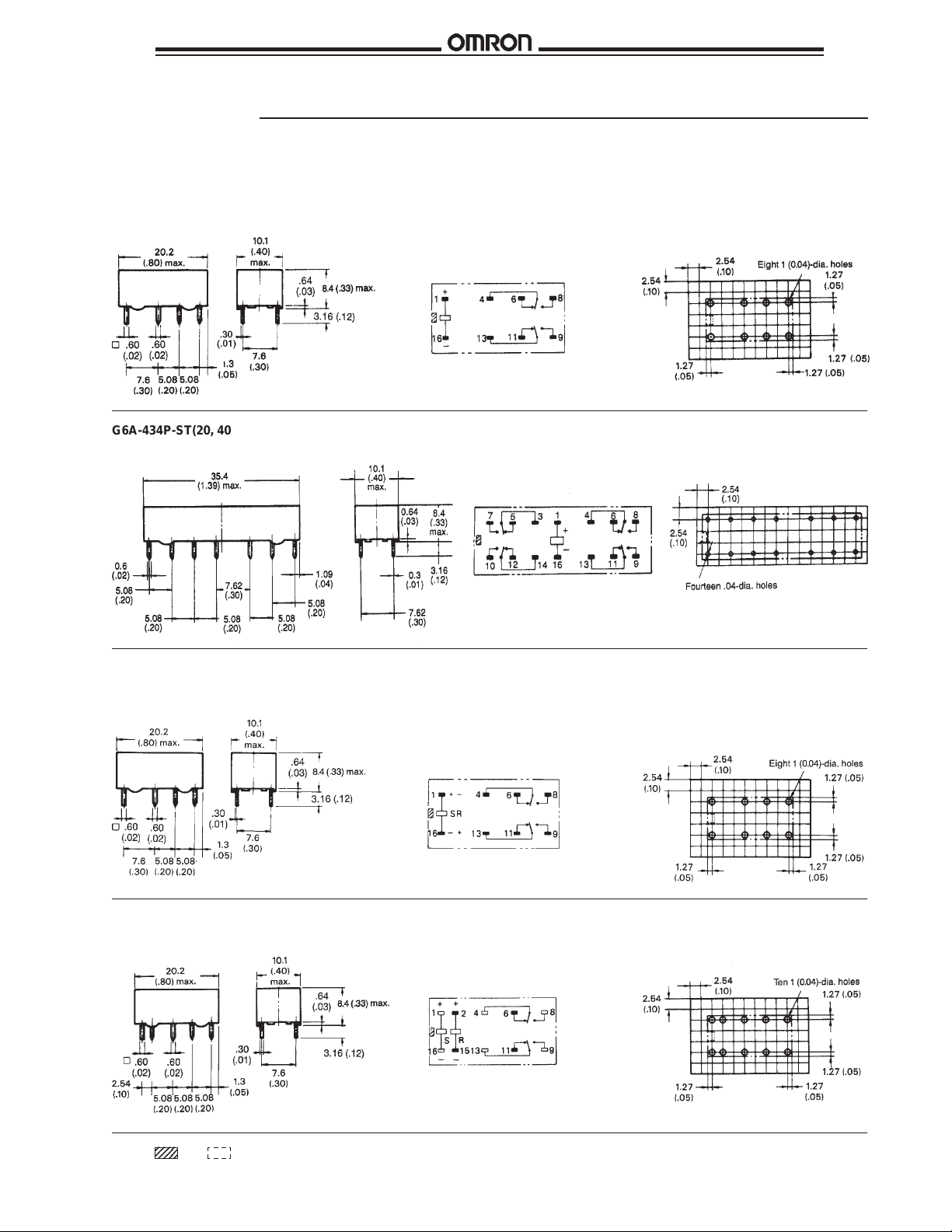

Dimensions
Unit: mm (inch)
■ NON-LATCHING
G6A-234P-ST(15, 40)-US, G6A-274P-ST(15, 40)-US
G6A-434P-ST(20, 40)-US, G6A-474P-ST(20, 40)-US
Terminal arrangement/ Mounting holes
Internal connections (Bottom view)
(Bottom view)
Terminal arrangement/ Mounting holes
Internal connections (Bottom view)
(Bottom view)
■ LATCHING
G6AU-234P-ST-US, G6AU-274P-ST-US
G6AK-234P-ST(40)-US, G6AK-274P-ST(40)-US
Terminal arrangement/ Mounting holes
Internal connections (Bottom view)
(Bottom view)
Terminal arrangement/ Mounting holes
Internal connections (Bottom view)
(Bottom view)
2345
2345
Note: and indicate mounting orientation marks.
7
Page 8
G6A G6A

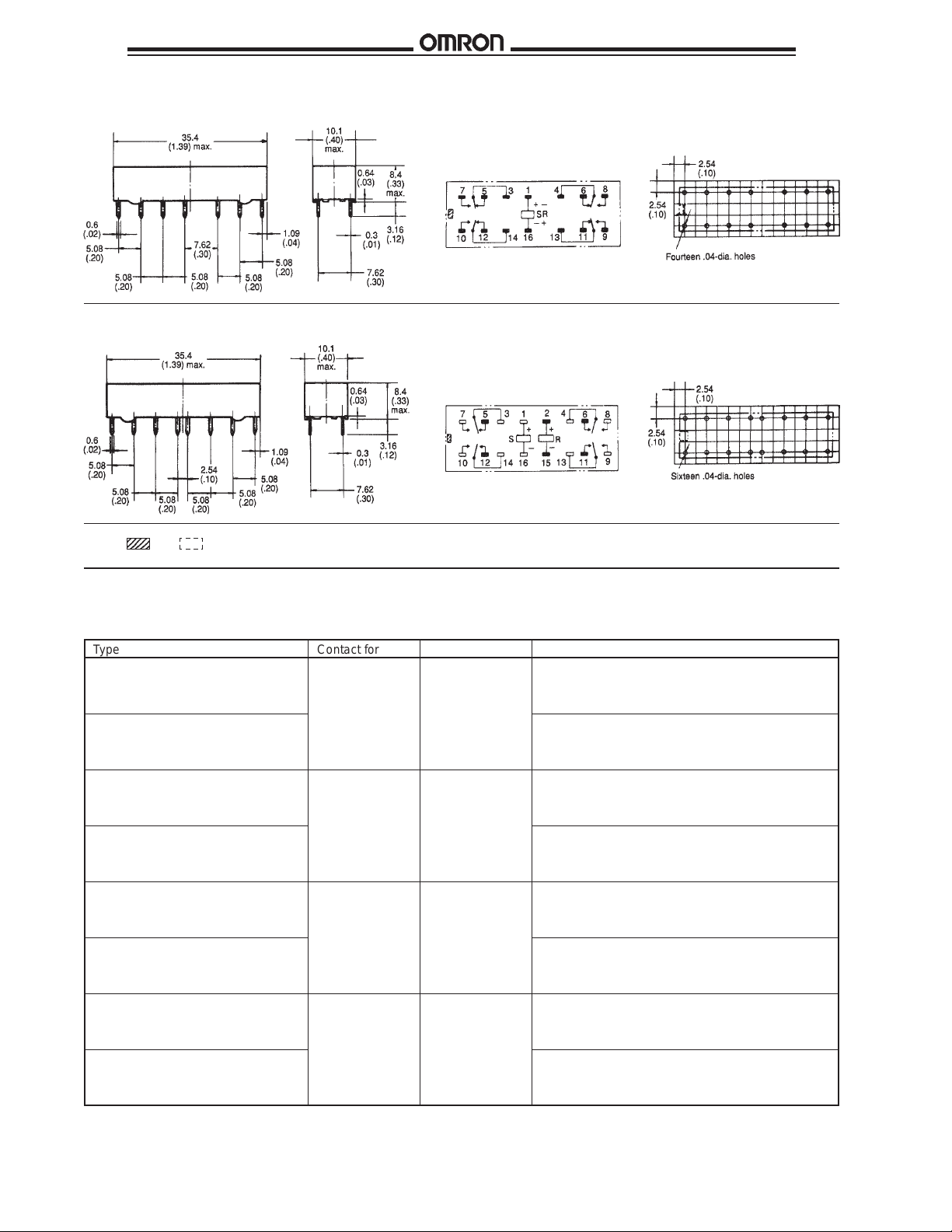

G6AU-434P-ST-US, G6AU-474P-ST-US
Terminal arrangement/ Mounting holes
Internal connections (Bottom view)
(Bottom view)
G6AK-434P-ST(40)-US, G6AK-474P-ST(40)-US
Terminal arrangement/ Mounting holes
Internal connections (Bottom view)
(Bottom view)
234
Note: and indicate mounting orientation marks.
■ APPROVALS
UL (File No. E41515)/CSA (File No. LR24825)
Type Contact form Coil rating Contact ratings
G6A-234P-ST-US DPDT 1 to 48 VDC 0.60 A, 125 VAC
G6A-234P-ST40-US 1 A, 30 VDC
G6A-234P-ST15-US 0.60 A, 110 V+DC
G6A-274P-ST-US 0.60 A, 125 VAC
G6A-274P-ST40-US 2 A, 30 VDC
G6A-274P-ST15-US 0.60 A, 110 VDC
G6A-434P-ST-US 4PDT 1 to 48 VDC 0.60 A, 125 VAC
G6A-434P-ST20-US 1 A, 30 VDC
G6A-434P-ST40-US 0.60 A, 110 VDC
G6A-474P-ST-US 0.60 A, 125 VAC
G6A-474P-ST20-US 2 A, 30 VDC
G6A-474P-ST40-US 0.60 A, 110 VDC
G6AK-234P-ST(40)-US DPDT 1 to 48 VDC 0.60 A, 125 VAC
G6AU-234P-ST-US 1 A, 30 VDC
0.60 A, 110 VDC
G6AK-274P-ST(40)-US 0.60 A, 125 VAC
G6AU-274P-ST-US 2 A, 30 VDC
0.60 A, 110 VDC
G6AK-434P-ST(40)-US 4PDT 1 to 48 VDC 0.60 A, 125 VAC
G6AU-434P-ST(40)-US 1 A, 30 VDC
0.60 A, 110 VDC
G6AK-474P-ST(40)-US 0.60 A, 125 VAC
G6AU-474P-ST(40)-US 2 A, 30 VDC
0.60 A, 110 VDC
Note: 1. The rated values approved by each of the safety standards (e.g., UL and CSA) may be different from the performance
characteristics individually defined in this catalog.
2. In the interest of product improvement, specifications are subject to change.
8
Page 9
G6A G6A
OMRON ELECTRONICS, INC. OMRON CANADA, INC.
One East Commerce Drive 885 Milner Avenue
Schaumburg, IL 60173 Scarborough, Ontario M1B 5V8
1-800-55-OMRON 416-286-6465
Cat. No. GC RLY6 9/97 Specifications subject to change without notice. Printed in the U.S.A.
9
