SBD
SBDSBD

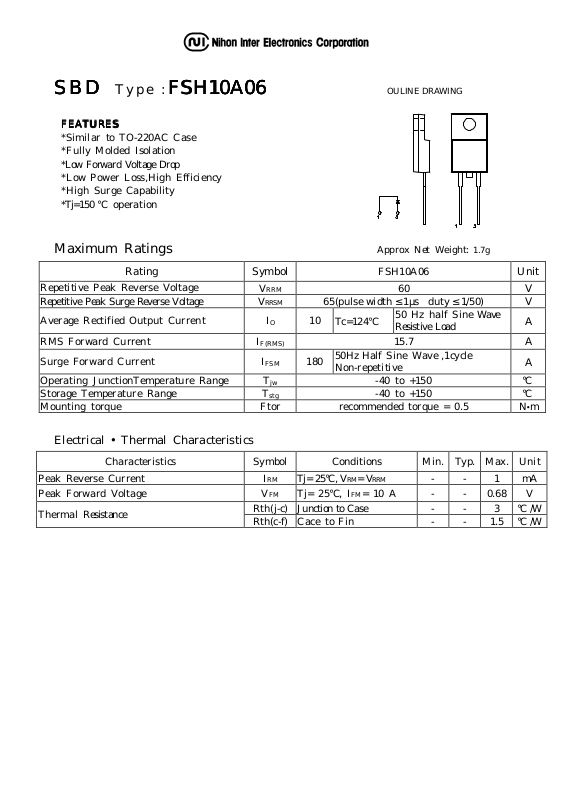

SBD Type : FSH
FSHFSH
FSH10
1010
10A0
A0A0
A06666 OULINE DRAWING
Maximum Ratings Approx Net Weight: 1.7g
Rating Symbol
FSH10A06
Unit
Repetitive Peak Reverse Voltage
V
RRM
60
V
Repetitive Peak Surge Reverse Voltage
V
RRSM
65(pulse width ≤ 1µs duty ≤ 1/50)
V
Average Rectified Output Current IO 10
Tc=124°C
50 Hz half Sine Wave
Resistive Load
A
RMS Forward Current I
F(RMS)
15.7
A
Surge Forward Current I
FSM
180
50Hz Half Sine Wave ,1cycle
Non-repetitive
A
Operating JunctionTemperature Range Tjw -40 to +150
°C
Storage Temperature Range T
stg
-40 to +150
°C
Mounting torque Ftor recommended torque = 0.5 N•m
Electrical • Thermal Characteristics
Characteristics Symbol Conditions Min. Typ. Max. Unit
Peak Reverse Current IRM
Tj= 25°C, V
RM
= V
RRM
- - 1 mA
Peak Forward Voltage VFM
Tj= 25°C, I
FM
= 10 A
- - 0.68 V
R th ( j - c) Junction to C ase - - 3
°C
/W
Thermal Resistance
Rth(c-f) Cace to Fin - - 1.5
°C
/W
FEATURES
FEATURESFEATURES
FEATURES
*Similar to TO-220AC Case
*Fully Molded Isolation
*Low Forward Voltage Drop
*Low Power Loss,High Efficiency
*High Surge Capability
*Tj=150 °C
operation
Page 2
FSH10A06 OUTLINE DRAWING (Dimention in mm)
