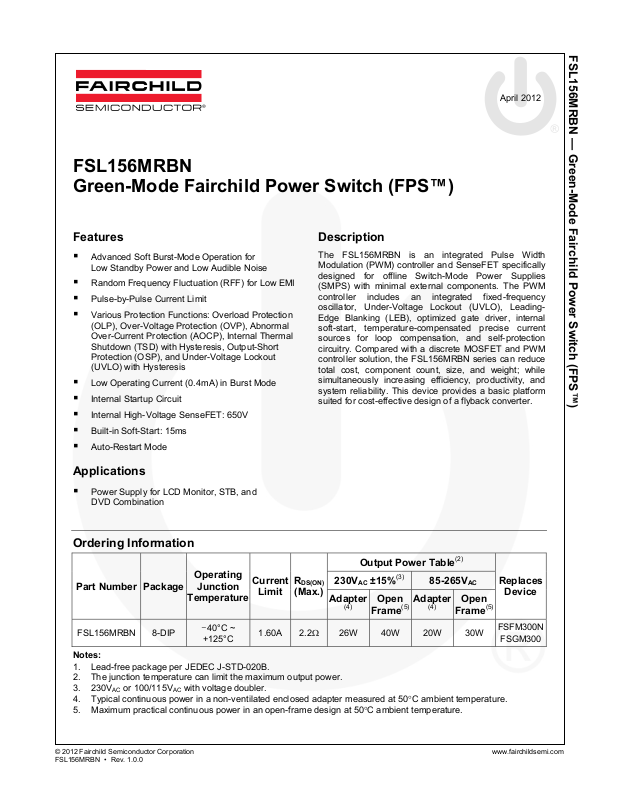

Datasheet FSL156MRBN Datasheet (Fairchild)

FSL156MRBN Green-Mode Fairchild Power Switch (FPS™)

FSL156MRBN — Green-Mode Fairchild Power Switch (FPS™)

April 2012

Features



Advanced Soft Burst-Mode Operation for Low Standby Power and Low Audible Noise

 Random Frequency Fluctuation (RFF) for Low EMI  Pulse-by-Pulse Current Limit  Various Protection Functions: Overload Protection

(OLP), Over-Voltage Protection (OVP), Abnormal Over-Current Protection (AOCP), Internal Thermal Shutdown (TSD) with Hysteresis, Output-Short Protection (OSP), and Under-Voltage Lockout (UVLO) with Hysteresis

 Low Operating Current (0.4mA) in Burst Mode  Internal Startup Circuit  Internal High-Voltage SenseFET: 650V  Built-in Soft-Start: 15ms  Auto-Restart Mode

Applications

 Power Supply for LCD Monitor, STB, and

DVD Combination

Description

The FSL156MRBN is an integrated Pulse Width Modulation (PWM) controller and SenseFET specifically designed for offline Switch-Mode Power Supplies (SMPS) with minimal external components. The PWM controller includes an integrated fixed-frequency oscillator, Under-Voltage Lockout (UVLO), LeadingEdge Blanking (LEB), optimized gate driver, internal soft-start, temperature-compensated precise current sources for loop compensation, and self-protection circuitry. Compared with a discrete MOSFET and PWM controller solution, the FSL156MRBN series can reduce total cost, component count, size, and weight; while simultaneously increasing efficiency, productivity, and system reliability. This device provides a basic platform suited for cost-effective design of a flyback converter.

Ordering Information

(2)

AC

Open

Frame

Replaces

Device

(5)

FSFM300N

FSGM300

Output Power Table

Operating

Part Number Package

Junction

Temperature

FSL156MRBN 8-DIP

Notes:

1. Lead-free package per JEDEC J-STD-020B.

2. The junction temperature can limit the maximum output power.

3. 230V

4. Typical continuous power in a non-ventilated enclosed adapter measured at 50C ambient temperature.

5. Maximum practical continuous power in an open-frame design at 50C ambient temperature.

or 100/115VAC with voltage doubler.

AC

-40°C ~ +125°C

Current

Limit

1.60A

R

DS(ON)

(Max.)

2.2

230VAC ±15%

Adapter

(4)

26W 40W 20W 30W

Open

Frame

(3)

(5)

85-265V

Adapter

(4)

Application Circuit

FSL156MRBN — Green-Mode Fairchild Power Switch (FPS™)

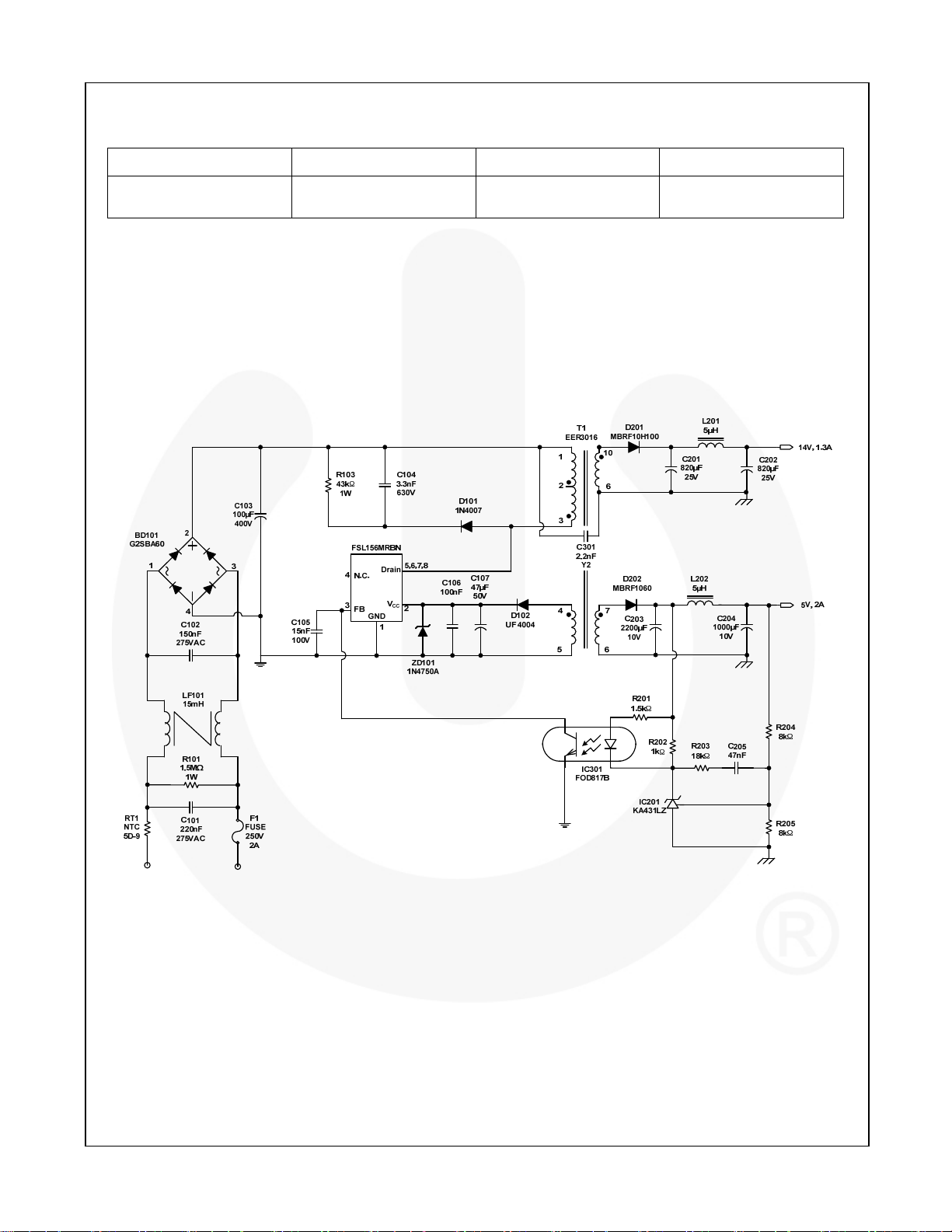

Figure 1. Typical Application Circuit

Internal Block Diagram

Figure 2. Internal Block Diagram

Pin Configuration

FSL156MRBN — Green-Mode Fairchild Power Switch (FPS™)

1. GND

2. V

CC

8. Drain

7. Drain

FSL156MRBN

3. FB

4. N.C.

Figure 3. Pin Configuration (Top View)

Pin Definitions

Pin # Name Description

1 GND Ground. This pin is the control ground and the SenseFET source.

2 VCC

3 FB

4 N.C. No Connection

5, 6, 7, 8 Drain SenseFET Drain. High-voltage power SenseFET drain connection.

Power Supply. This pin is the positive supply input, which provides the internal operating current for both startup and steady-state operation.

Feedback. This pin is internally connected to the inverting input of the PWM comparator. The collector of an opto-coupler is typically tied to this pin. For stable operation, a capacitor should be placed between this pin and GND. If the voltage of this pin reaches 7.0V, the overload protection triggers, which shuts down the FPS™.

6. Drain

5. Drain

FSL156MRBN — Green-Mode Fairchild Power Switch (FPS™)

Absolute Maximum Ratings

Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be operable above the recommended operating conditions and stressing the parts to these levels is not recommended. In addition, extended exposure to stresses above the recommended operating conditions may affect device reliability. The absolute maximum ratings are stress ratings only.

Symbol Parameter Min. Max. Unit

V

Drain Pin Voltage 650 V

DS

V

CC

V

Feedback Pin Voltage -0.3 10.0 V

FB

I

Drain Current Pulsed 4 A

DM

I

Continuous Switching Drain Current

DS

EAS Single Pulsed Avalanche Energy

PD

T

J

T

Storage Temperature -55 +150

STG

ESD

Notes:

6. Repetitive peak switching current when the inductive load is assumed: Limited by maximum duty (D

and junction temperature (see Figure 4).

7. L=45mH, starting T

8. Infinite cooling condition (refer to the SEMI G30-88).

9. Although this parameter guarantees IC operation, it does not guarantee all electrical characteristics.

Pin Voltage 26 V

CC

1.90 A

1.27 A

1.5 W

(7)

Total Power Dissipation (TC=25C)

T

=25C

(6)

C

TC=100C

190 mJ

(8)

Maximum Junction Temperature 150

Operating Junction Temperature

Electrostatic Discharge Capability

=25C.

J

Human Body Model, JESD22-A114 5

Charged Device Model, JESD22-C101 2

(9)

-40 +125

MAX

C

kV

=0.73)

Figure 4. Repetitive Peak Switching Current

Thermal Impedance

TA=25°C unless otherwise specified.

Symbol Parameter Value Unit

JA Junction-to-Ambient Thermal Impedance

JL Junction-to-Lead Thermal Impedance

Notes:

10. JEDEC recommended environment, JESD51-2 and test board, JESD51-10 with minimum land pattern.

11. Measured on the SOURCE pin #7, close to the plastic interface.

(10)

85 °C/W

(11)

11 °C/W

FSL156MRBN — Green-Mode Fairchild Power Switch (FPS™)

Electrical Characteristics

TJ = 25C unless otherwise specified.

Symbol Parameter Conditions Min. Typ. Max. Unit

SenseFET Section

BV

Drain-Source Breakdown Voltage VCC = 0V, ID = 250µA 650 V

DSS

I

Zero-Gate-Voltage Drain Current

DSS

R

Drain-Source On-State Resistance VGS=10V, ID =1A 1.8 2.2 

DS(ON)

C

Input Capacitance

ISS

C

Output Capacitance

OSS

(12)

V

(12)

V

tr Rise Time V

tf Fall Time V

t

Turn-On Delay V

d(on)

t

Turn-Off Delay V

d(off)

V

= 650V, TA = 25C

DS

= 25V, V

DS

= 25V, V

DS

= 325V, ID = 4A, RG=25 26 ns

DS

= 325V, ID = 4A, RG=25 25 ns

DS

= 325V, ID = 4A, RG=25 14 ns

DS

= 325V, ID= 4A, RG=25 32 ns

DS

= 0V, f=1MHz 515 pF

GS

= 0V, f=1MHz 75 pF

GS

Control Section

f

Switching Frequency

S

f

D

MAX

D

MIN

Switching Frequency Variation

S

Maximum Duty Ratio V

Minimum Duty Ratio V

IFB Feedback Source Current V

V

START

V

STOP

t

V

RECOMM

SS

UVLO Threshold Voltage

After Turn-On, V

Internal Soft-Start Time V

Recommended VCC Range 13 23 V

(12)

V

(12)

= 14V, V

CC

-25C < T

= 14V, V

CC

= 14V, V

CC

= 0 65 90 115 µA

FB

V

= 0V, V

FB

= 40V, V

STR

= 4V 61 67 73 kHz

FB

< 125C

J

= 4V 61 67 73 %

FB

= 0V 0 %

FB

Sweep 11 12 13 V

CC

= 0V 7.0 7.5 8.0 V

FB

Sweep 15 ms

CC

Burst-Mode Section

V

BURH

V

BURL

HYS

Burst-Mode Voltage V

0.30 0.35 0.40 V

150 mV

= 14V, VFB Sweep

CC

Protection Section

I

Peak Drain Current Limit di/dt = 300mA/µs 1.45 1.60 1.75 A

LIM

V

Shutdown Feedback Voltage V

SD

I

Shutdown Delay Current V

DELAY

t

Leading-Edge Blanking Time

LEB

V

Over-Voltage Protection VCC Sweep 23.0 24.5 26.0 V

OVP

t

OSP

V

OSP

t

OSP_FB

TSD

T

HYS

Output-Short

Threshold VFB 1.8 2.0 2.2 V

Protection

V

Thermal Shutdown Temperature

Hysteresis 60

Threshold Time

(12)

FB

Blanking Time 2.0 2.5 3.0 µs

(12,14)

300 ns

(12)

= 14V, V

CC

= 14V, V

CC

Sweep 6.45 7.00 7.55 V

FB

= 4V 1.2 2.0 2.8 µA

FB

OSP Triggered when t (Lasts Longer than t

Shutdown Temperature 125 135 145

ON<tOSP

& VFB>V

OSP

OSP_FB

)

250 µA

±5 ±10 %

0.45 0.50 0.55 V

0.7 1.0 1.3 µs

C

Continued on the following page…

FSL156MRBN — Green-Mode Fairchild Power Switch (FPS™)

Electrical Characteristics (Continued)

TJ = 25C unless otherwise specified.

Symbol Parameter Conditions Min. Typ. Max. Unit

Total Device Section

I

OP

I

OPS

I

START

I

CH

V

STR

Operating Supply Current, (Control Part in Burst Mode)

Operating Switching Current, (Control Part and SenseFET Part)

Start Current

Startup Charging Current V

Minimum V

Supply Voltage VCC = V

STR

VCC = 14V, V

V

=11V (Before VCC

CC

Reaches V

CC

= V

= 0V, V

FB

= 0V, V

FB

START

= 0V 0.3 0.4 0.5 mA

FB

= 2V 1.1 1.5 1.9 mA

FB

)

= 40V 0.7 1.0 1.3 mA

STR

Sweep 26 V

STR

85 120 155 µA

Notes:

12. Although these parameters are guaranteed, they are not 100% tested in production.

13. Average value.

14. t

includes gate turn-on time.

LEB

Comparison of FSGM300N and FSL156MRBN

Function FSGM300N FSL156MRBN Advantages of FSL156MRBN

Operating Current 1.5mA 0.4mA Very low standby power

Power Balance Long t

Very Short t

CLD

The difference of input power between the low and high input voltage is quite small.

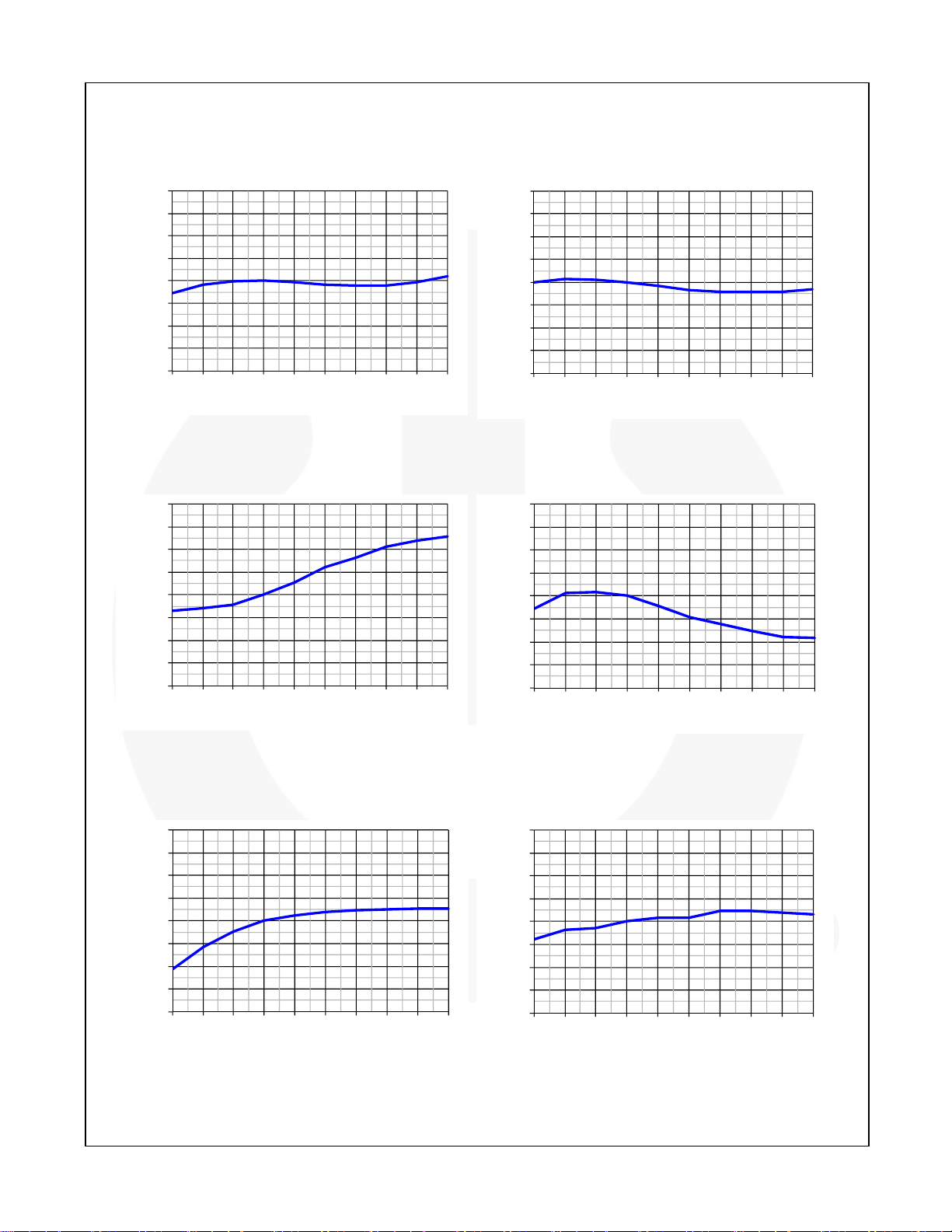

Typical Performance Characteristics

Characteristic graphs are normalized at TA=25°C.

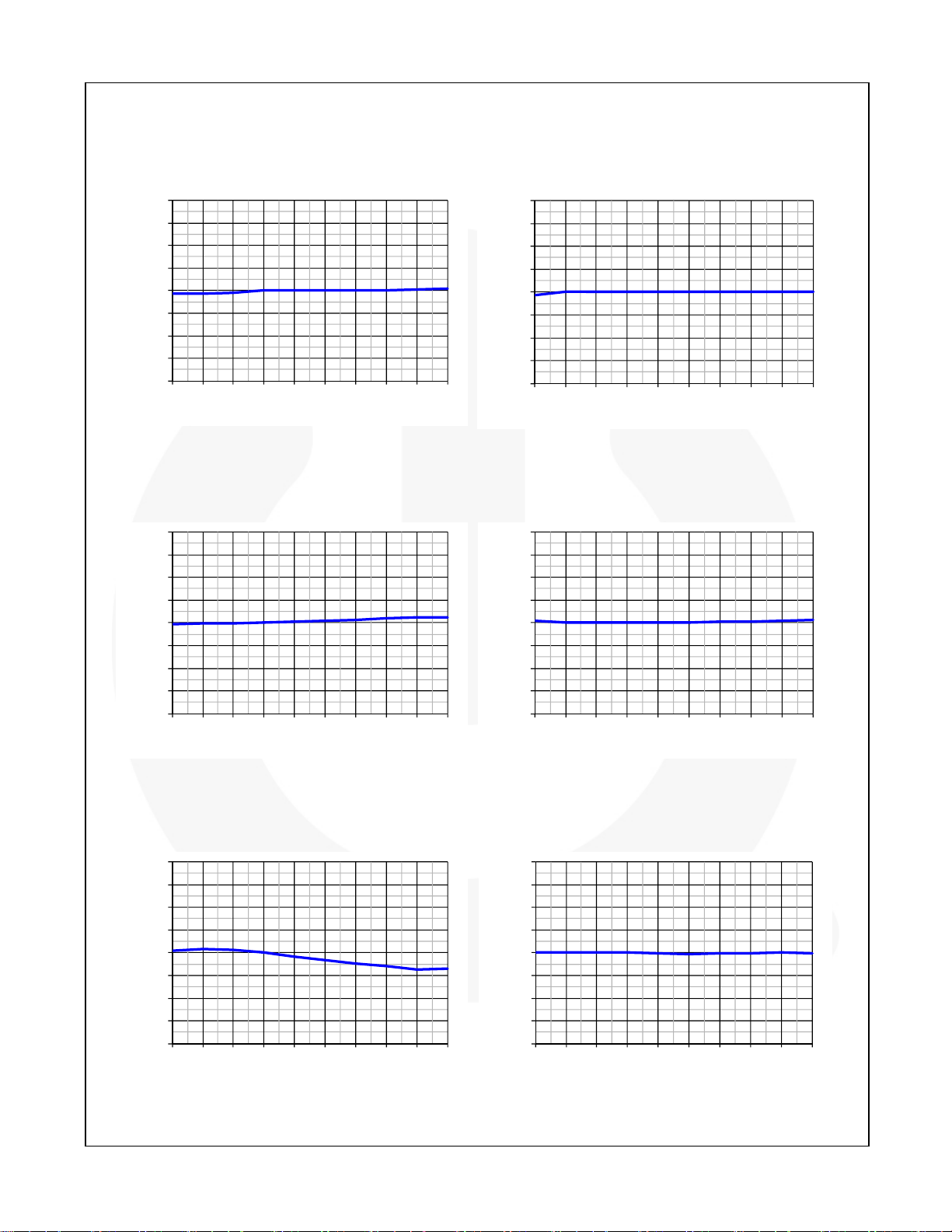

FSL156MRBN — Green-Mode Fairchild Power Switch (FPS™)

1.20

1.15

1.10

1.05

1.00

0.95

Normalized

0.90

0.85

0.80 ‐40'C ‐20'C 0'C 25'C 50'C 75'C 90'C 110'C 120'C 125'C

Temperature [ °C]

1.20

1.15

1.10

1.05

1.00

0.95

Normalized

0.90

0.85

0.80 ‐40'C ‐20'C 0'C 25'C 50'C 75'C 90'C 110'C 120'C 125'C

Temperature [ °C]

Figure 5. Operating Supply Current (IOP) vs. TA Figure 6. Operating Switching Current (I

1.20

1.15

1.10

1.05

1.00

0.95

Normalized

0.90

0.85

0.80 ‐40'C ‐20'C 0'C 25'C 50'C 75'C 90'C 110'C 120'C 125'C

Temperature [ °C]

1.20

1.15

1.10

1.05

1.00

0.95

Normalized

0.90

0.85

0.80 ‐40'C ‐20 'C 0'C 25'C 50'C 75'C 90'C 110'C 120'C 125'C

Temperature [ °C]

OPS

) vs. T

A

Figure 7. Startup Charging Current (ICH) vs. TA Figure 8. Peak Drain Current Limit (I

1.40

1.30

1.20

1.10

1.00

0.90

Normalized

0.80

0.70

0.60 ‐40'C ‐20'C 0'C 25'C 50'C 75'C 90'C 110'C 120'C 125'C

Temperature [ °C]

1.20

1.15

1.10

1.05

1.00

0.95

Norm alized

0.90

0.85

0.80 ‐40'C ‐20'C 0'C 25'C 50'C 75'C 90'C 110'C 120'C 125'C

Temperature [ °C]

) vs. TA

LIM

Figure 9. Feedback Source Current (IFB) vs. TA Figure 10. Shutdown Delay Current (I

DELAY

) vs. TA

Typical Performance Characteristics

Characteristic graphs are normalized at TA=25°C.

FSL156MRBN — Green-Mode Fairchild Power Switch (FPS™)

1.20

1.15

1.10

1.05

1.00

0.95

Normalized

0.90

0.85

0.80 ‐40'C ‐20'C 0'C 25'C 50'C 75'C 90'C 110'C 120'C 125'C

Temperature [ °C]

Figure 11. UVLO Threshold Voltage (V

1.20

1.15

1.10

1.05

1.00

0.95

Normalized

0.90

0.85

0.80 ‐40'C ‐20'C 0'C 25'C 50'C 75'C 90'C 110'C 120'C 125'C

Temperature [ °C]

1.20

1.15

1.10

1.05

1.00

0.95

Norm alized

0.90

0.85

0.80 ‐40'C ‐20'C 0'C 25'C 50'C 75'C 90'C 110'C 120'C 125'C

Temperature [ °C]

) vs. TA Figure 12. UVLO Threshold Voltage (V

START

1.20

1.15

1.10

1.05

1.00

0.95

Normalized

0.90

0.85

0.80

‐40'C ‐20'C 0'C 25'C 50'C 75'C 90'C 110'C 120'C 125'C

Temperature [ °C]

STOP

) vs. TA

Figure 13. Shutdown Feedback Voltage (VSD) vs. T

1.20

1.15

1.10

1.05

1.00

0.95

Normalized

0.90

0.85

0.80 ‐40'C ‐20'C 0'C 25'C 50'C 75'C 90'C 110'C 120'C 125'C

Temperature [ °C]

Figure 15. Switching Frequency (fS) vs. TA Figure 16. Maximum Duty Ratio (D

Figure 14. Over-Voltage Protection (V

A

1.20

1.15

1.10

1.05

1.00

0.95

Normalized

0.90

0.85

0.80 ‐40'C ‐20'C 0'C 25'C 50'C 75'C 90'C 110'C 120'C 125'C

Temperature [ °C]

OVP

MAX

) vs. TA

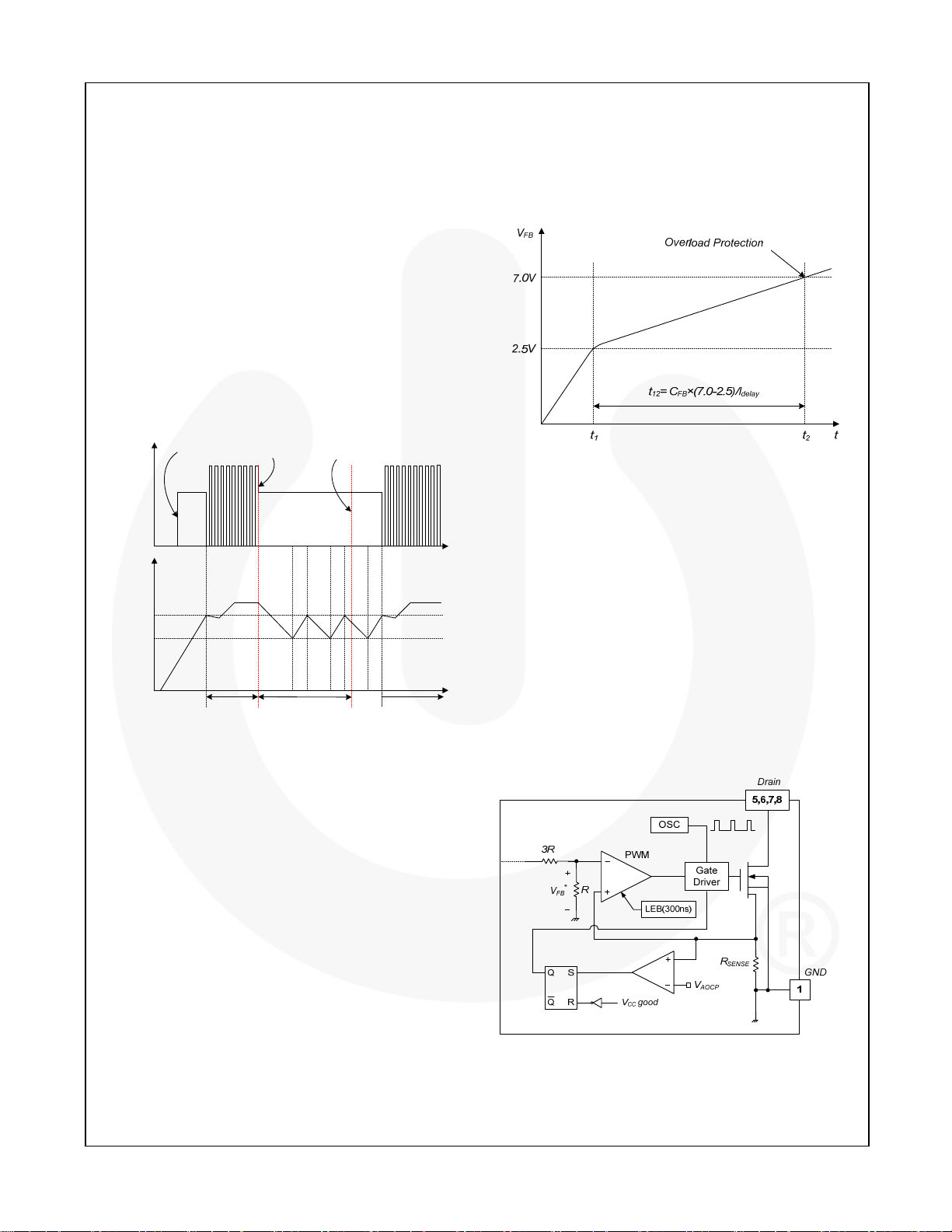

Functional Description

1. Startup: At startup, an internal high-voltage current

source supplies the internal bias and charges the external capacitor (C illustrated in Figure 17. When V FSL156MRBN begins switching and the internal highvoltage current source is disabled. Normal switching operation continues and the power is supplied from the auxiliary transformer winding unless VCC goes below the stop voltage of 7.5V.

V

CC

2 5

7.5V/12.0V

Figure 17. Startup Block

2. Soft-Start: The internal soft-start circuit increases

PWM comparator inverting input voltage, together with the SenseFET current, slowly after startup. The typical soft-start time is 15ms. The pulse width to the power switching device is progressively increased to establish the correct working conditions for the transformers, inductors, and capacitors. The voltage on the output capacitors is progressively increased to smoothly establish the required output voltage. This helps prevent transformer saturation and reduces stress on the secondary diode during startup.

) connected to the VCC pin, as

Vcc

C

Vcc

VCC Good

reaches 12V, the

CC

V

DC

Drain

I

CH

V

REF

Internal

Bias

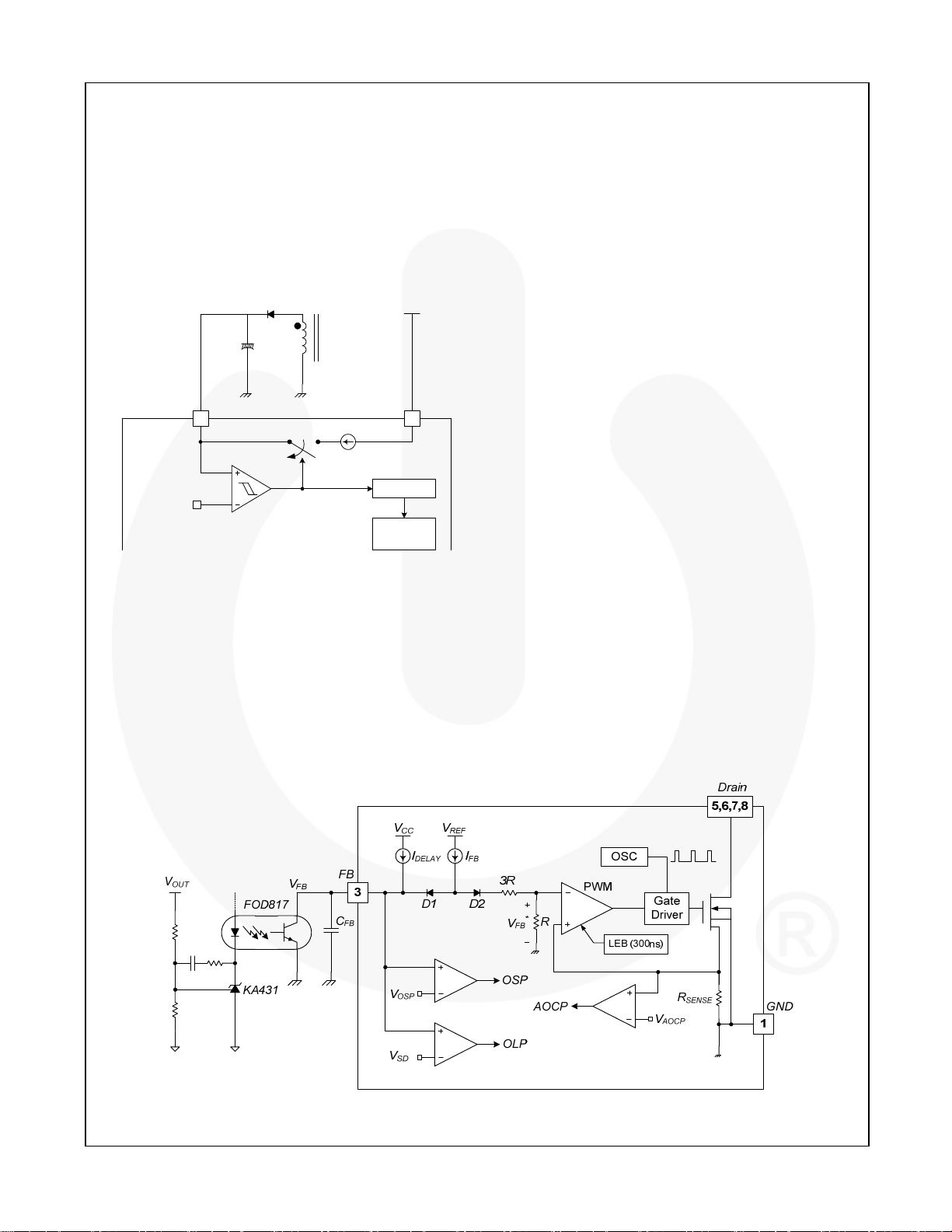

3. Feedback Control: This device employs CurrentMode control, as shown in Figure 18. An opto-coupler (such as the FOD817) and shunt regulator (such as the KA431) are typically used to implement the feedback network. Comparing the feedback voltage with the voltage across the R

resistor makes it possible to

SENSE

control the switching duty cycle. When the reference pin voltage of the shunt regulator exceeds the internal reference voltage of 2.5V, the opto-coupler LED current increases, pulling down the feedback voltage and reducing drain current. This typically occurs when the input voltage is increased or the output load is decreased.

3.1 Pulse-by-Pulse Current Limit: Because CurrentMode control is employed, the peak current through the SenseFET is limited by the inverting input of PWM comparator (V

*), as shown in Figure 18. Assuming

FB

that the 90A current source flows only through the internal resistor (3R + R =25k), the cathode voltage of diode D2 is about 2.8V. Since D1 is blocked when the feedback voltage (V

) exceeds 2.8V, the

FB

maximum voltage of the cathode of D2 is clamped at this voltage. Therefore, the peak value of the current through the SenseFET is limited.

3.2 Leading-Edge Blanking (LEB): At the instant the internal SenseFET is turned on, a high-current spike usually occurs through the SenseFET, caused by primary-side capacitance and secondary-side rectifier reverse recovery. Excessive voltage across the R

SENSE

resistor leads to incorrect feedback operation in the Current-Mode PWM control. To counter this effect, the leading-edge blanking (LEB) circuit inhibits the PWM comparator for t

(300ns) after the SenseFET is

LEB

turned on.

FSL156MRBN — Green-Mode Fairchild Power Switch (FPS™)

Figure 18. Pulse Width Modulation Circuit

4. Protection Circuits: The FSL156MRBN has several self-protective functions, such as Overload Protection (OLP), Abnormal Over-Current Protection (AOCP), Output-Short Protection (OSP), Over-Voltage Protection (OVP), and Thermal Shutdown (TSD). All the protections are implemented as auto-restart. Once the fault condition is detected, switching is terminated and the SenseFET remains off. This causes V

B

When V

B falls to the Under-Voltage Lockout (UVLO)

CC

to fall.

CC

stop voltage of 7.5V, the protection is reset and the startup circuit charges the VCC capacitor. When VCC reaches the start voltage of 12.0V, normal operation resumes. If the fault condition is not removed, the SenseFET remains off and V

drops to stop voltage

CC

again. In this manner, the auto-restart can alternately enable and disable the switching of the power SenseFET until the fault condition is eliminated. Because these protection circuits are fully integrated into the IC without external components, reliability is improved without increasing cost.

Fault

removed

Normal

operation

t

V

12.0V

7.5V

Power

DS

on

CC

operation

Fault

occurs

Normal

situation

Figure 19. Auto-Restart Protection Waveforms

4.1 Overload Protection (OLP): Overload is defined

as the load current exceeding its normal level due to an unexpected abnormal event. In this situation, the protection circuit should trigger to protect the SMPS. However, even when the SMPS is in normal operation, the overload protection circuit can be triggered during the load transition. To avoid this undesired operation, the overload protection circuit is designed to trigger only after a specified time to determine whether it is a transient situation or a true overload situation. Because of the pulse-by-pulse current-limit capability, the maximum peak current through the SenseFET is limited and, therefore, the maximum input power is restricted with a given input voltage. If the output consumes more than this maximum power, the output voltage (V

) decreases

OUT

below the set voltage. This reduces the current through the opto-coupler LED, which also reduces the opto-coupler transistor current, increasing the feedback voltage (VFB). If VFB exceeds 2.5V, D1 is blocked and the 2.0µA current source starts to charge

slowly up. In this condition, VFB continues

C

FB

increasing until it reaches 7.0V, when the switching operation is terminated, as shown in Figure 20. The delay for shutdown is the time required to charge C from 2.5V to 7.0V with 2.0µA. A 25 ~ 50ms delay is typical for most applications. This protection is implemented in Auto-Restart Mode.

Figure 20. Overload Protection

4.2 Abnormal Over-Current Protection (AOCP):

When the secondary rectifier diodes or the transformer pins are shorted, a steep current with extremely high di/dt can flow through the SenseFET during the minimum turn-on time. Even though the FSL156MRBN has overload protection, it is not enough to protect in that abnormal case due to the severe current stress imposed on the SenseFET until OLP is triggered. The internal AOCP circuit is shown in Figure 21. When the gate turn-on signal is applied to the power SenseFET, the AOCP block is enabled and monitors the current through the sensing resistor. The voltage across the resistor is compared with a preset AOCP level. If the sensing resistor voltage is greater than the AOCP level, the set signal is applied to the S-R latch, resulting in the shutdown of the SMPS.

Figure 21. Abnormal Over-Current Protection

FSL156MRBN — Green-Mode Fairchild Power Switch (FPS™)

FB

4.3. Output-Short Protection (OSP): If the output is shorted, steep current with extremely high di/dt can flow through the SenseFET during the minimum turnon time. Such a steep current brings high-voltage stress on the drain of the SenseFET when turned off. To protect the device from this abnormal condition, OSP is included. It is comprised of detecting V SenseFET turn-on time. When the V

is higher than

FB

2.0V and the SenseFET turn-on time is lower than

1.0s, this condition is recognized as an abnormal error and PWM switching shuts down until V reaches V

again. An abnormal condition output

START

short is shown in Figure 22.

and

CC

5. Soft Burst-Mode Operation: To minimize power dissipation in Standby Mode, the FSL156MRBN enters Burst-Mode operation. As the load decreases, the feedback voltage decreases. As shown in Figure 23, the device automatically enters Burst Mode when the feedback voltage drops below V

(350mV). At this

BURL

point, switching stops and the output voltages start to drop at a rate dependent on standby current load. This causes the feedback voltage to rise. Once it passes V

(500mV), switching resumes. The feedback

BURH

voltage then falls and the process repeats. Burst Mode alternately enables and disables SenseFET switching, reducing switching loss in Standby Mode.

FSL156MRBN — Green-Mode Fairchild Power Switch (FPS™)

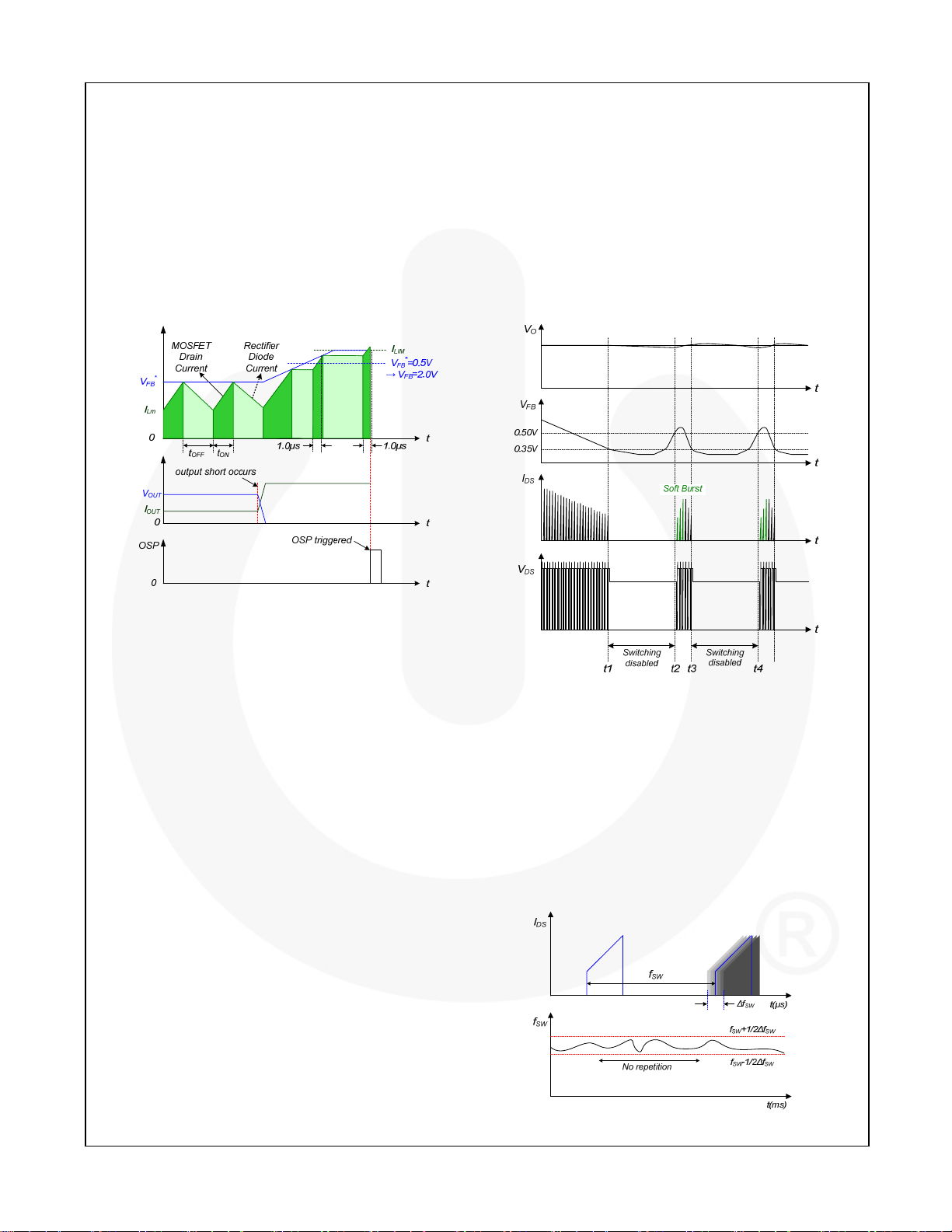

Figure 22. Output-Short Protection

4.4 Over-Voltage Protection (OVP): If the

secondary-side feedback circuit malfunctions or a solder defect causes an opening in the feedback path, the current through the opto-coupler transistor becomes almost zero. Then VFB climbs up in a similar manner to the overload situation, forcing the preset maximum current to be supplied to the SMPS until the overload protection is triggered. Because more energy than required is provided to the output, the output voltage may exceed the rated voltage before the overload protection is triggered, resulting in the breakdown of the devices in the secondary side. To prevent this situation, an OVP circuit is employed. In general, the V and the FSL156MRBN uses V monitoring the output voltage. If V

is proportional to the output voltage

CC

instead of directly

CC

exceeds 24.5V,

CC

an OVP circuit is triggered, resulting in the termination of the switching operation. To avoid undesired activation of OVP during normal operation, V

should

CC

be designed to be below 24.5V.

4.5 Thermal Shutdown (TSD): The SenseFET and the control IC on a die in one package makes it easier for the control IC to detect the over temperature of the SenseFET. If the temperature exceeds ~135C, the thermal shutdown is triggered and stops operation. The FSL156MRBN operates in Auto-Restart Mode until the temperature decreases to around 75C, when normal operation resumes.

Figure 23. Burst-Mode Operation

6. Random Frequency Fluctuation (RFF): Fluctuating

switching frequency of an SMPS can reduce EMI by spreading the energy over a wide frequency range. The amount of EMI reduction is directly related to the switching frequency variation, which is limited internally. The switching frequency is determined randomly by external feedback voltage and an internal free-running oscillator at every switching instant. RFF effectively scatters EMI noise around typical switching frequency (67kHz) and can reduce the cost of the input filter included to meet the EMI requirements (e.g. EN55022).

Figure 24. Random Frequency Fluctuation

Typical Application Circuit

Application Input Voltage Rated Output Rated Power

LCD Monitor

Power Supply

85 ~ 265V

AC

5.0V(2A)

14.0V(1.3A)

28.2W

Key Design Notes

1. The delay for overload protection is designed to be about 30ms with C105 (8.2nF). OLP time between 39ms (12nF) and 46ms (15nF) is recommended.

2. The SMD-type capacitor (C106) must be placed as close as possible to the V abrupt pulsating noises and to improve ESD and surge immunity. Capacitance between 100nF and 220nF is recommended.

pin to avoid malfunction by

CC

Schematic

FSL156MRBN — Green-Mode Fairchild Power Switch (FPS™)

Figure 25. Schematic

Transformer

EER3016

1

FSL156MRBN — Green-Mode Fairchild Power Switch (FPS™)

10

N

15V

2

Np/2

3

Np/2

4

N

a

5

9

8

N

5V

7

N

5V

6

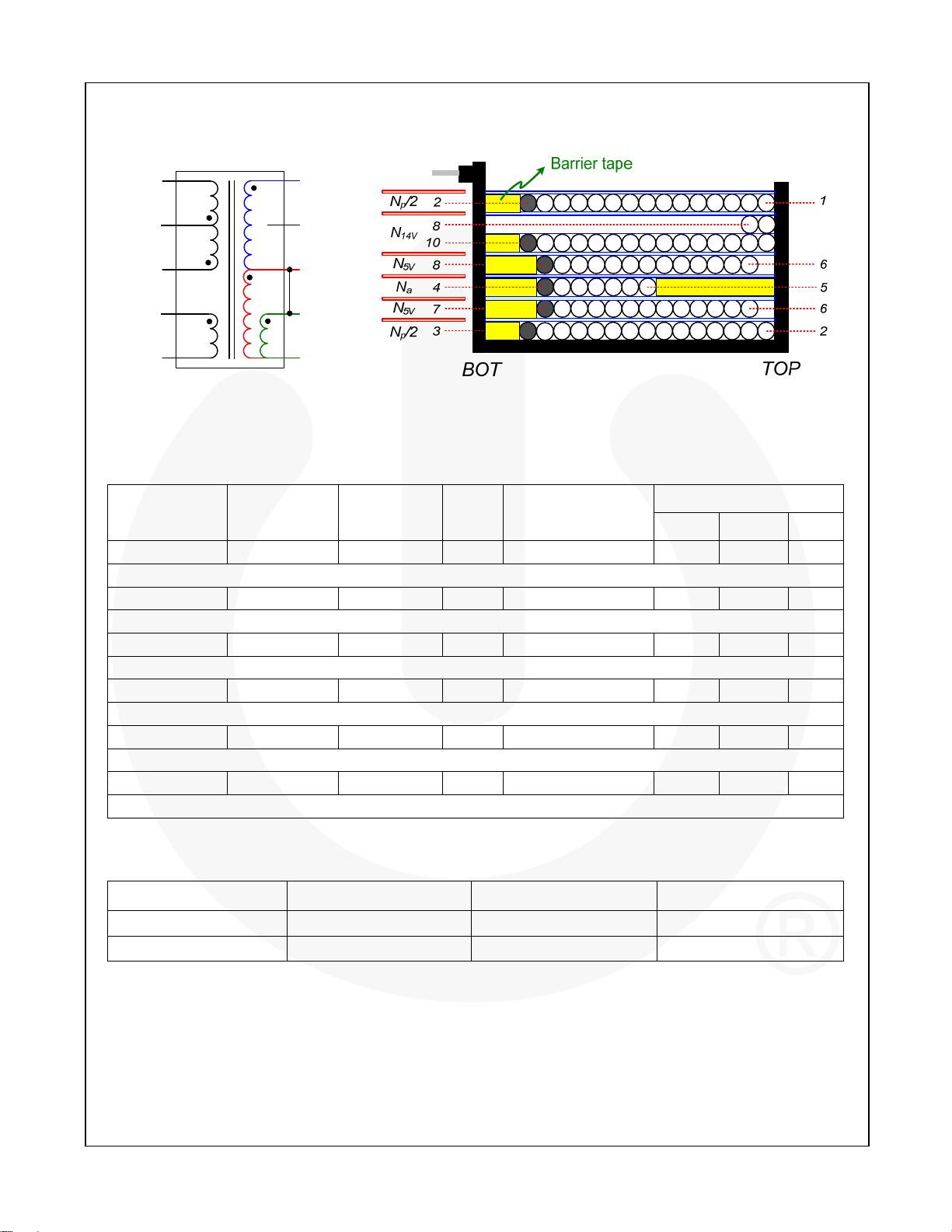

Figure 26. Schematic of Transformer

Winding Specification

Pin (S → F) Wire Turns Winding Method

Np /2 3  2 0.25×1 22 Solenoid Winding 2.0mm 1

Insulation: Polyester Tape t = 0.025mm, 2 Layers

N

7  6 0.4×2 (TIW) 3 Solenoid Winding 3.0mm 1

5V

Insulation: Polyester Tape t = 0.025mm, 2 Layers

Na 4  5 0.2×1 8 Solenoid Winding 4.0mm 3.0mm 1

Insulation: Polyester Tape t = 0.025mm, 2 Layers

N5V 8  6 0.4×2 (TIW) 3 Solenoid Winding 3.0mm 1

Insulation: Polyester Tape t = 0.025mm, 2 Layers

N

14V

10  8 0.4×2 (TIW) 5 Solenoid Winding 2.0mm 1

Insulation: Polyester Tape t = 0.025mm, 2 Layers

Np/2 2  1 0.25×1 22 Solenoid Winding 2.0mm 1

Insulation: Polyester Tape t = 0.025mm, 2 Layers

Barrier Tape

TOP BOT Ts

Electrical Characteristics

Inductance 1－3 826µH ±6% 67kHz, 1V

Leakage

Pin Specification Remark

1－3

15µH Maximum Short all other pins

Core & Bobbin

 Core: EER3016 (Ae=109.7mm

2

)

 Bobbin: EER3016

Bill of Materials

Part # Value Note Part # Value Note

Fuse Capacitor

F101 250V 2A C101 220nF / 275V Box (Pilkor)

NTC C102 150nF/275V Box (Pilkor)

NTC101 5D-9 DSC C103 100µF / 400V Electrolytic (SamYoung)

Resistor

R101 1.5M, J 1W C105 15nF / 100V Film (Sehwa)

R103 43k, J 1W C106 100nF SMD (2012)

R201 1.5k, F 1/4W, 1% C107 47µF / 50V Electrolytic (SamYoung)

R202 1.0k, F 1/4W, 1% C201 820µF / 25V Electrolytic (SamYoung)

R203 18k, F 1/4W, 1% C202 820µF / 25V Electrolytic (SamYoung)

R204 8k, F 1/4W, 1% C203 2200µF / 10V Electrolytic (SamYoung)

R205 8k, F 1/4W, 1% C204 1000µF / 16V Electrolytic (SamYoung)

IC Inductor

FPS FSL156MRBN Fairchild LF101 20mH Line filter 0.5Ø

IC201 KA431LZ Fairchild L201 5µH 5A Rating

IC301 FOD817B Fairchild L202 5µH 5A Rating

Diode Transformer

D101 1N4007 Vishay T101 826µH

D102 UF4007 Vishay

ZD101 1N4750 Vishay

D201 MBRF10H100 Fairchild

D202 MBRF1060 Fairchild

BD101 G2SBA60 Vishay

C104 3.3nF/630V Film (Sehwa)

C205 47nF / 100V Film (Sehwa)

C301 2.2nF / Y2 Y-cap (Samhwa)

FSL156MRBN — Green-Mode Fairchild Power Switch (FPS™)

Physical Dimensions

FSL156MRBN — Green-Mode Fairchild Power Switch (FPS™)

9.83

9.00

6.67

6.096

8.255

7.61

3.60

3.00

3.683

3.20

0.356

0.20

5.08 MAX

0.33 MIN

(0.56)

2.54

0.56

0.355

1.65

1.27

7.62

NOTES: UNLESS OTHERWISE SPECIFIED

A) THIS PACKAGE CONFORMS TO

JEDEC MS-001 VARIATION BA

B) ALL DIMENSIONS ARE IN MILLIMETERS.

C) DIMENSIONS ARE EXCLUSIVE OF BURRS,

MOLD FLASH, AND TIE BAR EXTRUSIONS.

D) DIMENSIONS AND TOLERANC

ES PER

ASME Y14.5M-1994

E) DRAWING FILENAME AND REVSION: MKT-N08FREV2.

7.62

9.957

7.87

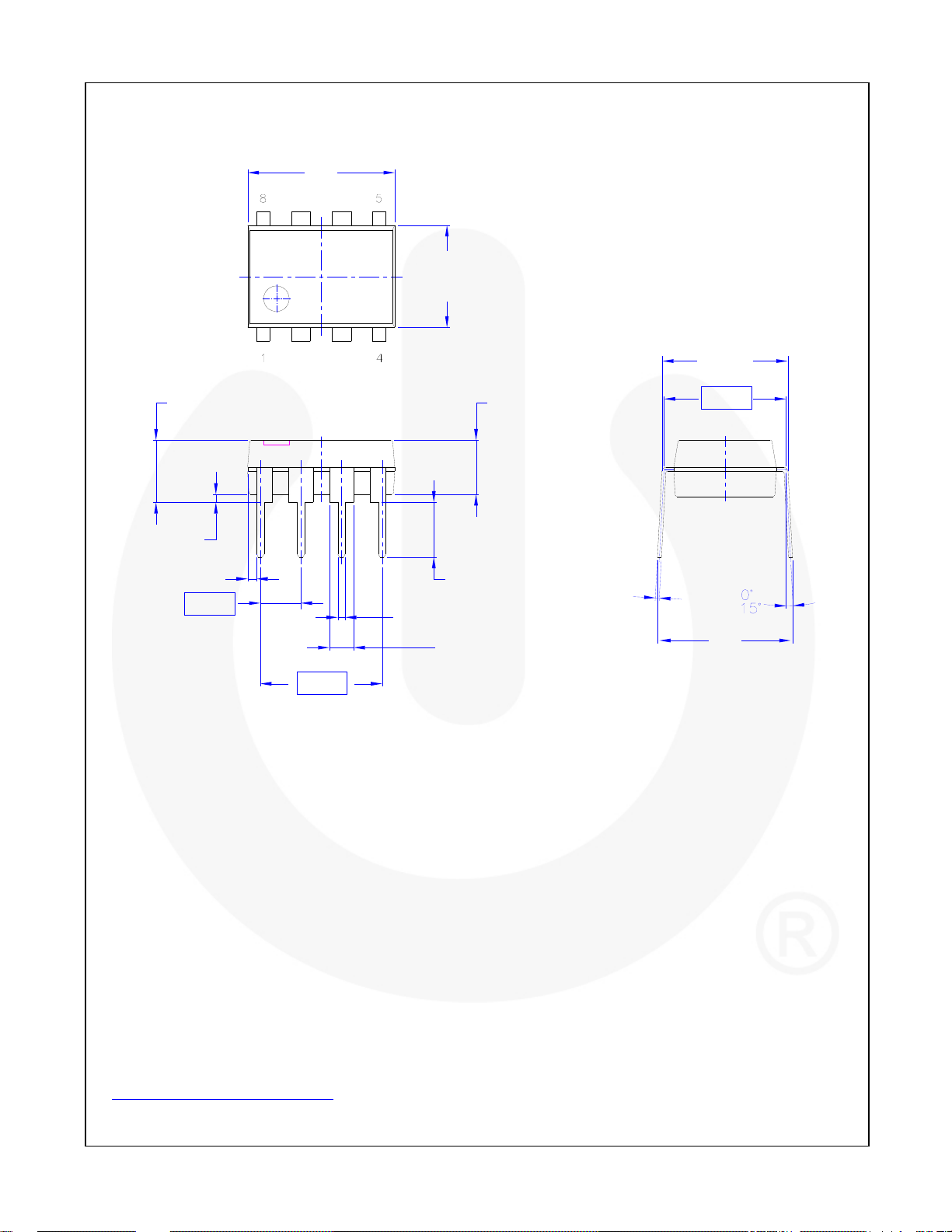

Figure 27. 8-Lead, MDIP, JEDEC MS-001, .300" Wide

Package drawings are provided as a service to customers considering Fairchild components. Drawings may change in any manner without notice. Please note the revision and/or date on the drawing and contact a Fairchild Semiconductor representative to verify or obtain the most recent revision. Package specifications do not expand the terms of Fairchild’s worldwide terms and conditions, specifically the warranty therein, which covers Fairchild products.

Always visit Fairchild Semiconductor’s online packaging area for the most recent package drawings:

http://www.fairchildsemi.com/packaging/

.

FSL156MRBN — Green-Mode Fairchild Power Switch (FPS™)
