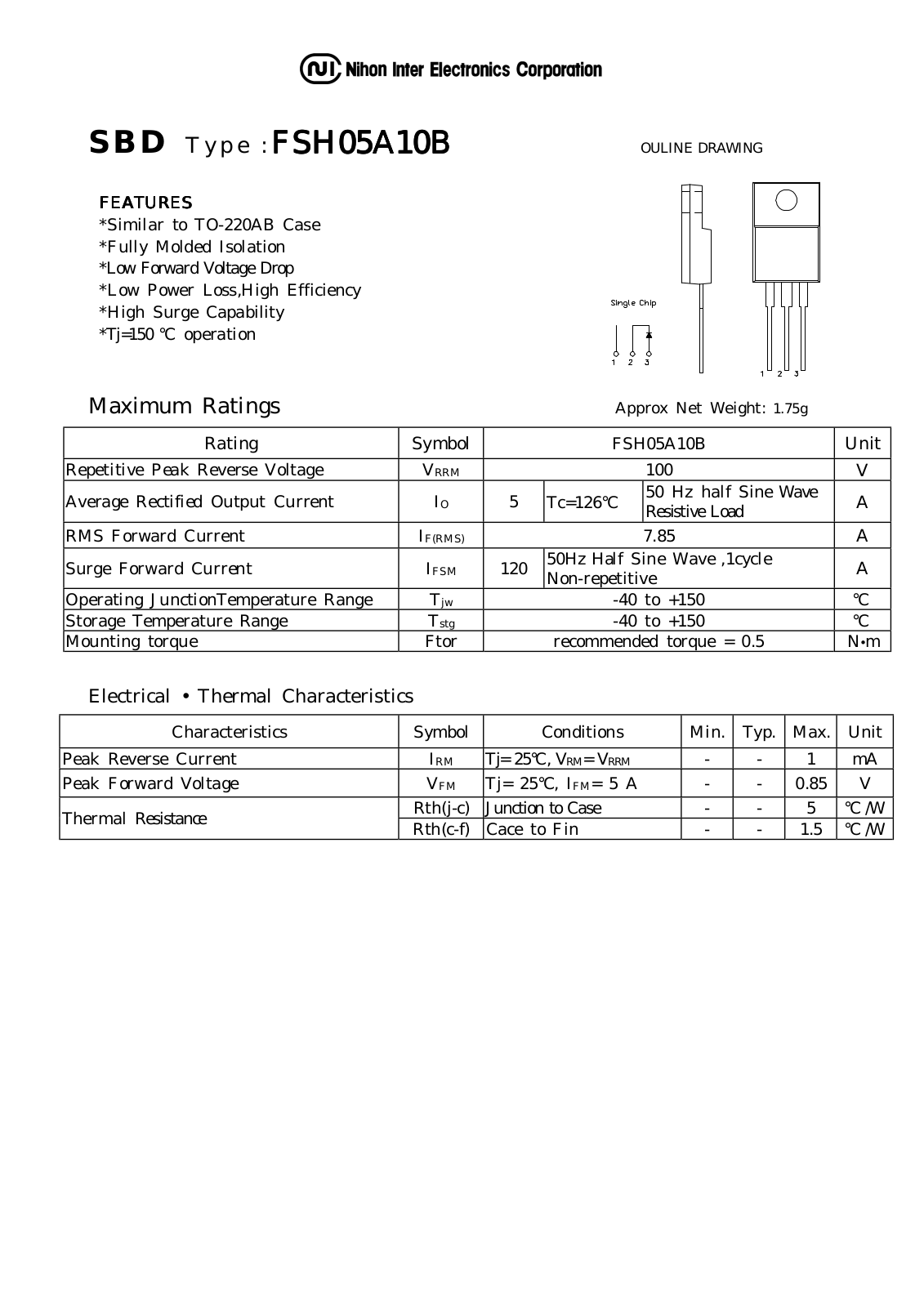

Page 1
SBD
Type :
FSH0
FSH05555AAAA10B
FSH0FSH0
10B
10B10B
OULINE DRAWING
FEATURES
FEATURES
FEATURESFEATURES
*Similar to TO-220AB Case
*Fully Molded Isolation
*Low Forward Voltage Drop
*Low Power Loss,High Efficiency
*High Surge Capability
*Tj=150 °C
operation
Maximum Ratings
Rating Symbol
Repetitive Peak Reverse Voltage
Average Rectified Output Current IO 5
RMS Forward Current I
Surge Forward Current I
Operating JunctionTemperature Range Tjw -40 to +150
Storage Temperature Range T
Mounting torque Ftor recommended torque = 0.5 N•m
V
100
RRM
Tc=126°C
7.85
F(RMS)
120
FSM
-40 to +150
stg
50Hz Half Sine Wave ,1cycle
Non-repetitive
Approx Net Weight:
FSH05A10B
50 Hz half Sine Wave
Resistive Load
1.75g
Unit
V
A
A
A
°C
°C
Electrical • Thermal Characteristics
Characteristics Symbol Conditions Min. Typ. Max. Unit
Peak Reverse Current IRM
Peak Forward Voltage VFM
Thermal Resistance
Rth(j-c) Junction to Case - - 5
Rth(c-f) Cace to Fin - - 1.5
Tj= 25°C, V
Tj= 25°C, I
RM
= V
FM
RRM
= 5 A
- - 1 mA
- - 0.85 V
/W
°C
/W
°C
Page 2

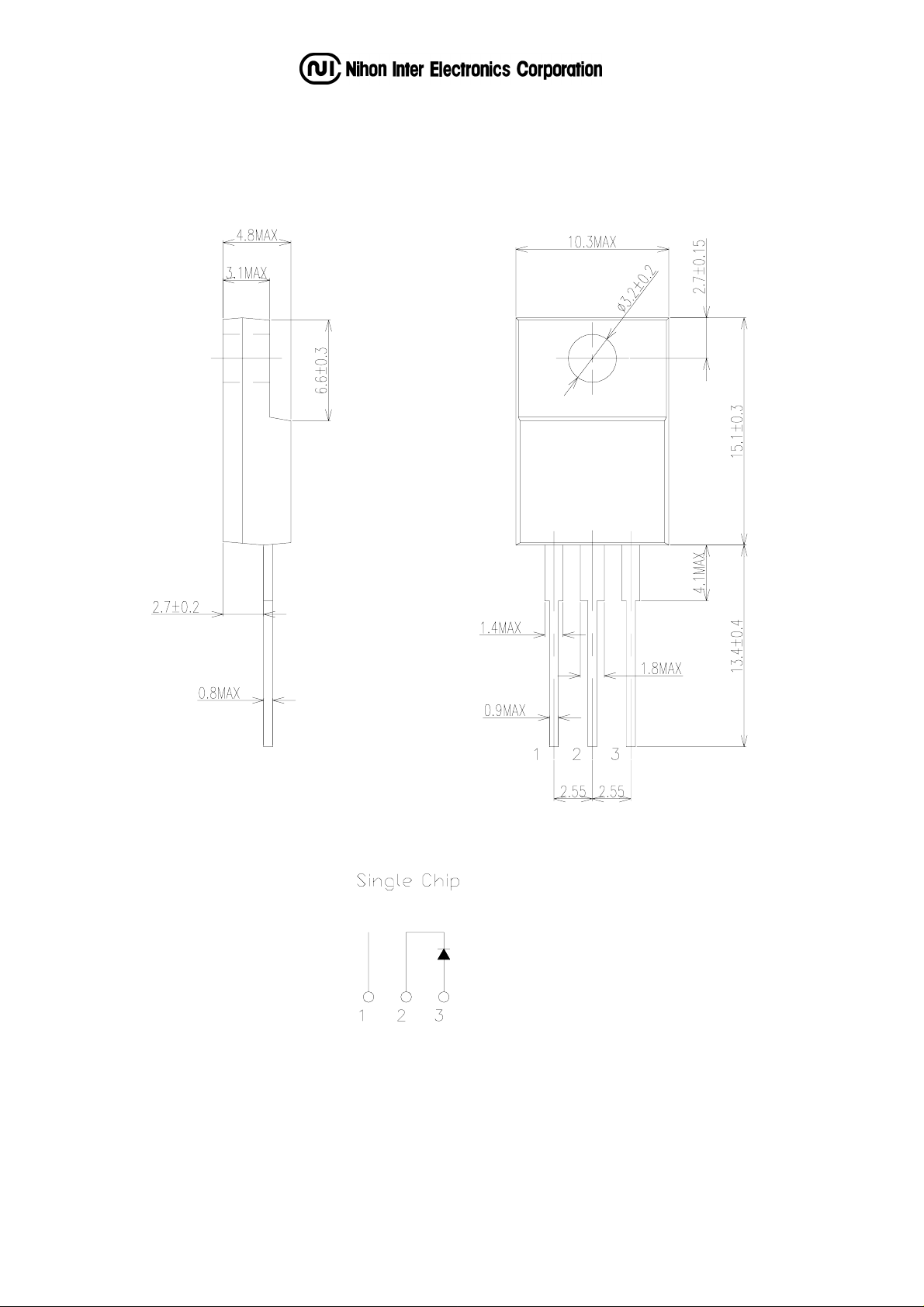

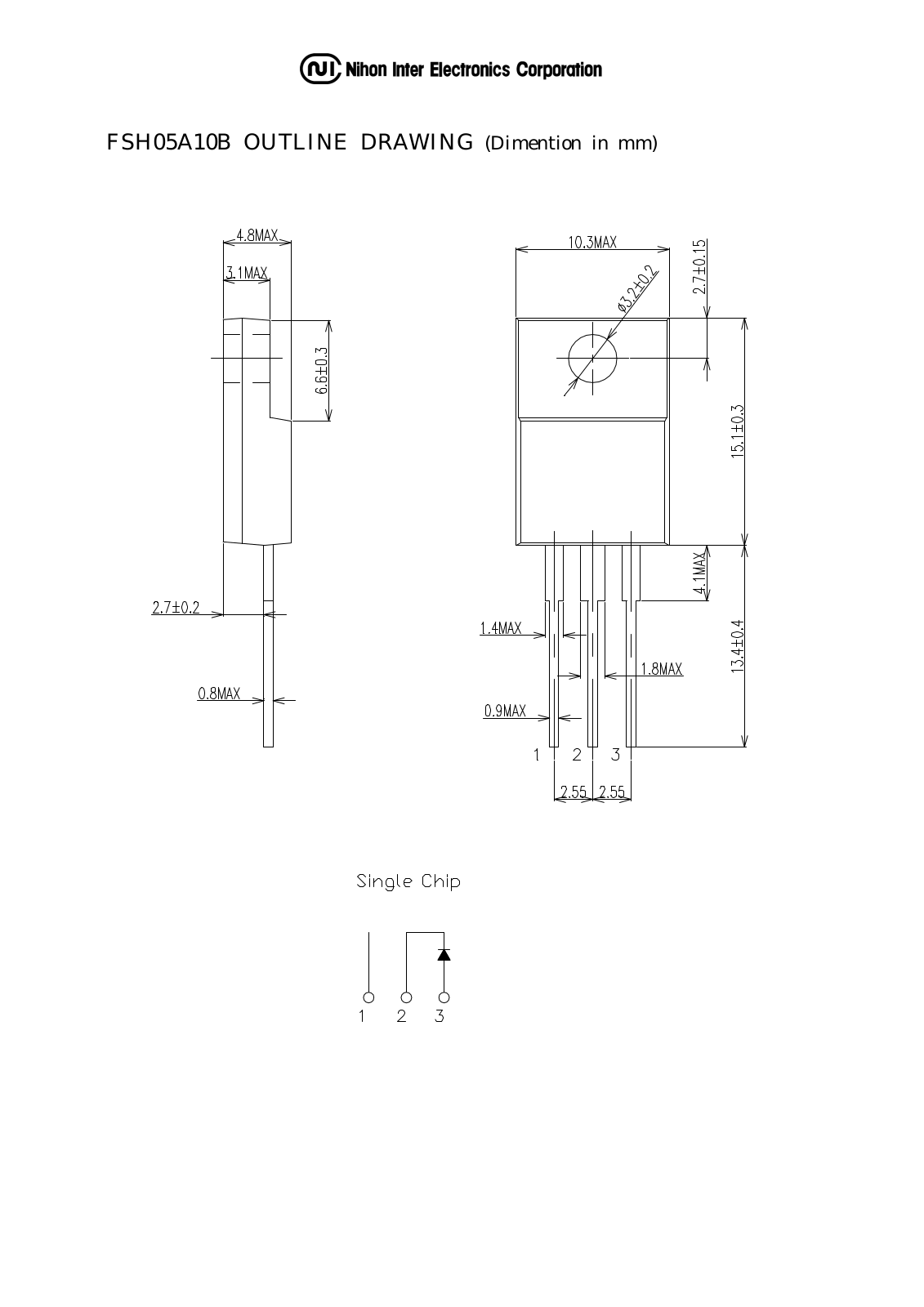

FSH05A10B OUTLINE DRAWING
(Dimention in mm)
