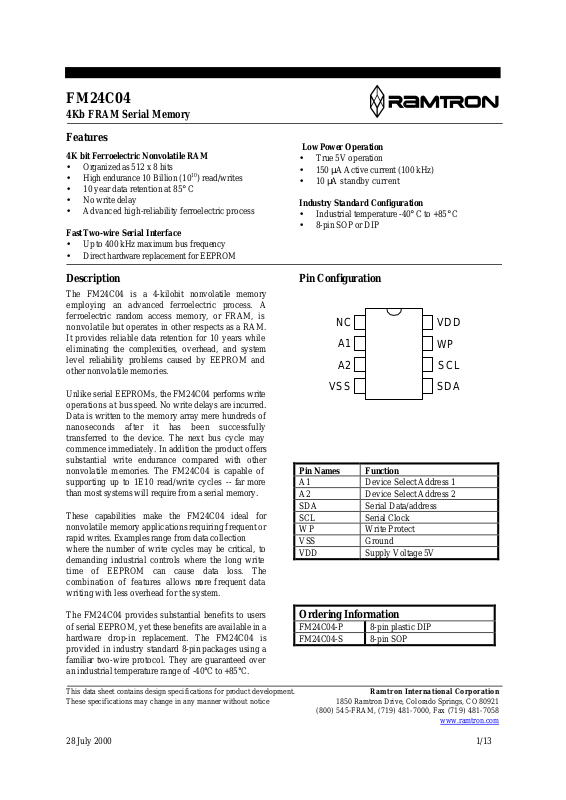

FM24C04
4Kb FRAM Serial Memory
Features
4K bit Ferroelectric Nonvolatile RAM
• Organized as 512 x 8 bits
• High endurance 10 Billion (1010) read/writes
• 10 year data retention at 85° C
• No write delay
• Advanced high-reliability ferroelectric process
Fast Two-wire Serial Interface
• Up to 400 kHz maximum bus frequency
• Direct hardware replacement for EEPROM
Low Power Operation
• True 5V operation
• 150 µA Active current (100 kHz)
• 10 µA standby current
Industry Standard Configuration
• Industrial temperature -40° C to +85° C
• 8-pin SOP or DIP
Description
The FM24C04 is a 4-kilobit nonvolatile memory
employing an advanced ferroelectric process. A
ferroelectric random access memory, or FRAM, is
nonvolatile but operates in other respects as a RAM.
It provides reliable data retention for 10 years while
eliminating the complexities, overhead, and system
level reliability problems caused by EEPROM and
other nonvolatile memories.
Unlike serial EEPROMs, the FM24C04 performs write
operations at bus speed. No write delays are incurred.
Data is written to the memory array mere hundreds of
nanoseconds after it has been successfully
transferred to the device. The next bus cycle may
commence immediately. In addition the product offers
substantial write endurance compared with other
nonvolatile memories. The FM24C04 is capable of
supporting up to 1E10 read/write cycles -- far more
than most systems will require from a serial memory.
These capabilities make the FM24C04 ideal for
nonvolatile memory applic ations requiring frequent or
rapid writes. Examples range from data collection
where the number of write cycles may be critical, to
demanding industrial controls where the long write
time of EEPROM can cause data loss. The
combination of features allows more frequent data
writing with less overhead for the system.
The FM24C04 provides substantial benefits to users
of serial EEPROM, yet these benefits are available in a
hardware drop-in replacement. The FM24C04 is
provided in industry standard 8-pin packages using a
familiar two -wire protocol. They are guaranteed over
an industrial temperature range of -40°C to +85°C.
Pin Configuration
Pin Names Function
A1 Device Select Address 1
A2 Device Select Address 2
SDA Serial Data/address
SCL Serial Clock
WP Write Protect
VSS Ground
VDD Supply Voltage 5V
Ordering Information
FM24C04-P 8-pin plastic DIP
FM24C04-S 8-pin SOP
NC
A1
A2
VSS
VDD
WP
SCL
SDA
Page 2
Ramtron FM24C04
28 July 2000 2/13

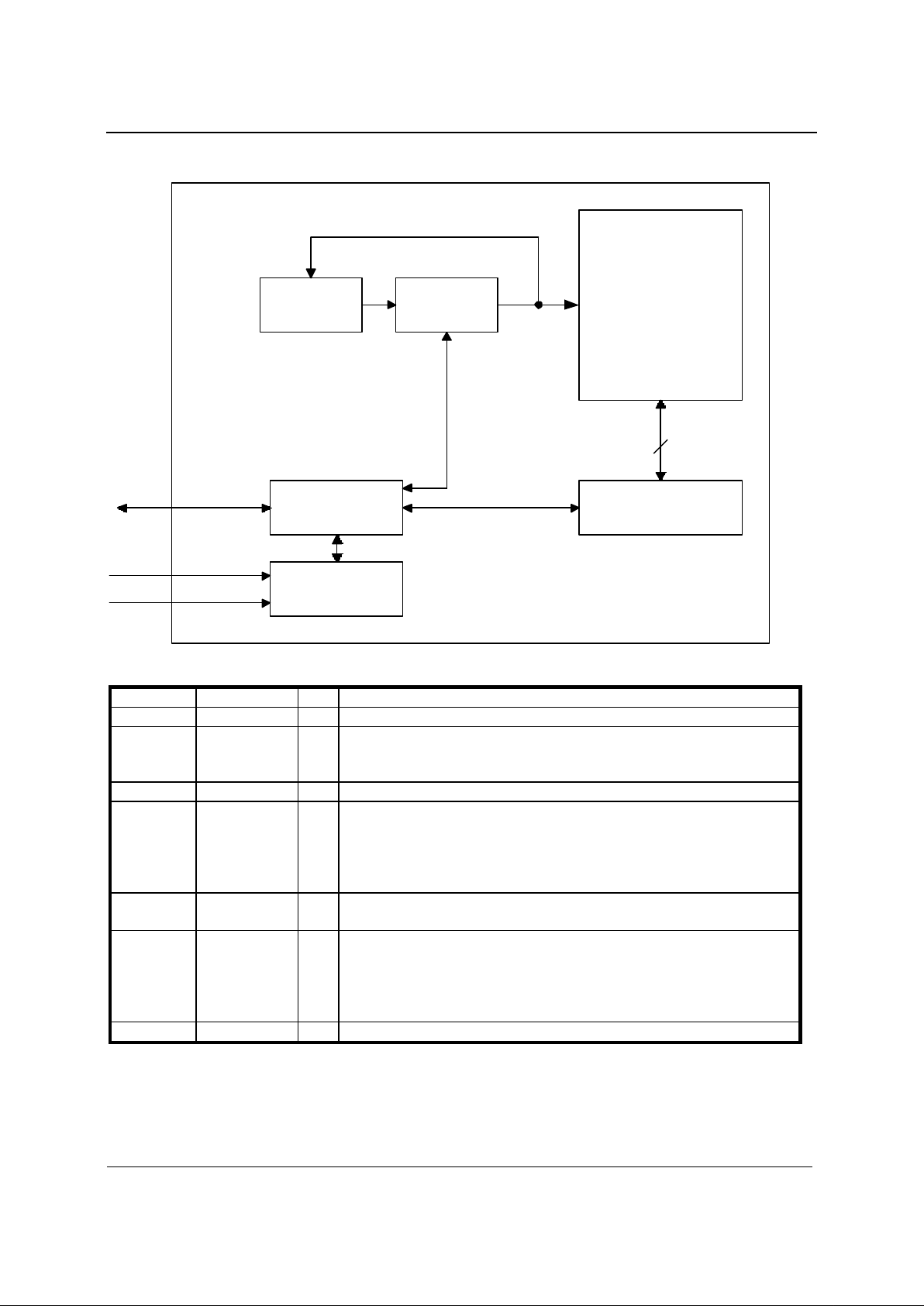

Figure 1. Block Diagram
Address
Latch
`
64 x 64
FRAM Array
Data Latch
8
SDA
Counter
Serial to Parallel
Converter
Control Logic
SCL
WP
Pin Description
Pin Name Pin Number I/O Pin Description
NC 1 No connect.
A1-A2 2-3 I Address 1, 2. The address pins set the device address. The device
address value in the 2-wire slave address must match the setting of these
two pins.
VSS 4 I Ground
SDA 5 I/O Serial Data Address. This is a bi-directional data line for the two-wire
interface. It is open-drain and is intended to be wire-ORed with other
devices on the two-wire bus. The input buffer incorporates a schmitt
trigger for noise immunity and the output driver includes slope control for
falling edges.
SCL 6 I Serial Clock. The serial clock line for the two-wire interface. Data is
clocked out of the part on the falling edge and in on the rising edge.
WP 7 I Write Protect. When tied to VDD, addresses in the upper half of the
logical memory map (A0=1 in the slave address) will be write-protected.
Write access to the lower half of the addresses is permitted. When WP is
connected to ground, all addresses may be written. This pin must not be
left floating.
VDD 8 I Supply Voltage. 5V
Page 3
Ramtron FM24C04
28 July 2000 3/13
Overview
The FM24C04 is a serial FRAM memory. The memory
array is logically organized as 512 x 8 and is accessed
using an industry standard two-wire interface.
Functional operation of the FRAM is similar to serial
EEPROMs. The major difference between the
FM24C04 and a serial EEPROM with the same pin-out
relates to its superior write performance.
Memory Architecture
When accessing the FM24C04, the user addresses
512 locations each with 8 data bits. These data bits
are shifted serially. The 512 addresses are accessed
using the two-wire protocol, which includes a slave
address (to distinguish other devices), a page
address, and a word address. The word address
consists of 8-bits that specify one of 256 addresses.
The page address is 1-bit and so there are 2 pages
each of 256 locations. The complete address of 9-bits
specifies each byte address uniquely.
Most functions of the FM24C04 either are controlled
by the two -wire interface or are handled automatically
by on-board circuitry. The access time for memory
operation essentially is zero, beyond the time needed
for the serial protocol. That is, the memory is read or
written at the speed of the two-wire bus. Unlike an
EEPROM, it is not necessary to poll the device for a
ready condition since writes occur at bus speed. That
is, by the time a new bus transaction can be shifted
into the part, a write operation will be complete. This
is explained in more detail in the interface section
below.
Users expect several obvious system benefits from
the FM24C04 due to its fast write cycle and high
endurance as compared with EEPROM. However
there are less obvious benefits as well. For example in
a high noise environment, the fast-write operation is
less susceptible to corruption than an EEPROM since
it is completed quickly. By contrast an EEPROM
requiring milliseconds to write is vulnerable to noise
during much of the cycle.
Note that the FM24C04 contains no power
management circuits other than a simple internal
power-on reset. It is the user’s responsibility to
ensure that VDD is within data sheet tolerances to
prevent incorrect operation.
Two-wire Interface
The FM24C04 employs a bi-directional two -wire bus
protocol using few pins and little board space. Figure
2 illustrates a typical system configuration using the
FM24C04 in a microcontroller-based system. The
industry standard two-wire bus is familiar to many
users but is described in this section.
By convention, any device that is sending data onto
the bus is the transmitter while the target device for
this data is the receiver. The device that is controlling
the bus is the master. The master is responsible for
generating the clock signal for all operations. Any
device on the bus that is being controlled is a slave.
The FM24C04 is always a slave device.
The bus protocol is controlled by transition states in
the SDA and SCL signals. There are four conditions
including start, stop, data bit, or acknowledge. Figure
3 illustrates the signal conditions that specify the four
states. Detailed timing diagrams are in the electrical
specifications.

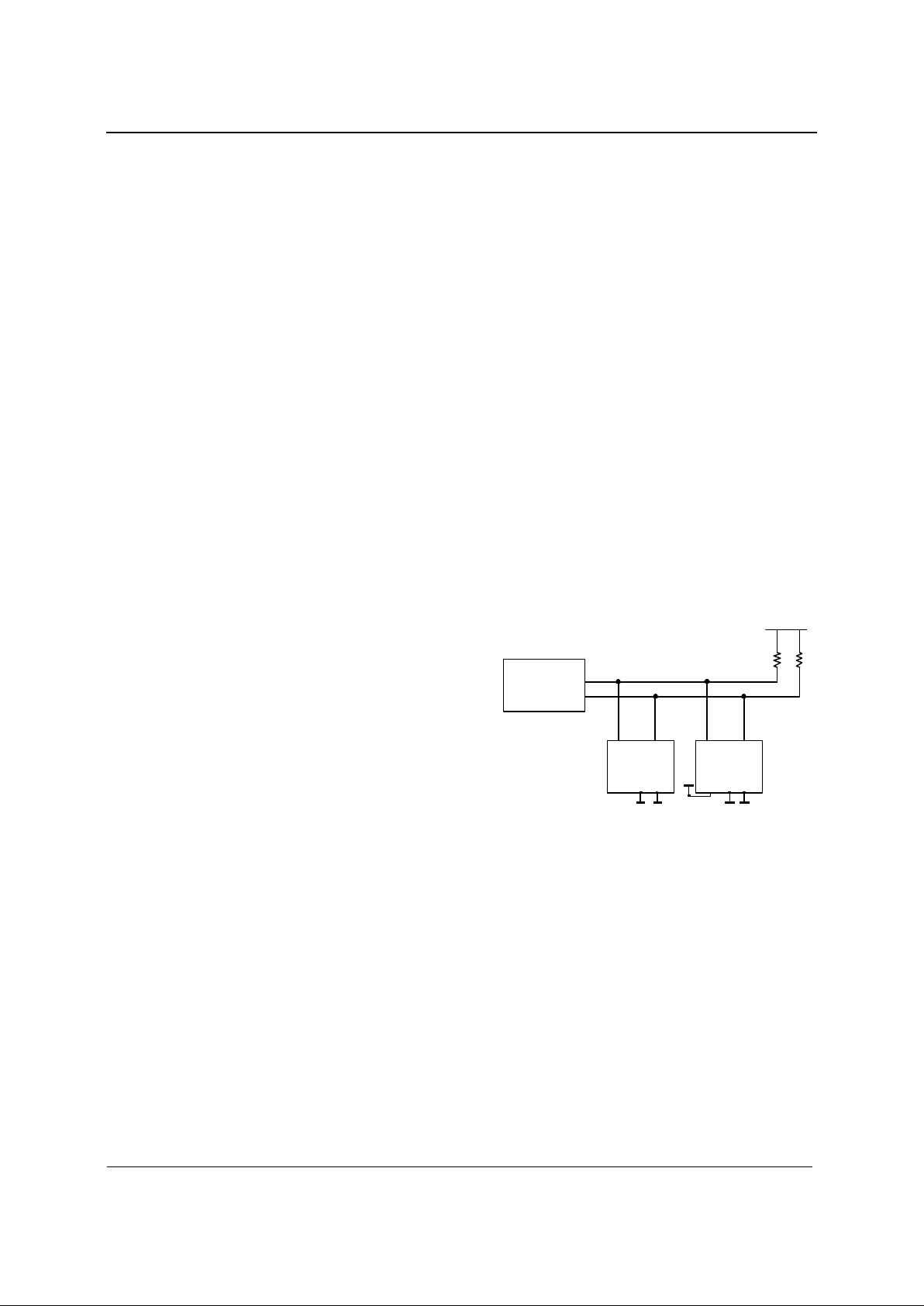

Figure 2. Typical System Configuration
Microcontroller
SDA SCL
FM24C04
A1 A2
SDA SCL
FM24C64
A0 A1 A2
VDD
Rmin = 1.8 KΩ
Rmax = tR/Cbus
Page 4
Ramtron FM24C04
28 July 2000 4/13

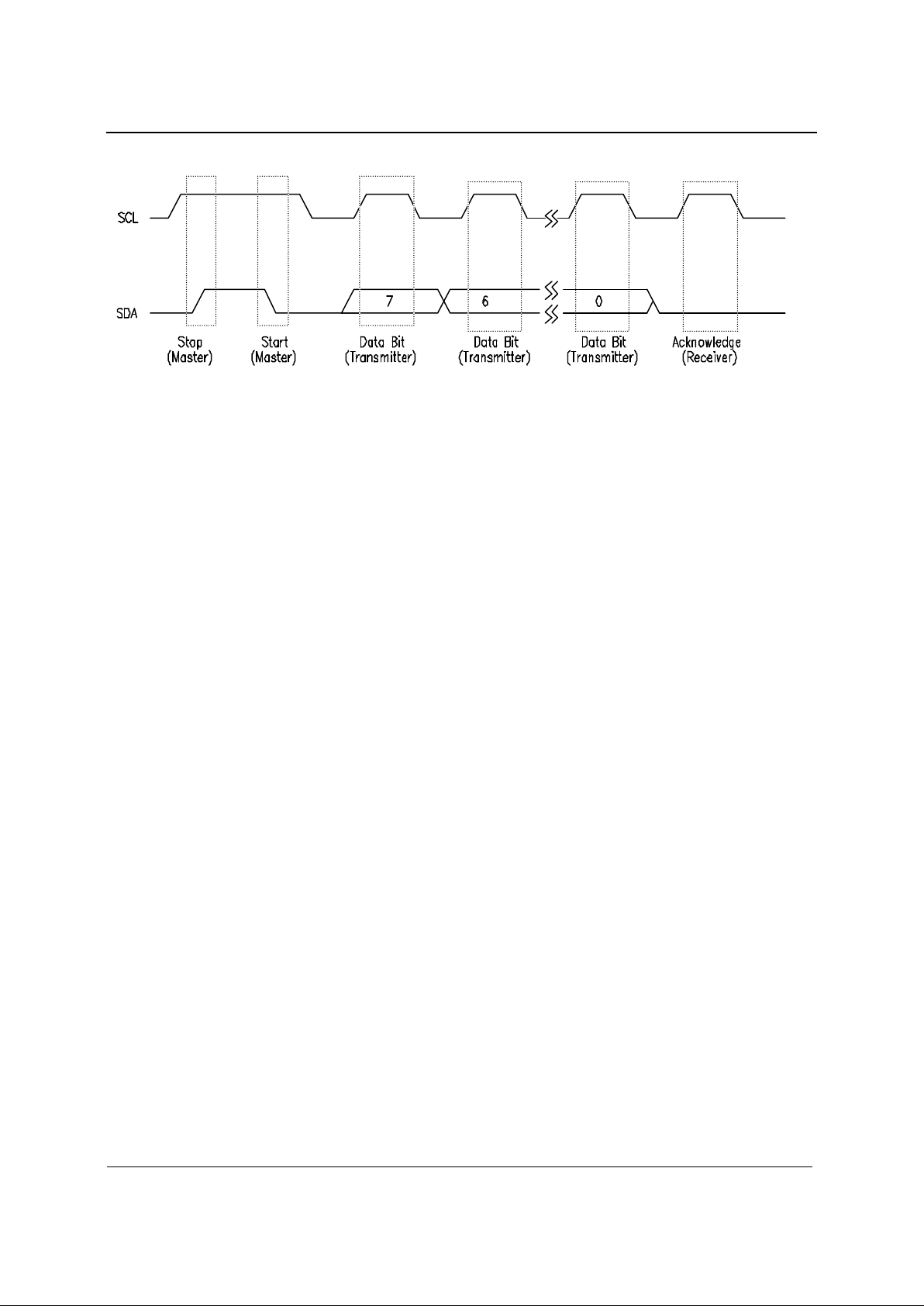

Figure 3. Data Transfer Protocol
Start Condition
A start condition is indicated when the bus master
drives SDA from high to low while the SCL signal is
high. All commands must be preceded by a start
condition. An operation in progress can be aborted
by asserting a start condition at any time. Aborting an
operation using the start condition will ready the
FM24C04 for a new operation.
If during operation the power supply drops below the
specified VDD minimum, the system should issue a
start condition prior to performing another operation.
Stop Condition
A stop condition is indicated when the bus master
drives SDA from low to high while the SCL signal is
high. All operatio ns using the FM24C04 should end
with a stop condition. If an operation is in progress
when a stop is asserted, the operation will be aborted.
The master must have control of SDA (not a memory
read) in order to assert a stop condition.
Data/Address Transfer
All data transfers (including addresses) take place
while the SCL signal is high. Except under the two
conditions described above, the SDA signal should
not change while SCL is high.
Acknowledge
The acknowledge takes place after the 8th data bit has
been transferred in any transaction. During this state
the transmitter should release the SDA bus to allow
the receiver to drive it. The receiver drives the SDA
signal low to acknowledge receipt of the byte. If the
receiver does not drive SDA low, the condition is a
no-acknowledge and the operation is aborted.
The receiver would fail to acknowledge for two
distinct reasons. First is that a byte transfer fails. In
this case the no-acknowledge ceases the current
operation so that the part can be addressed again.
This allows the last byte to be recovered in the event
of a communication error.
Second and most common, the receiver does not
acknowledge to deliberately end an operation. For
example, during a read operation, the FM24C04 will
continue to place data onto the bus as long as the
receiver sends acknowledges (and clocks). When a
read operation is complete and no more data is
needed, the receiver must not acknowledge the last
byte. If the receiver acknowledges the last byte, this
will cause the FM24C04 to attempt to drive the bus
on the next clock while the master is sending a new
command such as stop.
Slave Address
The first byte that the FM24C04 expects after a start
condition is the slave address. As shown in Figure 4,
the slave address contains the device type, the
device select, the page of memory to be accessed,
and a bit that specifies if the transaction is a read or
a write.
Bits 7-4 are the device type and should be set to
1010b for the FM24C04. The device type allows
other types of functions to reside on the 2-wire bus
within an identical address range. Bits 3-2 are the
device address. If bit 3 matches the A2 pin and bit 2
matches the A1 pin the device will be selected. Bit 1
is the page select. It specifies the 256-byte block of
memory that is targeted for the current operation. Bit
0 is the read/write bit. A 0 indicates a write operation.
Word Address
After the FM24C04 (as receiver) acknowledges the
slave ID, the master will place the word address on
the bus for a write operation. The word address is
the lower 8-bits of the address to be combined with
the 1-bit page select to specify exactly the byte to be
written. The complete 9-bit address is latched
internally.
Page 5
Ramtron FM24C04
28 July 2000 5/13

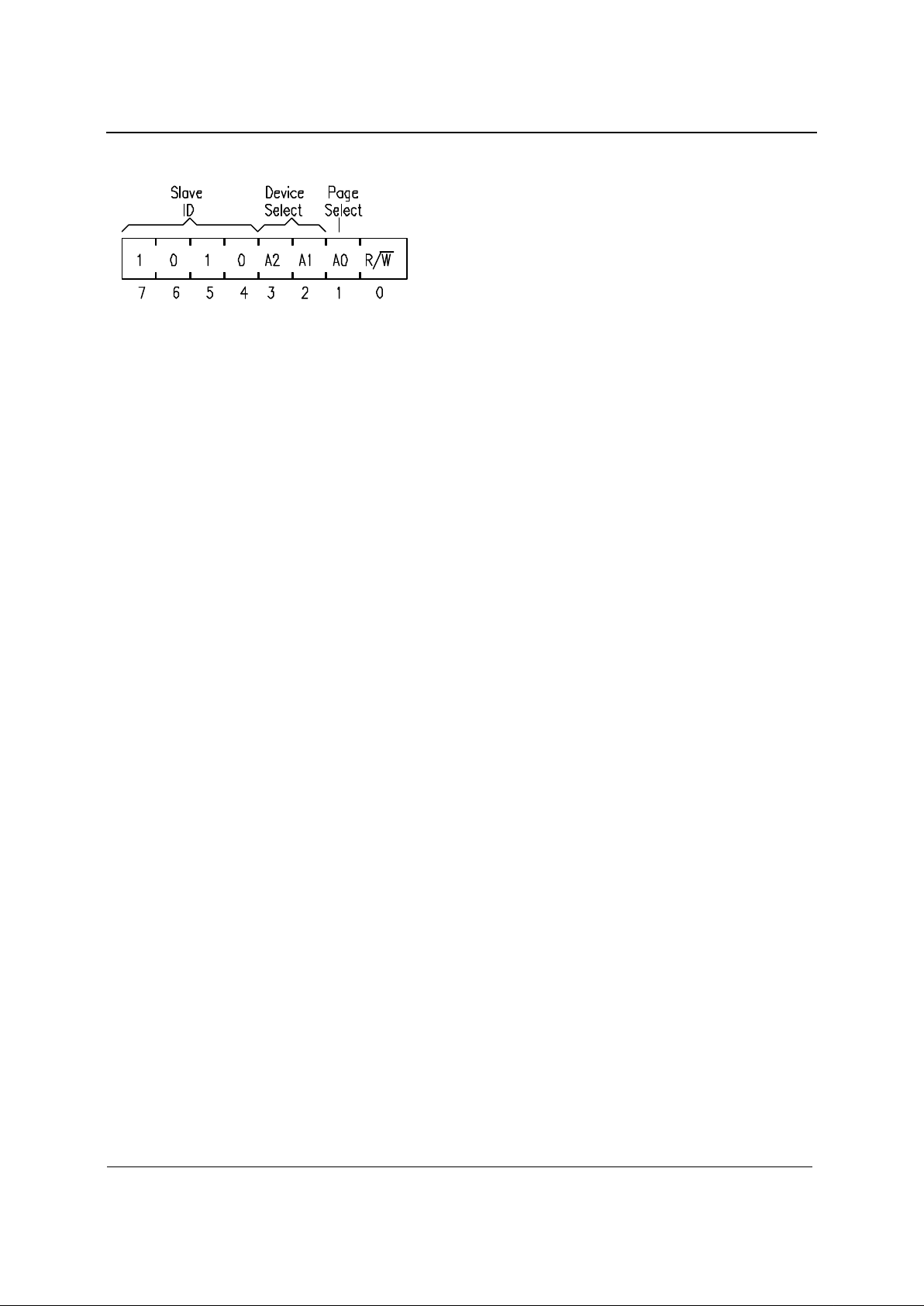

Figure 4. Slave Address
No word address occurs for a read operation. Reads
always use the lower 8-bits that are held internally in
the address latch and the 9th address bit is part of the
slave address. Reads always begin at the address
following the previous access. A random read
address can be loaded by doing a write operation as
explained below.
After transmission of each data byte, just prior to the
acknowledge, the FM24C04 increments the internal
address latch. This allows the next sequential byte to
be accessed with no additional addressing. After the
last address (1FFh) is reached, the address latch will
roll over to 000h. There is no limit to the number of
bytes that can be accessed with a single read or write
operation.
Data Transfer
After all address information has been transmitted,
data transfer between the bus master and the
FM24C04 can begin. For a read operation the
FM24C04 will place 8 data bits on the bus then wait
for an acknowledge. If the acknowledge occurs, the
next sequential byte will be transferred. If the
acknowledge is not sent, the read operation is
concluded. For a write operation, the FM24C04 will
accept 8 data bits from the master then send an
acknowledge. All data transfer occurs MSB (most
significant bit) first.
Memory Operation
The FM24C04 is designed to operate in a manner
very similar to other 2-wire interface memory
products. The major differences result from the
higher performance write capability of FRAM
technology. These improvements result in some
differences between the FM24C04 and a similar
configuration EEPROM during writes . The complete
operation for both writes and reads is explained
below.
Write Operation
All writes begin with a slave address then a word
address as mentioned above. The bus master
indicates a write operation by setting the LSB of the
Slave address to a 0. After addressing, the bus
master sends each byte of data to the memory and
the memory generates an acknowledge condition.
Any number of sequential bytes may be written. If
the end of the address range is reached internally,
the address counter will wrap from 1FFh to 000h.
Unlike other nonvolatile memory technologies, there
is no effective write delay with FRAM. Since the
read and write access times of the underlying
memory are the same, the user experiences no delay
through the bus. The entire memory cycle occurs in
less time than a single bus clock. Therefore any
operation including read or write can occur
immediately following a write. Acknowledge polling,
a technique used with EEPROMs to determine if a
write is complete is unnecessary and will always
return a done condition.
An actual memory array write occurs after the 8th
data bit is transferred. It will be complete before the
acknowledge is sent. Therefore if the user desires to
abort a write without altering the memory contents,
this should be done using a start or stop condition
prior to the 8th data bit. The FM24C04 needs no page
buffering.
Portions of the memory array can be write protected
using the WP pin. Setting the WP pin to a high
condition (VDD) will write-protect addresses from
100h to 1FFh. The FM24C04 will not acknowledge
data bytes that are written to protected addresses. In
addition, the address counter will not increment if
writes are attempted to these addresses. Setting WP
to a low state (VSS) will deactivate this feature. WP
must not be left floating.

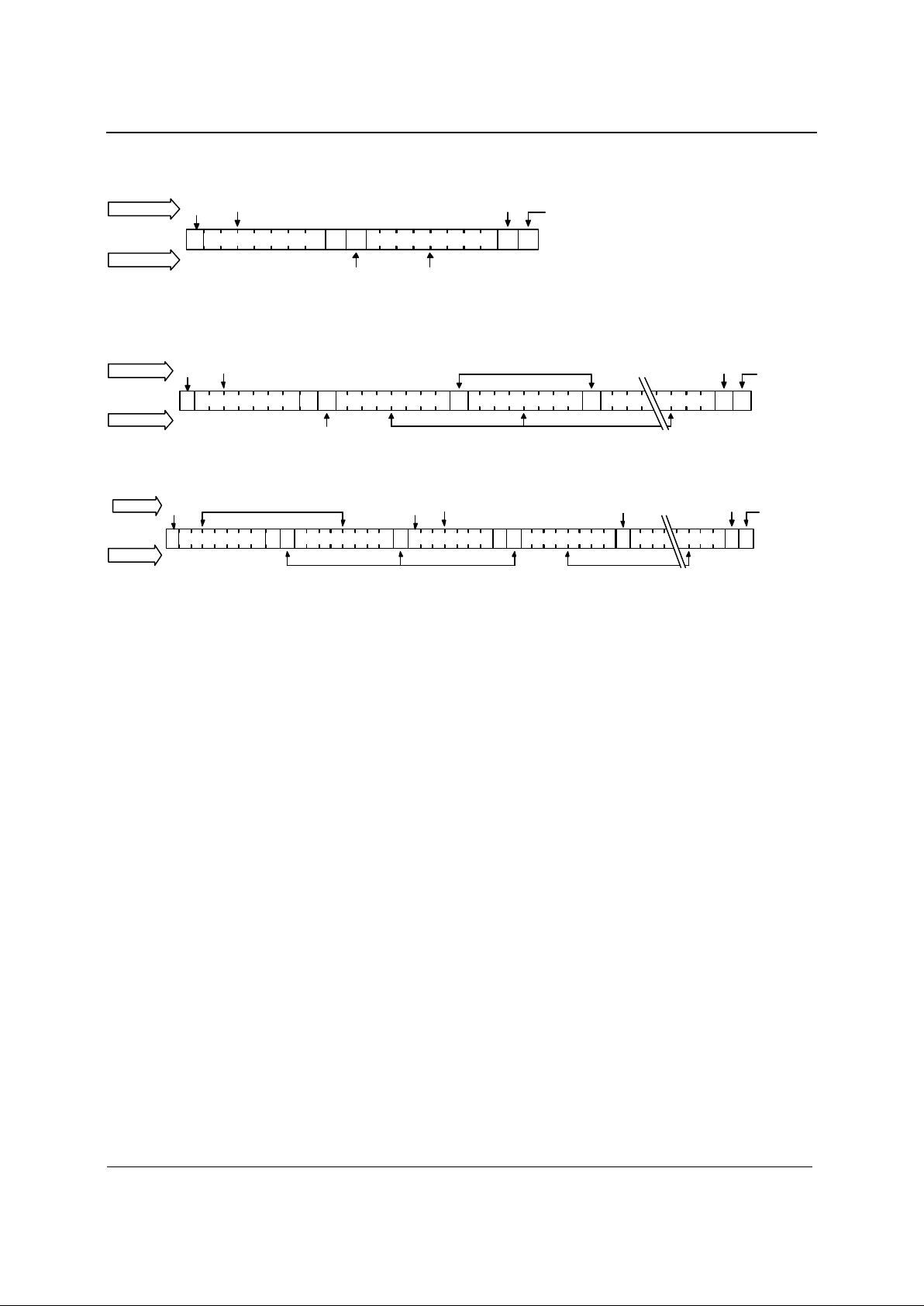

Figure 5 below illustrates both a single-byte and
multiple-write.
Page 6
Ramtron FM24C04
28 July 2000 6/13

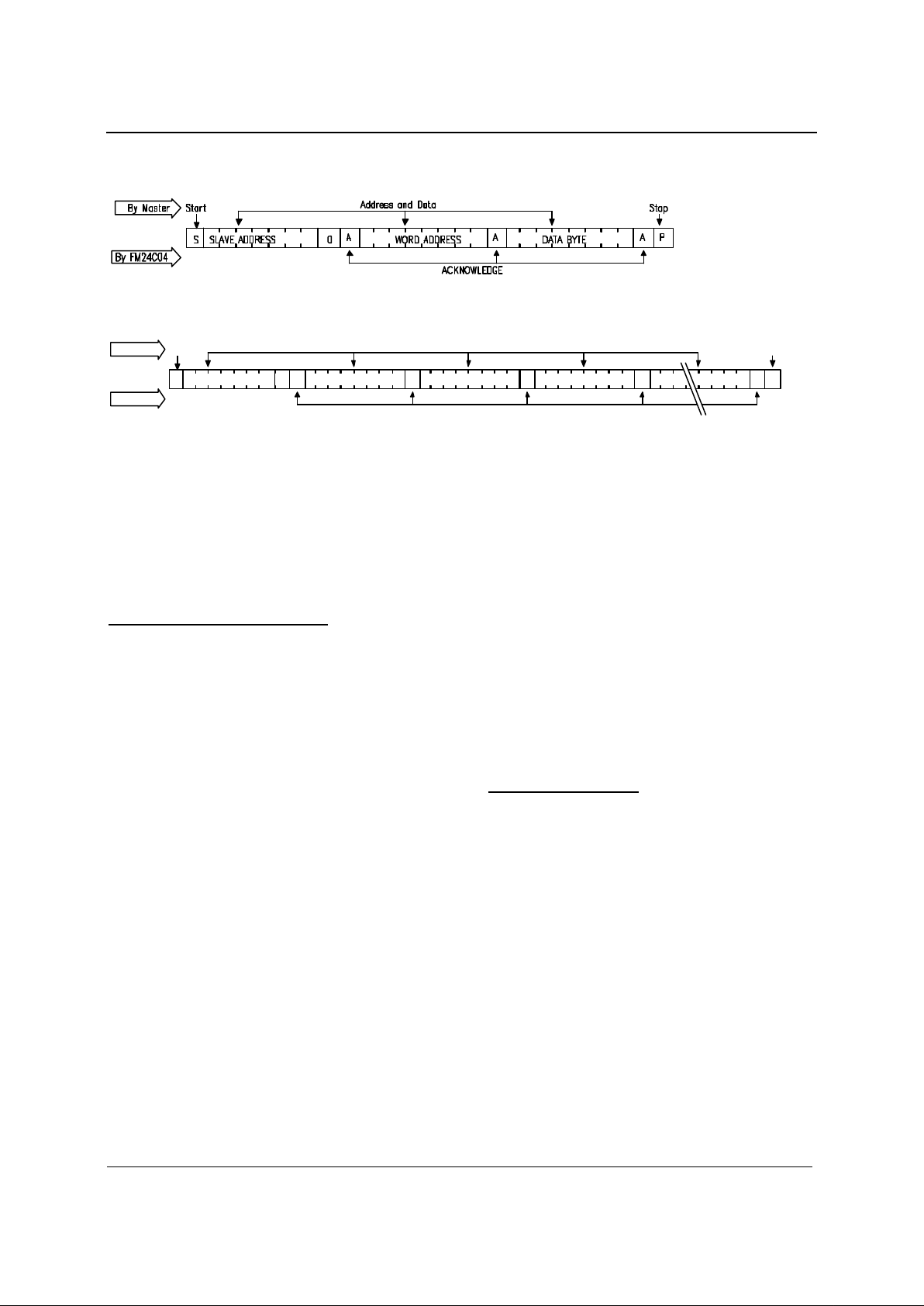

Figure 5 Byte Write
Figure 6 Multiple Byte Write
S SLAVE ADDRESS 0
By Master
By FM24C04
Start
Address and Data
Stop
A
ACKN OWLEDGE
WORD ADDRESS
A
DATA BYTE
A P
DATA BYT E
A A
Read Operation
There are two basic types of read operations. They
are current address read and selective address read.
In a current address read, the FM24C04 uses the
internal address latch to supply the lower 8 address
bits. In a selective read, the user performs a
procedure to set these lower address bits to a specific
value.
Current Address & Sequential Read
As mentioned above the FM24C04 uses an internal
latch to supply the lower 8 address bits for a read
operation. A current address read uses the existing
value in the address latch as a starting place for the
read operation. This is the address immediately
following that of the last operation.
To perform a current address read, the bus master
supplies a slave address with the LSB set to 1. This
indicates that a read operation is requested. The page
select bit in the sla ve address specifies the block of
memory that is used for the read operation. After the
acknowledge, the FM24C04 will begin shifting out
data from the current address. The current address is
the bit from the slave address combined with the 8
bits that were in the internal address latch.
Beginning with the current address, the bus master
can read any number of bytes. Thus a sequential read
is simply a current address read with multiple byte
transfers. After each byte the internal address counter
will be incremented. Each time the bus master
acknowledges a byte, this indicates that the FM24C04
should read out the next sequential byte. There are
four ways to properly terminate a read operation.
Failing to properly terminate the read will most likely
create a bus contention as the FM24C04 attempts to
read out additional data onto the bus. The four valid
methods are as follows.
1. The bus master issues a no-acknowledge in the
9th clock cycle and a stop in the 10th clock cycle.
This is illustrated in the diagrams below. This is
the preferred method.
2. The bus master issues a no-acknowledge in the
9th clock cycle and a start in the 10th.
3. The bus master issues a stop in the 9th clock
cycle. Bus contention may result.
4. The bus master issues a start in the 9th clock
cycle. Bus contention may result.
If the internal address reaches 1FFh it will wrap
around to 000h on the next read cycle. Figures 7 and
8 below show the proper operation for current
address reads.
Selective (Random) Read
A simple technique allows a user to select a random
address location as the starting point for a read
operation. This involves using the first two bytes of
a write operation to set the internal address byte
followed by subsequent read operations.
To perform a selective read, the bus master sends
out the slave address with the LSB set to 0. This
specifies a write operation. According to the write
protocol, the bus master then sends the word
address byte that is loaded into the internal address
latch. After the FM24C04 acknowledges the word
address, the bus master issues a start condition.
This simultaneously aborts the write operation and
allows the read command to be issued with the slave
address LSB set to a 1. The operation is now a
current address read. This operation is illustrated in
Figure 9.
Page 7
Ramtron FM24C04
28 July 2000 7/13
Figure 7 Current Address Read
S SLAVE ADDRESS 1
By Master
By FM24C04
Start
Sto
p
A
Acknowledge
DATA BYTE
1 P
Address
Data
No Acknowledge
Figure 8 Sequential Read
S SLAVE ADDRESS 1
By Master
By FM24C04
Start
Stop
A
Acknowledge
DATA BYTE
1 P
Address
No Acknow ledge
DATA BYTE
Data
A A
Acknowledge
Figure 9 Selective (Random) Read
S SLAVE ADDRESS 1
By Master
By FM24C04
Start
Stop
A
DATA BYTE
1 P
Addr es s
No Ac knowl edge
A
S SLAVE ADDRESS 0
Start
A
Acknowledge
Address
WORD ADDRESS
A
Data
Ack nowl edge
Data Retention and Endurance
Data retention is specified in the electrical
specifications below. For purposes of clarity, this
section contrasts the retention and endurance of
FRAM with EEPROM. The retention performance of
FRAM is very comparable to EEPROM in its
characteristics. However, the effect of endurance
cycles on retention is different.
A typical EEPROM has a write endurance
specification that is fixed. Surpassing the specified
level of cycles on an EEPROM usually leads to a hard
memory failure. By contrast, the effect of increasing
cycles on FRAM produces an increase in the soft
error rate. That is, there is a higher likelihood of data
loss but the memory continues to function properly.
A hard failure would not occur by simply exceeding
the endurance specification; simply a reduction in
data retention reliability. While enough cycles would
cause an apparent hard error, this is simply a very
high soft error rate. This characteristic makes it
problematic to assign a fixed endurance specification.
Endurance is a soft specification. Therefore, the user
may operate the device with different levels of
endurance cycling for different portions of the
memory. For example, critical data needing the highest
reliability level could be stored in memory locations
that receive comparatively few cycles. Data with
shorter-term use could be located in an area receiving
many more cycles. A scratchpad area, needing little if
any retention can be cycled until there is virtually no
retention capability remaining. This would occur
several orders of magnitude above the endurance
spec.
Internally, a FRAM operates with a read and restore
mechanism similar to a DRAM. Therefore, endurance
cycles are applied for each access: read or write. The
FRAM architecture is based on an array of rows and
columns. Each access causes a cycle for an entire
row. Therefore, data locations targeted for
substantially differing numbers of cycles should not
be located within the same row. In the FM24C04, there
are 64 rows each 64 bits wide. Each 8 bytes in the
address mark the beginning of a new row.
Page 8
Ramtron FM24C04
28 July 2000 8/13
Applications
The versatility of FRAM technology fits into many
diverse applications. Clearly the strength of higher
write endurance and faster writes make FRAM
superior to EEPROM in all but one-time programmable
applications. The advantage is most obvious in data
collection environments where writes are frequent and
data must be nonvolatile.
The attributes of fast writes and high write endurance
combine in many innovative ways. A short list of
ideas is provided here.
1. Data collection. In applications where data is
collected and saved, FRAM provides a superior
alternative to other solutions. It is more cost effective
than battery backup for SRAM and provides better
write attributes than EEPROM.
2. Configuration. Any nonvolatile memory can
retain a configuration. However if the configuration
changes and power failure is a possibility, the higher
write endurance of FRAM allows changes to be
recorded without restriction. Any time the system
state is altered, the change can be written. This
avoids writing to memory on power down when the
available time is short and power scarce.
3. High noise environments . Writing to EEPROM in
a noisy environment can be challenging. When
severe noise or power fluctuations are present, the
long write time of EEPROM creates a window of
vulnerability during which the write can be corrupted.
The fast write of FRAM is completed within a
microsecond. This time is typically too short for noise
or power fluctuation to disturb it.
4. Time to market. In a complex system, multiple
software routines may need to access the nonvolatile
memory. In this environment the time delay
associated with programming EEPROM adds undue
complexity to the software development. Each
software routine must wait for complete programming
before allowing access to the next routine. When time
to market is critical, FRAM can eliminate this simple
obstacle. As soon as a write is issued to the
FM24C04, it is effectively done -- no waiting.
5. RF/ID. In the area of contactless memory, FRAM
provides an ideal solution. Since RF/ID memory is
powered by an RF field, the long programming time
and high current consumption needed to write
EEPROM is unattractive. FRAM provides a superior
solution. The FM24C04 is suitable for multi-chip
RF/ID products.
6. Maintenance tracking. In sophisticated systems,
the operating history and system state during a failure
is important knowledge. Maintenance can be
expedited when this information has been recorded.
Due to the high write endurance, FRAM makes an
ideal system log. In addition, the convenient 2-wire
interface of the FM24C04 allows memory to be
distributed throughout the system using minimal
additional resources.
Page 9
Ramtron FM24C04
28 July 2000 9/13
Electrical Specifications
Absolute Maximum Ratings
Description Ratings
Ambient storage or operating temperature -40°C to + 85°C
Voltage on any pin with respect to ground -1.0V to +7.0V
D.C. output current on any pin 5 mA
Lead temperature (Soldering, 10 seconds) 300° C
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a
stress rating only, and the functional operation of the device at these or any other conditions above those listed in
the operational section of this specification is not implied. Exposure to absolute maximum ratings conditions for
extended periods may affect device reliability
DC Operating Conditions TA = -40° C to + 85° C, VDD = 4.5V to 5.5V unless otherwise specified
Symbol Parameter Min Typ Max Units Notes
VDD Main Power Supply 4.5 5.0 5.5 V 1
IDD VDD Supply Current
@ SCL = 100 kHz
115 150 µA 2
IDD VDD Supply Current
@ SCL = 400 kHz
400 500 µA 2
ISB Standby Current 1 10 µA 3
ILI Input Leakage Current 10 µA 4
ILO Output Leakage Current 10 µA 4
VIL Input Low Voltage -0.3 VDD x 0.3 V 1
VIH Input High Voltage VDD x 0.7 VDD + 0.5 V 1
VOL Output Low Voltage
@ IOL = 3 mA
0.4 V 1
VOL Output Low Voltage
@ IOL = 6 mA
0.6 V 1,5
VHYS Input Hysteresis VDD x .05 V 1, 5
Notes
1. Referenced to VSS.
2. SCL toggling between VDD-0.3V and VSS, other inputs VSS or VDD-0.3V
3. SCL = SDA = VDD. All inputs VSS or VDD. Stop command issued.
4. VIN or VOUT = VSS to VDD
5. This parameter is periodically sampled and not 100% tested.
Page 10
Ramtron FM24C04
28 July 2000 10/13

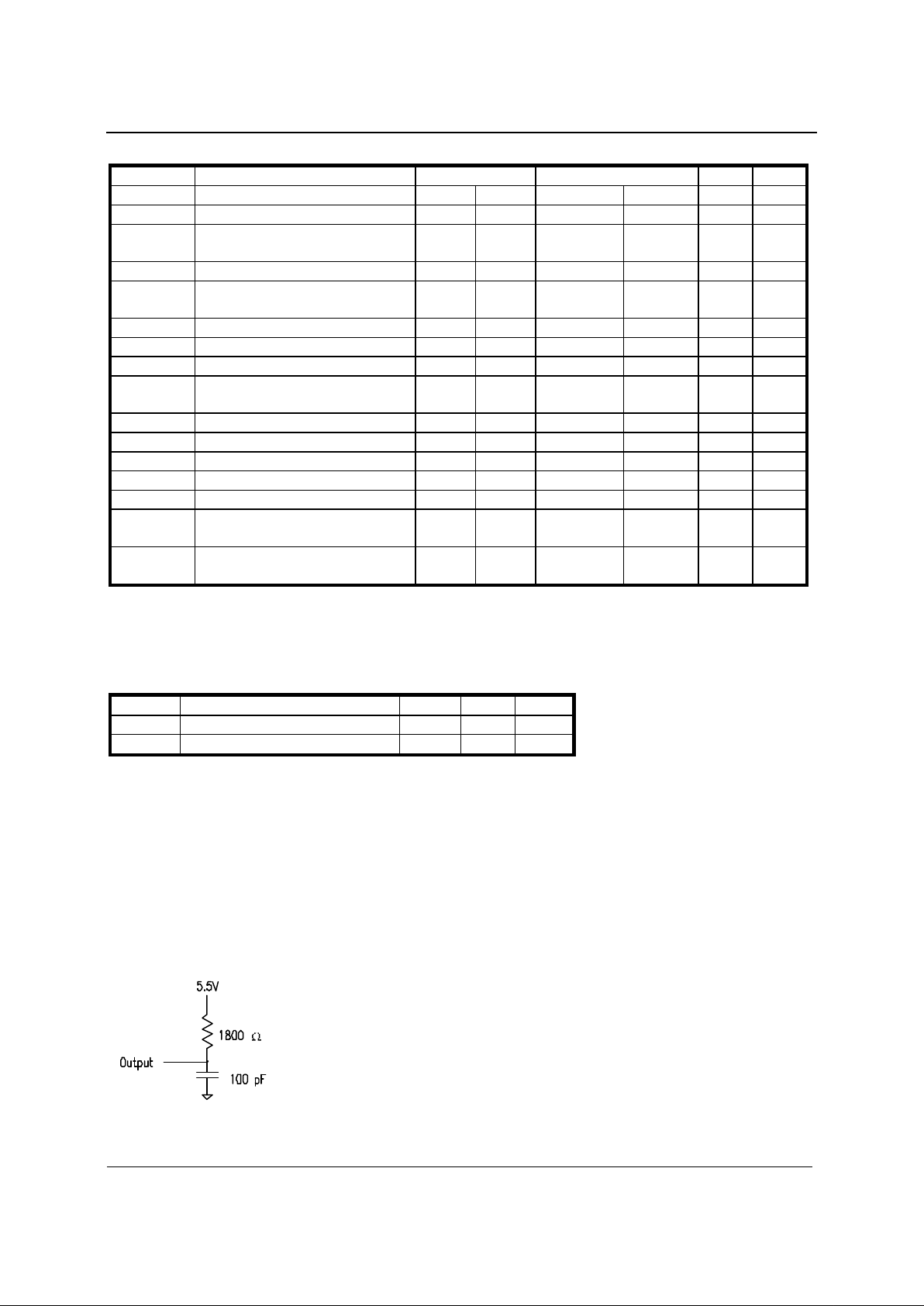

AC Parameters TA = -40° C to + 85° C, VDD = 4.5V to 5.5V unless otherwise specified
Symbol Parameter Standard Mode Fast Mode Units Notes
Min Max Min Max
fSCL SCL Clock Frequency 0 100 0 400 kHz
tSP Noise Suppression Time
Constant on SCL, SDA
50 50 ns
tAA SCL Low to SDA Data Out Valid 3 0.9 µs
tBUF Bus Free Before New
Transmission
4.7 1.3 µs
tHD:STA Start Condition Hold Time 4.0 0.6 µs
tLOW Clock Low Period 4.7 1.3 µs
tHIGH Clock High Period 4.0 0.6 µs
tSU:STA Start Condition Setup for
Repeated Start
4.7 0.6 µs
tHD:DAT Data In Hold 0 0 ns
tSU:DAT Data In Setup 250 100 ns
tRISE SDA and SCL Rise Time 1000 20 + 0.1 Cb 300 ns 1,2
tFALL SDA and SCL Fall Time 300 20 + 0.1 Cb 300 ns 1,2
tSU:STO Stop Condition Setup 4.0 0.6 µs
tDH Data Output Hold (from SCL @
VIL)
0 0 ns
tOF Output Fall Time (VIH min to VIL
Max)
250 20 + 0.1 Cb 250 ns 1,2
Notes : All SCL specifications as well as start and stop conditions apply to both read and write operations.
1 This parameter is periodically sampled and not 100% tested.
2 Cb = Total capacitance of one bus line in pF.
Capacitance TA = 25° C , f=1.0 MHz, VDD = 5V
Symbol Parameter Max Units Notes
CI/O Input/output capacitance (SDA) 8 pF 1
CIN Input capacitance 6 pF 1
Notes
1 This parameter is periodically sampled and not 100% tested.
AC Test Conditions
Input Pulse Levels VDD * 0.1 to VDD * 0.9
Input rise and fall times 10 ns
Input and output timing levels VDD*0.5
Equivalent AC Load Circuit
Page 11
Ramtron FM24C04
28 July 2000 11/13
Diagram Notes
All start and stop timing parameters apply to both read and write cycles. Clock specifications are identical for read
and write cycles. Write timing parameters apply to slave address, word address, and write data bits. Functional
relationships are illustrated in the relevant data sheet sections. These diagrams illustrate the timing parameters only.

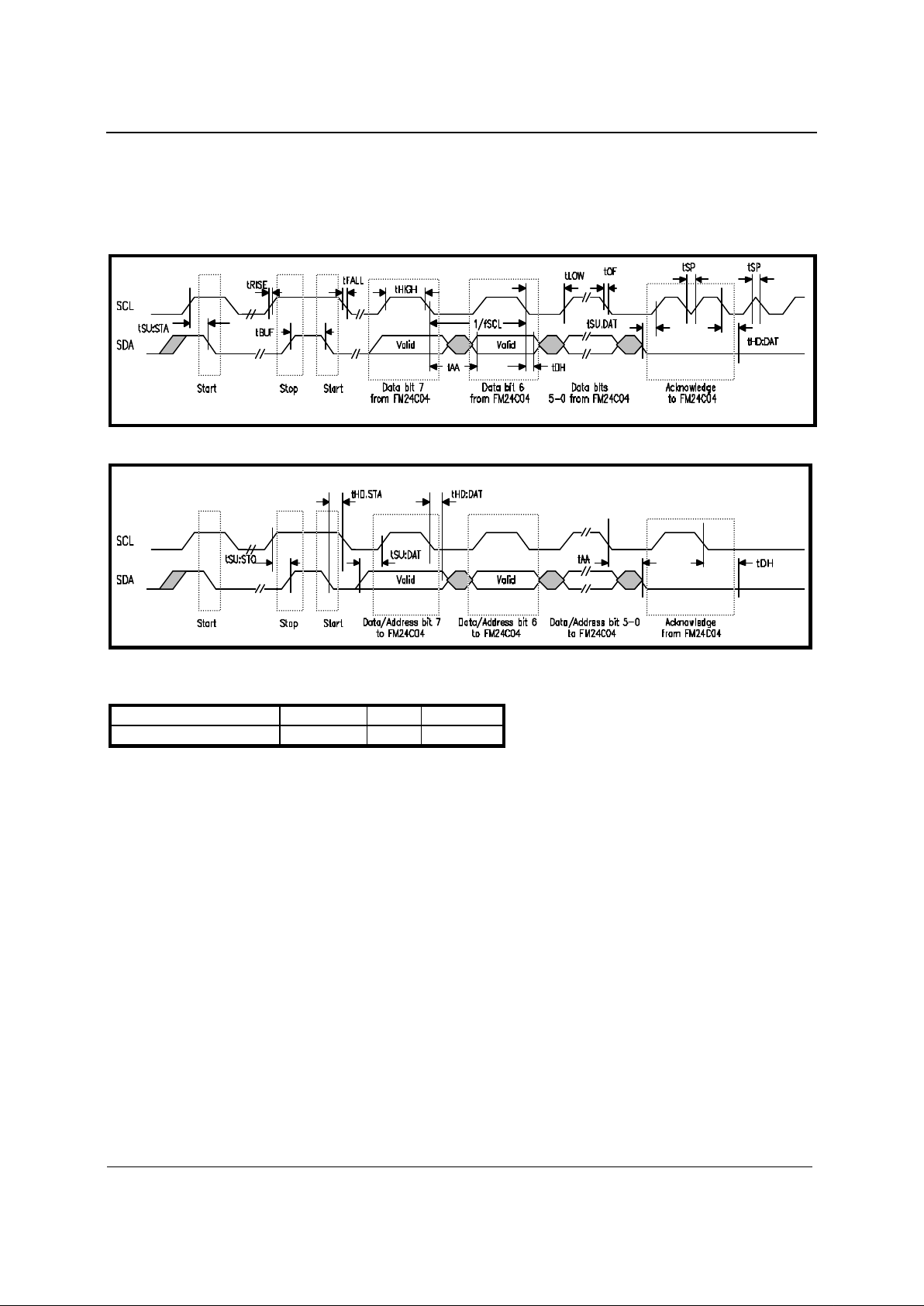

Read Bus Timing
Write Bus Tim ing
Data Retention TA = -40° C to + 85° C, VDD = 4.5V to 5.5V unless otherwise specified
Parameter Min Units Notes
Data Retention 10 Years 1
Notes
1. Data retention is specified at 85° C. The relationship between retention, temperature, and the associated
reliability level is characterized separately.
Page 12
Ramtron FM24C04
28 July 2000 12/13

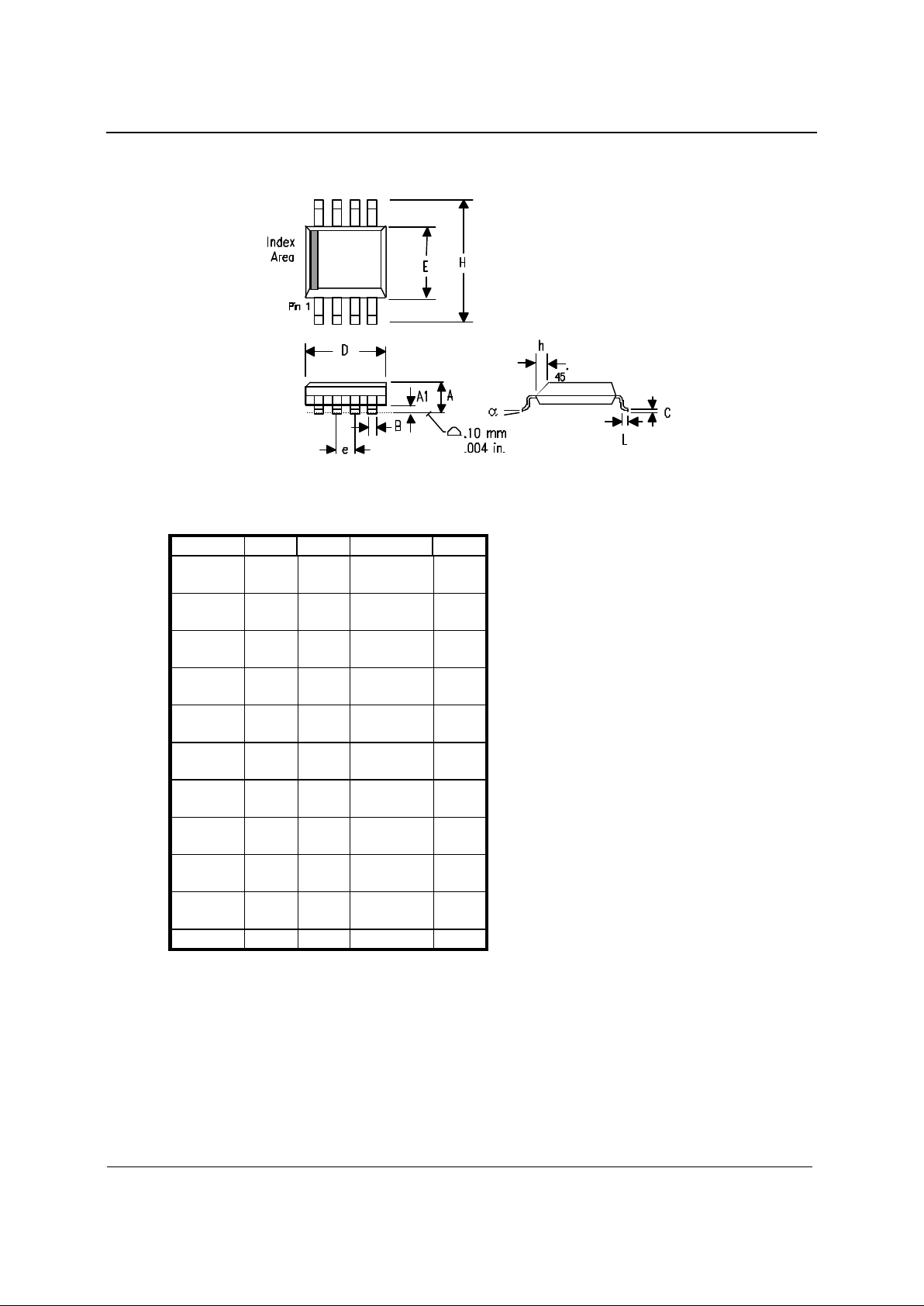

8-pin SOP (JEDEC)
Controlling dimensions is in millimeters. Conversions to inches are
not exact.
Symbol Dim Min Nom. Max
A mm
in.
1.35
.053
1.75
.069
A1 mm
in.
.10
.004
.25
.010
B mm
in.
.33
.013
.51
.020
C mm
in.
.19
.007
.25
.010
D mm
in.
4.80
.189
5.00
.197
E mm
in.
3.80
.150
4.00
.157
e mm
in.
1.27 BSC
.050 BSC
H mm
in.
5.80
.228
6.20
.244
h mm
in.
.25
.010
.50
.197
L mm
in.
.40
.016
1.27
.050
α 0° 8°
Page 13
Ramtron FM24C04
28 July 2000 13/13

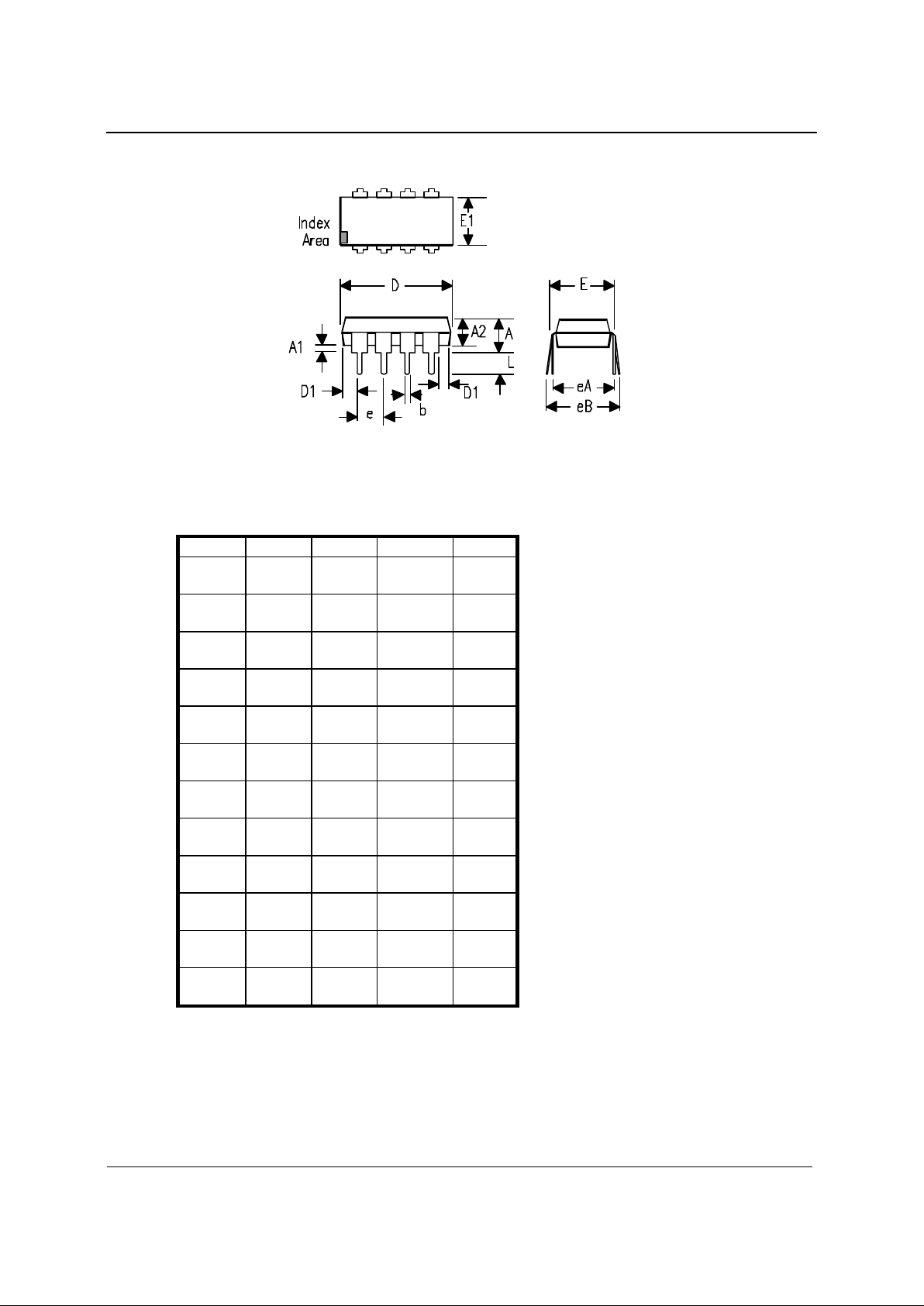

8-pin DIP (JEDEC)
Controlling dimensions is in inches. Conversions to millimeters are
not exact.
Symbol Dim Min Nom. Max
A in.
mm
.210
5.33
A1 in.
mm
0.015
.381
A2 in.
mm
0.115
2.92
0.130
3.30
0.195
4.95
b in.
mm
0.014
.356
0.018
.457
0.022
.508
D in.
mm
0.355
9.02
0.365
9.27
0.400
10.2
D1 in.
mm
0.005
.127
E in.
mm
0.300
7.62
0.310
7.87
0.325
8.26
E1 in.
mm
0.240
6.10
0.250
6.35
0.280
7.11
e in.
mm
.100 BSC
2.54 BSC
eA in.
mm
.300 BSC
7.62 BSC
eB in.
mm
0.430
10.92
L in.
mm
0.115
2.92
0.130
3.30
0.150
3.81
Loading...
